Look what happen to my turbo's!!
#1
Look what happen to my turbo's!!

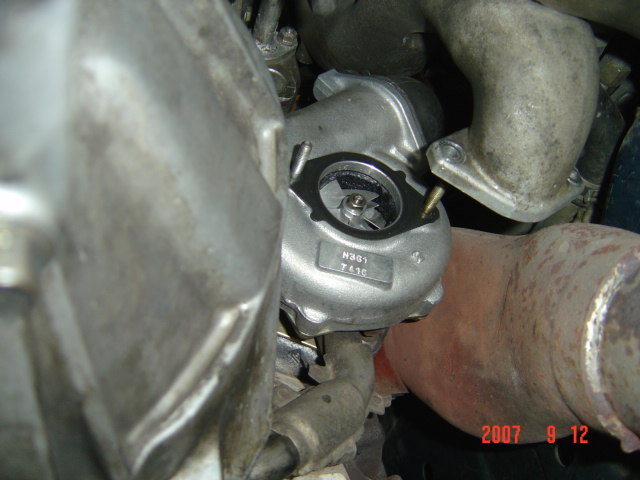

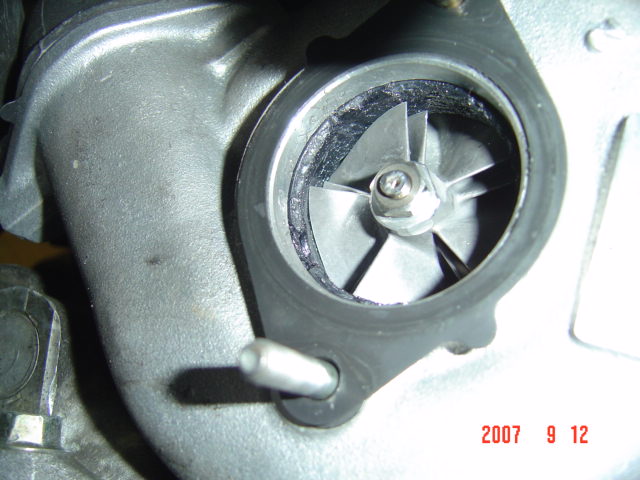

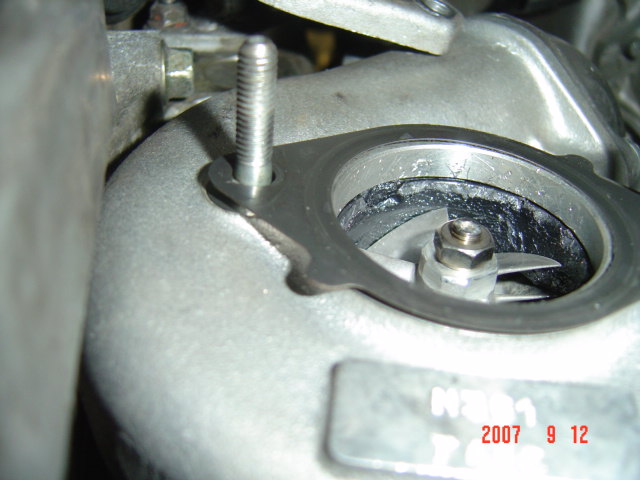

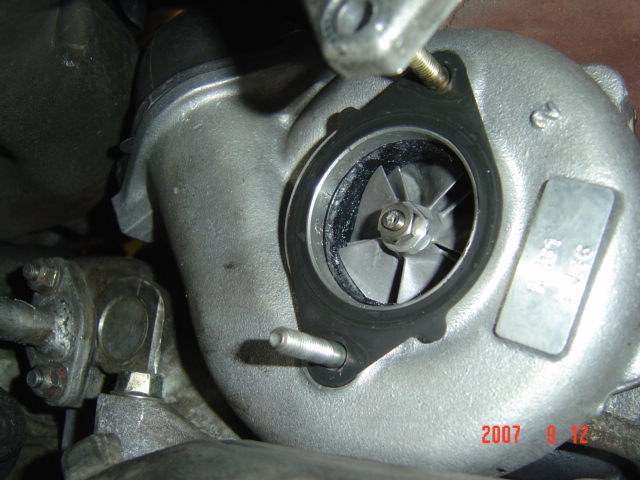

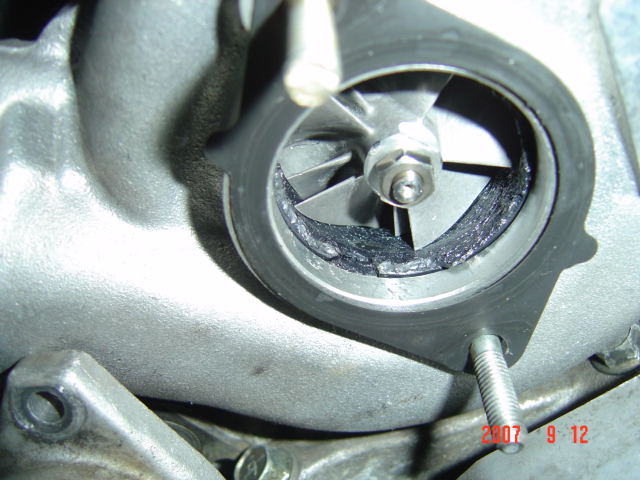

Here are some pics to what happen to my new 99 spec turbo's (secondary compressor housing)a couple of months ago. Turbo's werent damaged, thank god! I still haven't figured out why my secondary turbo's won't kick in above 4500 rpm. I have new silicone vacuum lines and I replaced the wastegate/pre-control solenoids and the turbo control solenoid (the one on top of the air control valve). I made sure all the lines to and from the turbo control solenoids don't have slits through it. Can the problem be the turbo control solenoid that controls the boost side of the turbo control actuator.(turbo control actuator is in good working condition) or is the ecu or wiring to the ecu to the turbo control solenoid. what does happen if one turbo control solenoid goes bad. does the turbo control actuator not operate thus preventing the second turbocharger from operating.
Last edited by JP's 93 fd; 11-30-07 at 03:58 AM.
#2
also i forgot to mention how the turbo's ended up like this. I was told that when I hit over 4500 rpm the charge control valve would open to combine both primary and secondary boost but since the secodary wasn't producing any boost, the primary boost would just vent out throught the second turbo then through the intake. I guess heat melted whatever was in the compressor housing somehow or another. . If you notice from the stock compressor housings and compare it to the 99 spec ones, there is some type plastic coating in it and thats what melted.
Last edited by JP's 93 fd; 11-30-07 at 04:16 AM.
#4
Full Member
Join Date: Dec 2003
Location: Great Neck, NY
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
c-clip on actuator
I've got 99's on my car (bought brand new). Had a similar problem in that the secondary turbo wasn't coming online. Almost like the primary was trying to pick up the slack. Now maybe you should have noticed since you've got the turbos off but the reasoning behind my problem was that the c-clip holding the actuator rod to the exhaust valve door had come off. This prevent the exhaust flow into the 2nd turbo causing no boost at higher rpm's. Check that c-clip, may be as simple as that??
Good luck.
Dave
Good luck.
Dave
#5
I've got 99's on my car (bought brand new). Had a similar problem in that the secondary turbo wasn't coming online. Almost like the primary was trying to pick up the slack. Now maybe you should have noticed since you've got the turbos off but the reasoning behind my problem was that the c-clip holding the actuator rod to the exhaust valve door had come off. This prevent the exhaust flow into the 2nd turbo causing no boost at higher rpm's. Check that c-clip, may be as simple as that??
Good luck.
Dave
Good luck.
Dave
also the compressor housing is not suppose to be like that. I sent them back and the place i got it from said the turbo wasn't damaged, it just needed a new compressor housing but 99 spec compressor housings are not sold seperately so they just put the stock compressor housing in.
Trending Topics
#9
Here are some pics to what happen to my new 99 spec turbo's (secondary compressor housing)a couple of months ago. Turbo's werent damaged, thank god! I still haven't figured out why my secondary turbo's won't kick in above 4500 rpm. I have new silicone vacuum lines and I replaced the wastegate/pre-control solenoids and the turbo control solenoid (the one on top of the air control valve). I made sure all the lines to and from the turbo control solenoids don't have slits through it. Can the problem be the turbo control solenoid that controls the boost side of the turbo control actuator.(turbo control actuator is in good working condition) or is the ecu or wiring to the ecu to the turbo control solenoid. what does happen if one turbo control solenoid goes bad. does the turbo control actuator not operate thus preventing the second turbocharger from operating.
Let me know what you find out.
Travis 757-544-2901 cell
