Gringo Grande

iTrader: (97)

Anyone have a picture of the 5 OEM bolts that go through the LIM? I only seem to find pictures of the Himni parts. Thank you.

YellowT2

iTrader: (1)

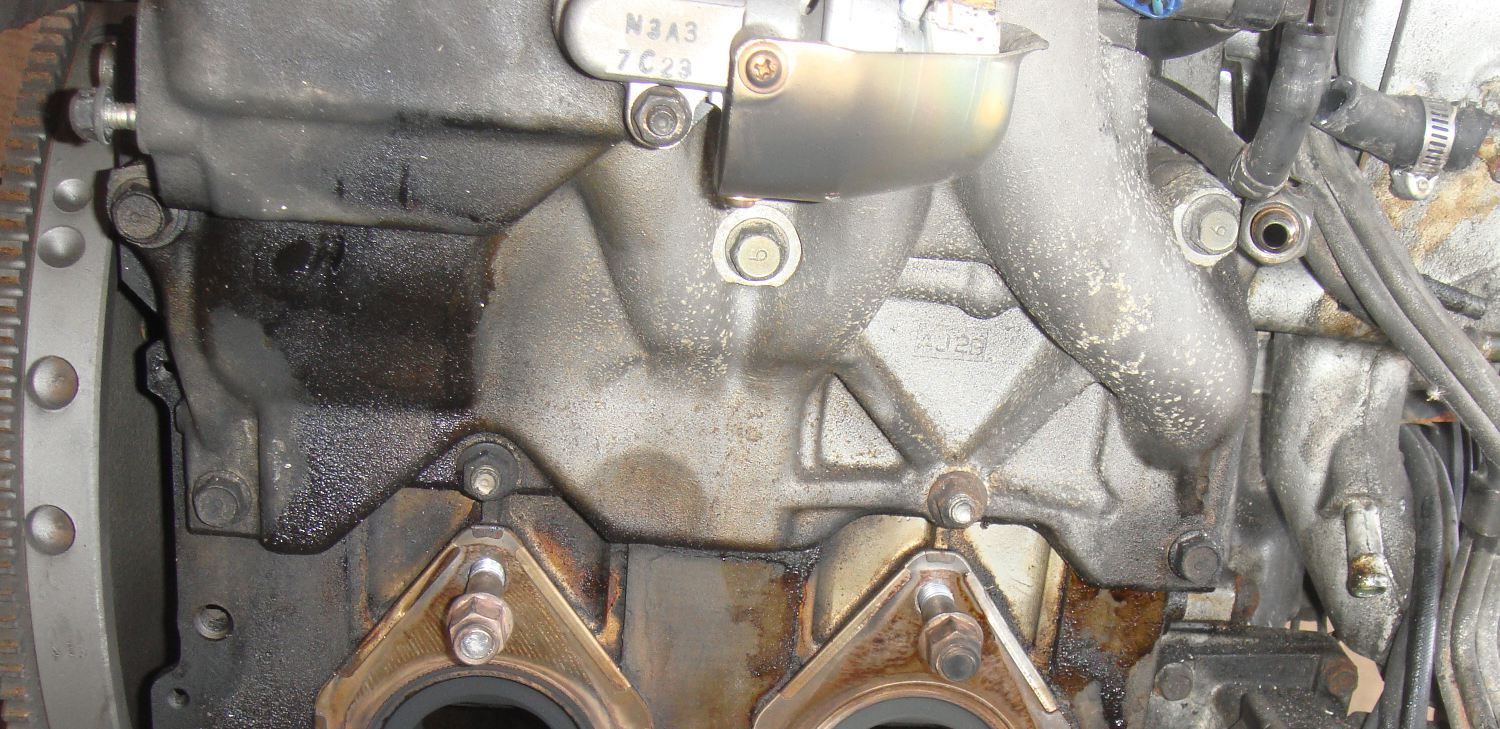

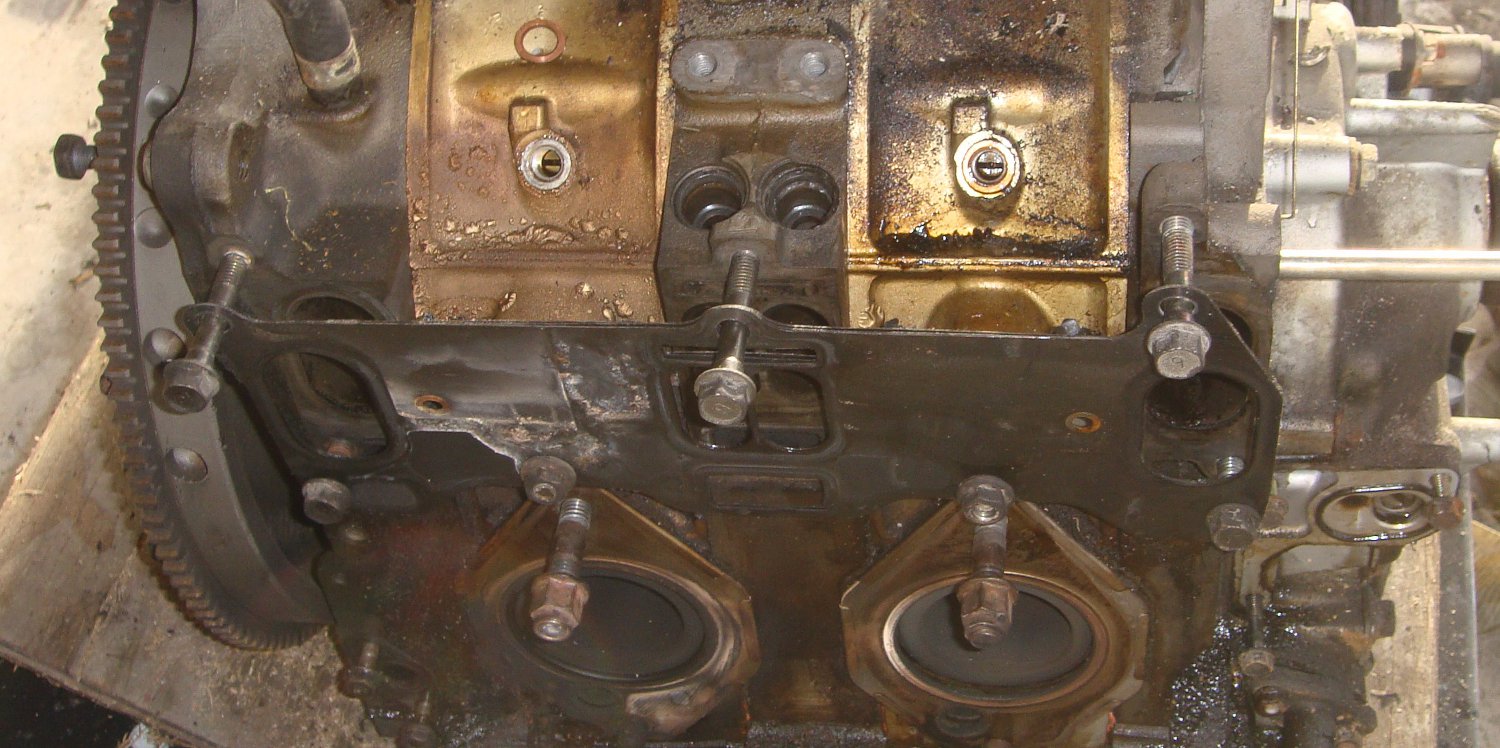

I don't have a pic of the bolts by themselves, but here are pics of the LIM installed, and the bolts in the block with the LIM gone

Gringo Grande

iTrader: (97)

Thank you for your help, I genuinely appreciate it!

My issue is after keeping all my nuts and bolts separate during this entire build process I, in my infinite wisdom, dumped 2 bags together late one night! I'm fairly certain I have the LIM bolts but I know there are 5 bolts and 3 different lengths and I'm trying to figure out which go where!

Thank you again!

Edit: Per your picture it seems:

Bottom bolts = shortest.
Top left and right = medium.
Center = longest.

Or are the Tops and Middle the same length?

Julian

iTrader: (14)

Gringo Grande call out was correct. Mazda parts diagram states lower are P/N 99796-0825 (i.e. 8 mm x 25 mm long)
upper are 99796-0845 (x 45 mm long) and upper middel -0855 (x 55 mm long).

Note numbering system: also a Stud is 998**-xxyy, nut is 999**-xx00 xx equal to diameter and yy length.

Gringo Grande

iTrader: (97)

Thank you Yellow and Julian. Mystery solved!
