What's up everyone...

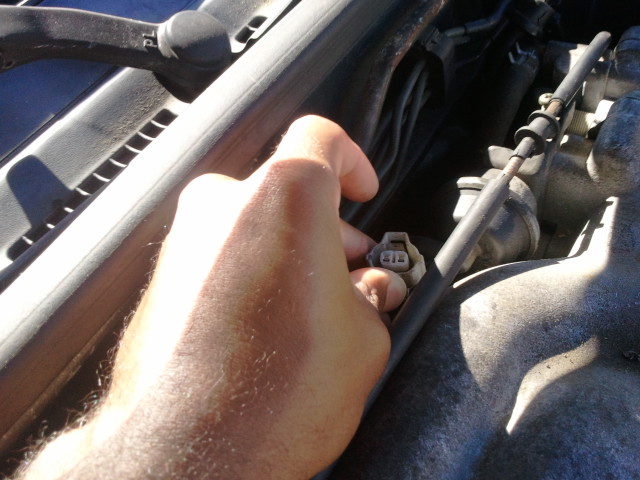

I'm finishing up a '99-spec motor swap, and have everything connected, save one connector. It's behing the UIM coming from the firewall. After looking at a few threads and diagrams it looks like the IAC connector, which I'm under the impression JDM motors don't have, which explains why I can't for the life of me find it's pair.

Can anyone confirm this before I try starting the car and accidentally blow something up?

Thanks in advance!

RENESISFD

iTrader: (13)

Looks like the IAC to me.



JDM motors should have one. Are you using the S8 UIM, or are you using a USDM UIM?

FD2Envy

iTrader: (2)

Thanks for the reply,
I'm using the JDM S8 UIM...

RENESISFD

iTrader: (13)

Do you have a PIC of the underside of the UIM?

Just to be sure what the plug is for, what color wires are going to it?

FD2Envy

iTrader: (2)

So, apparently it's time for me to get my prescription checked; it was the IAC connection, which plugged right in to the connector that I failed to see from the angle I was looking. The wires are a black/white-stripe and green wire...

Thank you again for even looking at this thread, haha!

RotaryEvolution

iTrader: (30)

that one's kind of a bitch, since it can't be connected easily with the UIM off the engine and not easy to spot once it is on.
