Does anyone have any pics of their condensor mounted with a fmic and upgraded rad? Also is there anything that can do to reduce the heat temp that are generated by the three? Its gettting hot here AL, I dont think I can go another summer with out it.



I have a Koyo rad and apexi FMIC, I just pushed the AC condenser down on the under tray and made up some mounting brackets for it so it was secure.

how have you mounted yours ?

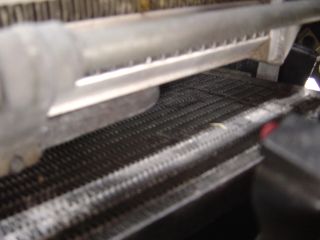

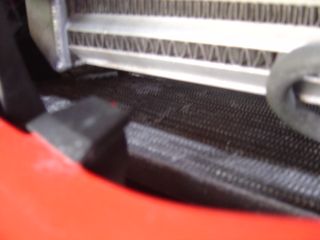

Here are some pics:



Any more pics?



never thought of that. Did you make a duct at the bottom of your under belly



S-MAN

I have some more pics but they are on my laptop which is bust as soon as i get that fixed i will post up some more pics for you should be soon.

93redFD

i drilled loads of little holes not too big, i think they where about 5mm but you could make some sort of duct i suppose.


shaQ
