Any suggestions on how to attach racing harness shoulder straps while retaining use of the back seats? I've seen in other cars where the straps where attached to the back seatbelt holes. Would this be an acceptable (safe) solution? Thanks.
Reply
Old Jun 16, 2020 | 04:41 PM
  #2
billyboy's Avatar
Rotary Freak
Tenured Member: 20 Years
Liked
Loved
Community Favorite

Joined: Jun 2005
Posts: 1,677
Likes: 287
From: sydney
The Japanese.....and pretty sure I've seen a few examples on here too.....seem to be keen on using the rear belt pick-ups for their shoulder straps. funnily enough, it seems to be Takata belts mostly. The strategy seems to be, if their airbags don't kill you, they want to make sure you end up a para or a quad from compressive forces on your spine. lol

Assuming you're not wanting to take rear seat passengers onto a track, buying or making a rear harness bar with eye-bolts for the usual quick disconnects and having a seat allowing both standard and 4/5/6 point is the way to go if you must put amputees in the back row. Shoulder straps should be no more than 20 degrees below horizontal.
Reply
Old Jun 16, 2020 | 04:50 PM
  #3
darktower's Avatar
Thread Starter
Junior Member

Joined: Feb 2020
Posts: 45
Likes: 26
From: San Diego, CA
Originally Posted by billyboy
The Japanese.....and pretty sure I've seen a few examples on here too.....seem to be keen on using the rear belt pick-ups for their shoulder straps. funnily enough, it seems to be Takata belts mostly. The strategy seems to be, if their airbags don't kill you, they want to make sure you end up a para or a quad from compressive forces on your spine. lol

Assuming you're not wanting to take rear seat passengers onto a track, buying or making a rear harness bar with eye-bolts for the usual quick disconnects and having a seat allowing both standard and 4/5/6 point is the way to go if you must put amputees in the back row. Shoulder straps should be no more than 20 degrees below horizontal.
Good points. That's kind of what I'm seeing too. I think the angle on the belts down to the seat belt bolts is too steep. I wouldn't try to put full size humans back there, but I'm trying to figure out a way to keep the rear accessible so my young son can roll with us to car shows and the like without having to bring a second vehicle. May have to just keep the standard belts for road use and put up a bar for the occasional track day.
Reply
Old Jun 16, 2020 | 09:12 PM
  #4
neit_jnf's Avatar
Eats, Sleeps, Dreams Rotary
Tenured Member: 20 Years
iTrader: (17)

Joined: Apr 2003
Posts: 4,057
Likes: 262
From: Around

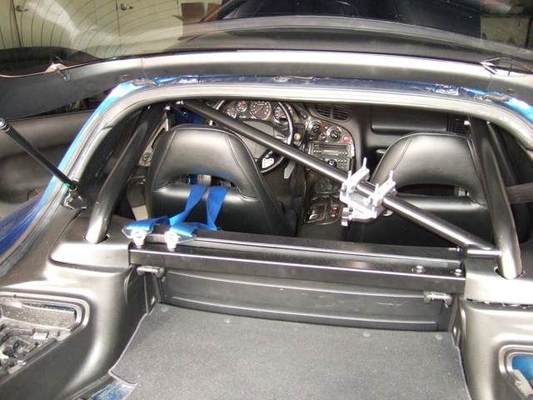

something like this?

harness bar
Reply
Old Jun 17, 2020 | 12:06 AM
  #5
darktower's Avatar
Thread Starter
Junior Member

Joined: Feb 2020
Posts: 45
Likes: 26
From: San Diego, CA
Originally Posted by neit_jnf
something like this?

harness bar
That looks like a good option. Thanks.
