3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

I guess my ignition harness shouldn't look like this

Old 09-29-10, 08:25 PM
  #1
r074r'/ |\|00B
10 Year Member
Thread Starter
iTrader: (14)

Join Date: Jan 2002
Location: KC, KS
Posts: 922
Likes: 0
Received 0 Likes on 0 Posts
I guess my ignition harness shouldn't look like this

A little history on m car... I purchased this car 3 months ago and it came with the KD rotary anti-det mod done. This means the car is setup to run without the trailing plugs. Tonight I was installing the leading coil pack (even though it uses leading plugs it fires off of trailing coils) back into the car, so I could undo the mod in the future when I can have it tuned by a pro.

I was unplugging the coils to make room and black tape started peeling off....So curiousity mode kicked in and I started undoing all the black tape. Here is what my harness looks like without all the tape:





So I can't imagine it came from mazda like that.
ksu-chewie is offline
Old 09-30-10, 05:26 AM
  #2
Registered User
iTrader: (6)

FierceAlien's Avatar

Join Date: Mar 2003
Location: LongIsland, NY
Posts: 432
Likes: 0
Received 0 Likes on 0 Posts
Im no expert on this. But i think that looks fine. I have not taken apart my ign coil harness, but i did take apart my engine harness. The blue tape is common among the wiring in the FD. Mazda liked it, and used it all over the car. :? To me though, that all looks like the stock unmodified ign coil harness.

Please take this with a grain of salt until someone who knows more then i do regarding this chimes in.
FierceAlien is offline
Old 09-30-10, 06:06 AM
  #3
Senior Member
5 Year Member
iTrader: (1)

Join Date: Aug 2006
Location: Space Coast Florida
Posts: 399
Likes: 0
Received 2 Likes on 1 Post
Normal; those are the ground connections to the wire shielding. Clean up and retape with the correct harness tape. Be sure to reconnect the shields to ground.
ttmott is offline
Old 09-30-10, 07:55 AM
  #4
YOUR TRIANGLE NIGHTMARE
5 Year Member
iTrader: (6)

rotorooter93fd's Avatar

Join Date: Mar 2006
Location: automotive purgatory
Posts: 807
Likes: 0
Received 0 Likes on 0 Posts
Ive seen worse
rotorooter93fd is offline
Old 09-30-10, 08:13 AM
  #5
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,337
Received 296 Likes on 253 Posts
FYI, that is the original ignition harness, it's not the updated one that Mazda has now. The old one has the ground wire that connects to one of the coil packs, the new design doesn't.

If you're in there replacing parts, go ahead and buy a new harness with the updated design. The old ones are prone to have misfire problems and ignition breakup at high RPM.

Dale
DaleClark is online now
Old 09-30-10, 08:30 AM
  #6
r074r'/ |\|00B
10 Year Member
Thread Starter
iTrader: (14)

Join Date: Jan 2002
Location: KC, KS
Posts: 922
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by DaleClark View Post
The old ones are prone to have misfire problems and ignition breakup at high RPM.
Hrm, I wonder if this is part of the problem I've been having. Looking for a new design now.

Thanks!
ksu-chewie is offline
Old 09-30-10, 11:25 AM
  #7
Eye In The Sky
iTrader: (2)

cewrx7r1's Avatar

Join Date: Feb 2001
Location: In Our Heads
Posts: 7,647
Likes: 0
Received 14 Likes on 12 Posts
Both the ignition harness and main engine harness should be replaced if both are the original bad ones, and you are doing any major engine work. The first design had used inferior wiring which was very prone to insulation cracking and becoming brittle, and the copper wire oxidating.

My replacement ones which were installed in 1999 (11 years old now) are in so much better condition than the originals were when replaced at age 7 years.
cewrx7r1 is offline
Old 09-30-10, 11:56 AM
  #8
Recovering Miataholic

wstrohm's Avatar

Join Date: Mar 2002
Location: Fountain Valley, CA
Posts: 1,471
Received 12 Likes on 10 Posts
Question

When were the ignition and engine harnesses updated? Ours is a '94 built in Nov. '93.
wstrohm is offline
Old 09-30-10, 11:57 AM
  #9
r074r'/ |\|00B
10 Year Member
Thread Starter
iTrader: (14)

Join Date: Jan 2002
Location: KC, KS
Posts: 922
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by cewrx7r1 View Post
Both the ignition harness and main engine harness should be replaced if both are the original bad ones, and you are doing any major engine work.
I am planning on replacing the main wiring harness when I go single turbo.
ksu-chewie is offline
Old 03-11-12, 04:22 PM
  #10
Tunning till I drop!
iTrader: (34)

James Paventi's Avatar

Join Date: Oct 2002
Location: Chatsworth, CA
Posts: 799
Likes: 0
Received 1 Like on 1 Post
new coil pack harness vs old pics

Hi everyone,

My car usually idles flawlessly. Sometimes, seemingly randomly, it starts missing. I'll start the car an hour later and it's back to normal. Also, I have high RPM breakup now and then.

I picked up a new, sealed-in-the-Mazda-bag coil harness for about 50% of the dealers (Malloy's) in the for sale section of this forum. Given the price (lucky find), this is as good a place as any to start troubleshooting the problem. Besides the old harness is crispy and needs to be replaced anyway.

The old harness has the ground strap and the new one does not. I was going to ask why but this forum seems to have all of the answers after 10+ years. I shot a pic and thought that this would be a good thread to add it to.

James

James Paventi is offline
Old 03-11-12, 09:20 PM
  #11
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,337
Received 296 Likes on 253 Posts
That's just how they did the new harness with no ground strap. Seems like the ground would be better but I guess it wasn't needed.

I've seen quite a few cars with weird ignition problems that a new ignition harness fixed.

Dale
DaleClark is online now
Old 03-11-12, 09:39 PM
  #12
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
At this stage in the game, anyone still running their original ignition harness should definitely consider replacing it with a brand new one
GoodfellaFD3S is offline
Old 03-11-12, 09:45 PM
  #13
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (52)

XLR8's Avatar

Join Date: Oct 2001
Location: NJ
Posts: 3,901
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by GoodfellaFD3S View Post
At this stage in the game, anyone still running their original ignition harness should definitely consider replacing it with a brand new one
Yup, $80 from Ray at Malloy Mazda.
XLR8 is offline
Old 03-12-12, 12:30 AM
  #14
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
Weird; I would have thought the single eneded ground of the braided cover would have been required to keep EMF out of the low voltage triggering signal. Maybe they grounded internal within the plug ground??
Julian is offline
Old 03-12-12, 08:58 AM
  #15
Original Gangster/Rotary!

iTrader: (206)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,999
Received 136 Likes on 109 Posts
^Bingo.
GoodfellaFD3S is offline
Old 03-12-12, 12:25 PM
  #16
Rotary Enthusiast
10 Year Member
iTrader: (3)

dblboinger's Avatar

Join Date: Sep 2003
Location: DeSoto IL
Posts: 913
Likes: 0
Received 0 Likes on 0 Posts
Anyone know the part number for the new engine harness?
dblboinger is offline
Old 03-12-12, 01:21 PM
  #17
Recovering Miataholic

wstrohm's Avatar

Join Date: Mar 2002
Location: Fountain Valley, CA
Posts: 1,471
Received 12 Likes on 10 Posts
Anyone know the part number for the new engine harness?

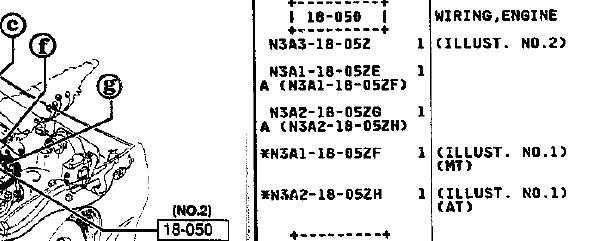

From the pic above, looks like the new number is N3A3-18-05Z (?), but not sure of the number in parenthesis. I think it's Illustration No. 2 in the 1994 RX-7 parts catalog picture attached.
Attached Thumbnails I guess my ignition harness shouldn't look like this-ign-harness.jpg
wstrohm is offline
Old 03-12-12, 01:42 PM
  #18
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
Originally Posted by wstrohm View Post
From the pic above, looks like the new number is N3A3-18-05Z (?), but not sure of the number in parenthesis. I think it's Illustration No. 2 in the parts catalog picture attached.
Enlarging the photo clearly indicates N3A3-18-05Z (3), I don't recall seeing a PN descrption that way before??

The N3A1-18-... part is the main engine harness (Illustration #1) for Manual Trans cars; where-as N3A2-18-... is for automatic. N3A3-18-... is the Illustration #2 harness (coils)

N3A1-18-05ZF is an acceptable alternative to N3A1-10-05ZE

and N3A1-18-05ZH is and alternative to N3A1-10-05ZG
Julian is offline
Old 03-12-12, 02:09 PM
  #19
Recovering Miataholic

wstrohm's Avatar

Join Date: Mar 2002
Location: Fountain Valley, CA
Posts: 1,471
Received 12 Likes on 10 Posts
^ +1. Also there is a VIN break for some of those P/Ns at ... 4408, for the 1994 model.
wstrohm is offline
Old 03-12-12, 02:26 PM
  #20
Rotary Freak
10 Year Member
iTrader: (14)

Julian's Avatar

Join Date: Jan 2004
Location: Longview, Texas
Posts: 1,855
Likes: 0
Received 1 Like on 1 Post
Originally Posted by wstrohm View Post
^ +1. Also there is a VIN break for some of those P/Ns at ... 4408, for the 1994 model.
Yes the VIN is a break point, but then the 'A" fro alternative is given for the higher revision letter, so should be Ok.
Julian is offline
Old 03-12-12, 03:19 PM
  #21
Rotary Enthusiast
10 Year Member
iTrader: (3)

dblboinger's Avatar

Join Date: Sep 2003
Location: DeSoto IL
Posts: 913
Likes: 0
Received 0 Likes on 0 Posts
.
dblboinger is offline
Old 03-12-12, 03:24 PM
  #22
Rotary Enthusiast
10 Year Member
iTrader: (3)

dblboinger's Avatar

Join Date: Sep 2003
Location: DeSoto IL
Posts: 913
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by wstrohm View Post
From the pic above, looks like the new number is N3A3-18-05Z (?), but not sure of the number in parenthesis. I think it's Illustration No. 2 in the 1994 RX-7 parts catalog picture attached.
Yes, but what is pictured is the ignition harness, not the engine harness. I'm assuming the engine harness is the one that contains the solenoid connectors and routes underneath the UIM, right?
dblboinger is offline
Old 03-12-12, 07:50 PM
  #23
Recovering Miataholic

wstrohm's Avatar

Join Date: Mar 2002
Location: Fountain Valley, CA
Posts: 1,471
Received 12 Likes on 10 Posts
dblboinger,

True. But thought only the ignition harness had changed. In any case, the correct engine harness numbers (for 1994 models) are shown both in my attachment above, and also are listed correctly by Julian in post #18 above.
wstrohm is offline
Old 03-13-12, 08:34 PM
  #24
Senior Member
10 Year Member
iTrader: (1)

Join Date: May 2002
Location: Houston, TX
Posts: 705
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by FierceAlien View Post
The blue tape is common among the wiring in the FD. Mazda liked it, and used it all over the car.
I've never torn into an FD harness, and hope I never have to, but going from my experience with the harness on my REPU, and looking at the pictures shown here, Mazda uses blue tape to mark splices.
JM1FD is offline
