briansfd

iTrader: (4)

Hi all. Putting my engine back together after a rebuild and I lost some tags on what goes where. Can you help me out with identifying them? Thanks!

1. Nipple coming off the center housing drivers side pointing towards the fire wall.

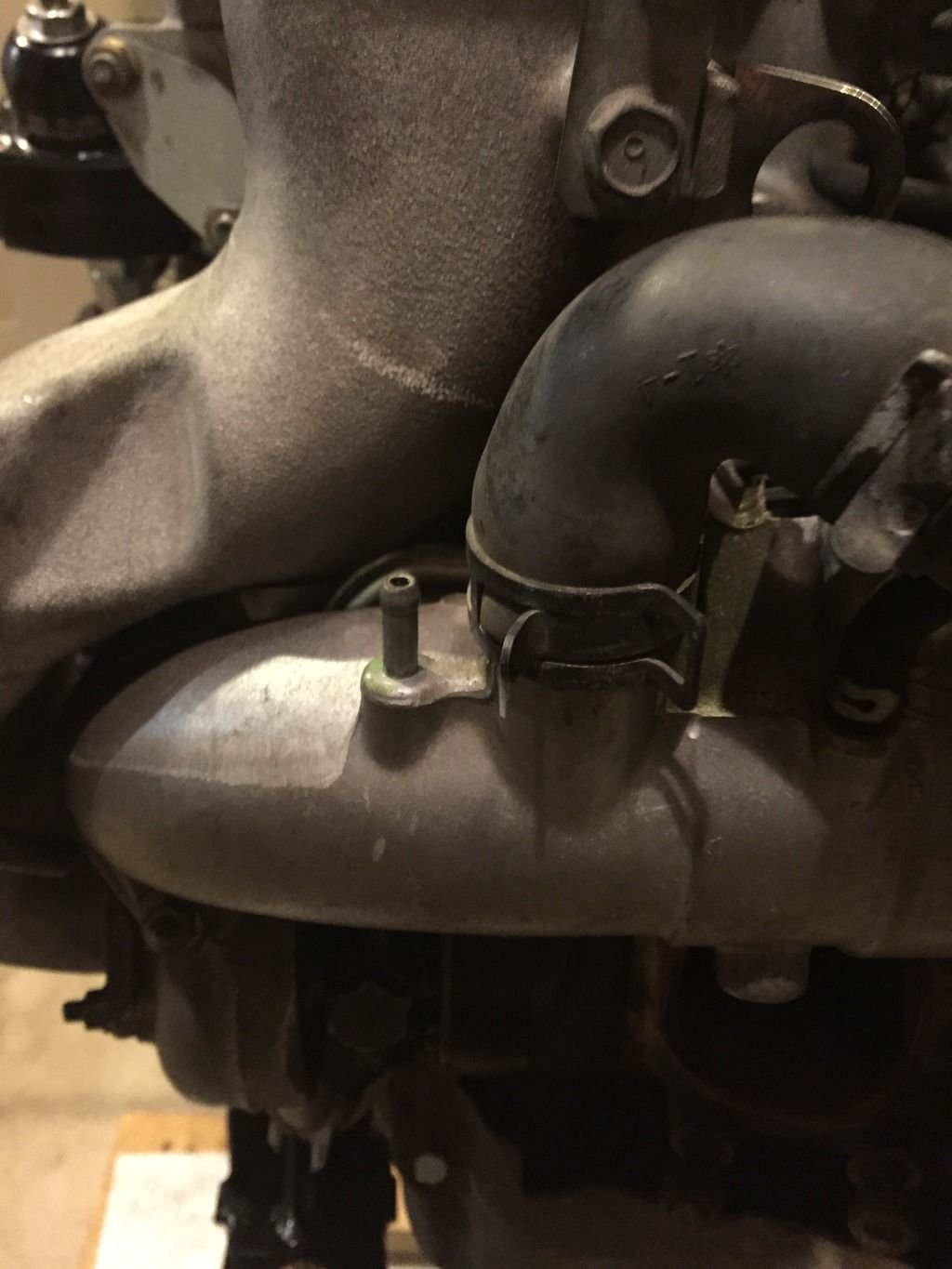

2. Nipple coming off the intercooler piping.

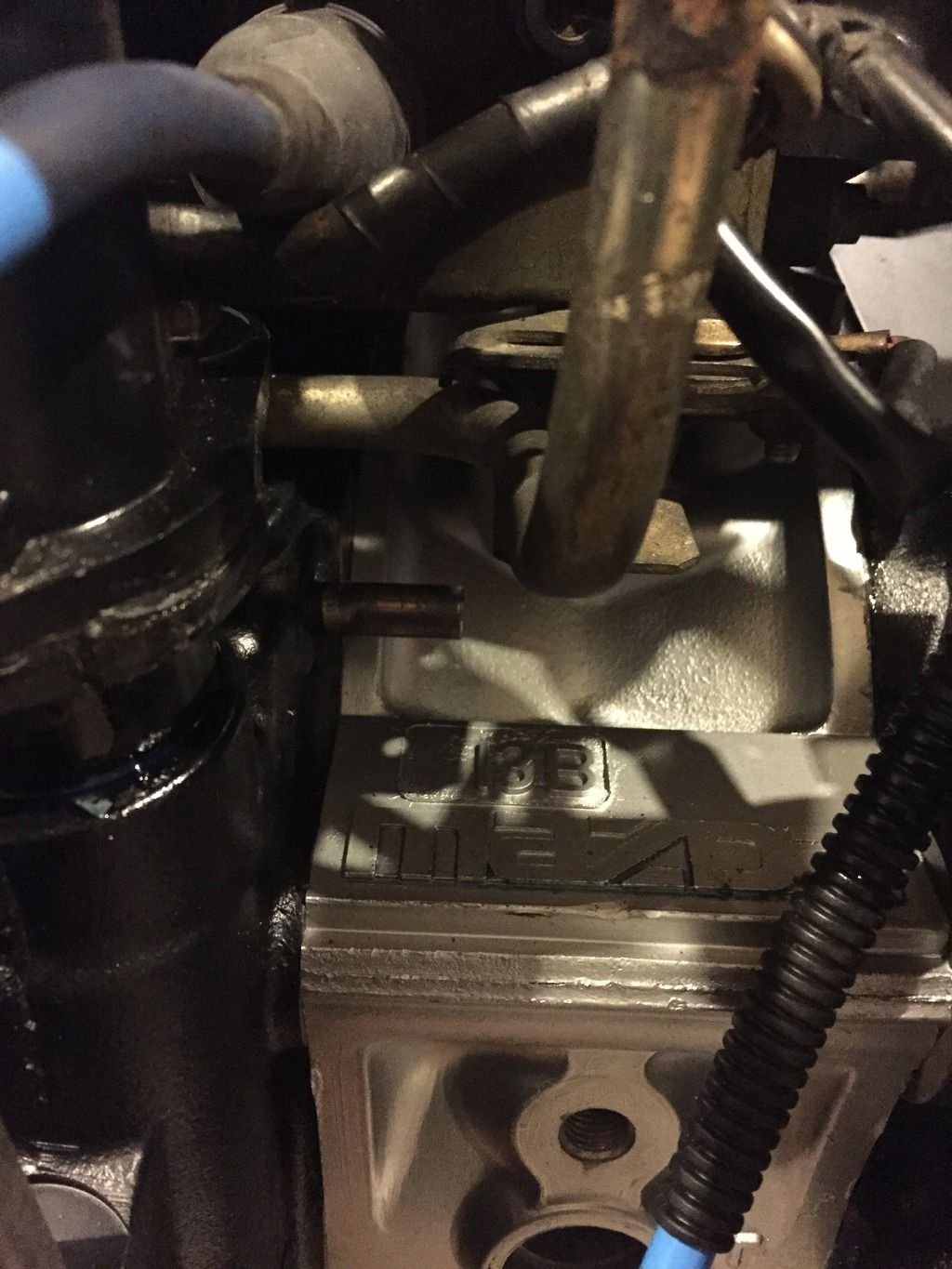

3. Nipple on the passenger side just behind the primary fuel rail.


4. Line on the passenger side just in front of the secondary fuel rail.


5. Vacuum line coming off the upper intake manifold.

briansfd

iTrader: (4)

5. Is this the vacuum line for the MAP sensor?

sctRota

iTrader: (2)

1.) crankcase vent (leave open if I remember)
2.)Goes to lower intake manifold.
3.) rear coolant nipple (You removed cold start so you need to bypass back to the engine)
5.)Map/boost sensor line

Are you doing the non sequential conversion?

briansfd

iTrader: (4)

I already did simplified sequential. I just need to do my break in miles then going single.

Prôdigy2nd

iTrader: (3)

I thought #4 went to the bottom nipple on the side of the Y-pipe


J

briansfd

iTrader: (4)

Got everything.Thanks for answering you guys.

IRPerformance

iTrader: (41)

Please don't tell me you are clamping stainless -an line with a hose clamp.
