How do I connect x-05 and this A/T connector
I bought a 93 FD RX7 from a Guy who seemed to have converted it from an autonto a manual in every way except the dash, firewall, or front harness. The seems to have this x-05 connector and this big Auto trans connector and I was wondering if anyone knew how to connect these or what wires I have to splice togethor. The car also doesn't have a clutch interlock switch hooked up so is there a way to bypass that and loop the signal and power wire on these connectors or on the ecu? All I have left are these two connectors and two black connectors that plug into that infamous 93 fan control box

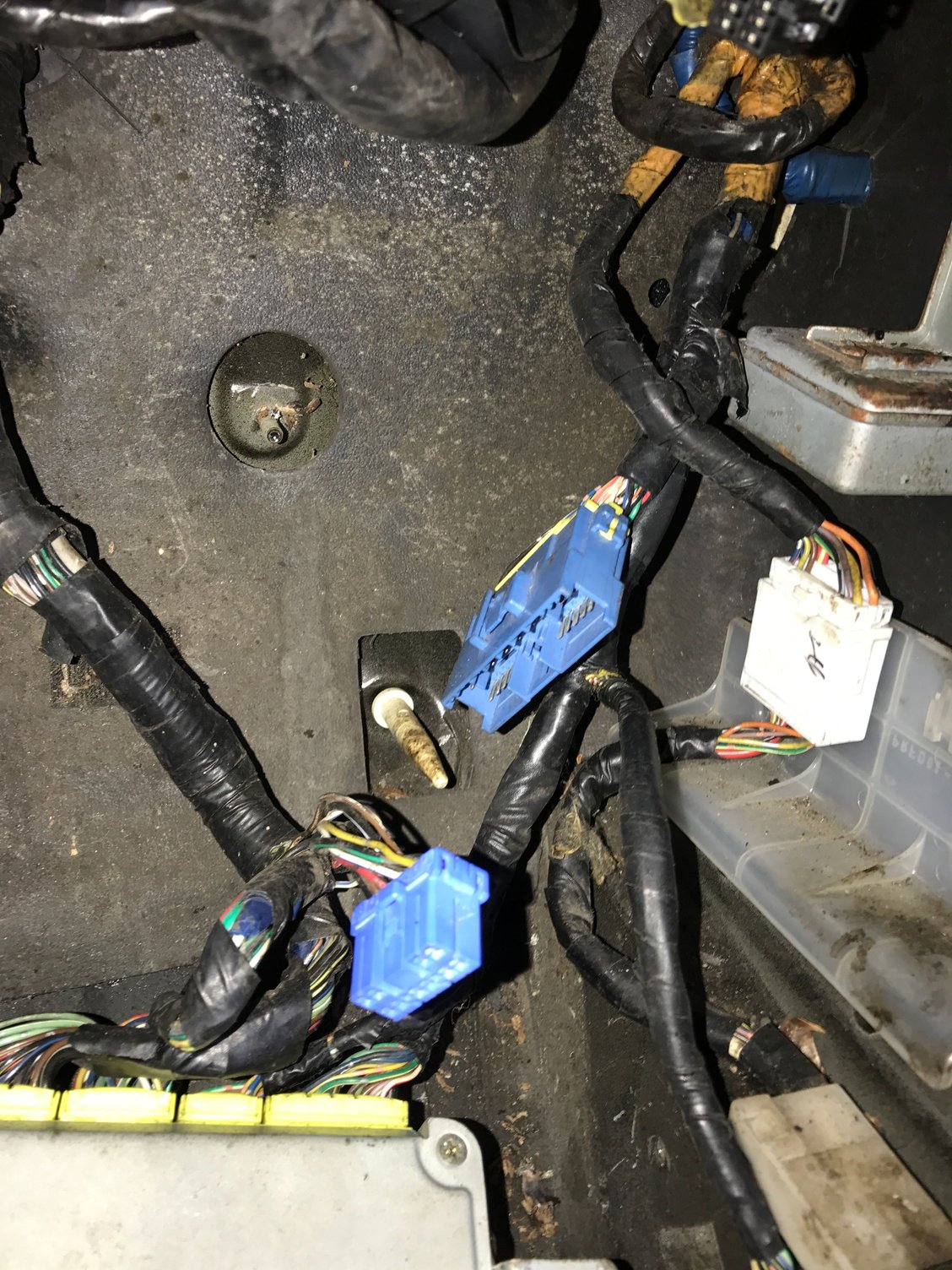

Here is a picture of those two blue connectors close up
Here is the entire wiring situation. The two cube shaped connectors are in this picture as well but I don't believe the need to be plugged in to turn the car over
Here is the entire wiring situation. The two cube shaped connectors are in this picture as well but I don't believe the need to be plugged in to turn the car over
