How Can I Remove This Stubborn Screw

Thread Tools

Search this Thread

Old 06-24-14, 09:54 PM
  #1
MX3
Senior Member

Thread Starter
iTrader: (4)

MX3's Avatar

Join Date: Feb 2006
Location: Virginia
Posts: 748
Received 2 Likes on 1 Post
How Can I Remove This Stubborn Screw

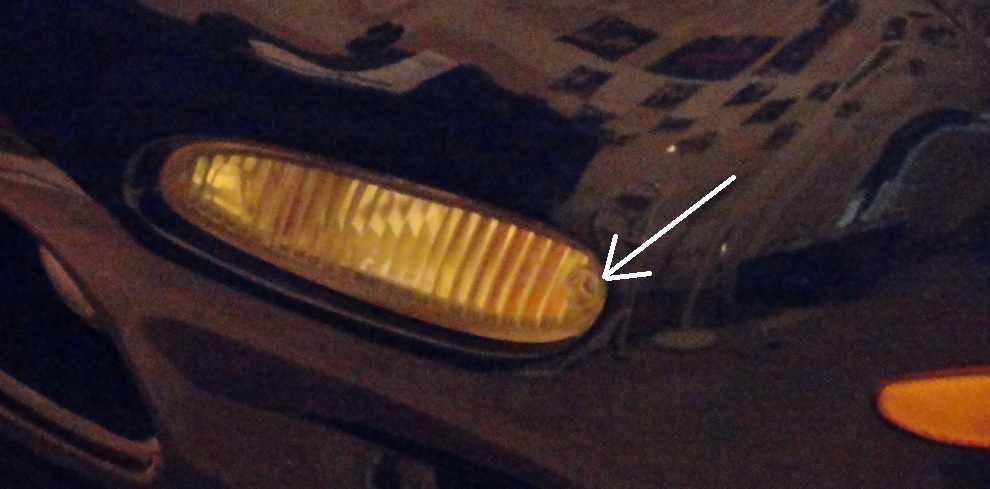

I need to take the light cover off the front bumper but the screw just spins and spins and I cannot get it out.

I've even tried to open the hood and pop up the lights and manually push the light cover out but I'm not able to push the light cover or the screw out.

Can anyone please recommend a solution.


Name:  FDBumper_zpsb704075c.jpg
Views: 21
Size:  137.0 KB
Old 06-24-14, 10:14 PM
  #2
Senior Member

iTrader: (11)

CrimsonPride's Avatar

Join Date: Mar 2010
Location: B'ham, AL
Posts: 450
Likes: 0
Received 2 Likes on 2 Posts
Can you get something thin like a knife blade between the side of the light cover and the bumper cover then use that to pull forward on the cover while you turn the screw. I've been able to get some spinning screws to bite by applying withdrawal force to the part while turning the screw at the same time.

If that won't work you may have to drop the oil cooler to get to it from the back side and see what's going on with the screw.
Old 06-24-14, 10:16 PM
  #3
The shy megalomaniac

iTrader: (2)

NeoTuri's Avatar

Join Date: May 2003
Location: Atlanta, GA
Posts: 881
Received 79 Likes on 59 Posts
Unless you're willing to do something drastic, there's not a practical way to get behind that screw.

Sometimes, I've had success with cutting/grinding the sides down flat and using a pair of pliers to work them out.
Old 06-24-14, 10:41 PM
  #4
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Carefully drill the head off with a big drill bit.Big enough to take the head of that screw off.
The rest of the screw will stay there but you can pull the housing off.
Then you can get more access to that screw "stub' and get it out of there.
Old 06-24-14, 10:58 PM
  #5
Recovering Milkaholic

iTrader: (7)

Fd3BOOST's Avatar

Join Date: Jan 2002
Location: Budds Creek, Maryland
Posts: 8,203
Likes: 0
Received 0 Likes on 0 Posts
Might already be loose, hence the free spin. Did you try pulling it out with a magnet?
Old 06-24-14, 11:00 PM
  #6
Senior Member

iTrader: (20)

Sephek's Avatar

Join Date: Oct 2010
Location: Cali.
Posts: 356
Likes: 0
Received 1 Like on 1 Post
I've been able to get screws out like that with a magnetized screw driver.

or...

Apply a little bit of contact cement or some form of viscous glue to the head of the screw driver.
Place it on top of the screw and lit it sit still for some time, come back and pull it out (gently) while unscrewing.
Old 06-24-14, 11:33 PM
  #7
Senior Member

iTrader: (11)

CrimsonPride's Avatar

Join Date: Mar 2010
Location: B'ham, AL
Posts: 450
Likes: 0
Received 2 Likes on 2 Posts
^
I've never tried gluing the screwdriver to the screw but it would be worth a try. Any way to pull outward on the screw, whether it's via the part or the screw itself, while turning should give a chance for the threads to bite.
Old 06-25-14, 10:46 AM
  #8
MX3
Senior Member

Thread Starter
iTrader: (4)

MX3's Avatar

Join Date: Feb 2006
Location: Virginia
Posts: 748
Received 2 Likes on 1 Post
Did you try pulling it out with a magnet?

FD3Boost - I thought about using a magnet but I doubt that will work - I can tell that the screw has lost pretty much all the grooves hence making it impossible to come out.
Old 06-25-14, 10:20 PM
  #9
10-8-10-8


SA3R's Avatar

Join Date: Jan 2012
Location: Australia
Posts: 845
Likes: 0
Received 9 Likes on 7 Posts
I'd be considering what you're going to do once you get it out- the hole is probably chewed from use over the years, and you'll have to attempt to fix it so you don't get this problem again next time.

My polished sill scuff plates are doing the same thing with their screws :/
My fix will be to insert a "rivnut" or "nutsert" to stop the problems for good.
Old 06-25-14, 10:51 PM
  #10
Cheap Bastard

iTrader: (2)

adam c's Avatar

Join Date: Sep 2002
Location: San Luis Obispo, Ca
Posts: 8,370
Received 50 Likes on 42 Posts
I would get a cheap screwdriver, and JB Weld it to the screw. Once it has "set" you should be able to unscrew it while pulling it outward.
Old 06-26-14, 09:15 AM
  #11
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
Just use a small eye glasses flat screw driver down the side to pry it back while you unscrew it. It will work.
Old 06-26-14, 10:36 AM
  #12
Rotary Enthusiast

iTrader: (10)

04G35S's Avatar

Join Date: Jan 2013
Location: Madison, WI
Posts: 1,053
Received 4 Likes on 4 Posts
Why not just take the bumper off so you can get your hand behind it or a pliers?
