Hot UIM, what causes it and how fix it
#27
Form follows function
iTrader: (8)
Additionally, I vent heat that has built up in the intake tract by circulating air out a BOV located at the Greddy elbow. This helps prevent and clear IC heat soak while driving in traffic and keeps cooler, denser air on tap at the throttle plates.
The idea is to have a practical, systematic approach to thermal management, keeping everything in the intake tract as cool as practical. As an added benefit, underhood temps stay at much more manageable temps. Aluminum has a rather high specific heat, and pound for pound, conducts and holds much more heat than cast iron.
#31
Form follows function
iTrader: (8)
You can source it through McMaster-Carr in various sized sheets and thicknesses. IIRC the trade name is Garolite. I have used 3/16, 1/4 and 5/16 thicknesses, all with good result. While the material is very strong under compression, it is brittle and will chip if not cut properly; therefore, I suggest buying extra and anticipating a practice run to perfect your cutting/drilling technique.
The phenolic material is very flat and so you can run it without gaskets (if desired) against flat machined surfaces using a small amount of sealant--I use Permatex 'aviation form-a-gasket' (also a phenolic product) with good results. Hylomar is also a good choice. The forgoing allowing for easy removal and reuse. You can, of course, use other sealants, but removal/reuse may be more difficult and you risk breakage.
The phenolic material is very flat and so you can run it without gaskets (if desired) against flat machined surfaces using a small amount of sealant--I use Permatex 'aviation form-a-gasket' (also a phenolic product) with good results. Hylomar is also a good choice. The forgoing allowing for easy removal and reuse. You can, of course, use other sealants, but removal/reuse may be more difficult and you risk breakage.
#32
brap brap mf
iTrader: (14)
Join Date: May 2004
Location: clifton, NJ (north jersey)
Posts: 402
Received 0 Likes
on
0 Posts
^ speed of light, u want to make up a couple lets of lim to block and lim to uim "gaskets" and sell em on the for sale section or as a group buy? i know there's at least 5 of use that want these.
#34
Rotary Enthusiast
iTrader: (5)
Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
You can source it through McMaster-Carr in various sized sheets and thicknesses. IIRC the trade name is Garolite. I have used 3/16, 1/4 and 5/16 thicknesses, all with good result. While the material is very strong under compression, it is brittle and will chip if not cut properly; therefore, I suggest buying extra and anticipating a practice run to perfect your cutting/drilling technique.
The phenolic material is very flat and so you can run it without gaskets (if desired) against flat machined surfaces using a small amount of sealant--I use Permatex 'aviation form-a-gasket' (also a phenolic product) with good results. Hylomar is also a good choice. The forgoing allowing for easy removal and reuse. You can, of course, use other sealants, but removal/reuse may be more difficult and you risk breakage.
The phenolic material is very flat and so you can run it without gaskets (if desired) against flat machined surfaces using a small amount of sealant--I use Permatex 'aviation form-a-gasket' (also a phenolic product) with good results. Hylomar is also a good choice. The forgoing allowing for easy removal and reuse. You can, of course, use other sealants, but removal/reuse may be more difficult and you risk breakage.
Teflon is a little more compliant and is good for high temperatures - that would be my choice without thinking about the problem too much. Take that for what it's worth.
#35
Form follows function
iTrader: (8)
I'd recommend against using garolite G10 or G11 for a gasket. It's fiberglass so it's a good insulator and it handles high temperatures but it will not seal well since it's so hard and you're likely to end up with small pieces of fiber protruding out of the cut edges which you definitely wouldn't want getting sucked into the engine. Maybe I'm not understanding - did you just run it as an insulator and use a gasket on either side of it? It would work well for that minus the fiber issue.
Teflon is a little more compliant and is good for high temperatures - that would be my choice without thinking about the problem too much. Take that for what it's worth.
Teflon is a little more compliant and is good for high temperatures - that would be my choice without thinking about the problem too much. Take that for what it's worth.
Use Garolite 'grade XX' (NOT G10 or G11), it is paper based product which machines freely. I use it on the LIM to engine without a gasket--just a small amount of sealer as noted above. Works fine, no leaks, has held up for several years and is reusable. Temperature ratings are not an issue on our application.
The Garolite 'grade XX' does not cold flow--it is absolutely rigid and will not smoosh down; as I mentioned, it is suitable for use against other flat, machined surfaces with only a small amount of appropriate sealer. You can also use it with gaskets if you wish, works fine either way.
I would not recommend teflon for compressive applications as it does cold flow and will slowly smoosh down requiring periodic re-torquing.
#37
Lives on the Forum
iTrader: (9)
The only place I can still find an active link for the phenolic gaskets is Gizzmo USA, and I can't determine whether it's a UIM or LIM gasket. Anyone know which, and whether they are still available>?
I'd try out the UIM, because if it blows it's easy to fix, but not the LIM... too much trouble if there's a problem.
I'd try out the UIM, because if it blows it's easy to fix, but not the LIM... too much trouble if there's a problem.
#38
AponOUT!?
iTrader: (31)

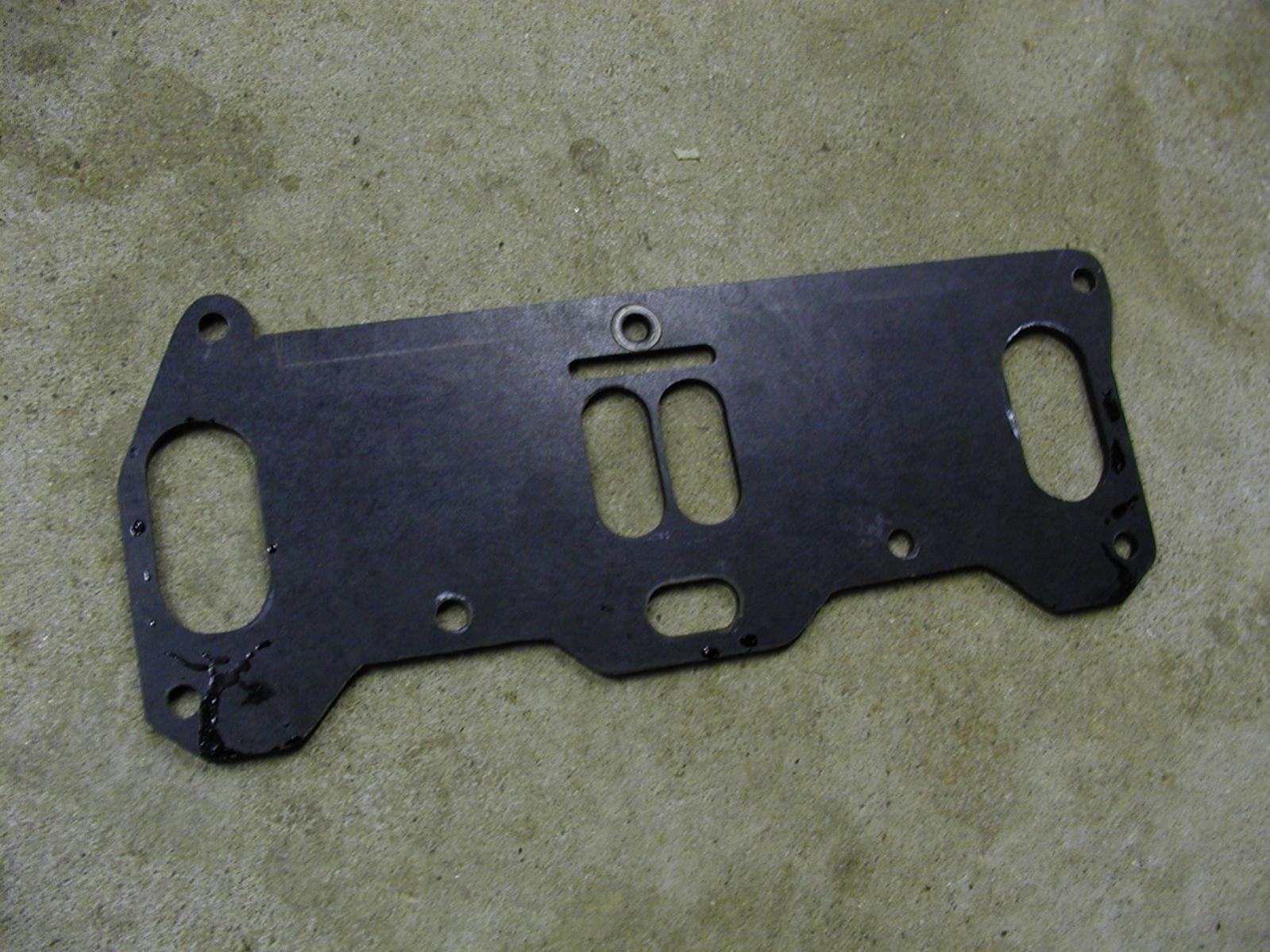

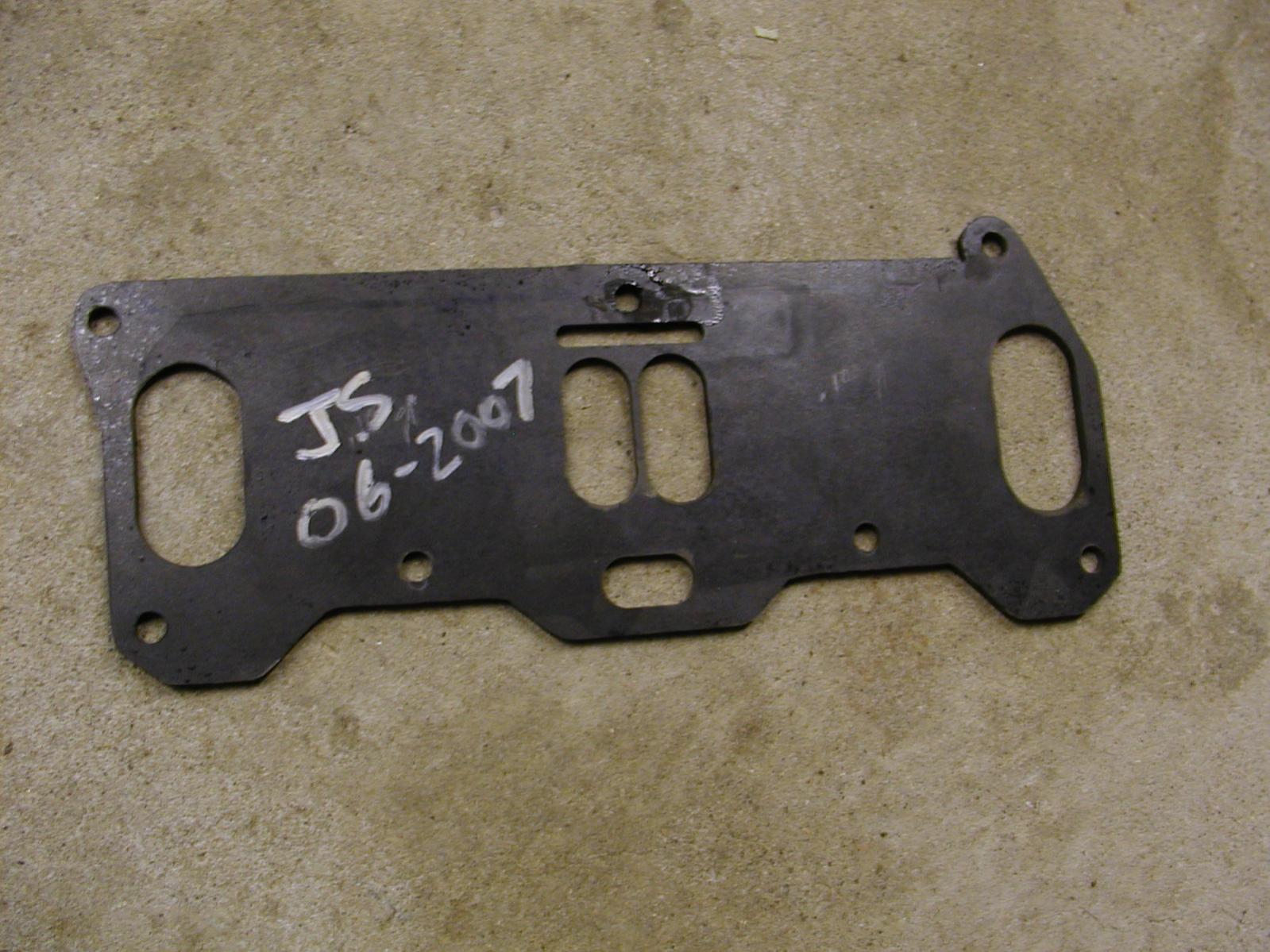

I also have the phenolic spacer between the LIM & UIM, and I too did this a few years ago:
You can't really see it when installed:

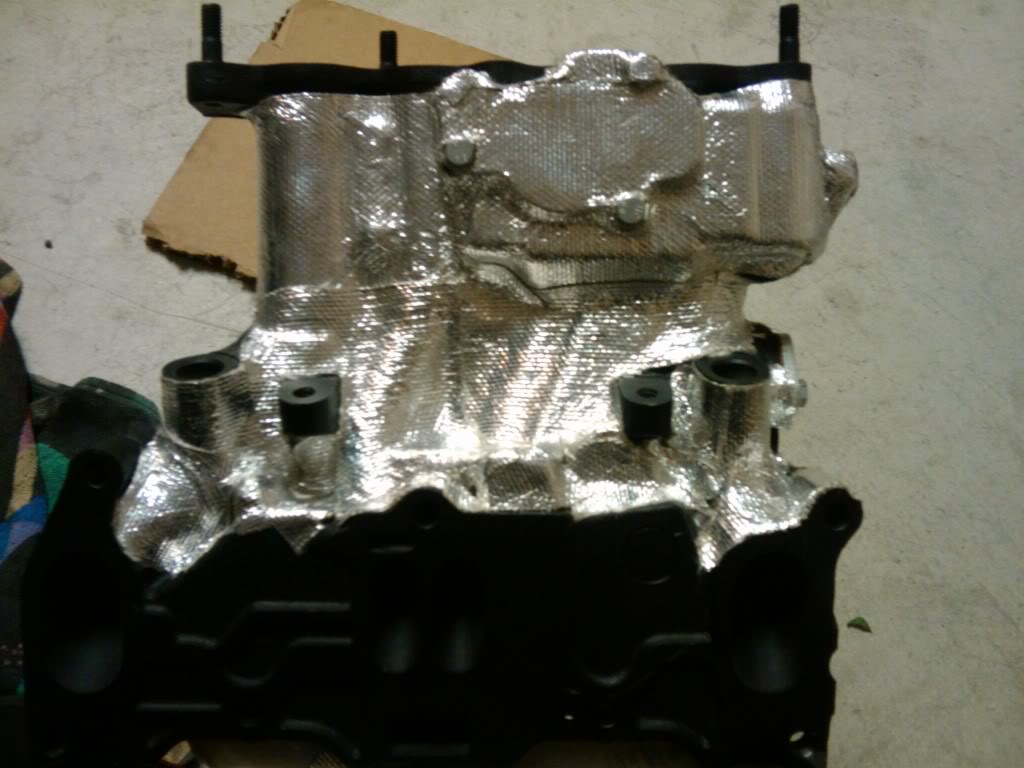

Also did my LIM the last time I had it off, but used the fiberglass backed, silver stuff:
Lastly I have the FEED vented hood. I've noticed that this trinity of mods helps prevent heat soak on the manifold, as it's not as hot to the touch when I pop the hood. I relocated my air intake sensor to before the intake elbow, so I'm not sure the numeric value of the effects.
Yeah, because you see so much of the UIM's underside, and so much of the LIM's outside when the engine bay is all put together.
Oh, and its more important how they look, rather than how they function. Have fun with your "pretty" manifolds that are more prone to heat soak than our "ugly" ones...haha
You can't really see it when installed:
Also did my LIM the last time I had it off, but used the fiberglass backed, silver stuff:
Lastly I have the FEED vented hood. I've noticed that this trinity of mods helps prevent heat soak on the manifold, as it's not as hot to the touch when I pop the hood. I relocated my air intake sensor to before the intake elbow, so I'm not sure the numeric value of the effects.
Oh, and its more important how they look, rather than how they function. Have fun with your "pretty" manifolds that are more prone to heat soak than our "ugly" ones...haha
#40
Rotary Enthusiast
iTrader: (5)
Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
Use Garolite 'grade XX' (NOT G10 or G11), it is paper based product which machines freely. I use it on the LIM to engine without a gasket--just a small amount of sealer as noted above. Works fine, no leaks, has held up for several years and is reusable. Temperature ratings are not an issue on our application.
The Garolite 'grade XX' does not cold flow--it is absolutely rigid and will not smoosh down; as I mentioned, it is suitable for use against other flat, machined surfaces with only a small amount of appropriate sealer. You can also use it with gaskets if you wish, works fine either way.
I would not recommend teflon for compressive applications as it does cold flow and will slowly smoosh down requiring periodic re-torquing.
The Garolite 'grade XX' does not cold flow--it is absolutely rigid and will not smoosh down; as I mentioned, it is suitable for use against other flat, machined surfaces with only a small amount of appropriate sealer. You can also use it with gaskets if you wish, works fine either way.
I would not recommend teflon for compressive applications as it does cold flow and will slowly smoosh down requiring periodic re-torquing.
#41
Moderator
iTrader: (7)
I believe for the car manufacturers it's most likely cheaper to make the intake manifolds out of plastic than aluminum. It's also lighter which is a plus.
I think the technology just came about where they could make them out of plastic and they'd hold up for the long term. You have to worry about heat, pressure, oils, gas, etc. and how it reacts to it, and I'm sure that's a tricky recipe of plastic.
Dale
I think the technology just came about where they could make them out of plastic and they'd hold up for the long term. You have to worry about heat, pressure, oils, gas, etc. and how it reacts to it, and I'm sure that's a tricky recipe of plastic.
Dale
David
#42
MODERATOR
iTrader: (137)
-spacers
-reflective tape tri layer
-cerma coat powder coating from olympic coaters
Gives you this! Now someone said the gold look ugly does anyone else agree?
