HKS Din Panel Question w/ PIC
#1
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
HKS Din Panel Question w/ PIC
I recently purchased a AEM Gauge-Type Wideband UEGO Controller which is 52mm. I want to mount it but dont want to mount it in on the pillar. I track the car pretty often, and I already hate the left A-pillar and the left side-view mirror. I dont want to put the gauge on the a-pillar. Since the Uego Gauge will only be used for minor tuning, I want to place it out of the way. The center-channel is where I'm thinking to mount the Boost/EGT gauges. I've been looking for a din-panel which can hold my Uego. HKS has one made for the FD and has spots for either two more gauges or two head-units (depending on what panel you buy). Everything is great, the only problem is it's setup for a 46mm gauge.
Now for the question, does anyone have one of these DIN Panels? Is there enough room to modify the housing to accomodate a 52mm gauge?
Also, are there any other DIN Panel manufacturers anyone knows of? I've tried searching for hours...nothing. All i foung was some old thread in like '03 for some plexiglass prototype. Thanks in advance for everyones help.
Pic is from a Nissan 300ZX I believe.
Now for the question, does anyone have one of these DIN Panels? Is there enough room to modify the housing to accomodate a 52mm gauge?
Also, are there any other DIN Panel manufacturers anyone knows of? I've tried searching for hours...nothing. All i foung was some old thread in like '03 for some plexiglass prototype. Thanks in advance for everyones help.
Pic is from a Nissan 300ZX I believe.
#6
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the responses guys. Does anyone have a HKS din plate though? I want to know how much space is there betweent he top, bottom, left, and right of the 42mm gauge hole. If there's enough room to grind it to 52mm, I'll buy it. Soni, if it's not modifiable to 52mm, I'll pick up one of your carbon fiber ones (look a million times better than those plastic ones). Please make sure the two HKS units will fit though. Thanks!
#7
Banned. I got OWNED!!!
I can make it to spec. Its much easier to mount a 42mm rather than a 52mm gauge in there. I can do alot of different things with that. I am working on a double din panel that houses an I pod and a couple of gauges or 1/2 din size units.
Trending Topics
#8
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ImranRX-7
Thanks for the responses guys. Does anyone have a HKS din plate though? I want to know how much space is there betweent he top, bottom, left, and right of the 42mm gauge hole. If there's enough room to grind it to 52mm, I'll buy it. Soni, if it's not modifiable to 52mm, I'll pick up one of your carbon fiber ones (look a million times better than those plastic ones). Please make sure the two HKS units will fit though. Thanks!
My .02
#9
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Thanks rotoober. I'll most probably pick up Soni's version. Soni, I'll let you know soon. Whatever way I do choose, I will definately post pics of the install. Thanks everyone!
#10
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts

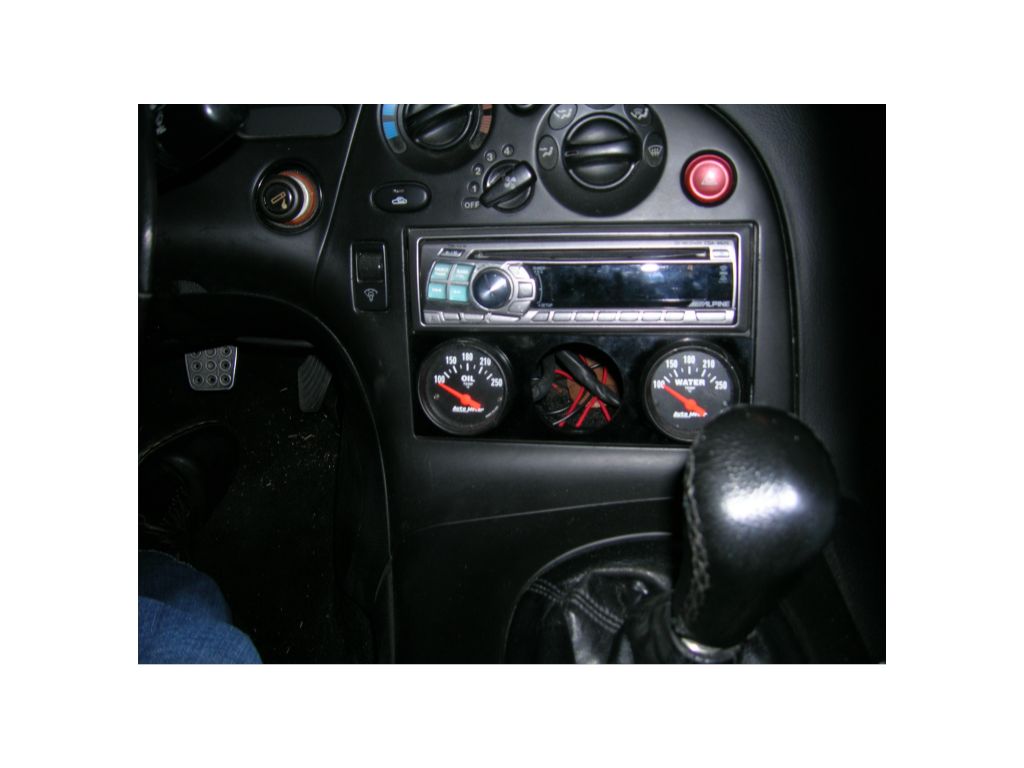

You asked for some photos.. so.. Also got my new momo wheel in this weekend and even modified a used cruise control to work with it. Helped LOTS with me fitting the car - no my knee does not hit the wheel when shifting or heel/toe!
I think it turned out quite well.
Gauges have chrome ring, and are angled twards driver. I think it has an almost stock look. Actually looks better in real life than these pictures.
I think it turned out quite well.
Gauges have chrome ring, and are angled twards driver. I think it has an almost stock look. Actually looks better in real life than these pictures.
#11
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotoober
You asked for some photos.. so.. Also got my new momo wheel in this weekend and even modified a used cruise control to work with it. Helped LOTS with me fitting the car - no my knee does not hit the wheel when shifting or heel/toe!
I think it turned out quite well.
Gauges have chrome ring, and are angled twards driver. I think it has an almost stock look. Actually looks better in real life than these pictures.
I think it turned out quite well.
Gauges have chrome ring, and are angled twards driver. I think it has an almost stock look. Actually looks better in real life than these pictures.
#12
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts
It was the 3 gauge variety set up, I've got three 52.4mm (2 1/16) autometer gauges. It required some precision rotozip workmanship. The plastic face is glued to the metal "box" or enclosure that you can bolt to the back of the dash. All the vibraration from rotoziping the holes to make the larger gauges fit loosened up the face from the "box". I can't remember, but I may have gotten rid of the box itself and the gauges are mounted to the plastic faceplate only. If you are into carbon fiber the guys plate above would be an easy install.
#15
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ReadyKW
Question, what holds the DIN plate in place, doublesided tape? Also, is it possible to move the radio unit to the bottom and place the gauges on top?
#16
silver ghost
iTrader: (11)
Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,061
Likes: 0
Received 5 Likes
on
5 Posts
Originally Posted by ReadyKW
Question, what holds the DIN plate in place, doublesided tape? Also, is it possible to move the radio unit to the bottom and place the gauges on top?
#17
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Here's some pics of my gauge install.
If you like the DIN Panel, contact sonix7 (carbonfiberinnovation.com), he made these for me. If you want the placeholders, let him know because they dont come with them unless requested.
Words of Advise (if installing yourself):
Unless you have a particular reason for the Bocsh O2 sensor to be on the downpipe, don't put it there. Put it on the midpipe/hi-flow cat pipe. You will save many hours of hard work and you wont have to worry about stripping screws on the turbo-manifold mounting point for the downpipe. You have to remove the whole thing and get the boss/bung welded to it. If you do it on the midpipe/hi-flow, you will save a whole lot of time and effort.
Make sure you mark your boss/bung weld point with the pipe STILL bolted on. You can mess up and weld it at an angle that puts the O2 sensor close to heatsheilds/piping.
Also, leave some room for movement as the motor rocks right and left under throttling.
If you like the DIN Panel, contact sonix7 (carbonfiberinnovation.com), he made these for me. If you want the placeholders, let him know because they dont come with them unless requested.
Words of Advise (if installing yourself):
Unless you have a particular reason for the Bocsh O2 sensor to be on the downpipe, don't put it there. Put it on the midpipe/hi-flow cat pipe. You will save many hours of hard work and you wont have to worry about stripping screws on the turbo-manifold mounting point for the downpipe. You have to remove the whole thing and get the boss/bung welded to it. If you do it on the midpipe/hi-flow, you will save a whole lot of time and effort.
Make sure you mark your boss/bung weld point with the pipe STILL bolted on. You can mess up and weld it at an angle that puts the O2 sensor close to heatsheilds/piping.
Also, leave some room for movement as the motor rocks right and left under throttling.
#18
one part from Nirvana
iTrader: (3)
Join Date: Dec 2004
Location: in a van by the river
Posts: 380
Likes: 0
Received 0 Likes
on
0 Posts
Wow, turned out great! I'm going to be mounting my Innovative unit in the same place this weekend (assuming it shows up). Where did you connect to for the +12v heater for the sensor?
#19
Lets Go Hokies!
iTrader: (5)
http://www.egauges.com/vdo_acce.asp?...ric_DIN&Cart=1
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
#20
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
hey rotoober, i did the removing/welding portion of the instaal. I took it to a trusted friend "Elite Motorsports" in Redondo Beach to get the electrical done. I'll find out what he used as the 12v source.
Originally Posted by rotoober
Wow, turned out great! I'm going to be mounting my Innovative unit in the same place this weekend (assuming it shows up). Where did you connect to for the +12v heater for the sensor?
#21
Full Member
Thread Starter
Join Date: Jul 2004
Location: Los Angeles
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
nice, i saw those but i wanted cf. I was originally going to use double sided tape but my buddy's had a metal mounting bin for Din panel place holders. He just mounted my din panel to that and installed it.
Originally Posted by afterburn27
http://www.egauges.com/vdo_acce.asp?...ric_DIN&Cart=1
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
#22
just dont care.
iTrader: (6)
Originally Posted by afterburn27
http://www.egauges.com/vdo_acce.asp?...ric_DIN&Cart=1
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
Just another option. I have a DIN panel that snaps into place so you don't have to use double sided tape to hold it in there. Bought it on ebay a year or so ago, but I haven't seen any on there in a while. It also came with place holders that snap in and look really nice since I am only using 1 gauge right now.
i just bought one of those DIN gauge pods. 25 bucks shipped is a great price and it clips right into the DIN area
