Help me identify this hose pls! Coolant related`~

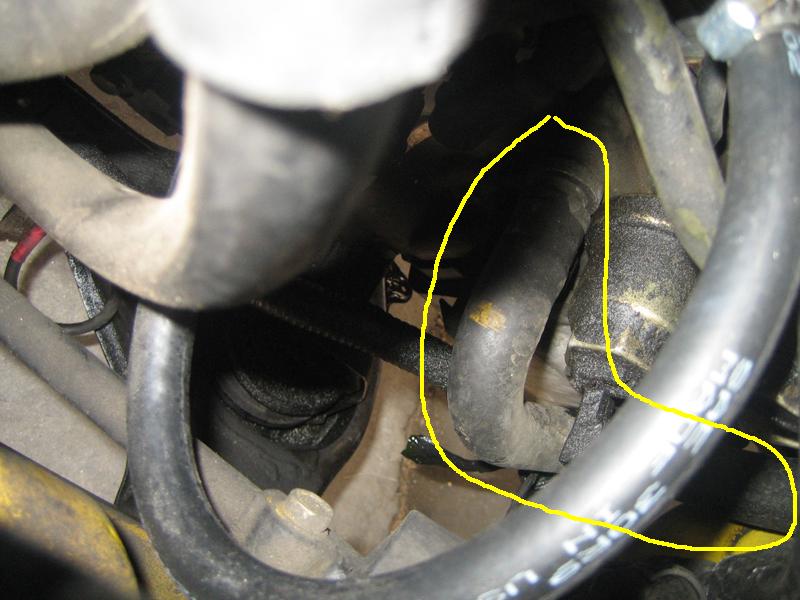

I just found a coolant leak on my FD and can't identify what this hose is to get a replacement. Could any of you name this hose or provide the part # to this hose so I can order one through mazda? On one of the pictures, you can see where the hose was punctured from that metal peice that holds the ss line down. This hose is located near the firewall, below the oil filter. Thanks!
Attached Thumbnails Help me identify this hose pls!  Coolant related`~-11.jpg   Help me identify this hose pls!  Coolant related`~-22.jpg   Help me identify this hose pls!  Coolant related`~-33.jpg
Old 10-09-06, 04:26 PM
  #2
Full Member

Thread Starter

philek9's Avatar

Join Date: Jul 2006
Location: los angeles
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts

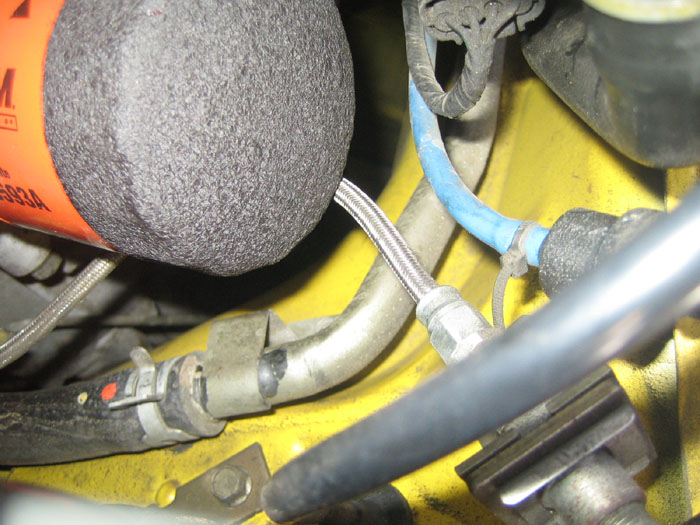

Here's the hard line that it connects to. The hard line runs from the driver side to the passenger side firewall. The 2nd picture shows the hose on the end of the hardline on the passenger side. Thanks.
Attached Thumbnails Help me identify this hose pls!  Coolant related`~-44.jpg   Help me identify this hose pls!  Coolant related`~-55.jpg

Last edited by philek9; 10-09-06 at 04:30 PM.
Old 10-09-06, 04:56 PM
  #3
Rotary Enthusiast


Trexthe3rd's Avatar

Join Date: Mar 2001
Location: ATL, GA U.S.
Posts: 1,283
Received 4 Likes on 4 Posts
That's the hose going to your heater core. Call Malloy mazda and ask for Ray, give him a description of the location of the hose (or just tell him the rubber hose going to the heater core) he'll know.
Old 10-09-06, 05:41 PM
  #4
Full Member

Thread Starter

philek9's Avatar

Join Date: Jul 2006
Location: los angeles
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts
Thanks a lot!! Is there anyway to drive the car for another day or two like this? Or is it too risky? There's a small needle sized puncture that leaks about a hamburger sized puddle after the car sits the whole day.
Old 10-09-06, 07:53 PM
  #5
In the burnout box...

iTrader: (32)

mono4lamar's Avatar

Join Date: Oct 2003
Location: New York
Posts: 4,453
Likes: 0
Received 1 Like on 1 Post
i wouldnt drive it... it blows you either overheat or your stranded.
Old 10-09-06, 08:18 PM
  #6
Mr. Links

iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,595
Received 40 Likes on 26 Posts
Originally Posted by philek9
Thanks a lot!! Is there anyway to drive the car for another day or two like this? Or is it too risky? There's a small needle sized puncture that leaks about a hamburger sized puddle after the car sits the whole day.
Your coolant system is pressurized. It doesn't take much to turn a small leak into a gusher so I wouldn't recommend driving it until you fix it.
