I recently had an engine fire and am trying to piece everything back together and need some help figuring out what goes where.

In this pic what sensors go under the oil filler neck? I know one is for the water temp gauge but which one and what goes in the one right beside it. Also what goes above the trailing plug on the rear rotor. On the front rotor i have a knock sensor but on the rear nothing is threaded in.

Next could someone tell me what all was connected to the wires that go through the drivers fender well, they were all totally burned. I know the ignitor, fuel pump resistor, and MAP sensor come up throught there but i can tell what else. If anybody has an old Front Harness with the pig tails for these components PM me. Thanks guys.



Nobody?



I believe the plug right below the oil filler neck is for the oil sending unit.
I don't believe anything goes above the trailing plug in the rear housing.

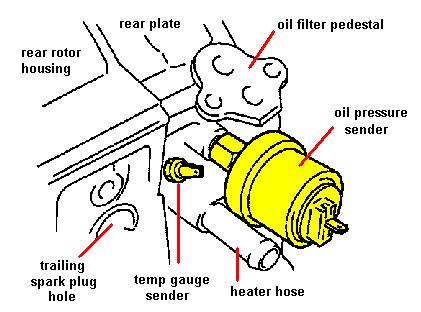

Here's a pic.



Thanks that helps alot.
