help identify oil leak with pics

Thread Tools

Search this Thread

Old 12-19-12, 09:33 PM
  #1
Full Member

Thread Starter
iTrader: (12)

buish's Avatar

Join Date: Jun 2005
Location: CA
Posts: 109
Likes: 0
Received 2 Likes on 2 Posts
help identify oil leak with pics

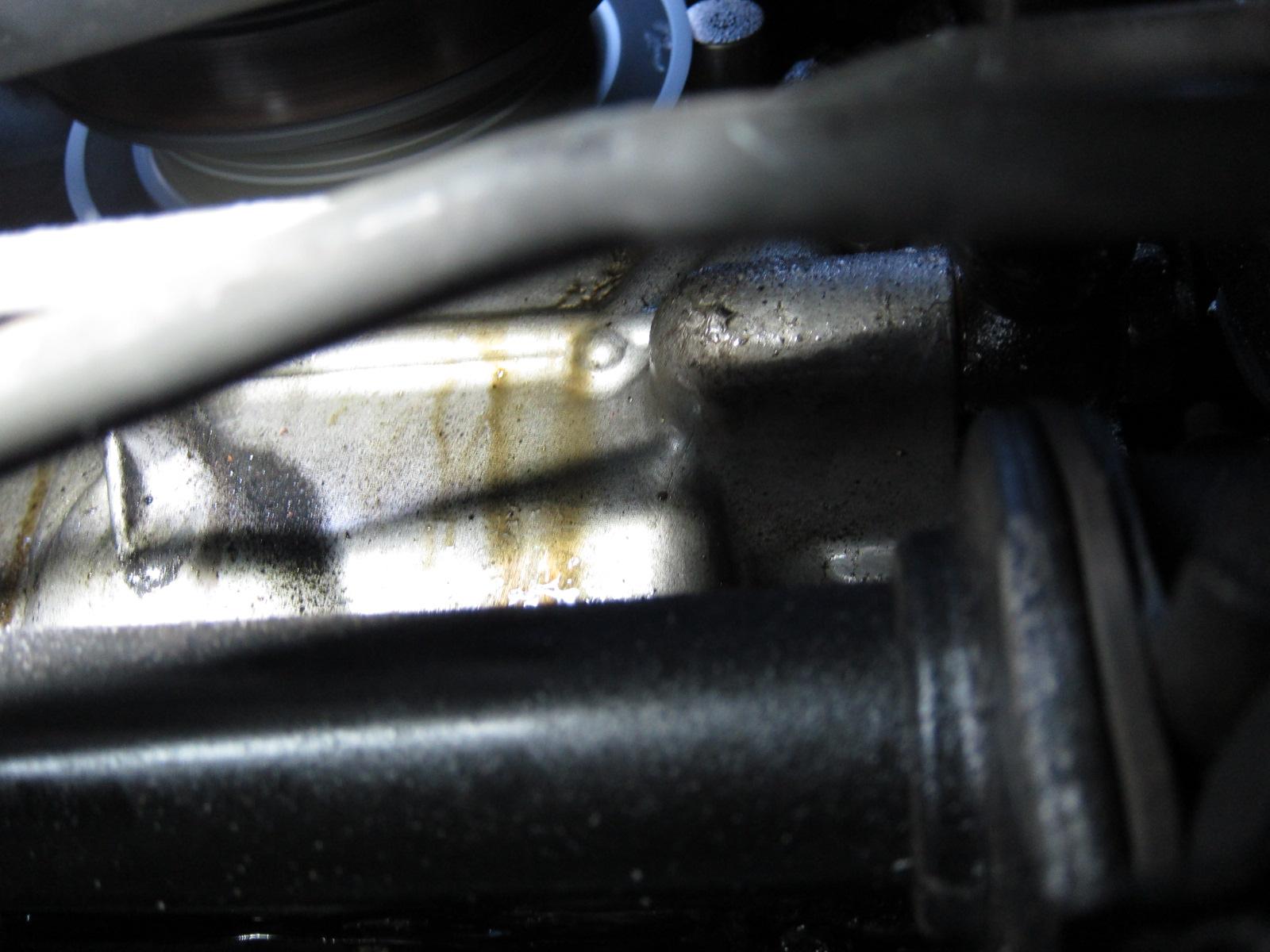

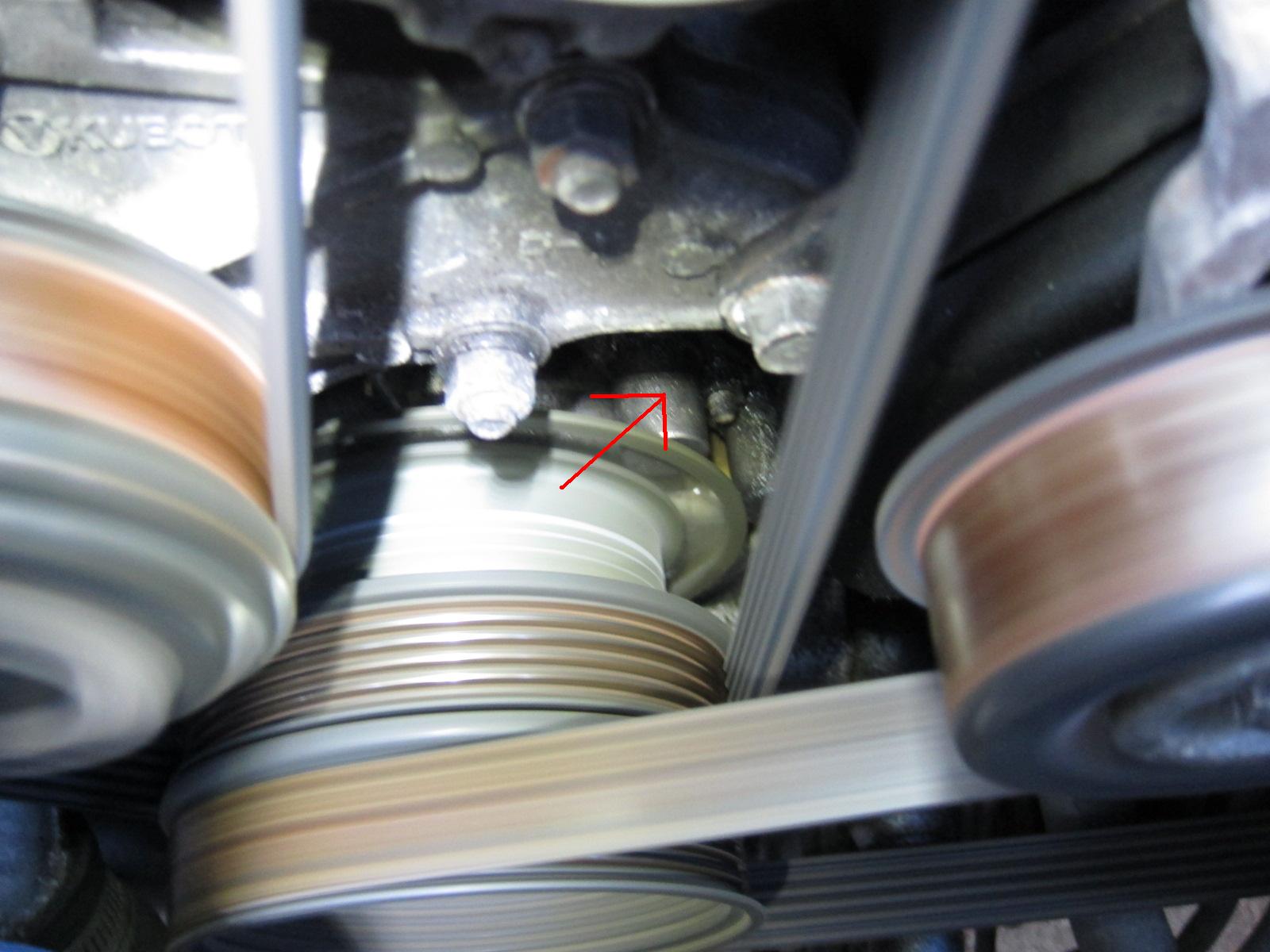

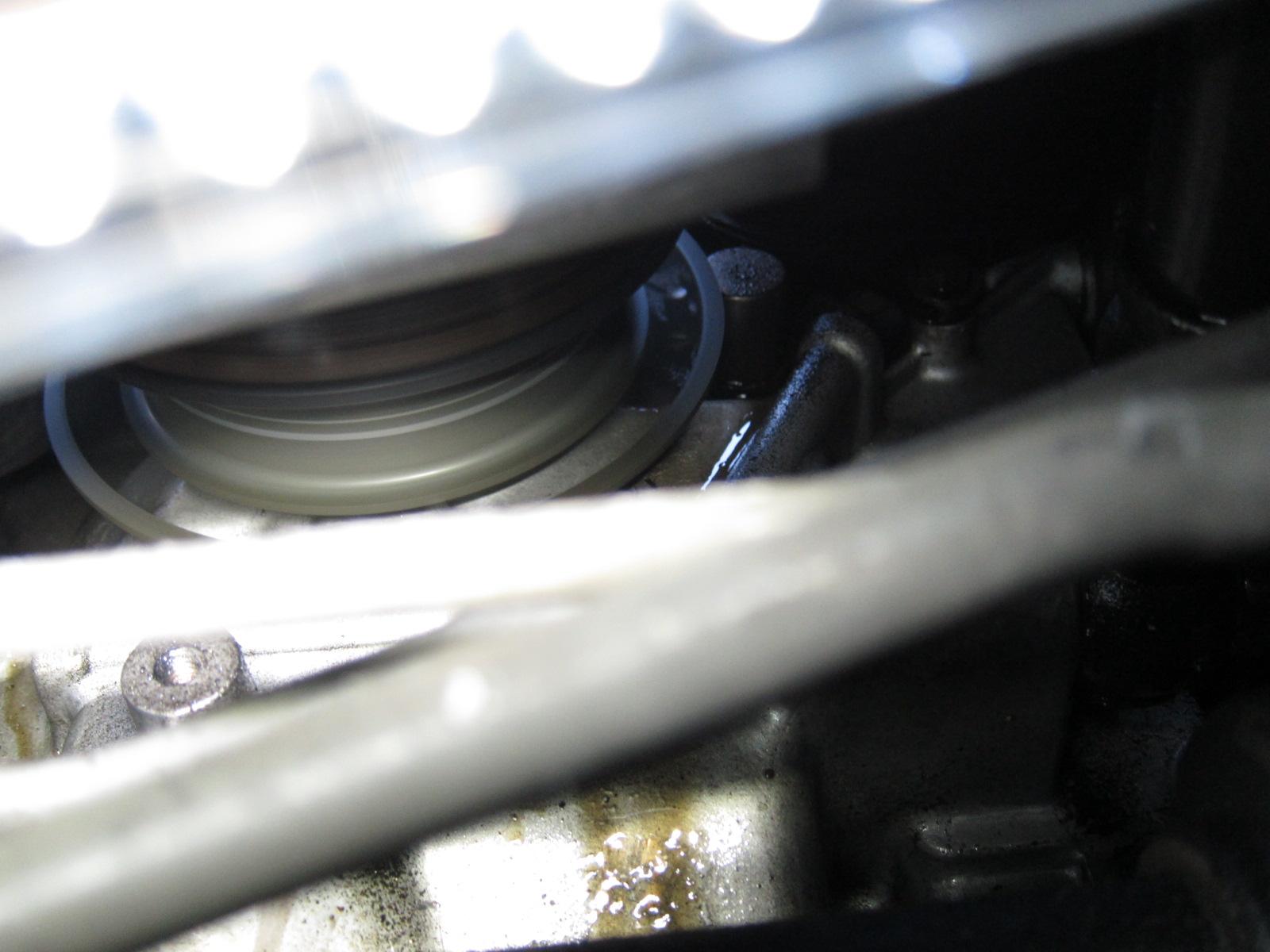

From the pics, is it the front cover that is leaking? Before I thought my oil pan leaked, but its coming from above the oil pan. Its coming from the area of the red arrow and it flows below the crank angle sensors and straight down. I see it leaking on cold startups, but once my engine is warm, it seems to stop.
Attached Thumbnails help identify oil leak with pics-img_0798a.jpg   help identify oil leak with pics-img_0800a.jpg   help identify oil leak with pics-img_0801a.jpg
Old 12-19-12, 10:40 PM
  #2
Junior Member


rdachelet's Avatar

Join Date: Jul 2007
Location: wisconsin
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
looks like the front cover leaking i just replaced mine 6 months ago mine had the crappy paper gasket in it put the metal one in
Old 12-20-12, 12:27 AM
  #3
Senior Member

iTrader: (9)

serbRX7's Avatar

Join Date: May 2008
Location: ny
Posts: 732
Likes: 0
Received 1 Like on 1 Post
there is more load on the engine at cold start up ...so it probably leaking while you are driving as well...clean up the oil good with some simple green and start the car again you should see where its coming from

might be front main seal
bad front cover gasket
cracked housing
