Help ID front nose part numbers

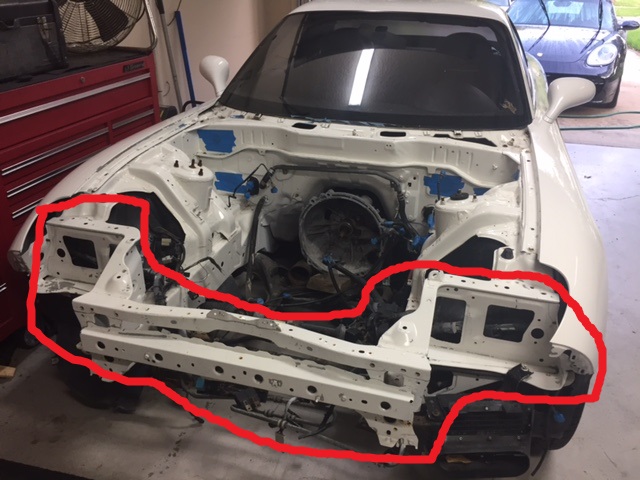

Hey guys, I need to replace the part(s) circled on the white-chassis picture, but I can't find all the PN#'s, specifically for the section that hold the headlamps.

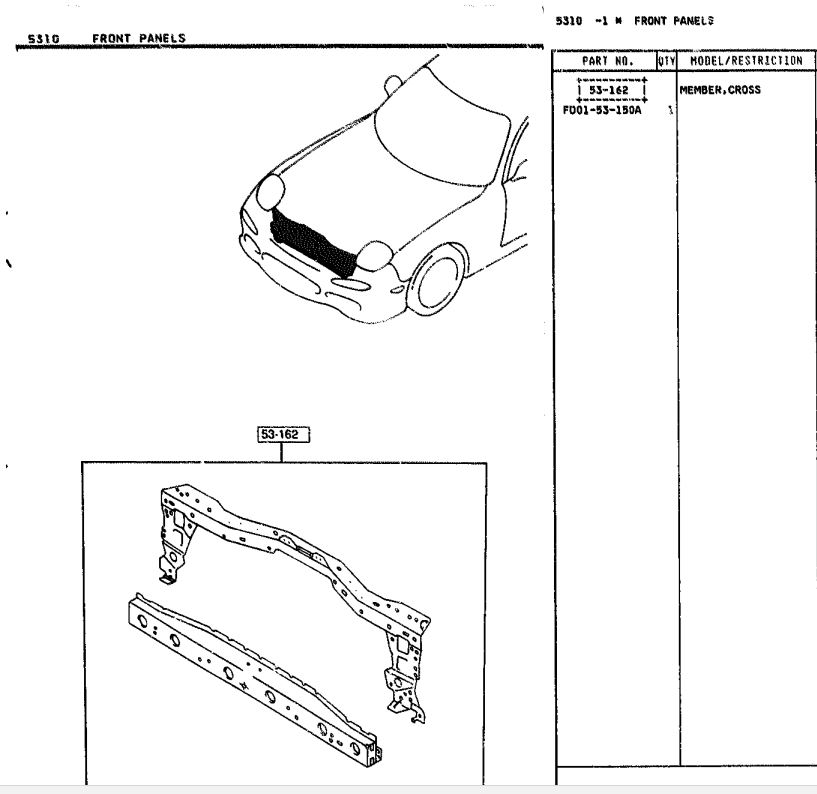

I've only been able to find the support, pn# FD01-53-150A.

Anyone know if you can buy the entire front nose support as one unit ?

If not, what are all the part numbers that compose/make-up the circled area ?

Thanks,
:-) neil

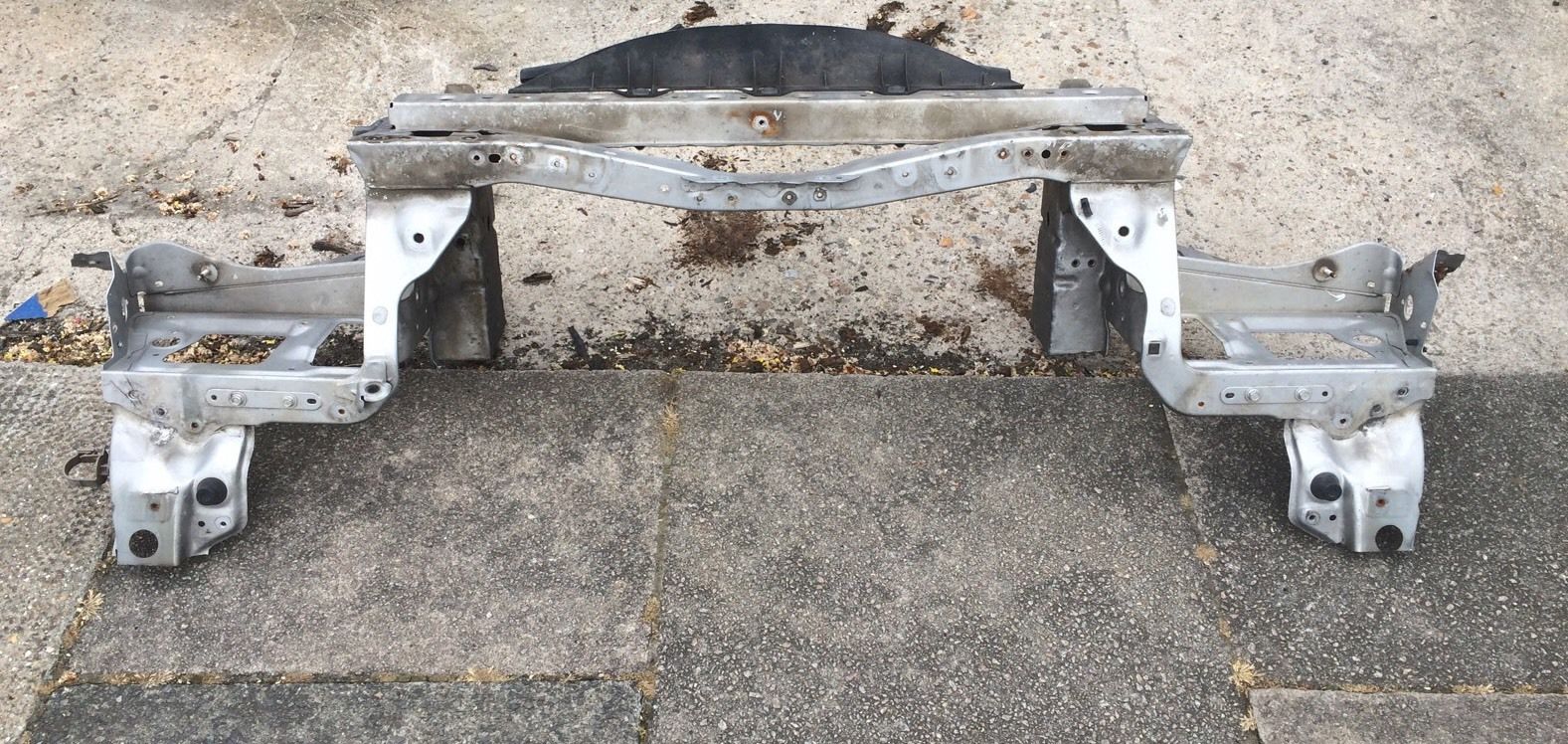

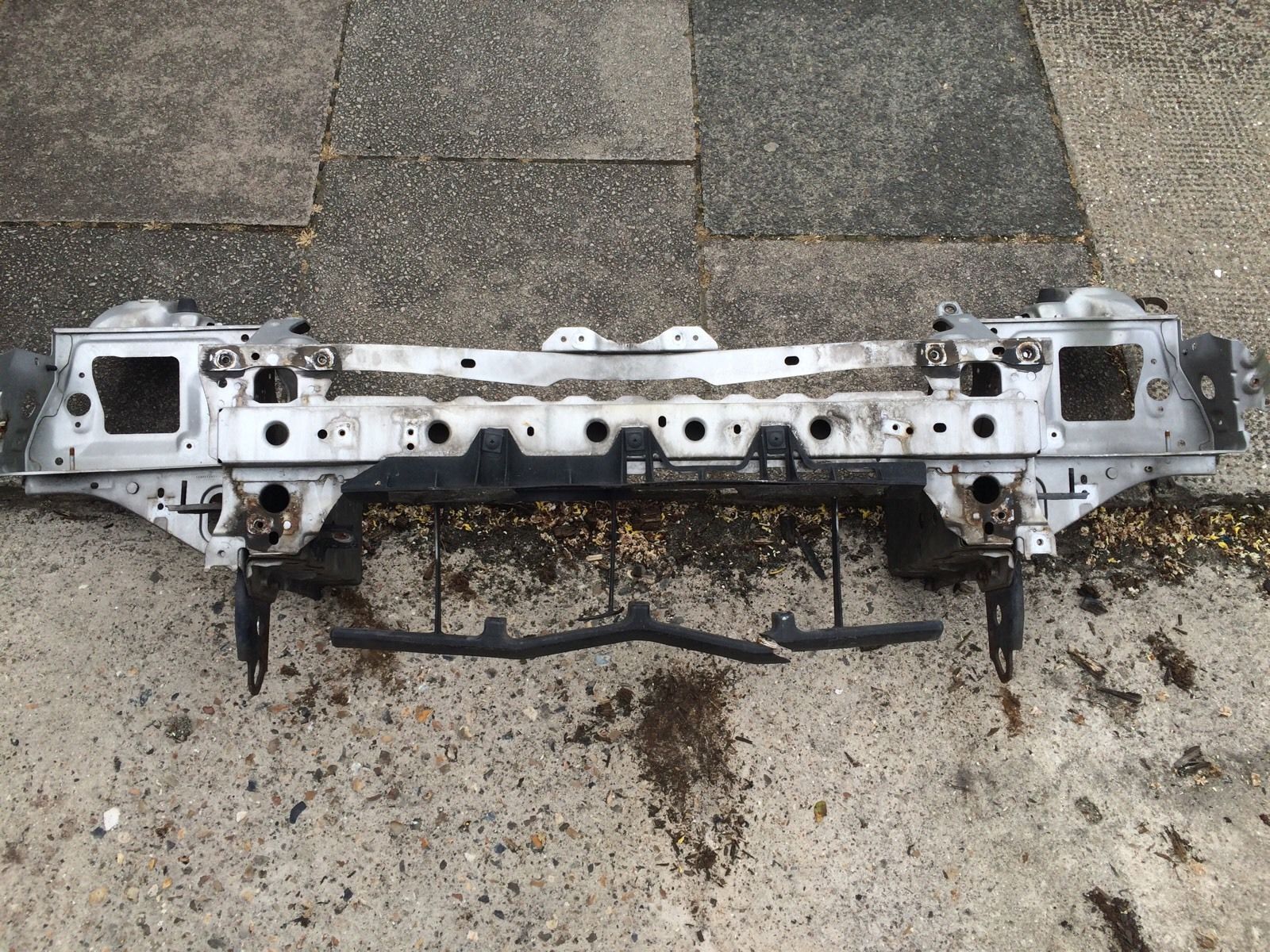

Attached Thumbnails Help ID front nose part numbers-rx7-fd-front-circled.jpg   Help ID front nose part numbers-rx7-fd-front-support-1.jpg   Help ID front nose part numbers-rx7-fd-front-support-2.jpg   Help ID front nose part numbers-rx7-front-support.jpg

Last edited by M104-AMG; May 19, 2017 at 11:45 PM.
Reply
Old May 21, 2017 | 09:06 PM
  #2
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,851
Likes: 3,241
From: https://www2.mazda.com/en/100th/
5320 fender and wheel apron panels, 53-140B and 54-140A
Reply
Old May 25, 2017 | 01:42 PM
  #3
M104-AMG's Avatar
Thread Starter
Rotary Freak
Tenured Member: 20 Years
Liked
iTrader: (8)

Joined: Oct 2004
Posts: 2,857
Likes: 6
From: FL
Originally Posted by j9fd3s
5320 fender and wheel apron panels, 53-140B and 54-140A
Thanks.

54-140A: FD01-54-12XG (upto 2401) or FD01-54-12XJ (2401 +)
53-140B: FD01-53-12XG (upto 2401) or FD01-53-12XJ (2401 +)

:-) neil
