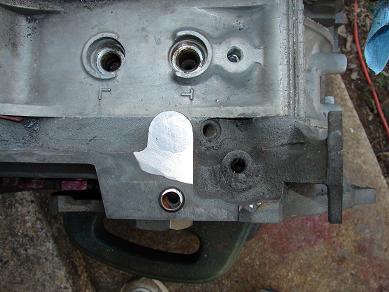

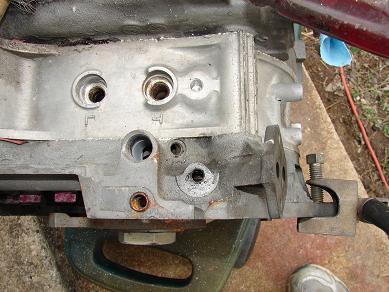

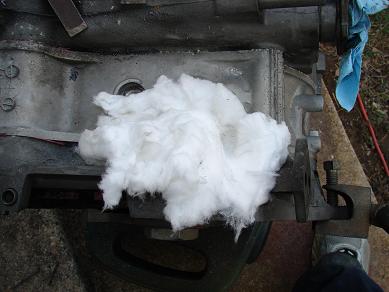

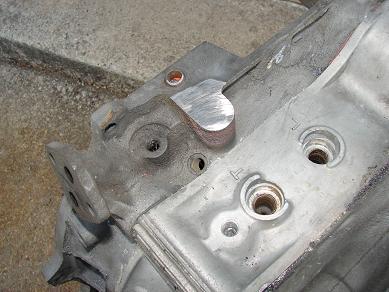

I know there are a lot of folks out there that have removed their heaters and had to deal with that 3/4" return nozzle on the rear iron. Most just install a short hose and a bolt or worse a cap and clamp. Well if that ever busts loose, you may loose an engine from catastrophic loss of coolant. So I removed my heater on my second rx7 project and thought about what I was going to do about this nozzle. I settled out on a bulletproof fix. Just finished it, and before sending off to be streetported.



Ah, so that's what the heater core looks like...
How hard was it to remove? Mine is completely clogged and needs replacing. The only thing stopping me is that I read that it's a PITA to get to.



u having a laugh thats the engine block,,, hes welded up the water feed pipe from the block to the heater hose( the heater core is a small radiator that sits under the dashboard,,,looks just like a radiator)



No way shape or form is this the heater core - it is the motor REAR IRON where the HEATER CORE return nozzle used to be. If you need a heater core, see my separate FS ad

tom



Doh! My bad. I didn't even enlarge the pics. Someone should take my car away from me.



LOL!! Thanks for the laugh this early in the morning!!

I didn't enlarge the pictures...then I read your post and had to enlarge them to make sure I WAS seeing an engine. Then I read the other replies, haha!!



oh, forgot to say what I was going to say...I was laughing too hard.

Tom - you can also weld the nipple on top of the rear iron as well, as I don't think you will be running coolant thru you TB with this project.
