Heat wrap/turbo blanket for twins?
06-27-07, 09:42 PM
#1
Passion
Thread Starter
Join Date: Apr 2005
Location: Edmonton
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
Heat wrap/turbo blanket for twins?
Is there a thermo blanket or a product (heat wrap) for our stock twins? It seems like there should be a better way to keep heat out of the engine bay.
I did a search for heat wrap but only came up with Downpipes...
Edit: This thread talks a wee bit about people wanting one for the stock twins, any updates or ?? https://www.rx7club.com/showthread.p...hlight=blanket
I did a search for heat wrap but only came up with Downpipes...
Edit: This thread talks a wee bit about people wanting one for the stock twins, any updates or ?? https://www.rx7club.com/showthread.p...hlight=blanket
03-05-10, 08:39 PM
#3
Anyone try something like this:
http://www.summitracing.com/parts/THE-14003/
Width (in) 20.000 in.
Length (ft) 2.00 ft.
Length (in) 24.000 in.
Wrap Material Thermo-Tec
Wrap Color Silver
Temperature Rating (degrees F) 2,000 degrees F
Installation Snap Strap
Thickness (in) 0.063 in.
http://www.summitracing.com/parts/THE-14003/
Width (in) 20.000 in.
Length (ft) 2.00 ft.
Length (in) 24.000 in.
Wrap Material Thermo-Tec
Wrap Color Silver
Temperature Rating (degrees F) 2,000 degrees F
Installation Snap Strap
Thickness (in) 0.063 in.
03-05-10, 08:44 PM
#4
RX-7 Bad Ass
iTrader: (55)
I've never been a fan of exhaust wrap. It's a messy (and itchy) way to tackle the problem.
There are some ceramic coatings that can take the temps. You can have the manifold and turbine housings coated - I'm pretty sure Rich (GoodfellaFD3S) has some coatings that can do the trick.
Dale
There are some ceramic coatings that can take the temps. You can have the manifold and turbine housings coated - I'm pretty sure Rich (GoodfellaFD3S) has some coatings that can do the trick.
Dale
03-05-10, 09:03 PM
#6
RX-7 Bad Ass
iTrader: (55)
The twins are packed in so tight I just can't see any way to wrap it with them on the car. Or do any other form of blanketing.
Dale
Dale
Trending Topics
03-06-10, 12:21 AM
#8
I've never been a fan of exhaust wrap. It's a messy (and itchy) way to tackle the problem.
There are some ceramic coatings that can take the temps. You can have the manifold and turbine housings coated - I'm pretty sure Rich (GoodfellaFD3S) has some coatings that can do the trick.
Dale
There are some ceramic coatings that can take the temps. You can have the manifold and turbine housings coated - I'm pretty sure Rich (GoodfellaFD3S) has some coatings that can do the trick.
Dale
03-06-10, 11:06 AM
#9
I just read a thread the other day here in the forum (somewhere, I forget where, maybe Mr. Links knows) where an FD had an underhood fire due to a small oil leak soaking the turbo blanket, and then the blanket caught fire.
Lesson: if you have a turbo blanket, it could hide a small oil leak, and the blanket should be removed periodically to check for leaks. Easy enough on a single, pretty hard with twins.
Lesson: if you have a turbo blanket, it could hide a small oil leak, and the blanket should be removed periodically to check for leaks. Easy enough on a single, pretty hard with twins.
03-06-10, 07:09 PM
#10

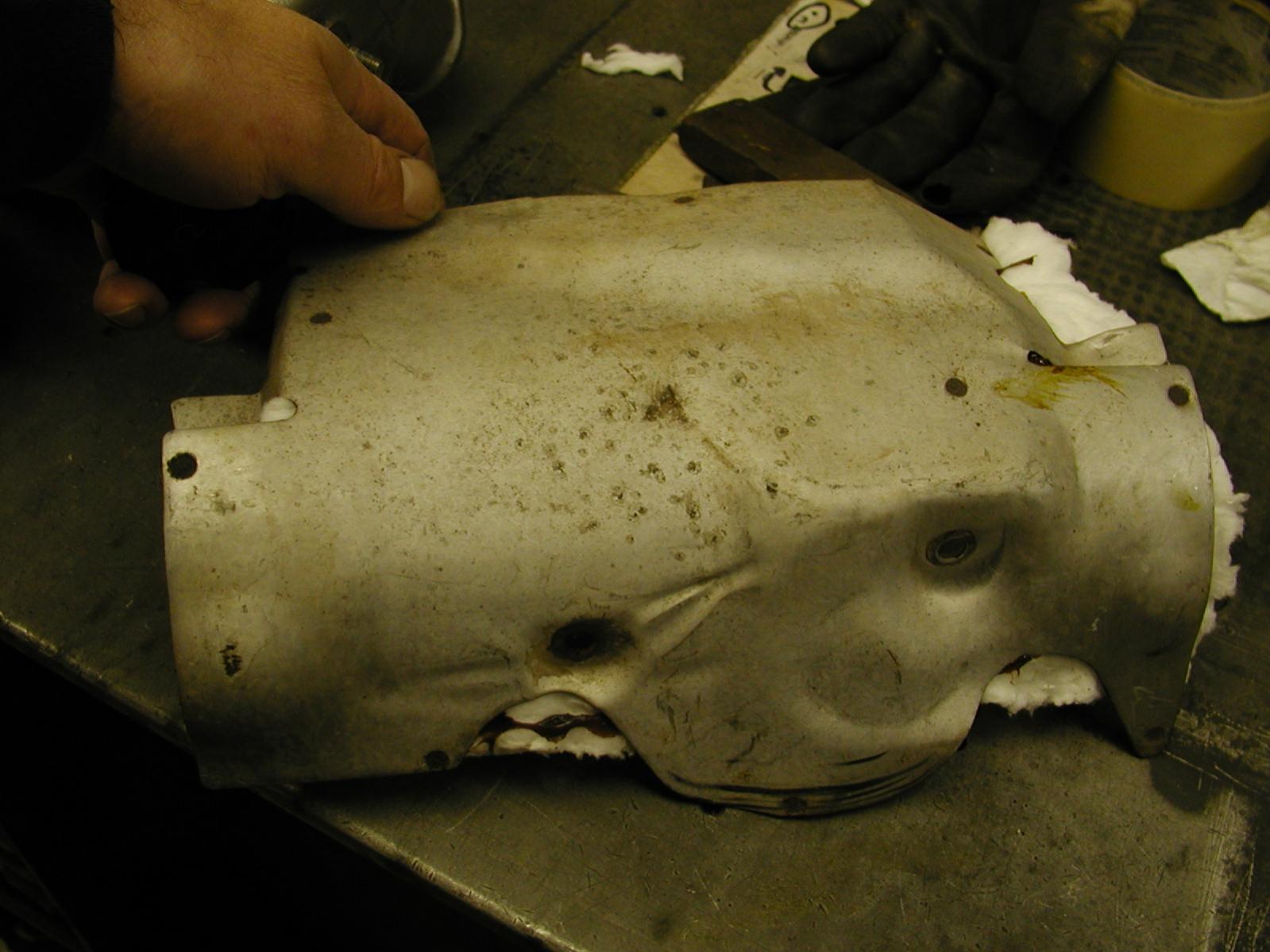

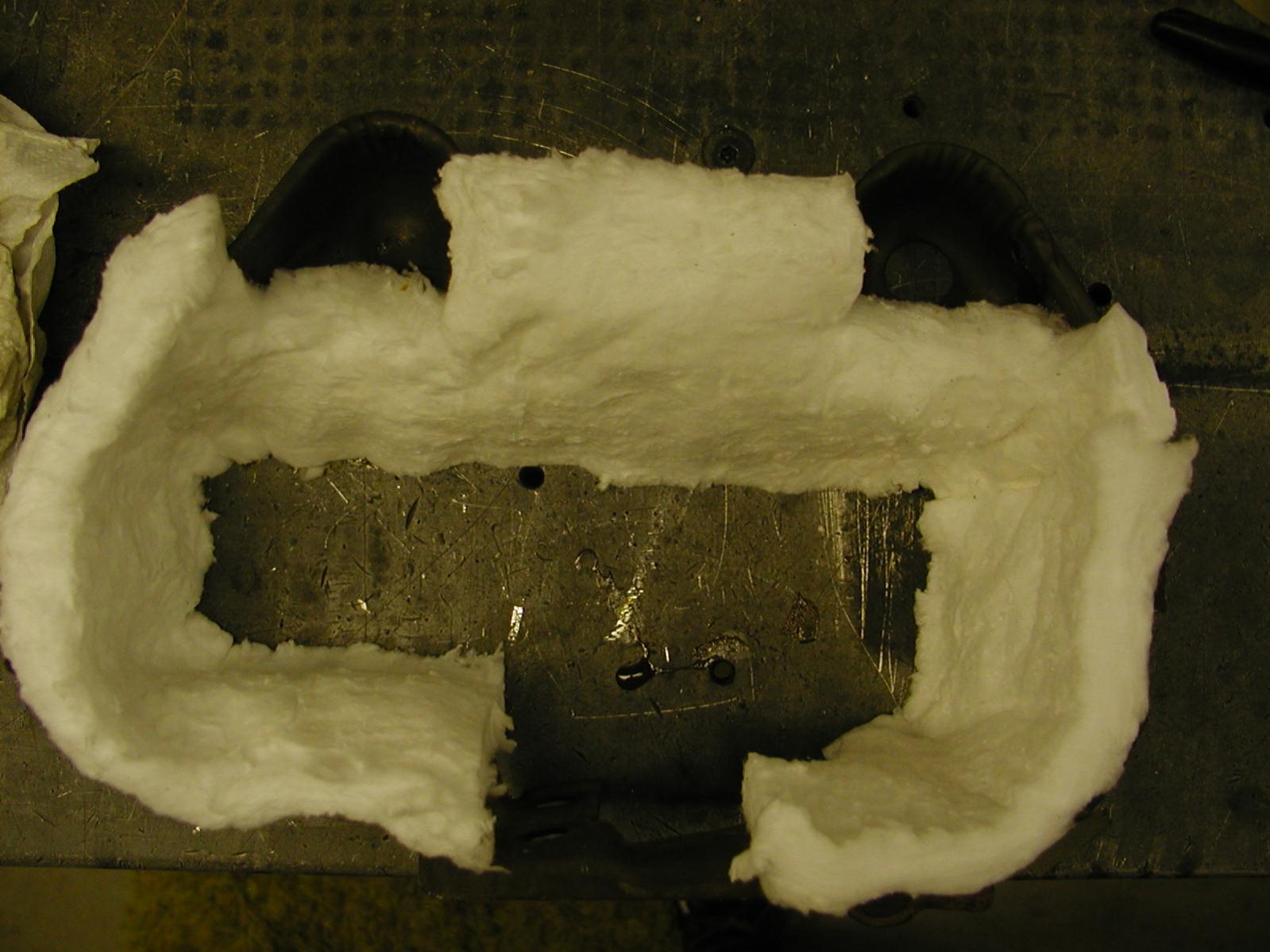

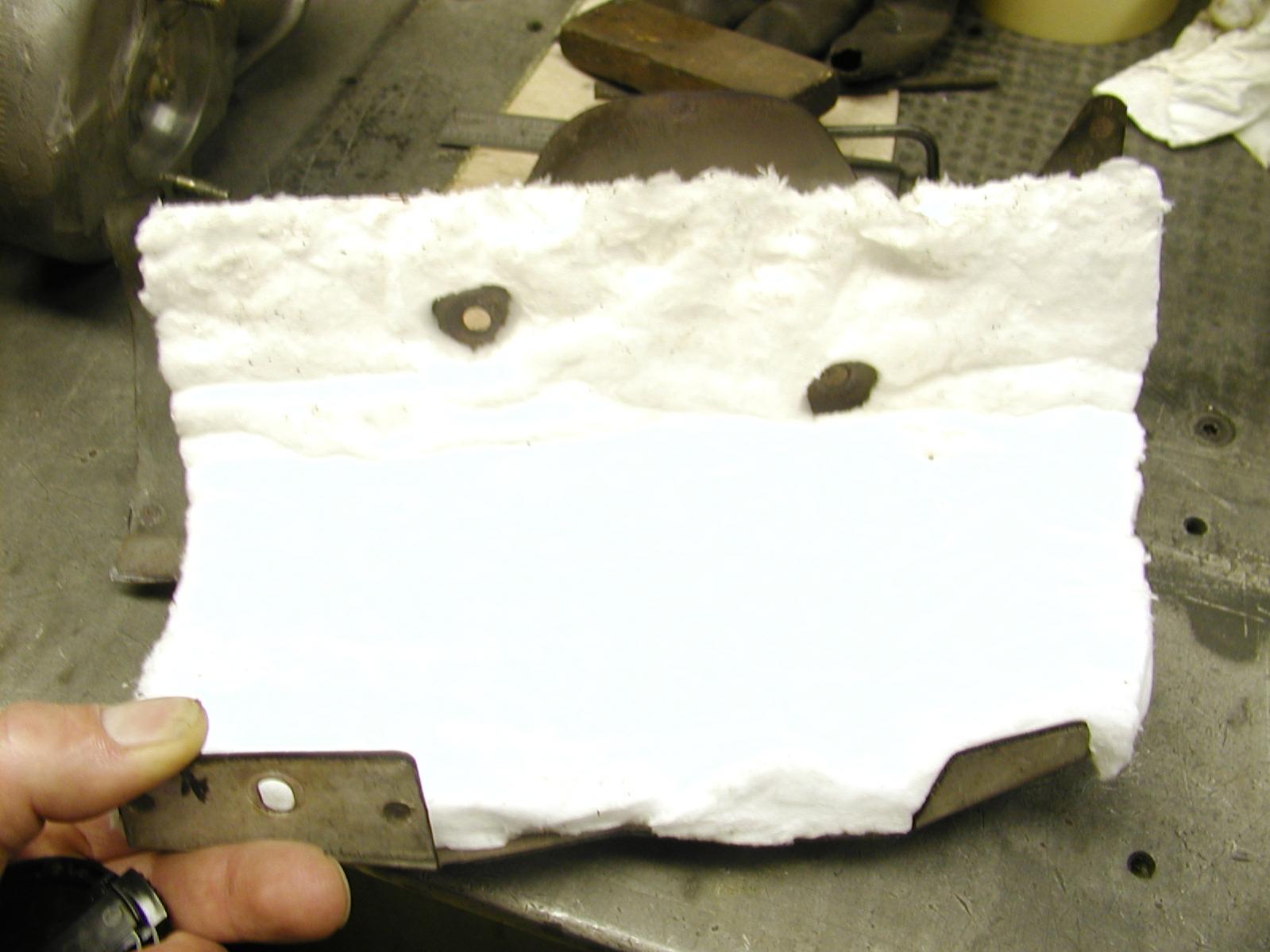

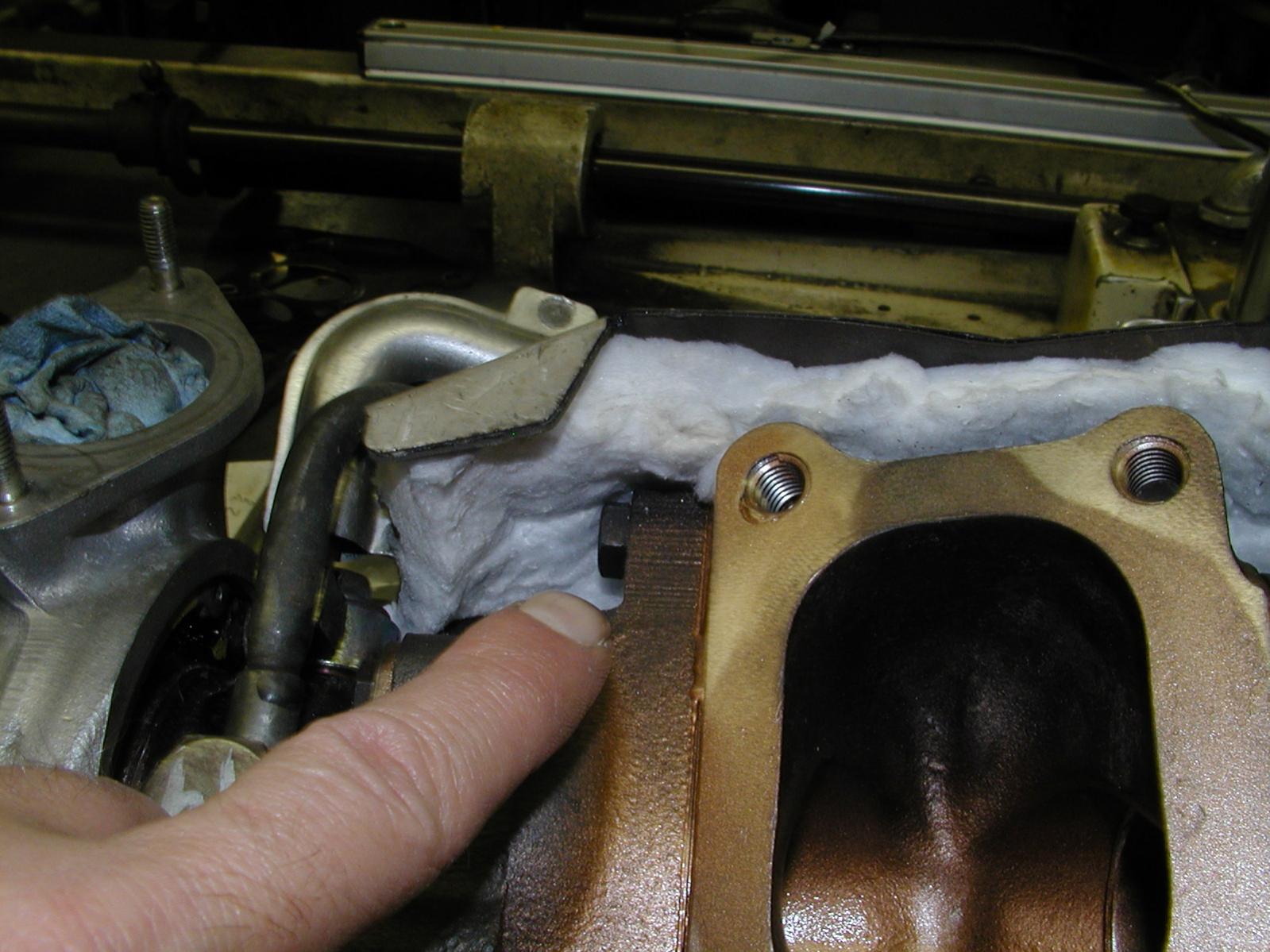

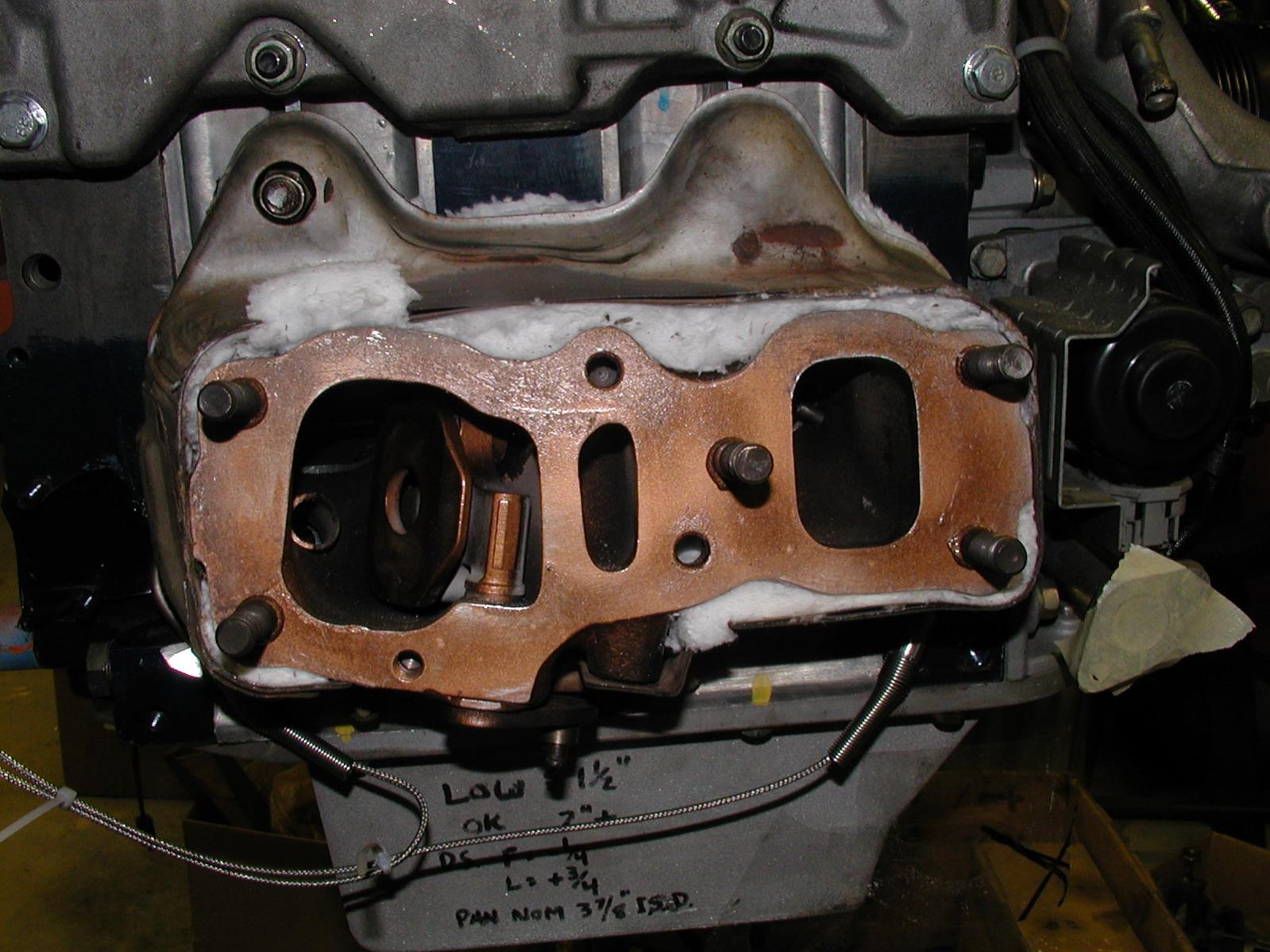

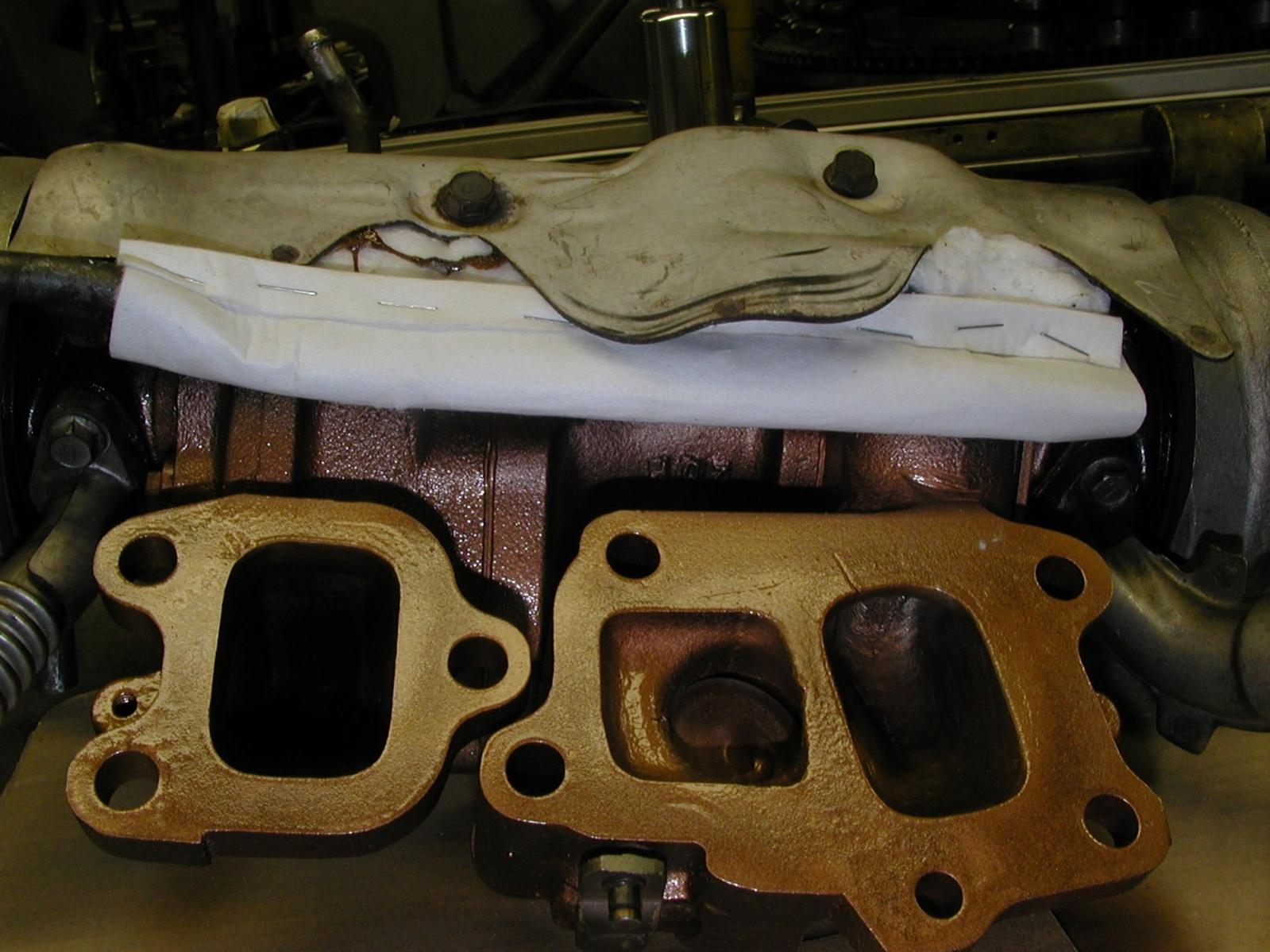

Sure you can insulate the twins + exhaust manifold, and it works great. I made blankets for my BNR's using refractory insulation blanket for the exhaust manifold and turbos and fixed it inside of the oem heatshields. Additionally, I also lined other clearance challenged heatshields (& turbo lines) with a thinner wrap type insulation (similar to the downpipe wrap), about 1/16 thick. See attached pics.
This thermal management has been in use now 3yrs, 30k+ miles and the effort was very worthwhile. There have been no know ill effects so far. Please note that I have no fluid leaks, but I do think its a valid point to avoid saturating any insulating material in the interest of safety.
NOTE: While ceramic coatings have their place, refractory insulation is a much, much more efficient and effective way to insulate than any ceramic (barrier) coating; hence blankets are my first choice for this application.
This thermal management has been in use now 3yrs, 30k+ miles and the effort was very worthwhile. There have been no know ill effects so far. Please note that I have no fluid leaks, but I do think its a valid point to avoid saturating any insulating material in the interest of safety.
NOTE: While ceramic coatings have their place, refractory insulation is a much, much more efficient and effective way to insulate than any ceramic (barrier) coating; hence blankets are my first choice for this application.
The following 2 users liked this post by Speed of light:
box-o-aces (08-09-19),
kvttrs (08-27-23)
03-07-10, 08:15 AM
#11
Pettit Racing has this:
http://pettitracing.com/rx7/index.htm
and Turblown.net has a LIM heat blanket. I have the 20B version:
http://turblown.net/store/index.php?productID=56
http://pettitracing.com/rx7/index.htm
and Turblown.net has a LIM heat blanket. I have the 20B version:
http://turblown.net/store/index.php?productID=56
03-07-10, 01:42 PM
#13
Which can stay and then you add the extra heat protection.
I don't know if the Pettit kit works but somewhere I recall Pettit posted up nice decreases in AITs. I can attest to the value of the turblown LIM heat blanket. Keeps the heat from the turbo away from the engine.
I don't know if the Pettit kit works but somewhere I recall Pettit posted up nice decreases in AITs. I can attest to the value of the turblown LIM heat blanket. Keeps the heat from the turbo away from the engine.
03-08-10, 01:06 AM
#14
I did exactly the same thing using the Thermo-Tec aluminized 1500 degrees sheet with the OEM heatshield. It has held up fine over 6 years and 29K. I tried lining up the area on the fender opposite from the downpipe but engine movement caused the downpipe to tear apart the lining on the fender wall. What I have done now is to partially wrap the downpipe as it comes out the turbos to the area near the cat.
Sure you can insulate the twins + exhaust manifold, and it works great. I made blankets for my BNR's using refractory insulation blanket for the exhaust manifold and turbos and fixed it inside of the oem heatshields. Additionally, I also lined other clearance challenged heatshields (& turbo lines) with a thinner wrap type insulation (similar to the downpipe wrap), about 1/16 thick. See attached pics.
This thermal management has been in use now 3yrs, 30k+ miles and the effort was very worthwhile. There have been no know ill effects so far. Please note that I have no fluid leaks, but I do think its a valid point to avoid saturating any insulating material in the interest of safety.
NOTE: While ceramic coatings have their place, refractory insulation is a much, much more efficient and effective way to insulate than any ceramic (barrier) coating; hence blankets are my first choice for this application.
This thermal management has been in use now 3yrs, 30k+ miles and the effort was very worthwhile. There have been no know ill effects so far. Please note that I have no fluid leaks, but I do think its a valid point to avoid saturating any insulating material in the interest of safety.
NOTE: While ceramic coatings have their place, refractory insulation is a much, much more efficient and effective way to insulate than any ceramic (barrier) coating; hence blankets are my first choice for this application.
