Guess what I made today..Cwest Undertray
#1
Full Member
Thread Starter
Join Date: Apr 2001
Location: san diego
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
Guess what I made today..Cwest Undertray
Look what I made using valuable company time :P
I've been working on it for awhile.
Finally got one cut out of the material I wanted. Test fitting tonight / tomorrow.
I'll let you know how it fits. The protos were a pretty good fit.
Then I'll have to test it out on the street.
jupiter
I've been working on it for awhile.
Finally got one cut out of the material I wanted. Test fitting tonight / tomorrow.
I'll let you know how it fits. The protos were a pretty good fit.
Then I'll have to test it out on the street.
jupiter
#6
Full Member
Thread Starter
Join Date: Apr 2001
Location: san diego
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts

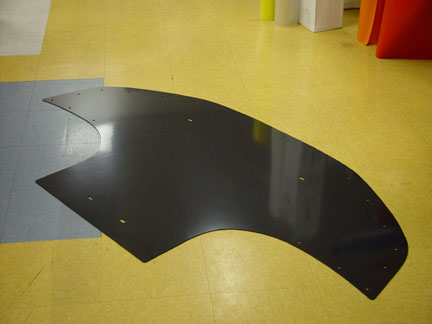

This one is ABS.
Trying to keep it simple. I made this one to fit over the stock tray using additional hardwares.
Trying to keep it simple. I made this one to fit over the stock tray using additional hardwares.
Last edited by jupiter; 02-21-05 at 06:30 PM.
Trending Topics
#8
94 FD, 69 Datsun Roadster
Join Date: Oct 2002
Location: Houston, TX
Posts: 877
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by matty
whats the point of this?
I want one! So are you gonna mass produce them? How about a midsection panel to cover between your peice and the RE Amemiya rear diffuser? I'll contribute funds for R&D if you help make me one!
Doc
#9
Eats, Sleeps, Dreams Rotary
Originally Posted by roadsterdoc
It is to reduce the air turbulance under the car, which improves areodynamics and hopefully downforce as well. this will allow a higher top speed and better handling at higher speeds in general.
I want one! So are you gonna mass produce them? How about a midsection panel to cover between your peice and the RE Amemiya rear diffuser? I'll contribute funds for R&D if you help make me one!
Doc
I want one! So are you gonna mass produce them? How about a midsection panel to cover between your peice and the RE Amemiya rear diffuser? I'll contribute funds for R&D if you help make me one!
Doc
#11
addicted to lounge
I'm kinda with the last 2 guys...It looks good. Just don't really see it having any benefit over stock. How is it better than the stock tray? Because its totally flat?
#12
Full Member
Thread Starter
Join Date: Apr 2001
Location: san diego
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
This is for Cwest N1 front bumper. It will completely cover over the front portion of the car.
Anyone here that has a Cwest N1 front bumper knows the stock undertray does not match the bumper. I thnk there is a pic floating around here of the Cwest version.
Someone else here is making a undertray for the stock bumper. My undertray will not work with stock bumper.
I have plans on adding additional side brackets to mount the unit directly to the chasis and help guide air flow to my Koyo radiator.
Anyone here that has a Cwest N1 front bumper knows the stock undertray does not match the bumper. I thnk there is a pic floating around here of the Cwest version.
Someone else here is making a undertray for the stock bumper. My undertray will not work with stock bumper.
I have plans on adding additional side brackets to mount the unit directly to the chasis and help guide air flow to my Koyo radiator.
Last edited by jupiter; 02-21-05 at 11:12 PM.
#15
I believe this is the pic you were refering to?
As for airflow, I believe if this is done right (ie connected to a complete underbody tray that will extend the full length of the vehicle, w/ loading ramps, starting before the middle of the vehicle, and mating w/ the RE diffuser), then you have a very functional undertray that should decrease lift under the car.
But even w/o such a design, just sealing the engine bay from underneath and having a vented hood should force more air through the radiator, forcing it to enter the engine bay and exit up through the hood vents, thereby reducing underhood temps, vs. entering through the nose and going right back out under the car (if you did not have an undertray). Damian also pointed out that if you extend the undertray past the oil pan, the air would be forced to pass by the oil pan before escaping, probably helping to reduce oil temps a bit.
As for airflow, I believe if this is done right (ie connected to a complete underbody tray that will extend the full length of the vehicle, w/ loading ramps, starting before the middle of the vehicle, and mating w/ the RE diffuser), then you have a very functional undertray that should decrease lift under the car.
But even w/o such a design, just sealing the engine bay from underneath and having a vented hood should force more air through the radiator, forcing it to enter the engine bay and exit up through the hood vents, thereby reducing underhood temps, vs. entering through the nose and going right back out under the car (if you did not have an undertray). Damian also pointed out that if you extend the undertray past the oil pan, the air would be forced to pass by the oil pan before escaping, probably helping to reduce oil temps a bit.
Last edited by FDNewbie; 02-22-05 at 12:53 AM.
#16
FDNewbie has some good points, I can't use my stock under tray due too a large custom rad. I am working on getting one made that will fit. I will try to get it to go past the oil pan.
#18
S4 now S6 soon...
Join Date: Sep 2003
Location: Bonney lake, WA
Posts: 427
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jupiter
I didn't cover the oil pan cuz it would be a hassle having to take off the tray to change your oil.
