making myself a nice ground wire for my motor (broke the one from the UIM to the body during a removal hehe). im using 4 gauge speaker/power wire i got from an audio shop, with nice terminals on it. where would you guys suggest hooking it up? where do you have your ground wires, if any beyond stock hooked up? stock location good? tia

Fish

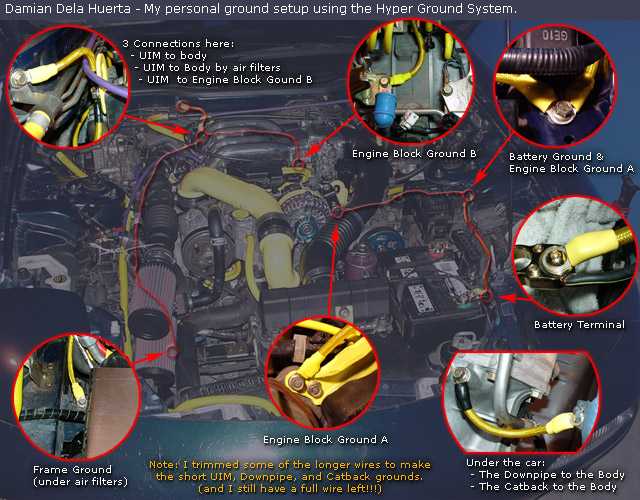

Here is one that I found on here some time ago.

Fish

c00lduke

I have 1 where is goes behind the UIM, one from the top of the motor to behind the MAP sensor, another from the PS/AC rack to the frame by the strut tower, and another one that goes from my Termostat Housing to my passenger side frame. Probably on of the most important thing when adding grounds it to sand down the contect suface to bare metal. I know i probably have more then needed but it cant hurt.

MR_Rick

iTrader: (7)

I actually put the same as you in the same spot were yours broke off and I added another one to the battery terminal to chassis. when I put it on the chassis I sanded it down to bare metal, put the ground and the cover it up with RTV. I did notice a little bit of difference from the head lights.

RotaryResurrection

iTrader: (8)

Here's what I do, works fine.

http://www.rotaryresurrection.com/ro...grounding.html

F0RSAKEN

Thanks guys, I will be using a few of those locations now.



Off topic...RotaryRessurection, what splitter is that on the rear of the silver car in your sig?

MakoRacing

iTrader: (12)

Looks like Rotary Extremes

RotaryResurrection

iTrader: (8)

Yes, the sideskirts and rear diffuser are rotaryextreme. Very nice parts, fit like a glove.
