greddy 3 piece pipe kit

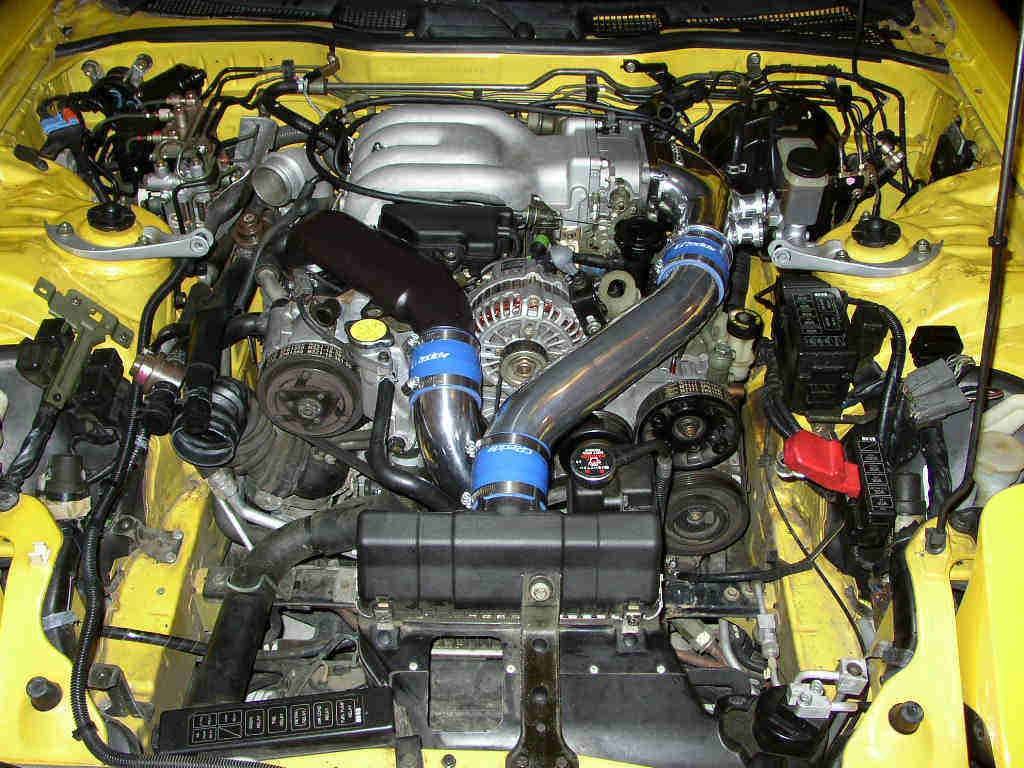

Anyone have trouble installing this? I did it earlier today and the lower intercooler pipe, (one that connects to crossover pipe) dosent fit worth ****. I tried for hours to fit it and in the end, it all came together. I have about a half a cm of clearance now between the pipe and the main pulley. Also my stock crossover pipe wont align with the mounting holes. I think its made for the efini y pipe, anyone have any info?
10-29-04, 12:38 AM
#2
Eats, Sleeps, Dreams Rotary
iTrader: (4)
Join Date: Apr 2003
Location: Denver, NC
Posts: 3,531
Likes: 0
Received 0 Likes
on
0 Posts
I have run into this a few times when installing it with the stock IC. I believe it fits better with the Greddy SMIC. However. How i got it to fit was to either just release the bottom bolts that hold the IC to the crossbar and let it come forwards a little. This will just leave the bottom IC loose. I went further and just made a couple of strips that extended the mounting points further forwards.( gaining the same thing as just removing the bolts, but still having it secure.)
In the end it is still a tight fit. But it will get in there with some minor fabrication or just removing the bolts.
And the obvious ? is you did try it both ends up right? I mean flip the pipe to see if it fit better? I assume you did. As i stil had the clearence issue with it either way.
BTW: Nice CYM
really i like them.
In the end it is still a tight fit. But it will get in there with some minor fabrication or just removing the bolts.
And the obvious ? is you did try it both ends up right? I mean flip the pipe to see if it fit better? I assume you did. As i stil had the clearence issue with it either way.
BTW: Nice CYM
really i like them.
Last edited by BigIslandSevens; 10-29-04 at 12:41 AM.
10-29-04, 01:09 AM
#3
Eats, Sleeps, Dreams Rotary
iTrader: (4)
Join Date: Apr 2003
Location: Denver, NC
Posts: 3,531
Likes: 0
Received 0 Likes
on
0 Posts
Just remembered that i think i had to slot the top IC bracket holes to get the whole thing to come forwards. ( The 2 holes that go onto the bumper support
)
)
10-29-04, 01:30 AM
#5
Eats, Sleeps, Dreams Rotary
iTrader: (4)
Join Date: Apr 2003
Location: Denver, NC
Posts: 3,531
Likes: 0
Received 0 Likes
on
0 Posts
better solution to the clamps would be to get some T-style clamps from here. they will not chew thru the couplers like the ones greddy sends you.And won't loosen up with heatsink. But none the less re-check them often.
