RX7 fashion apexi gt-r core intercooler to be exact

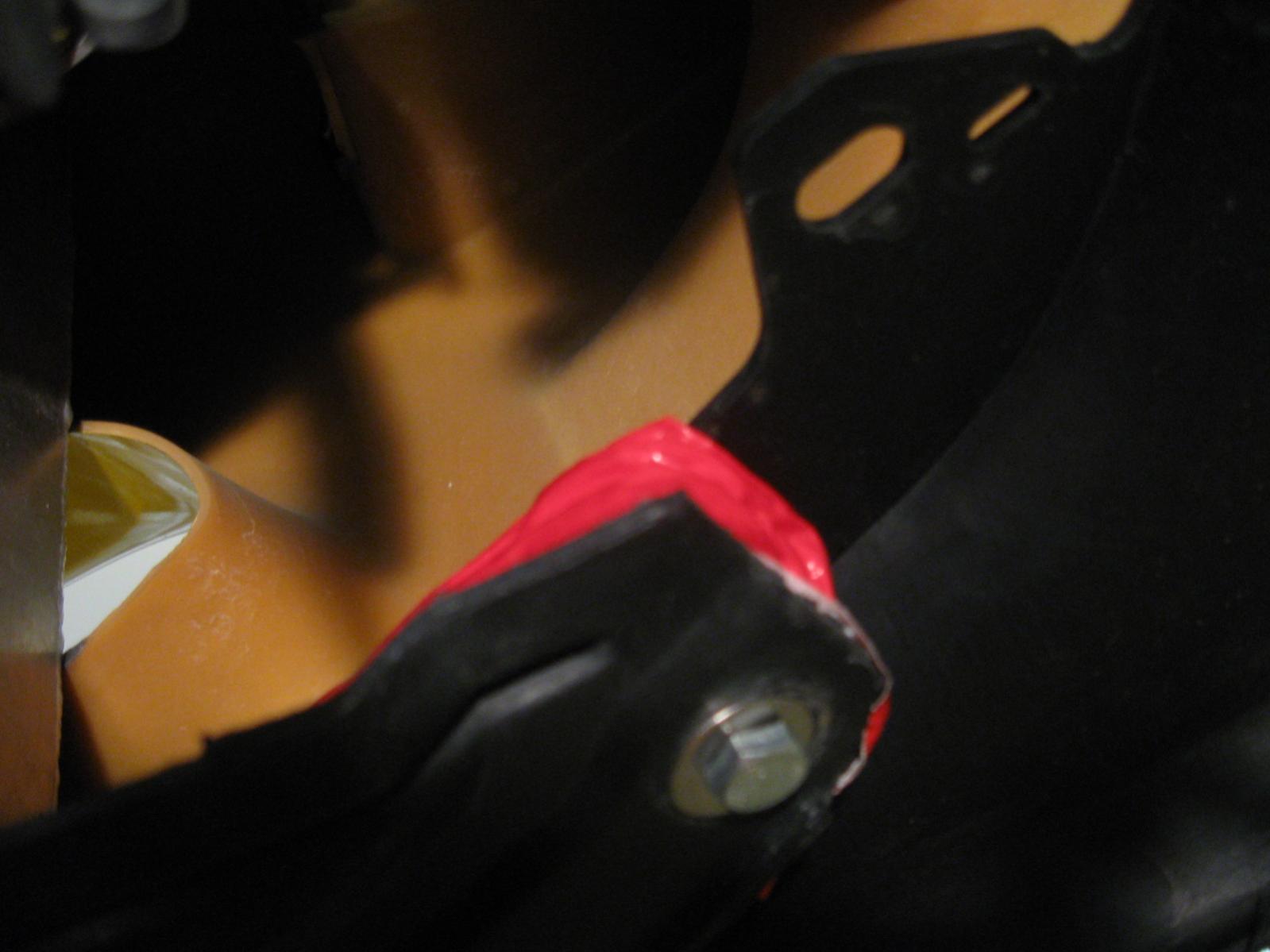

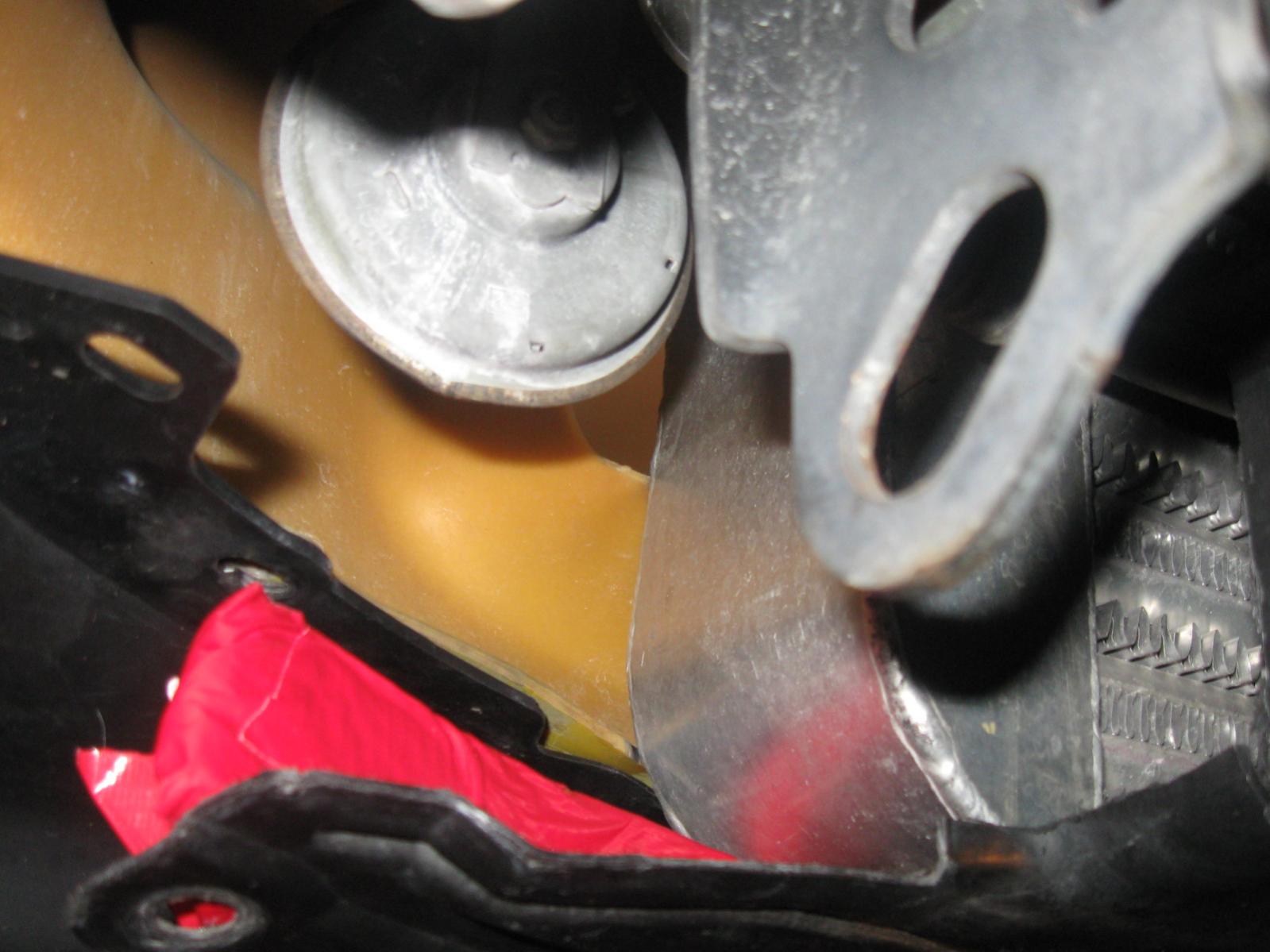

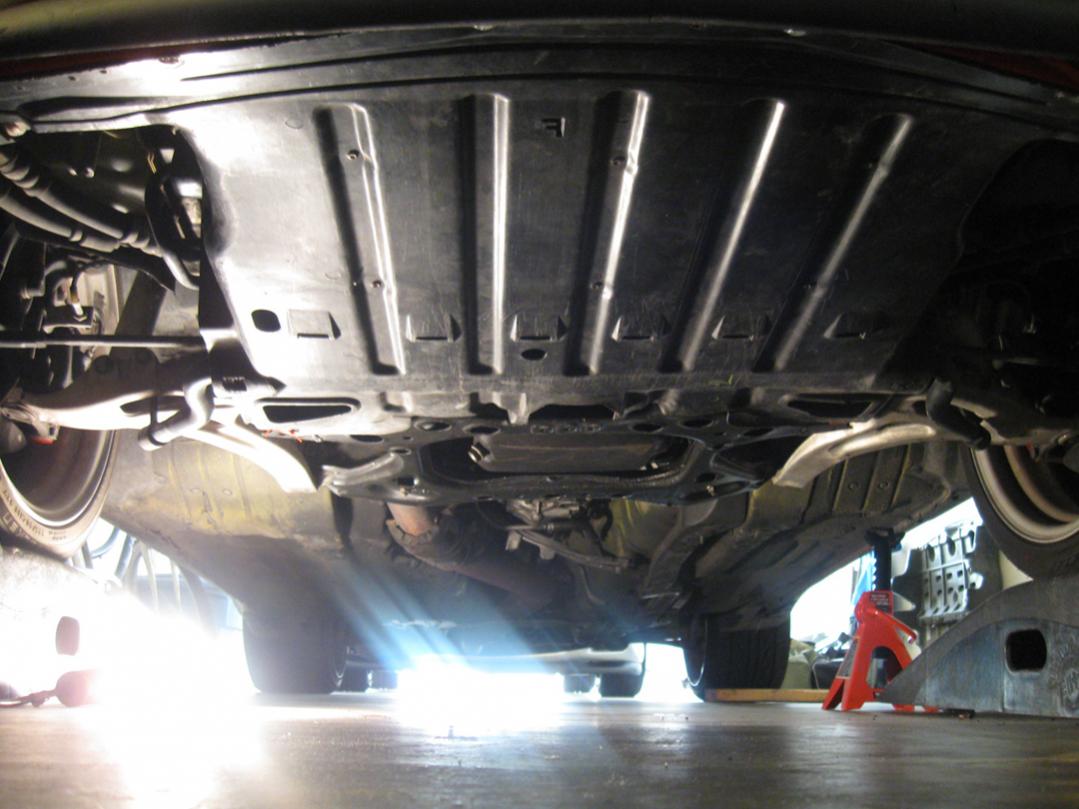

Dang this too me awhile to figure out but I got it to work. I had to do some cutting on the undertray to make room for the FMIC. I also brought down the front if the undertray 1.5 inches. Filling this gap is Styrofoam housing insulation :p

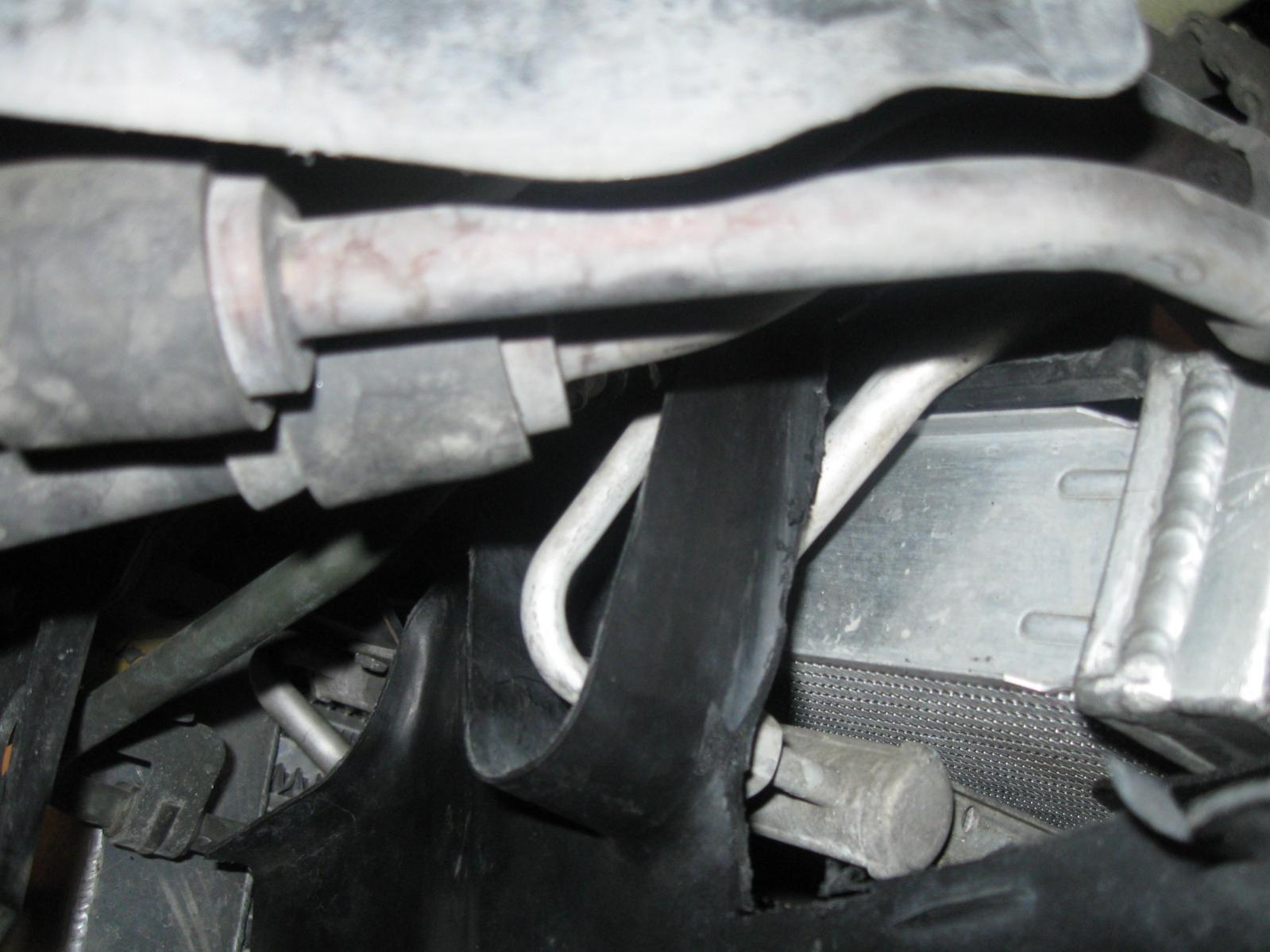

The last picture shows how tight the fit is, sheesh.



I didn't have to cut that much w/ mine. The only part that needed to be modified was that little piece comes up off the top of the undertray. It wouldn't fit on because of the core.



yeah but could you get your undertray to bolt back up to the bumper? i sure as hell couldnt



I had to go with a whole new set of fast nuts and bolts. Most of the bolts are 2 inches long, I have to get 2 more that are longer for the drivers most side. Seems like the fit is tighter there for some reason.
