Finish the rear of my FD!

Scrapiron7 · 2005-05-24 19:12:50

Yeah this diffuser is the way to go https://c.myspace.com/Groups/00000/58/18/578185_l.jpg i agree, man that body kit is sooooo nice :bigthumb:

Reply Subscribe

Thread Tools

Search this Thread

May 24, 2005 | 06:30 PM

#26

papsmagu

Eats, Sleeps, Dreams Rotary

iTrader: (19)

Joined: Sep 2004

Posts: 3,258

Likes: 9

From: South Florida

Quote:

Originally Posted by montego

Yeah this diffuser is the way to go

i agree, man that body kit is sooooo nice

May 24, 2005 | 06:36 PM

#27

ROTORhead93

Insane Burnout

Joined: Oct 2003

Posts: 1,568

Likes: 0

From: Pleasanton, CA

Quote:

Originally Posted by oorx7

Does chuck sell the add on's for the diffuser? I beleave thay are called vortex generaters (maybe). Unfortunatlly, even just the diffuser by it self minus the add on might be too understated. I know there is another diffuser that I don't see on hear to much that is made by first molding. It seems to have more side area, thus being more visable from the side.

http://www.bulletproofautomotive.com...il.php?ID=1346.

Actually, i believe they're called Bowtech generators. I'm not sure if chuck sells them, but i'm sure he could get them somehow. That or i'm pretty sure someone on the board knows where to get one.

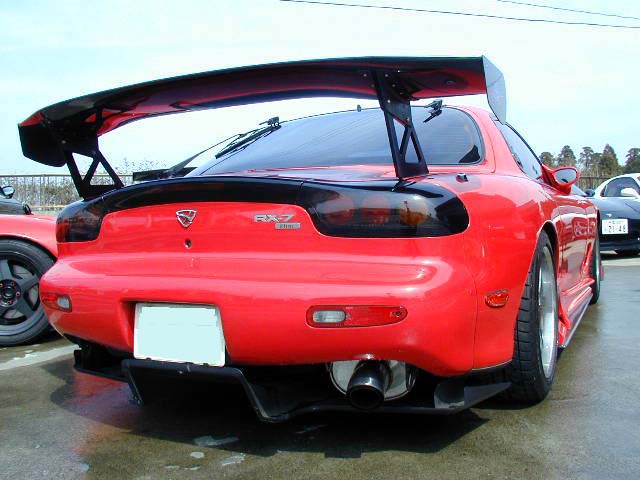

About the understatement, i doubt it would be that understated. Sure with the bowtech generators there would be less of a gap, but there isn't much to begin with having only the diffuser. Here are some pics of just the diffuser from different angles.

Last edited by ROTORhead93; May 24, 2005 at 06:41 PM.

May 24, 2005 | 06:42 PM

#28

rizzxx7

DIGG7ER

iTrader: (4)

Joined: Apr 2001

Posts: 988

Likes: 0

From: virginia beach, va.

I got the re diffuser from Chuck, the pre drilled holes dont line up perfect but its pretty easy to fix with another person helping you line things up

May 24, 2005 | 07:08 PM

#29

TpCpLaYa

T3DoW

iTrader: (10)

Joined: Nov 2001

Posts: 3,755

Likes: 5

From: Chicago - NW Burbs

i went through a few pics and was looking for you combination and found these.

First is just with the diffuser and RE rear skirts which BTW i think are for sale right now in the classifieds.

Next is a nice mold job(if you wanna do something like that) that i think would look really smooth with your setup

Attached Thumbnails

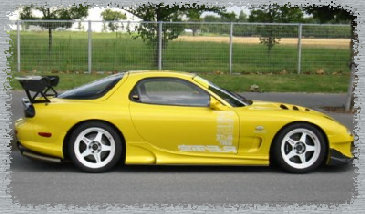

Finish the rear of my FD!-resonance018005.jpg

Finish the rear of my FD!-resonance018019.jpg

May 24, 2005 | 07:09 PM

#30

TpCpLaYa

T3DoW

iTrader: (10)

Joined: Nov 2001

Posts: 3,755

Likes: 5

From: Chicago - NW Burbs

...

Attached Thumbnails

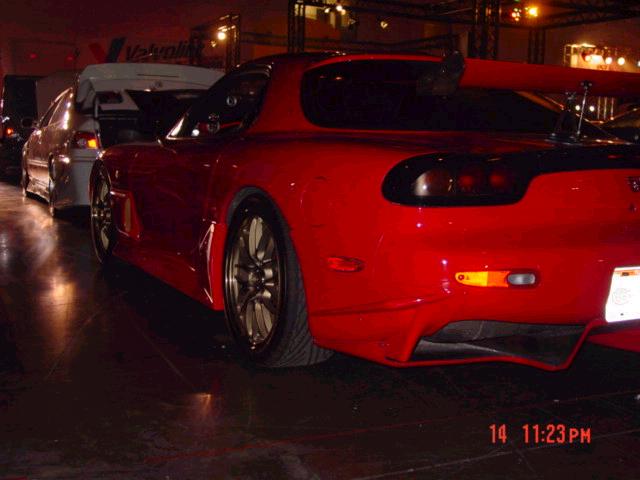

Finish the rear of my FD!-untitled12.jpg

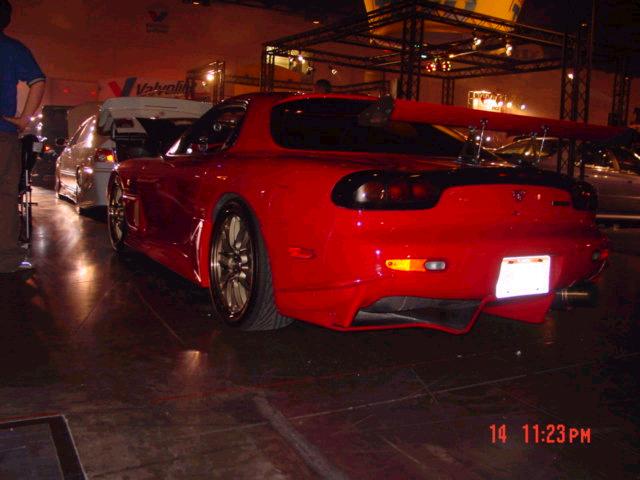

Finish the rear of my FD!-untitled33.jpg

May 24, 2005 | 07:15 PM

#31

TpCpLaYa

T3DoW

iTrader: (10)

Joined: Nov 2001

Posts: 3,755

Likes: 5

From: Chicago - NW Burbs

if neither of those suit you, then yes go with the diffuser, it looks badass. Would look good if you had the front diffuser as well but without looks good just the same.

Attached Thumbnails

Finish the rear of my FD!-gingitsune06.jpg

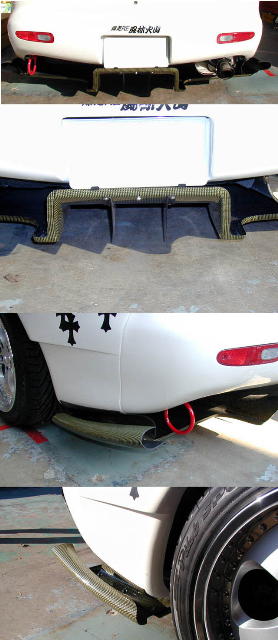

Finish the rear of my FD!-re_amemiya_pro9.jpg

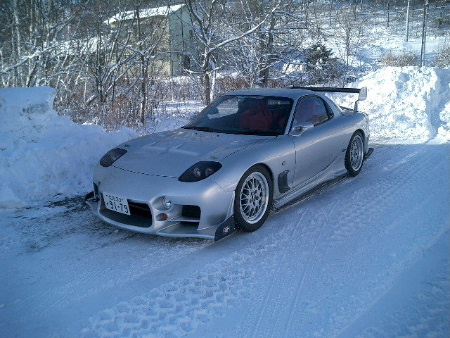

Finish the rear of my FD!-9749-187104-1-565547-pc.jpg

May 24, 2005 | 07:27 PM

#32

poss

Slower Traffic Keep Right

iTrader: (6)

Joined: Apr 2002

Posts: 2,194

Likes: 2

From: Dayton, OH

I'm probably in the minority, but I recommend the stock rear mud guards. The rear diffusers/bumbers that I like are very few and far between.

May 24, 2005 | 08:01 PM

#33

Narfle

Rx7 Wagon

iTrader: (16)

Joined: Nov 2002

Posts: 6,978

Likes: 888

From: California

sideskirts suck and i really detest the front bumpers that look like they have some sort of bubbly lip or bubbly canareds on the sides. just my .02.

May 25, 2005 | 09:58 AM

#34

Scrapiron7

Thread Starter

STi Boxer power!

Joined: Apr 2001

Posts: 2,160

Likes: 0

From: Austin, TX

Quote:

Originally Posted by Barban

sideskirts suck and i really detest the front bumpers that look like they have some sort of bubbly lip or bubbly canareds on the sides. just my .02.

Can't please everyone all the time.. but did you have any input on the rear?

May 25, 2005 | 09:59 AM

#35

Scrapiron7

Thread Starter

STi Boxer power!

Joined: Apr 2001

Posts: 2,160

Likes: 0

From: Austin, TX

Quote:

Originally Posted by TpCpLaYa

i went through a few pics and was looking for you combination and found these.

Thanks for all the pics! Wonderful to see the visual choices. I am really leaning towards the RE Diffuser now.

May 25, 2005 | 10:11 AM

#36

gcthree

Senior Member

Joined: Mar 2001

Posts: 286

Likes: 1

From: Garden City, New York, USA

For the record, they are 'vortex' generators, and not 'bowtech' generators. They accelerate the air under the car (in the tunnel) to create a low pressure zone, and the higher pressure above the body pushes the car down to the road. They work much better when you are able to get them closer to the road surface- not sure how effective they actually are at 3-4" above the road, though......

May 25, 2005 | 11:32 AM

#37

oorx7

Custom or Nothing

iTrader: (2)

Joined: Jul 2003

Posts: 1,779

Likes: 0

From: Lombard, IL

I have chuck's diffuser, can the 'vortex' generators be attached to his, and were can I get these? Maybe we could get him to make them.

May 25, 2005 | 11:53 AM

#38

TpCpLaYa

T3DoW

iTrader: (10)

Joined: Nov 2001

Posts: 3,755

Likes: 5

From: Chicago - NW Burbs

Quote:

Originally Posted by bricke

Thanks for all the pics! Wonderful to see the visual choices. I am really leaning towards the RE Diffuser now.

i have lots more if your looking for a shot in particular

May 25, 2005 | 03:16 PM

#39

apex_sideway

FD dream is dead

Joined: Oct 2003

Posts: 1,691

Likes: 0

From: FL

I don't care what anyone says; bricke's car is beautiful.

My opinion is that you should just keep it the way it is. If you do go with something go with the street diffuser. It'll lower the back a bit but look stealthy.
