FD RX7 master brake cylinder out of stock? Don’t worry we have alternate solutions
#1
Aviation Machinist Mate
Thread Starter
FD RX7 master brake cylinder out of stock? Don’t worry we have alternate solutions

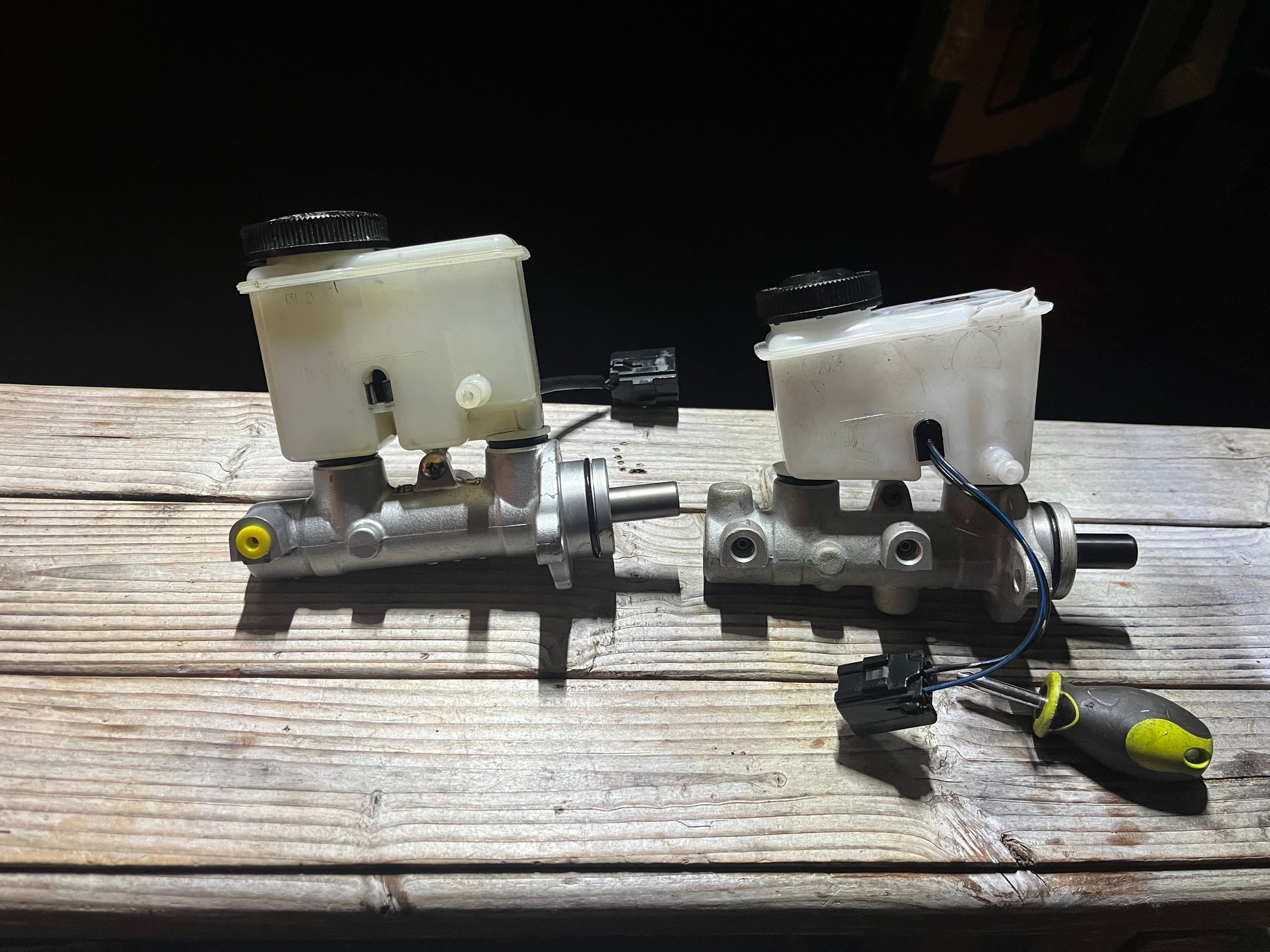

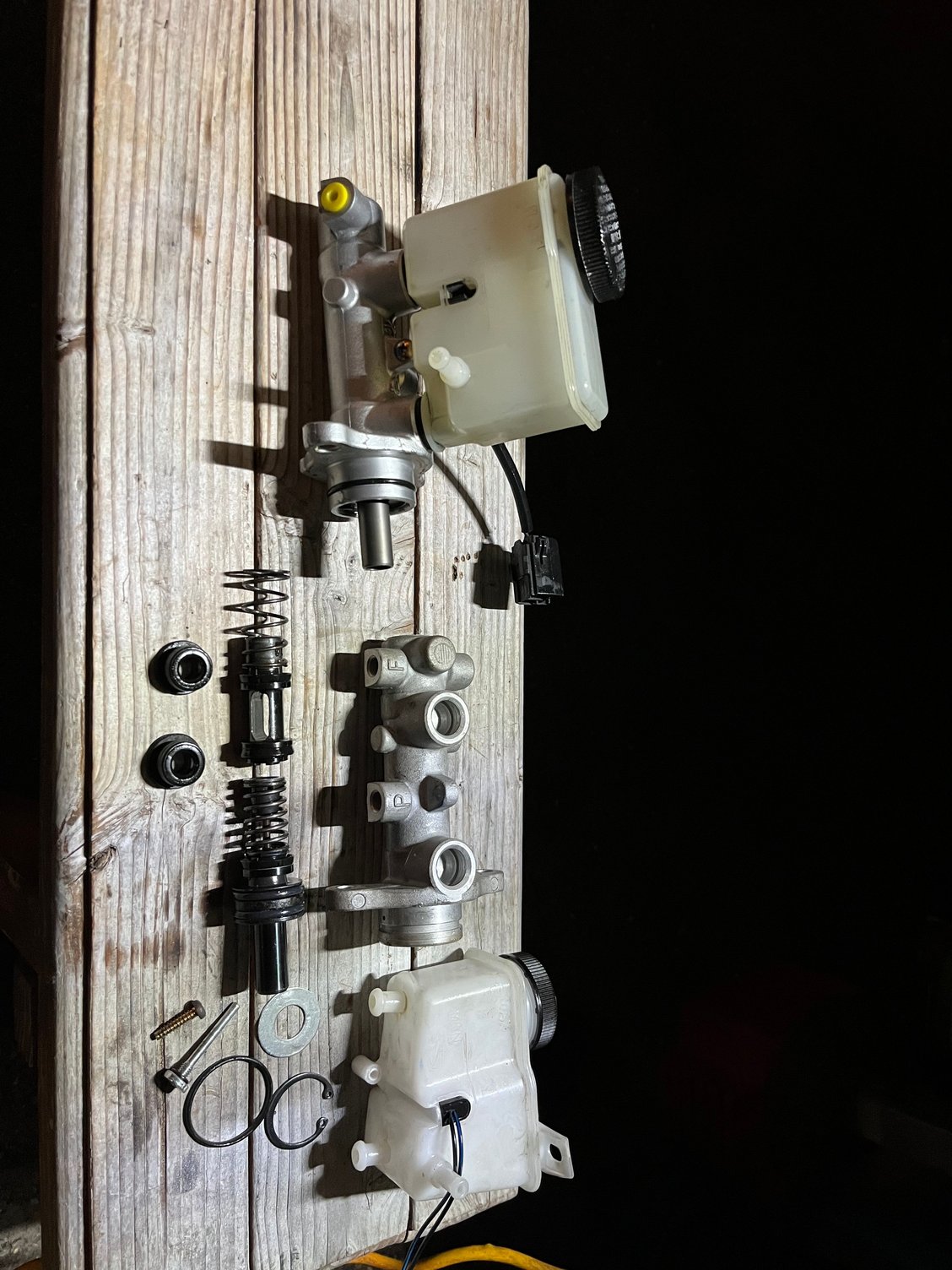

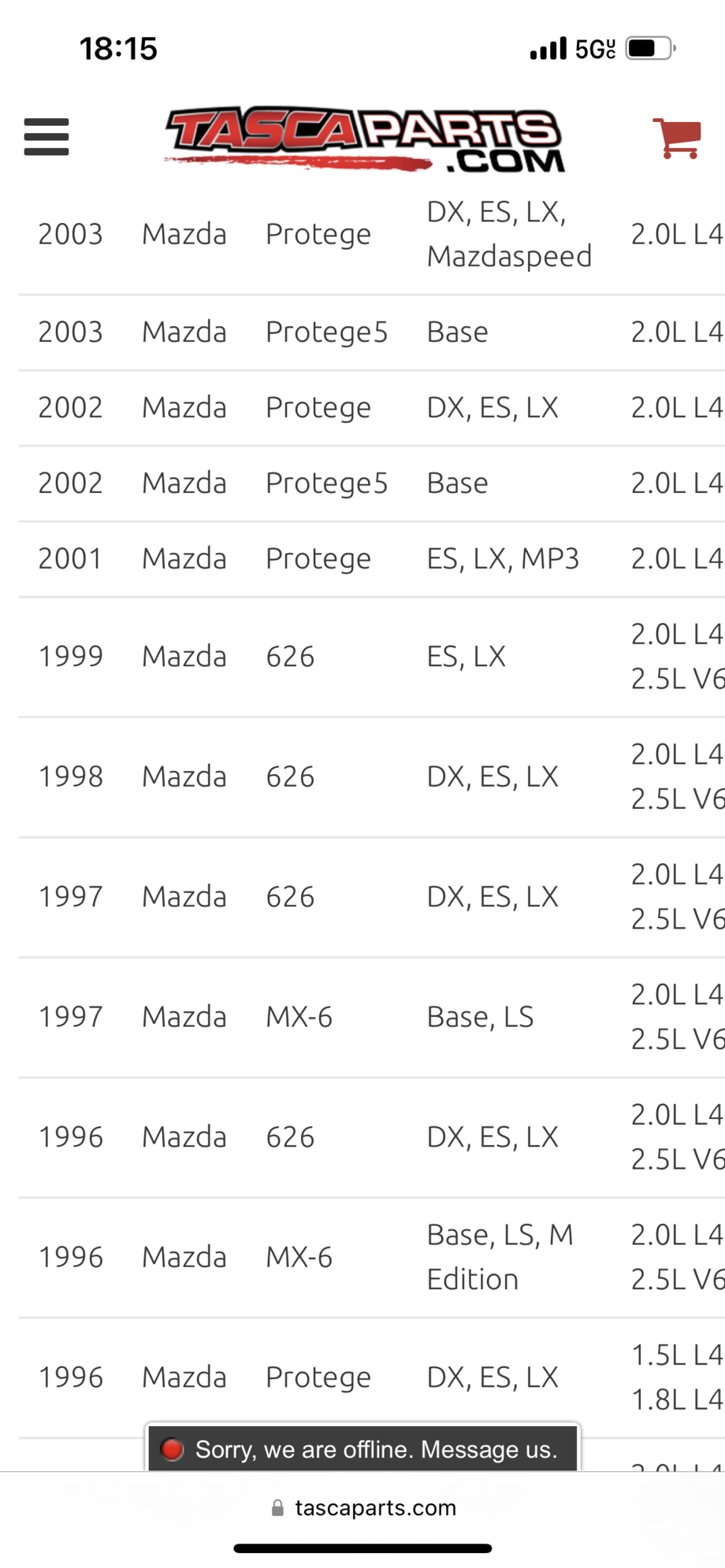

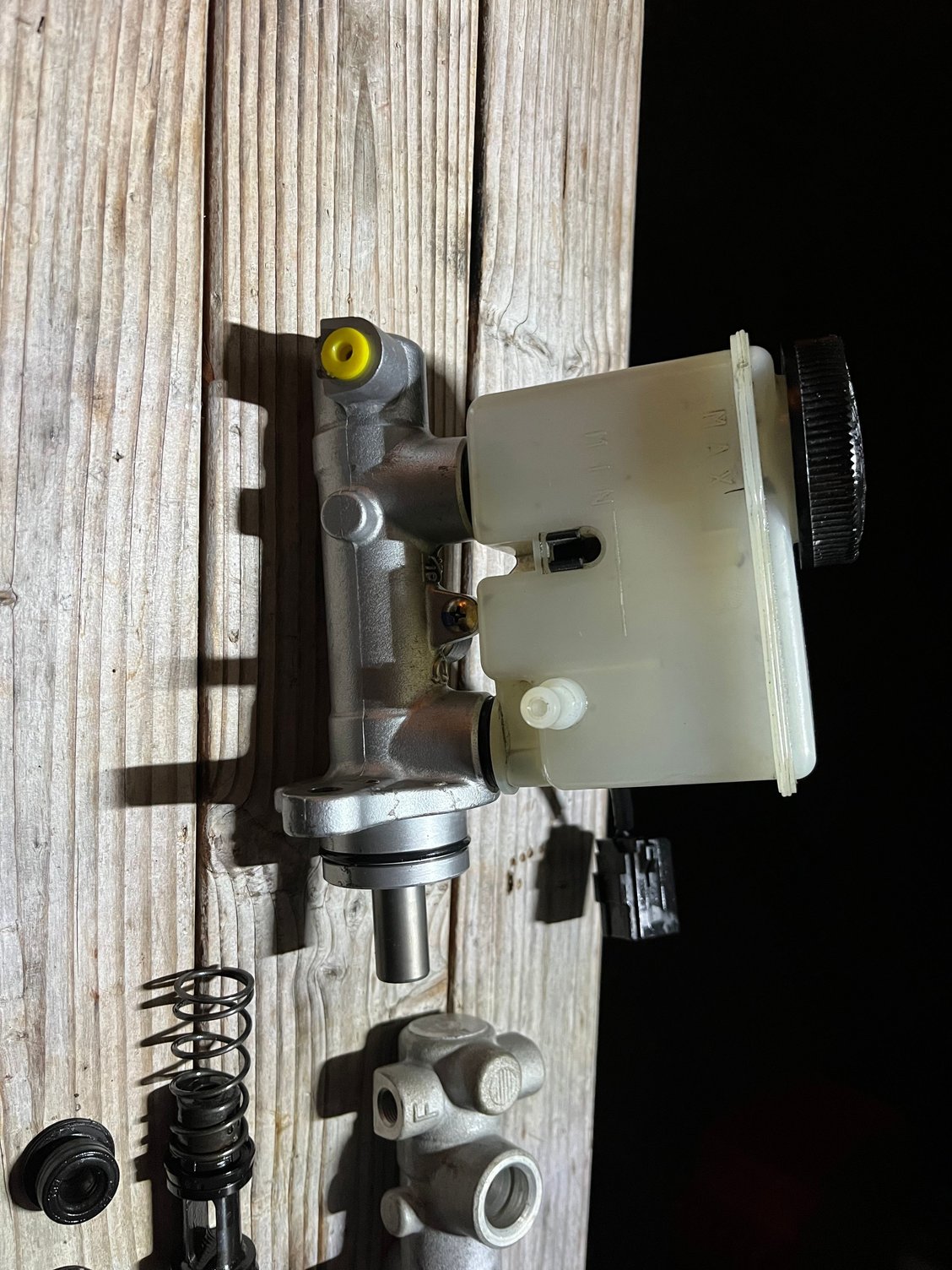

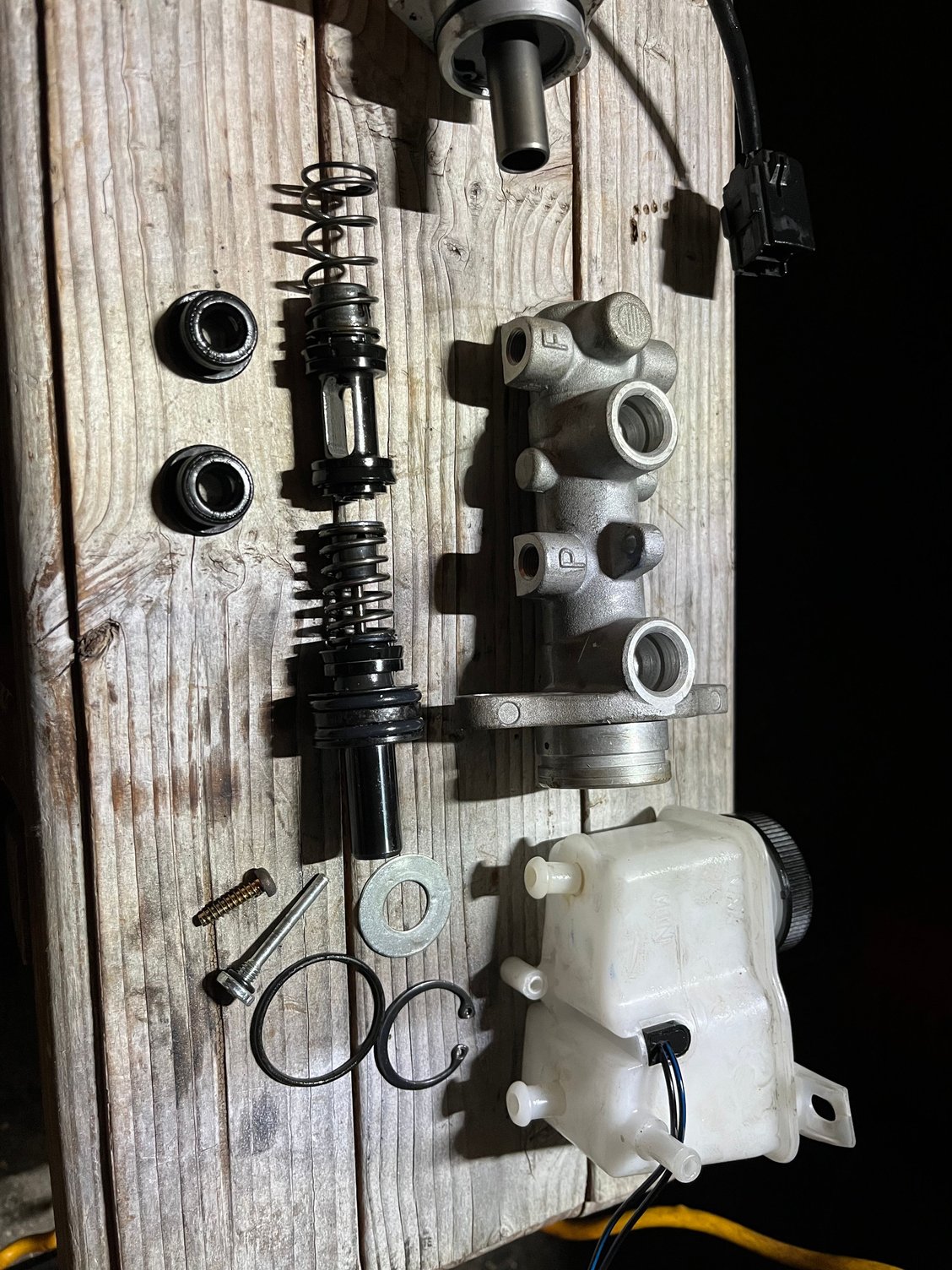

Hello everyone, just here trying to save some money to keep all my FD guys on the road. So unfortunately, my 93 RX7 Master brake cylinder started leaking internally, I’ve searched throughout the web, forums, and auto parts store and couldn’t find any master cylinder that’s available. I got fed up and started looking for an alternate solution. Finally, just looking through the web and decided that since Mazda has other vehicle models, I decided to browse around and see if the other 90’s Mazda has a master brake cylinder rebuild kit available. I found one for the FD, it was around $150+ and didn’t want to pay that much if I can find a brand a new brake master cylinder assembly. So, I found tascaparts.com and it has listing with all the alternate vehicle. I wen’t on ebay and purchased a NEW UNBOXED Brake Master Cylinder For 93-97 Probe, Mazda 626, MX-6. I took everything out and mic’d it out with a vernier caliper and everything were the same specs. Swapped all the internal from the 626 and installed it on the FD brake master cylinder. See attached pic for comparison. The one on the left is the FD and the right is the Mazda 626/MX-6/Ford probe master cylinder. Hope this help and just trying to keep our community alive.
Last edited by NEWGENRX7; 12-09-22 at 09:47 PM.
#2
RX-7 Bad Ass
iTrader: (55)
Interesting! So basically you are shucking the parts out of this MC, good idea!
Thanks for posting this!
Dale
Thanks for posting this!
Dale
The following users liked this post:
NEWGENRX7 (12-10-22)
The following users liked this post:
Rotate86 (10-24-23)
#6
Rotor or no motor
iTrader: (24)
Yeah good luck trying to find a 929 nowadays. You cant even get a rebuild kit from mazda anymore…
and it doesn’t need machining. You need to change the fitting on the one side on the existing hardlines
good find OP. with age these parts need to be freshened up
and it doesn’t need machining. You need to change the fitting on the one side on the existing hardlines
good find OP. with age these parts need to be freshened up
The following users liked this post:
gracer7-rx7 (12-13-22)
#7
Rx7 Wagon
iTrader: (16)
The reason to change the fitting is because the 929 MC is designed to use a flare fitting and not a banjo bolt. Chips (or your favorite local machine shop) offers a service to machine it for the stock banjo fitting, which would be my preference.
Atkins seems to have them in stock (Pn HG31-43-400G)
https://www.atkinsrotary.com/store/9...-hg31-43-400g-
In any case, glad the OP provided this option.
Atkins seems to have them in stock (Pn HG31-43-400G)
https://www.atkinsrotary.com/store/9...-hg31-43-400g-
In any case, glad the OP provided this option.
Trending Topics
The following users liked this post:
NEWGENRX7 (12-13-22)
#12
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
#13
Rotor or no motor
iTrader: (24)
so i ran across a potential alternative/substitute - the 98-2002 626 (the USA got its own version, so if you're not in the US, you got a different car, no clue what is in that). its also 1", if you get a manual trans version, the reservoir has the nipple for the clutch master.
A few months back my 10-ish year old 929 MC needed replacing/rebuilding.I reached out to Ray, and Ray says they have been discontinued for a while. He couldnt even get a rebuild kit. If Ray Crowe cant get one chances are no-one can get one and i am not buying it that Atkins has 973 pieces in stock LOL. I was looking for a generic rebuild kit but I ended up getting one from a friend that he had one laying around for many years. I will eventually rebuild my other one
I will look into this option for a future reference but if that works, that would be a really good option.
I am in the US but my car is overseas. i might bring it over when it becomes 25 .
Last edited by R-R-Rx7; 12-14-22 at 04:10 AM.
The following users liked this post:
j9fd3s (12-13-22)
The following users liked this post:
R-R-Rx7 (12-14-22)
#15
Senior Member
iTrader: (4)
I am scratching my head at this one. A quick search on Rock Auto shows they have 929 master cylinders for close to the same price as 626 master cylinders and they are still in stock. Maybe there are no brand new from Mazda units, but there are plenty of rebuilt units out there and that is what I would assume the Atkins' units are. OP has a good find, but you can still do the old 929 trick.
The following users liked this post:
DaleClark (12-14-22)
#16
Rotor or no motor
iTrader: (24)
I am scratching my head at this one. A quick search on Rock Auto shows they have 929 master cylinders for close to the same price as 626 master cylinders and they are still in stock. Maybe there are no brand new from Mazda units, but there are plenty of rebuilt units out there and that is what I would assume the Atkins' units are. OP has a good find, but you can still do the old 929 trick.
If i were to guess, Atkins are branded as oem but they are probably an aftermarket variant of some sort and probably 3x more expensive and who knows what you are actually getting
Personally i want to stick to an OEM MC and if its rebuilt, i want oem internals and i do not want to disassemble it to machine it
Last edited by R-R-Rx7; 12-14-22 at 12:50 PM.
#17
Rotary Enthusiast
How about non-mazda masters?
The following users liked this post:
mikey13b (01-29-24)
#18
rotary amuse
iTrader: (12)
976 as of this morning - production's runnin' hot! They're Centric (not OEM, not rebuilt), confirmed Mazda's is NLA.
As tempted as I am to go with the Altex CT9A / S8 FD mash up like Mike and Peter, this a new flex line to match and Heath's VBBC should do the trick
Great find and reverse engineering on the 626 newgen!
As tempted as I am to go with the Altex CT9A / S8 FD mash up like Mike and Peter, this a new flex line to match and Heath's VBBC should do the trick
Great find and reverse engineering on the 626 newgen!
#19
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
it gets tricky, we know Mazda always uses 10x1.0 threads, and we know that they have like 3 master to booster patterns (the old stuff, which is vertical, FC and later is horizonal, and then with ABS they have a bigger diameter with the o ring)
when you get away from Mazda, those things change. i found a Ford master that was 1", but it had two fittings that were 10x1.0 and another that was 15/16"...
when you get away from Mazda, those things change. i found a Ford master that was 1", but it had two fittings that were 10x1.0 and another that was 15/16"...
#20
Make an assessment...
iTrader: (3)
I assume people that do the swap are using the reservoir that comes on the 626 MC? No issues with it being slanted, not getting enough fluid in the reservoir for the clutch?
#21
so i ran across a potential alternative/substitute - the 98-2002 626 (the USA got its own version, so if you're not in the US, you got a different car, no clue what is in that). its also 1", if you get a manual trans version, the reservoir has the nipple for the clutch master.
#22
Make an assessment...
iTrader: (3)
I thought I saw it on Rock Auto but maybe not. One of the sites I looked at said 1" bore, and it is. You can tell when comparing to the stock MC. EDIT: for 2002, most of the cylinders listed on Rock Auto say they're 1", aside from Raybestos and Beck/Arnley.
Last edited by speedjunkie; 01-11-23 at 08:45 PM.
#23
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,603 Likes
on
1,847 Posts
The following users liked this post:
Billj747 (01-12-23)
#25
Make an assessment...
iTrader: (3)
I was reading something recently about using a Miata booster. I believe it was in a thread on here but I don't remember for sure.
I asked before but no one chimed in. I assume some have used the 626 reservoir on this swap. Any drawbacks?
I asked before but no one chimed in. I assume some have used the 626 reservoir on this swap. Any drawbacks?
