FD Gurus: where do these go? Picture attached!

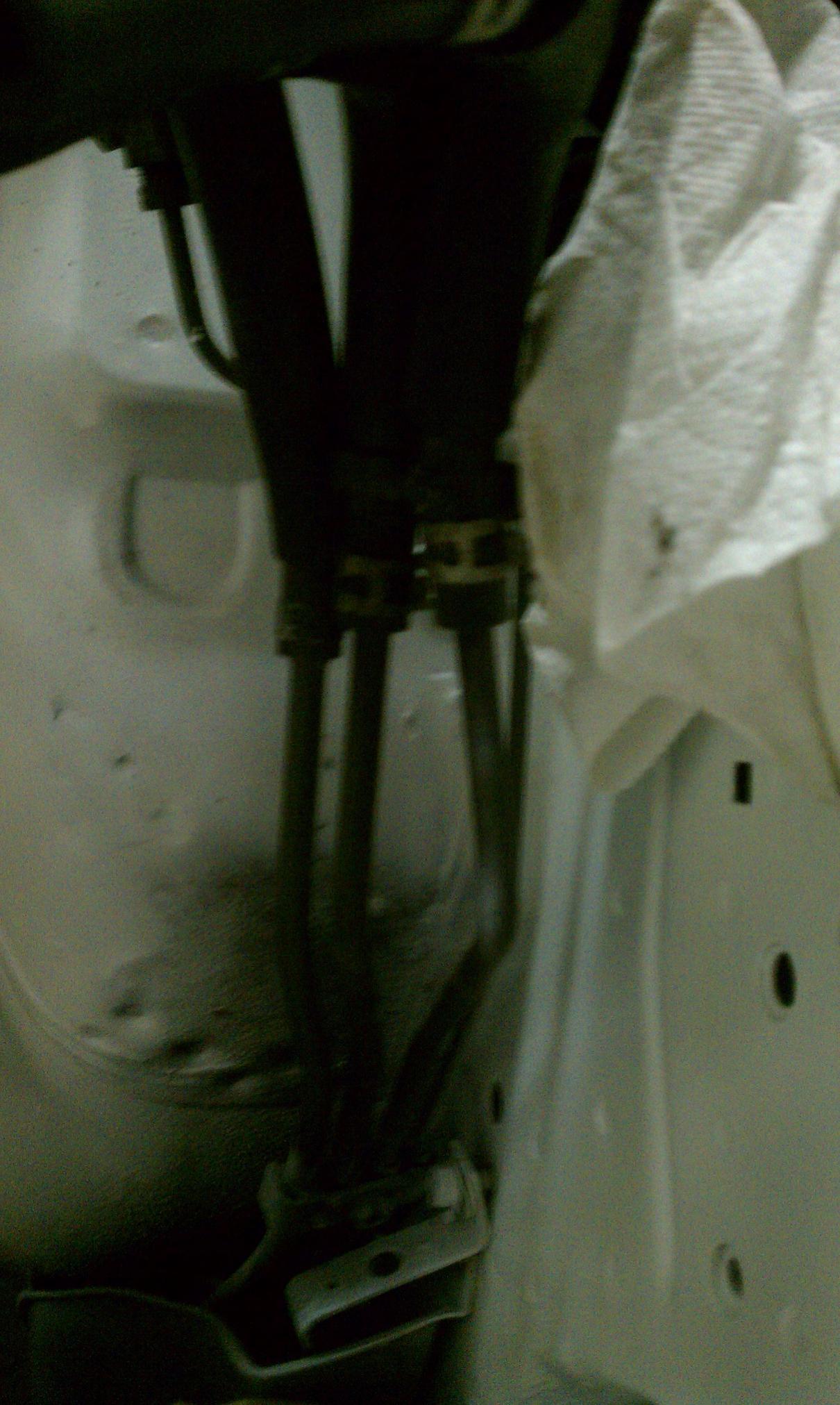

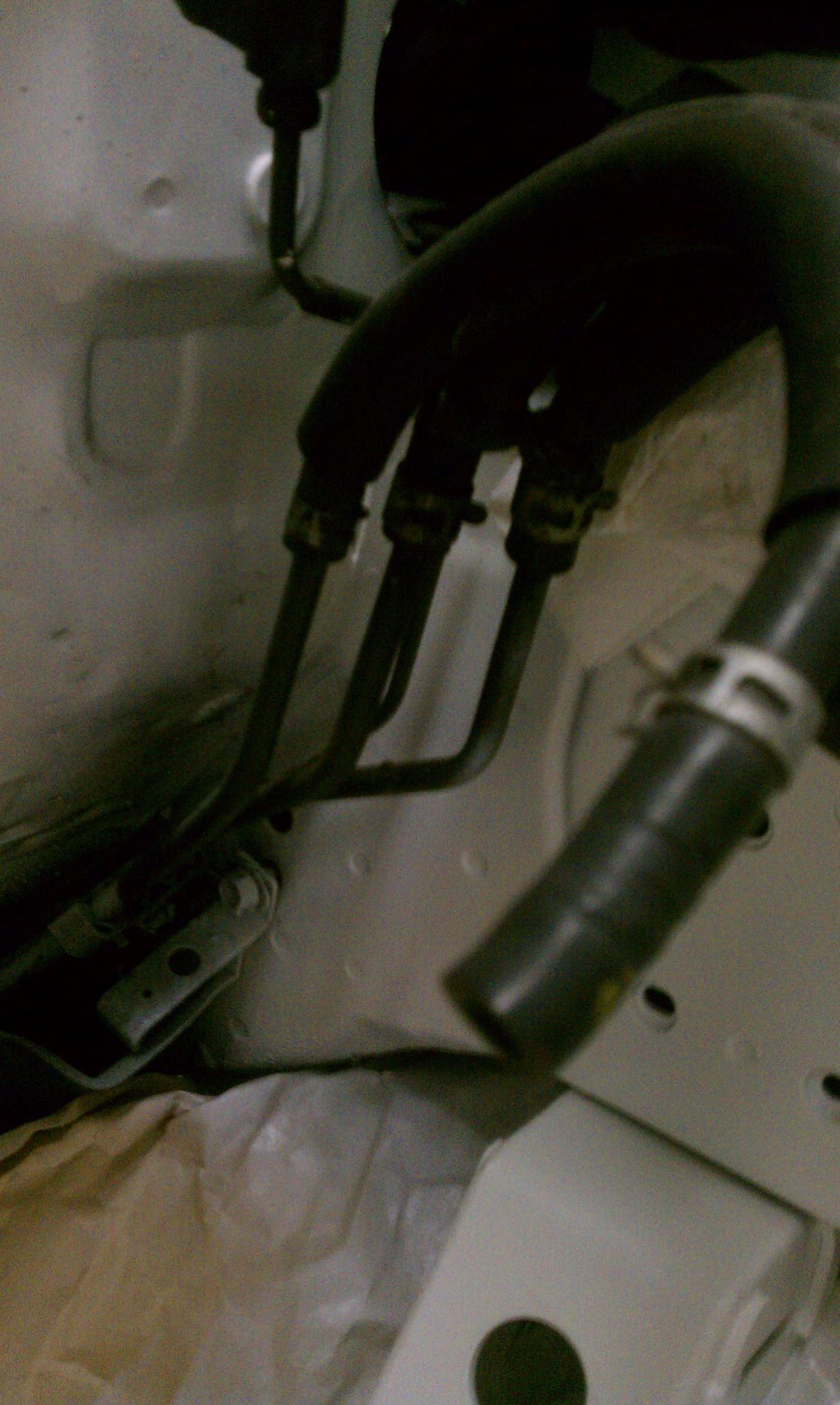

I removed these lines before but that was about a year ago and I forgot where they go. These are the lines coming up from the driver's side, right by the brake booster. From what I vaguely remember, 2 out of 3 are the fuel return and fuel supply, but i'd rather make sure from the gurus around here.
The car is a USDM 1993 5-speed touring model if that matters..
The car is a USDM 1993 5-speed touring model if that matters..
Last edited by rino; 04-13-11 at 01:10 PM. Reason: more details added
04-13-11, 01:16 PM
#4
Planning my come back
iTrader: (7)
Join Date: Feb 2003
Location: Austin, Tx
Posts: 3,393
Likes: 0
Received 0 Likes
on
0 Posts

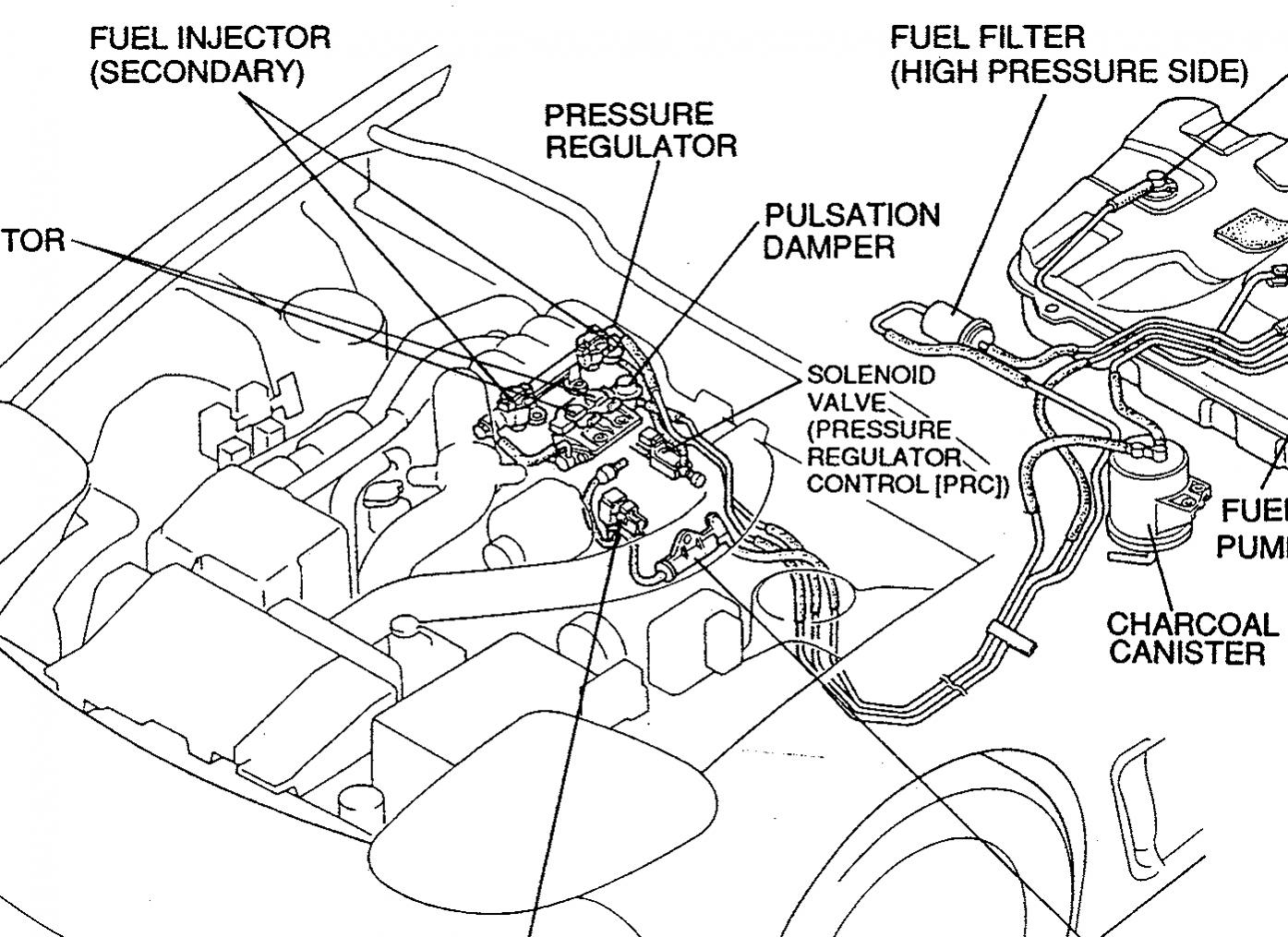

2 are fuel lines and the third is for your charcoal canister.
The line that goes to the fuel pressure regulator is your return line and the one going to the primary rail is your feed line.
The line that goes to the fuel pressure regulator is your return line and the one going to the primary rail is your feed line.
04-13-11, 01:22 PM
#5
Full Member
Thread Starter
iTrader: (9)
Join Date: Jun 2004
Location: Bay Area, CA
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
I searched before and must have missed this:
https://www.rx7club.com/showthread.p...ght=fuel+lines
Thanks for the quick replies fellas
https://www.rx7club.com/showthread.p...ght=fuel+lines
Thanks for the quick replies fellas
