Engine Bay Weights

Reply Subscribe

Thread Tools

Search this Thread

Jan 22, 2005 | 04:08 PM

#26

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

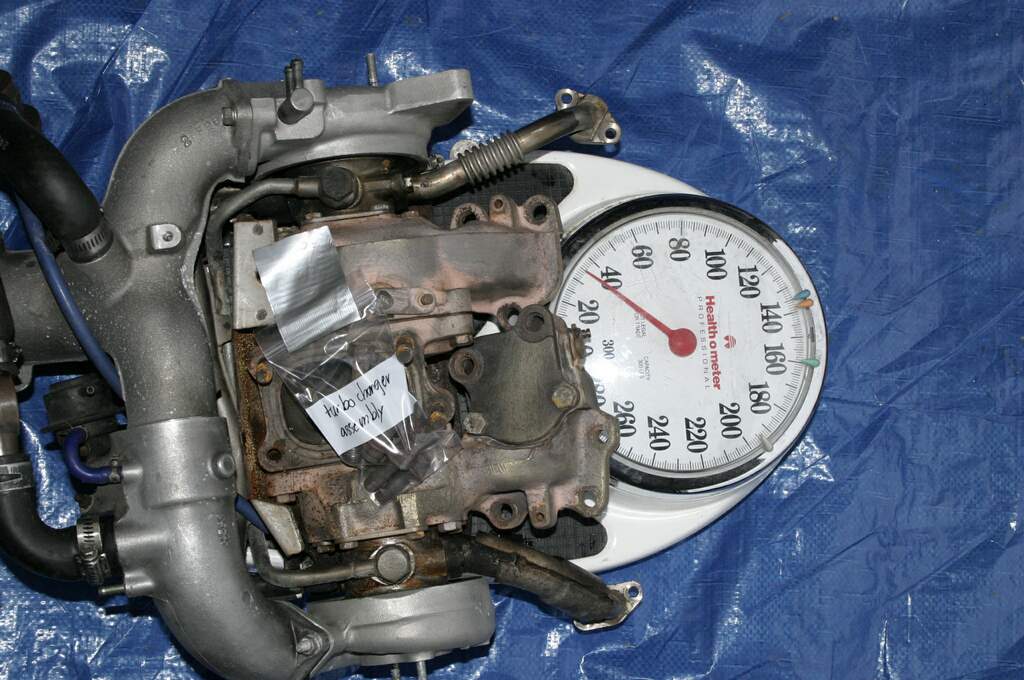

turbo charger assembly - 35 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:09 PM

#27

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

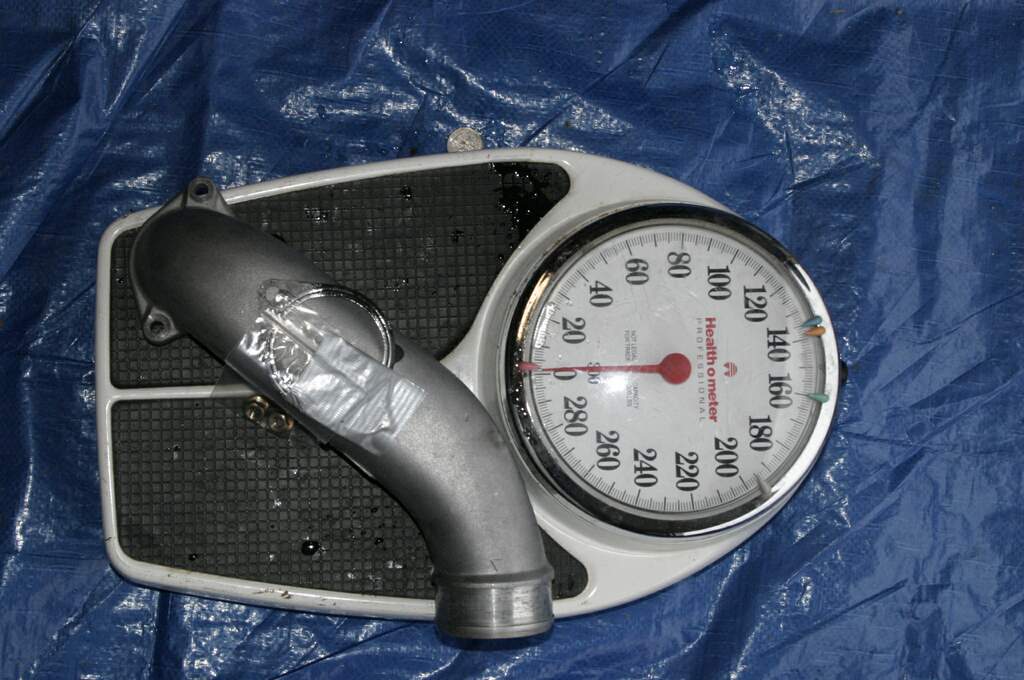

air pipe (???) - 1 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:09 PM

#28

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

throttle body - 5 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:10 PM

#29

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

coil pack - 4 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:11 PM

#30

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

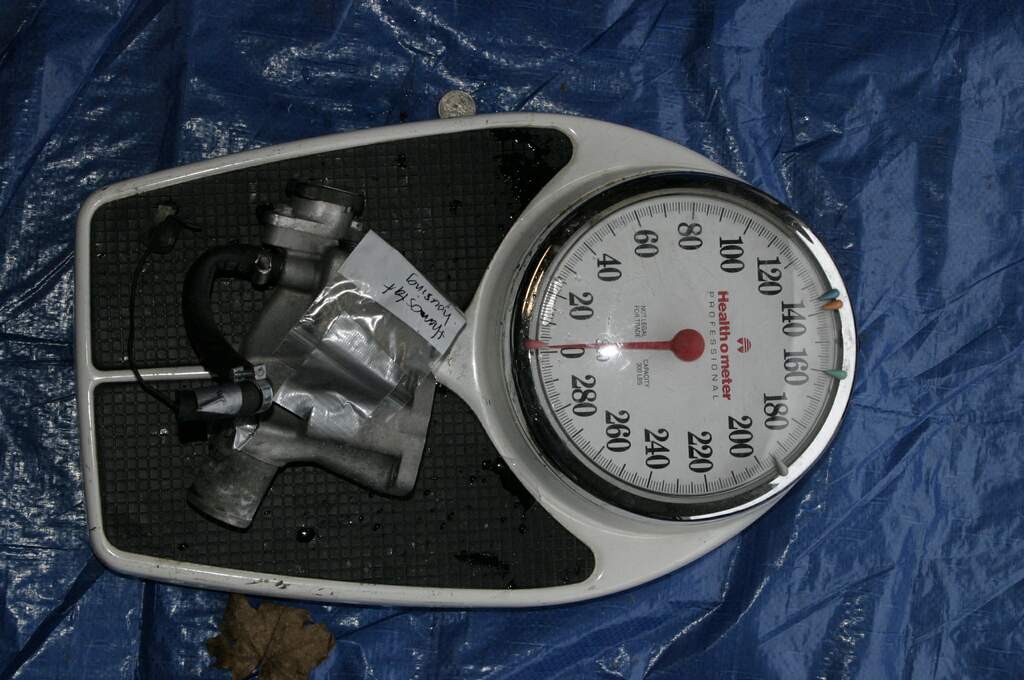

thermostat housing - 2 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:11 PM

#31

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

thermostat cover - 5 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:12 PM

#32

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

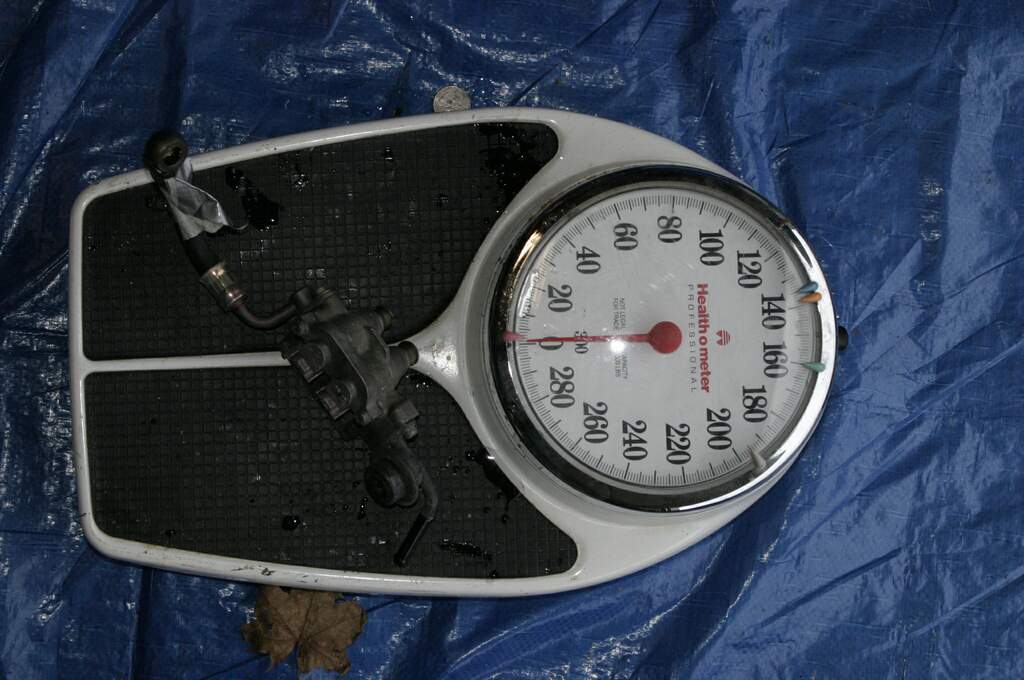

fuel pipe delivery - 1 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:12 PM

#33

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

UIM (Upper Intake Manifold) - 10 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:13 PM

#34

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

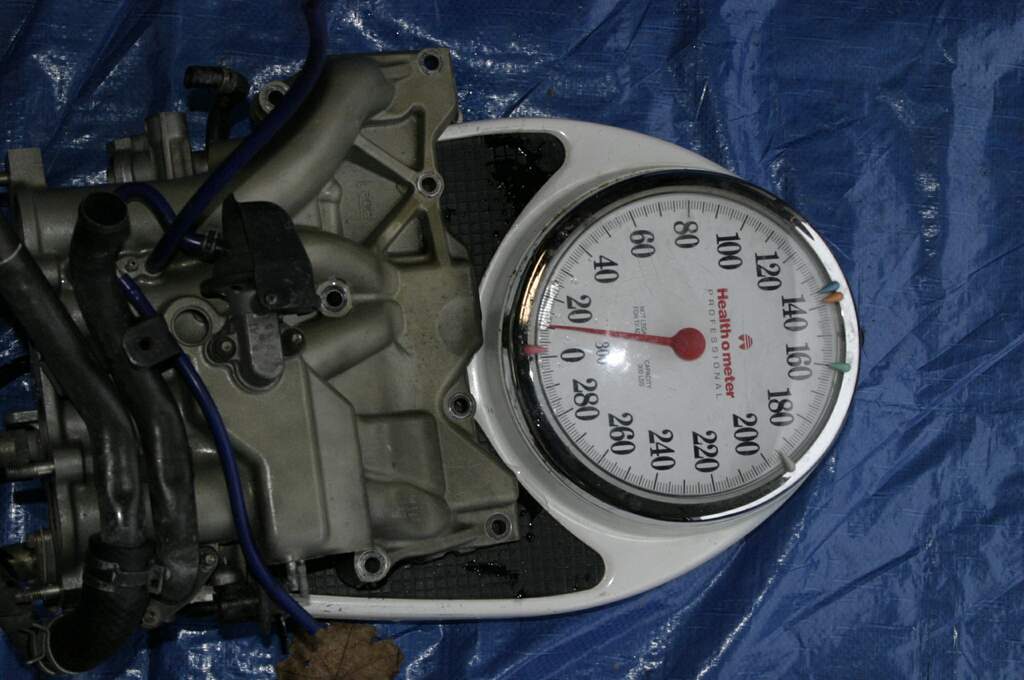

LIM (Lower Intake Manifold) - 11 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:13 PM

#35

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

y-pipe (???) - 2 lbs.

Attached Thumbnails

Jan 22, 2005 | 04:14 PM

#36

Railgun

I won't let go

Joined: Aug 2002

Posts: 3,871

Likes: 23

From: Chi -> Maidstone

Well, that's a way to get your post count up.

Jan 22, 2005 | 04:15 PM

#37

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

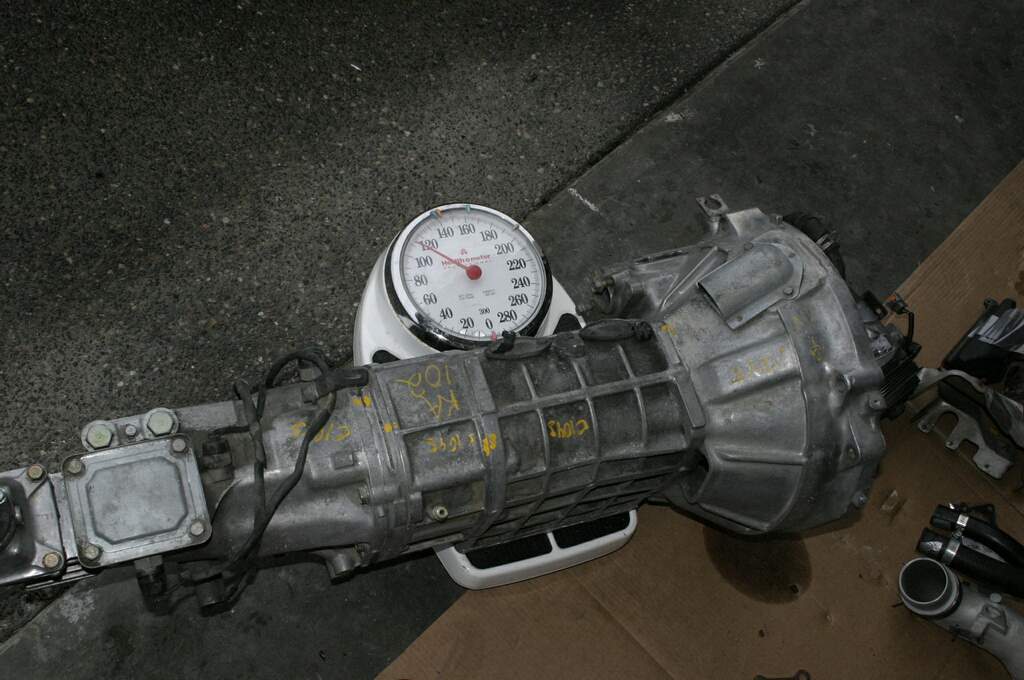

And last but not least........5-speed transmission - 112 lbs.

Whew!!!! I'm done.....

Attached Thumbnails

Jan 22, 2005 | 04:16 PM

#38

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

Quote:

Originally Posted by Railgun69

Well, that's a way to get your post count up.

Wait 'til I do my engine R&R how to....

Jan 22, 2005 | 04:18 PM

#39

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

Quote:

Originally Posted by Rotarded

What do all the nuts and bolts weigh?

But seriously, Kudos for the effort.

I tried to keep the nuts and bolts within each respective parts in zip lock bags. I then weighed it on the scale. I haven't weighed the engine bolts 'cause they're still soaking in solvent. Maybe when I clean them I'll weigh it for you guys. It'll weight a lot since there are 18 of them.

Aug 16, 2005 | 07:25 PM

#40

scotty305

~17 MPG

iTrader: (2)

Joined: Jan 2004

Posts: 3,478

Likes: 334

From: Bend, OR

Bump for a good thread. Total engine weight, including two engine mounts, would be at least 311 lbs (not including the PFS intercooler listed here). chillin_rx7_guy didn't list weights for the A/C and Power Steering assemblies, he probably removed his. Assuming they weigh 13 lbs each, total engine weight would be at least 337 lbs.

This company: http://www.freedom-motors.com/ makes all-aluminum rotary engines, claiming 150hp from a naturally aspirated 1300cc motor that weighs only 120lbs. Does anyone know the weight of the Renesis motor?

-s-

Last edited by scotty305; Aug 16, 2005 at 07:29 PM.

Aug 16, 2005 | 07:48 PM

#41

quicksilver_rx7

Rotary Enthusiast

Joined: Feb 2005

Posts: 1,336

Likes: 0

From: Charlotte, NC

Take note people, this is how you match Jim Labreck's post count.

This is interesting info, nonetheless.

Aug 16, 2005 | 08:03 PM

#42

b0ng

a.k.a. bron

Joined: Mar 2005

Posts: 20

Likes: 0

From: NZ

Thanks for this!

Kudos!

Aug 16, 2005 | 09:20 PM

#43

maxcooper

WWFSMD

Joined: Jun 2001

Posts: 5,035

Likes: 4

From: SoCal

Awesome job on weighing all this stuff and posting the pictures to avoid any confusion. :whatever-the-code-for-big-thumbs-up-is:

The item labeled power steering pulley is really the main eccentric pulley. I would be surprised if the ultra-light stock PS pulley even weighed 5 oz.

-Max

Feb 15, 2006 | 03:56 PM

#44

fd0

Thread Starter

formerly chillin_rx7_guy

iTrader: (8)

Joined: Mar 2003

Posts: 1,149

Likes: 0

From: WA

Quote:

Originally Posted by maxcooper

Awesome job on weighing all this stuff and posting the pictures to avoid any confusion. :whatever-the-code-for-big-thumbs-up-is:

The item labeled power steering pulley is really the main eccentric pulley. I would be surprised if the ultra-light stock PS pulley even weighed 5 oz.

-Max

I didn't even notice people actually looked at this thread. Wow! I was searching for something else and found mine! LOL

Hope this does help people though. All the parts that around 1lbs. wouldn't be very accurate 'cause the scale is meant for heavier objects but it's a rough estimate.

Cheers!
