engine bay teardown pic gallery
12-29-09, 09:08 PM
#1
engine bay teardown pic gallery
I've been taking so many pics, i decided to upload some here. They arent all going to make it to my website, so they are here for your enjoyment.

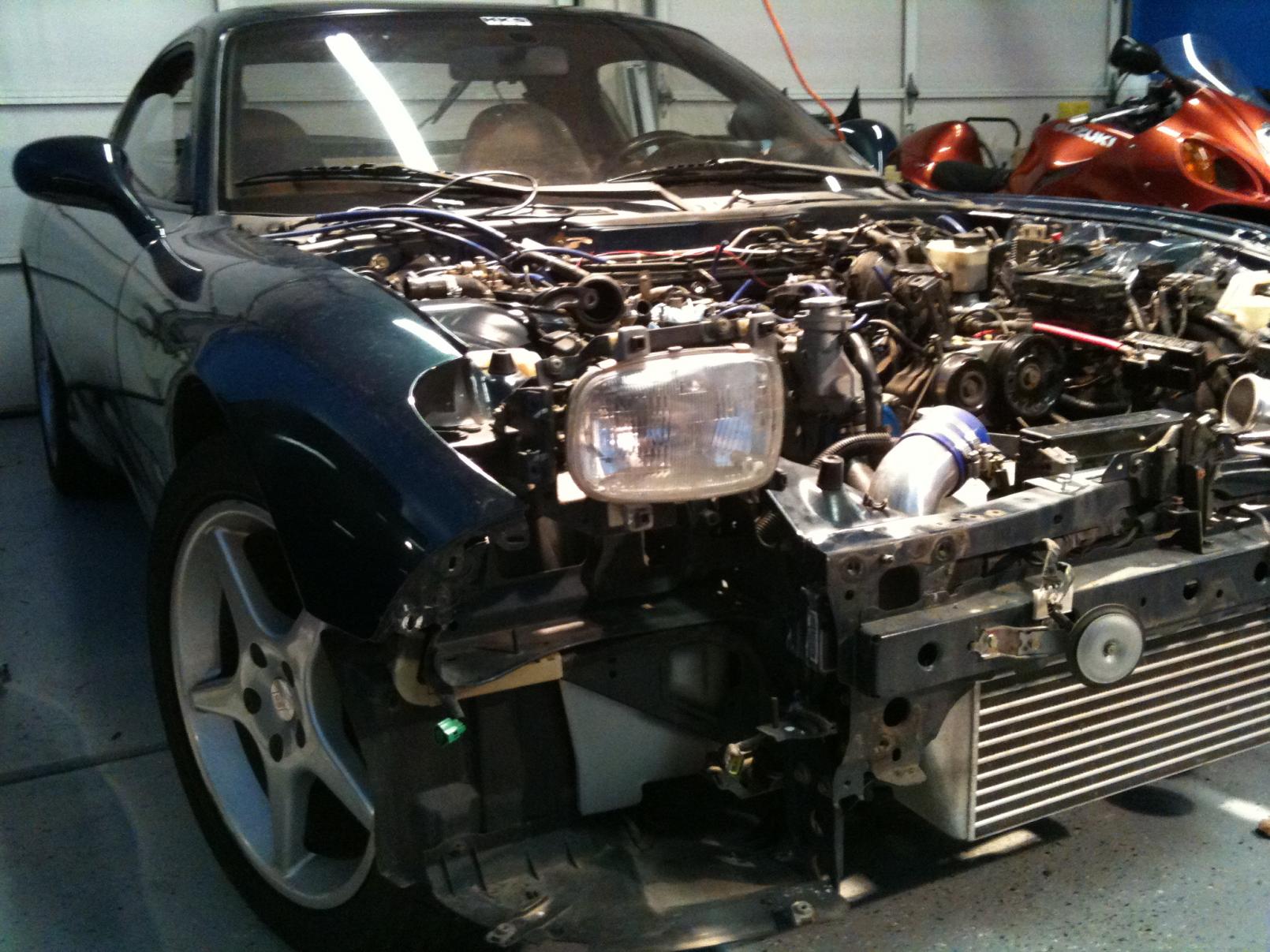

The car was working just fine before i tore it down. Other than my obvious "bandaids", the car ran soooo smooth. Here in Michigan, there is winter and salt on the roads, it was time to gut my engine bay and do it right.
Installing:
1680 secondaries
6AN sexy fuel lines in engine bay
Fuel Pressure Regulator
Top feed secondary fuel rail
supra TT oem fuel pump
Removing:
A/C pump
Stock twins
OMP
Air pump crap on the LIM
prospecting/researching:
400RWHP BB turbo kit
Pre turbo water injection
This is a long winter project, if you are familiar with MI, thats a long time.
Enjoy,
Rob
PS: give me a second to load the images. otherwise this thread is worthless without pics. lol
The car was working just fine before i tore it down. Other than my obvious "bandaids", the car ran soooo smooth. Here in Michigan, there is winter and salt on the roads, it was time to gut my engine bay and do it right.
Installing:
1680 secondaries
6AN sexy fuel lines in engine bay
Fuel Pressure Regulator
Top feed secondary fuel rail
supra TT oem fuel pump
Removing:
A/C pump
Stock twins
OMP
Air pump crap on the LIM
prospecting/researching:
400RWHP BB turbo kit
Pre turbo water injection
This is a long winter project, if you are familiar with MI, thats a long time.
Enjoy,
Rob
PS: give me a second to load the images. otherwise this thread is worthless without pics. lol
12-30-09, 12:01 AM
#6
94 Half Bridge 7
iTrader: (1)
Join Date: Sep 2007
Location: Brookville Indiana
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
I just finished tearing off my twins and putting on my Single Billet PT67. So i know what your goin through. I went ahead and put on my new 850 primarys and such while i had it apart. knocked out two stones with one bird
12-30-09, 12:05 AM
#7
Im about where you are......
I just remover rear engine housing (end cover) and am about to remove rear int. housing. My engine was in tip top shape but I am going single turbo w/Ultimate fuel system and wanted to upgrade/replace seals/gaskets/etc. first. Also some more porting. Lots of work, but after this I will know this car better than ever. Good luck with your build.
Trending Topics
12-30-09, 02:12 PM
#9
Look into methanol injection, here's some info
https://www.rx7club.com/showthread.p...iary+Injection
https://www.rx7club.com/showthread.p...iary+Injection
12-30-09, 03:39 PM
#10

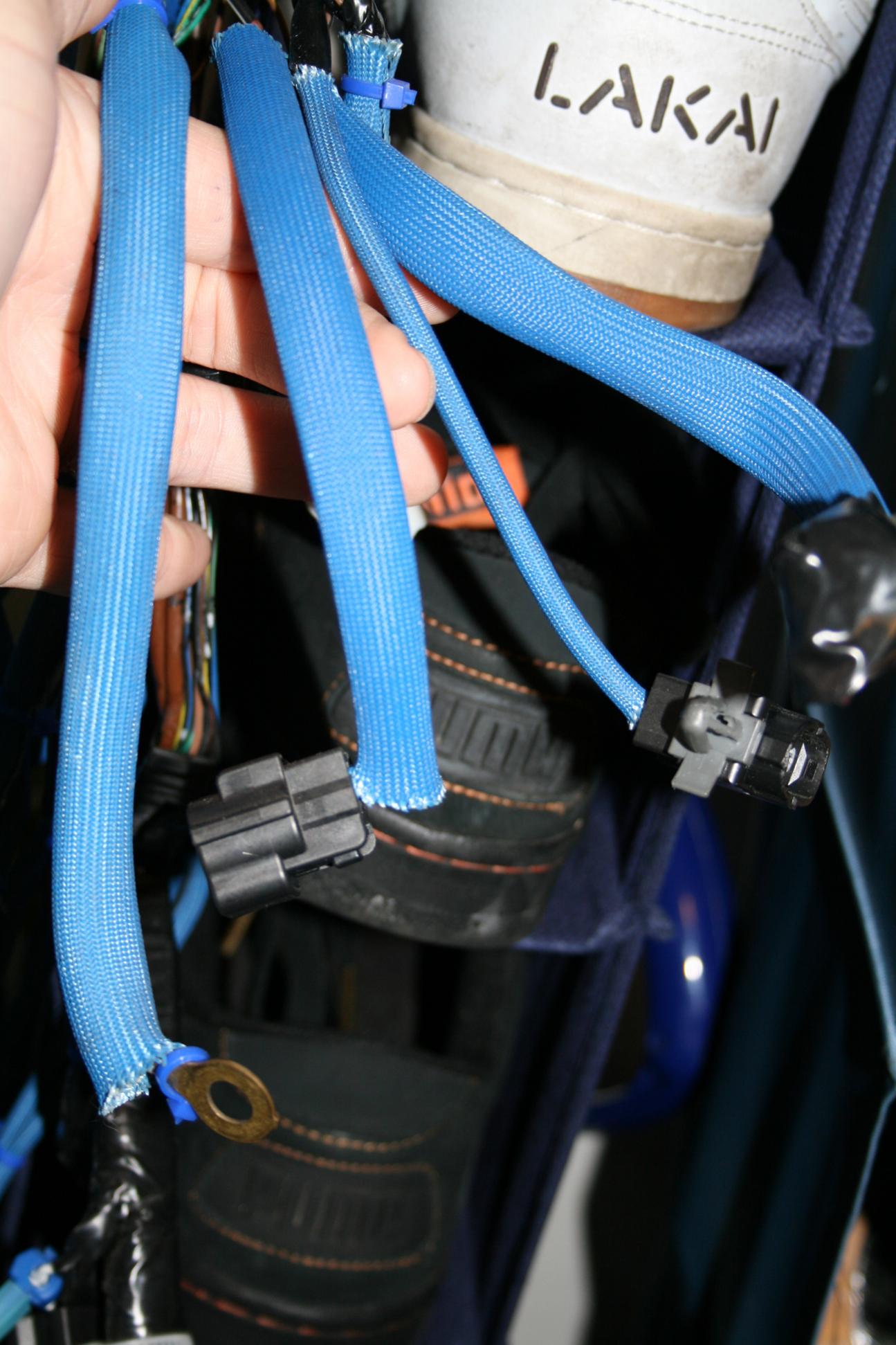

If you sleeve your harness with the sleeving in this link your harness would look a little nicer. Its also flame retardant and can resist 1200degrees!
http://www.pcsconnectors.com/wiresleeving-loom.aspx
http://www.pcsconnectors.com/wiresleeving-loom.aspx
