Mazdabation

iTrader: (9)

I have done the install of my boost controller but am confused as to what lines are to be pulled and Blocked off. I know one line has to be pulled and then attached to the "IN" and "OUT" of the solenoid, but what one?

Also, is there not some things that also need to be blocked off and /or disconected?

Mazdabation

iTrader: (9)

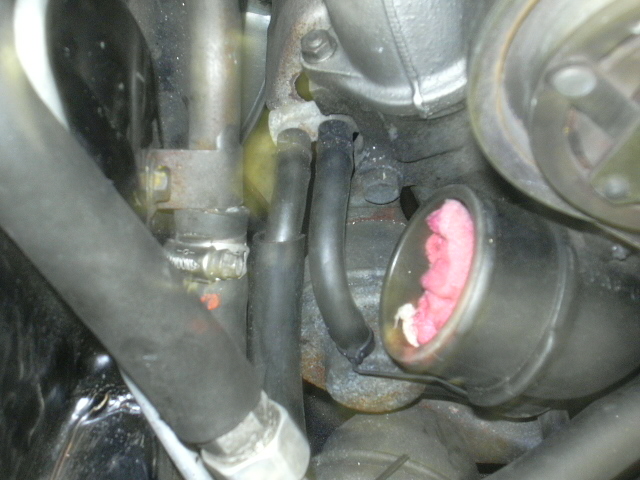

Is it one of the lines in the pic, or from the lower part thats not shown?

rynberg

https://www.rx7club.com/showthread.p...=install+boost

Mazdabation

iTrader: (9)

Ok i read your thread ryn, so its the line on the right correct? Just want to be sure....

Now you mention cutting the line going from the rats nest to the actuator and plugging both ends, what line is that?

For some reason i thought i had to dissconect the wastegate sloenoid thats up in front of the UIM?!?

rynberg

Same difference, except disconnecting the line at the actuator is cleaner. Just disconnect it and plug the nipple and the line -- or cut the line and plug both exposed ends.

Mazdabation

iTrader: (9)

Ok again you never said though, what line is that? Is it the other line with the pill on the left? Or is it the line comming out the bottom cause there is one more there.

rynberg

Aren't you using a tt line diagram? You are replacing the short line on the right in your pic with the boost controller loop. There should be a line coming out of the right side of the actuator running up to the rat's nest. That's the line you remove from the actuator and cap off both ends.
