EGR block-off plate ? - RX7Club.com - Mazda RX7 Forum

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

EGR block-off plate ?

Reply




Old 07-28-03, 04:15 PM
  #1
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2002
Location: Edwards AFB, CA
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
Question EGR block-off plate ?

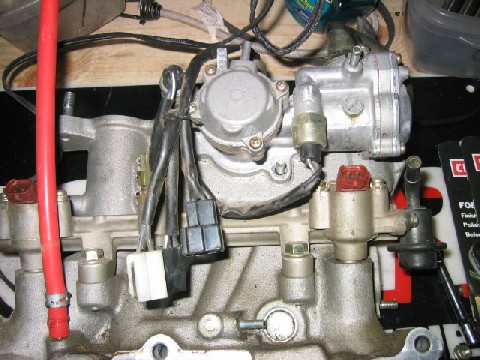

Have any of you blocked off the EGR port on the LIM? Here is a pic with the EGR on.

Last edited by JOES95RX7; 07-28-03 at 04:18 PM.
JOES95RX7 is offline
Reply With Quote
Old 07-28-03, 04:18 PM
  #2
Glug Glug Glug Burp
5 Year Member

jdhuegel1's Avatar

Join Date: Jan 2002
Location: Scott AFB, IL
Posts: 3,819
Thanks: 0
Thanked 0 Times in 0 Posts
Yup! Block that sucker off!
jdhuegel1 is offline
Reply With Quote
Old 07-28-03, 04:23 PM
  #3
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2002
Location: Edwards AFB, CA
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
Just take it oof and cover the open ports?

Now one with it off.

Last edited by mar3; 09-04-10 at 03:21 PM. Reason: Merged back-to-back posts...
JOES95RX7 is offline
Reply With Quote
Old 07-28-03, 04:36 PM
  #4
Lawn Ornament
10 Year Member

ejmack1's Avatar

Join Date: Apr 2001
Location: St Louis, USA
Posts: 2,416
Thanks: 0
Thanked 0 Times in 0 Posts
dude thats your ACV ****... not your EGR
ejmack1 is offline
Reply With Quote
Old 07-28-03, 04:37 PM
  #5
Lawn Ornament
10 Year Member

ejmack1's Avatar

Join Date: Apr 2001
Location: St Louis, USA
Posts: 2,416
Thanks: 0
Thanked 0 Times in 0 Posts
drive down to K2RD and pick up a block off plate kit.... probably about 1 hr drive
ejmack1 is offline
Reply With Quote
Old 07-28-03, 04:52 PM
  #6
Glug Glug Glug Burp
5 Year Member

jdhuegel1's Avatar

Join Date: Jan 2002
Location: Scott AFB, IL
Posts: 3,819
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by ejmack1
dude thats your ACV ****... not your EGR
Haha! I guess I should open the picture from now on!
jdhuegel1 is offline
Reply With Quote
Old 07-28-03, 04:56 PM
  #7
5yr member, joined 2001
5 Year Member

JONSKI's Avatar

Join Date: Dec 2001
Location: Marco Island, FL
Posts: 908
Thanks: 0
Thanked 0 Times in 0 Posts
Damn, I go take a **** and ejmack1 beats me to the punch before I reply. jdhuegel1, shame on you for mis-informing. This almost as bad as the time I told ejmack1 that the recall fan relay was the AT-ECU.

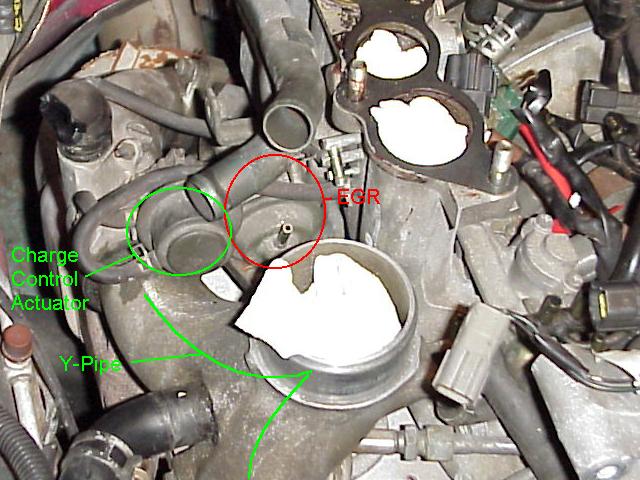

Anyways, this is where the EGR is:

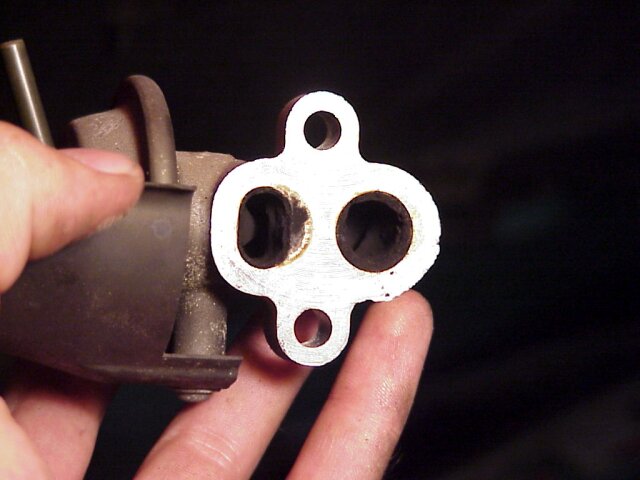

Here is why we eliminate it:
JONSKI is offline
Reply With Quote
Old 07-28-03, 04:59 PM
  #8
Lawn Ornament
10 Year Member

ejmack1's Avatar

Join Date: Apr 2001
Location: St Louis, USA
Posts: 2,416
Thanks: 0
Thanked 0 Times in 0 Posts
hey focker i forgot about that, and I never have found out where the auto ecu is located...

Last edited by mar3; 09-04-10 at 03:22 PM. Reason: Killd quote since reply was back-to-back to post in question...
ejmack1 is offline
Reply With Quote
Old 07-28-03, 05:26 PM
  #9
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2002
Location: Edwards AFB, CA
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
How much is the kit? I am tring to save money on parts and can make my own plates I am just trying to learn which I can block off.

I wont to get rid of everything that I dont need. I am not concerned with emisions.

Thanks for your help
JOES95RX7 is offline
Reply With Quote
Old 07-28-03, 05:32 PM
  #10
5yr member, joined 2001
5 Year Member

JONSKI's Avatar

Join Date: Dec 2001
Location: Marco Island, FL
Posts: 908
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by ejmack1
hey focker i forgot about that, and I never have found out where the auto ecu is located...
Dude, it was SOOO my bad. It happened right after you did the tranny conversion and you were (and still kinda are ) my superhero, so I tried to help you without thinking.


I'm an assclown!
JONSKI is offline
Reply With Quote
Old 07-28-03, 05:36 PM
  #11
5yr member, joined 2001
5 Year Member

JONSKI's Avatar

Join Date: Dec 2001
Location: Marco Island, FL
Posts: 908
Thanks: 0
Thanked 0 Times in 0 Posts
How can you not be concerned with emissions when you live in the people's republic of California?

Since you already have a PowerFC, you can potentially eliminate a lot of crap without worrying about any ill-effects. With a midpipe, your ACV, airpump and a bunch of solenoids immediately become useless.

Other stuff you can eliminate:
TB coolant lines cold start cam elimination
ISC elimination
AWS
half the solenoids on the rack
etc...
JONSKI is offline
Reply With Quote
Old 07-28-03, 06:06 PM
  #12
Full Member
5 Year Member
Thread Starter

Join Date: Sep 2002
Location: Edwards AFB, CA
Posts: 190
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks thats what I was getting to. I wasn't researching anything yet and the exhaust carbon in the port made me beleive that it was EGR. Thanks for the insight. I am getting rid of a lot of stuff. Thanks again

OH yeah. Emissions. My car is not registered in this state. (Thank God)

Last edited by mar3; 09-04-10 at 03:23 PM. Reason: Merged back-to-back posts...
JOES95RX7 is offline
Reply With Quote
Old 07-28-03, 06:29 PM
  #13
Glug Glug Glug Burp
5 Year Member

jdhuegel1's Avatar

Join Date: Jan 2002
Location: Scott AFB, IL
Posts: 3,819
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by JOES95RX7
OH yeah. Emissions. My car is not registered in this state. (Thank God)
Gotta love the military!
jdhuegel1 is offline
Reply With Quote
Old 11-30-09, 04:30 PM
  #14
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
does the ypipe have to come off to get the egr off for block off?
s1mpsons is offline
Reply With Quote
Old 11-30-09, 05:29 PM
  #15
T3DoW
iTrader: (10)

TpCpLaYa's Avatar

Join Date: Nov 2001
Location: Chicago - NW Burbs
Posts: 3,752
Thanked 1 Time in 1 Post
I would say yes...to make things alot easier

Last edited by mar3; 09-04-10 at 03:23 PM. Reason: Killd quote since reply was back-to-back to post in question...
TpCpLaYa is offline
Reply With Quote
Old 12-09-09, 07:53 PM
  #16
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
The EGR block off plate I have is not thick enough to retain the OE nuts without using 8 washers. Am I supposed to remove the stud and use the bolts provided with my block off kit? Also, can I reuse the old gasket?
s1mpsons is offline
Reply With Quote
Old 12-09-09, 08:25 PM
  #17
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Thanks: 0
Thanked 4 Times in 4 Posts
Use bolts. Skip the gasket and just use some RTV.

Last edited by mar3; 09-04-10 at 03:24 PM. Reason: Killd quote since reply was back-to-back to post in question...
Mahjik is offline
Reply With Quote
Old 12-09-09, 10:19 PM
  #18
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
To remove the studs just put the nuts back to back and back out the inner nut? What is the stud thread size/pitch?
s1mpsons is offline
Reply With Quote
Old 12-09-09, 10:23 PM
  #19
Formerly widebodyseven
iTrader: (17)

Join Date: Jul 2009
Location: Garage
Posts: 1,801
Thanks: 0
Thanked 0 Times in 0 Posts
I just use some pliers to take the stud off or use a drill lock it on to the stud and pull the trigger.
widebodyseven is offline
Reply With Quote
Old 12-09-09, 10:33 PM
  #20
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
I'd prefer not to mangle them incase I need to revert back.
s1mpsons is offline
Reply With Quote
Old 12-10-09, 10:12 AM
  #21
AponOUT!?
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,524
Thanks: 0
Thanked 4 Times in 4 Posts
yeah...that first pic isn't the egr.

anyway, i ghetto-fabbed a block-off plate. it worked.

when i pulled my motor for porting/rebuild i bought a block-off plate kit so i could get rid of everything that wasn't needed.



theorie is offline
Reply With Quote
Old 12-10-09, 10:19 AM
  #22
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
Looks like you just used two oversized nuts as a large washers (rather than stacking washers like I did).

Last edited by mar3; 09-04-10 at 03:25 PM. Reason: Killd quote since reply was back-to-back to post in question...
s1mpsons is offline
Reply With Quote
Old 12-10-09, 11:13 AM
  #23
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Thanks: 0
Thanked 4 Times in 4 Posts
Originally Posted by s1mpsons View Post
To remove the studs just put the nuts back to back and back out the inner nut? What is the stud thread size/pitch?
Yes, use two nuts back to back to remove the stud. Just take the stud to your local hardware store to find a matching bolt. That size is used all over the engine bay, so I keep a big bag of those around for replacements.
Mahjik is offline
Reply With Quote
Old 12-10-09, 11:27 AM
  #24
HamfistRacing.com
iTrader: (5)

s1mpsons's Avatar

Join Date: Jan 2003
Location: NYC
Posts: 1,185
Thanks: 0
Thanked 0 Times in 0 Posts
M6 Pitch 1, most likely. I already have a million of them, but sometimes stud use odd threads. Ok. Thanks!
s1mpsons is offline
Reply With Quote
Old 02-25-10, 09:16 PM
  #25
Back in the BOOST Game
10 Year Member
iTrader: (15)

Captain_Panic's Avatar

Join Date: Jun 2003
Location: Chicago IL
Posts: 700
Thanks: 0
Thanked 0 Times in 0 Posts
I am about to remove my ACV and EGR (bought the block off kit from Banzai). What do I do with the open vacuum lines? Do I just put a nipple on the other end and zip tie it to close it off?
Captain_Panic is offline
Reply With Quote
