Dyno Results
01-13-05, 10:07 AM
#1
Fanno
Thread Starter
Join Date: Jul 2004
Location: Pittsburgh
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
Dyno Results
I have a 93 base with 46k on original engine, and stock turbo's.
Bolt On's
Apex'i Power FC w/Commander
Greddy SMIC w/Hard Elbow
K&N Cold Airbox w/Hard Pipes
HKS Downpipe
Greddy Evo Exhaust
Bonez Hi-Flow Cat
Bigger Walboro Fuel Pump
HKS BOV
262RWHP
250TQ
I want to get to 300-320rwhp Reliably, What do you guys recommend?
Bolt On's
Apex'i Power FC w/Commander
Greddy SMIC w/Hard Elbow
K&N Cold Airbox w/Hard Pipes
HKS Downpipe
Greddy Evo Exhaust
Bonez Hi-Flow Cat
Bigger Walboro Fuel Pump
HKS BOV
262RWHP
250TQ
I want to get to 300-320rwhp Reliably, What do you guys recommend?
01-13-05, 10:10 AM
#2
RX-7 Bad Ass
iTrader: (55)
How much boost are you running? Seems like you've got everything you need for 300ish to the ground.
Dale
Dale
01-13-05, 10:14 AM
#4
Originally Posted by DaleClark
How much boost are you running? Seems like you've got everything you need for 300ish to the ground.
Dale
Dale
Trending Topics
01-13-05, 11:10 AM
#14
0-rotor-0-turbo-0-fd
Join Date: Sep 2002
Location: NYC
Posts: 1,640
Likes: 0
Received 0 Likes
on
0 Posts
It sounds about right, more and less, but you should have run a bit more HP, pretty much what everyone else is sayng couple of percent more, with a nice SMIC like that and and high flow MC .
I rane similar HP w/DP, CB, k&n intake (not as nice as yours), and Pettit Racing unlim. ECU pushing 12psi, 267.2 RWHP and 230.1 torque
Running w/stock midcat, IC, fuel components and so on ...

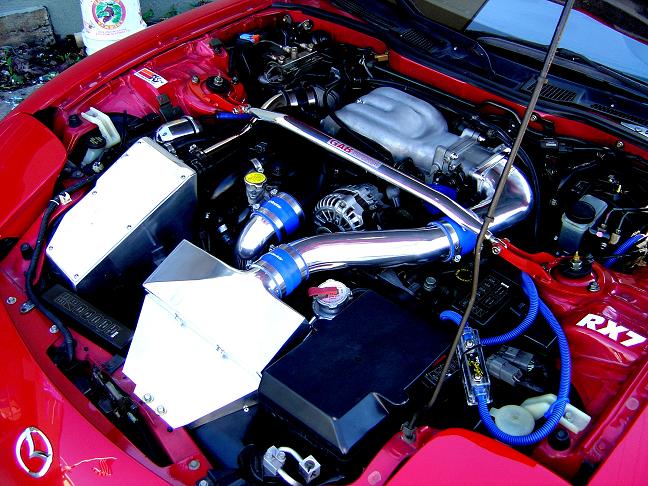

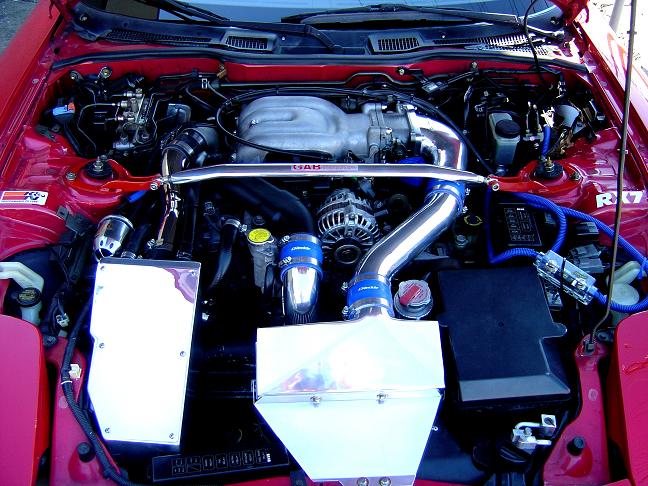

BTW those are very impressing engine bay pics,,, nice...
I rane similar HP w/DP, CB, k&n intake (not as nice as yours), and Pettit Racing unlim. ECU pushing 12psi, 267.2 RWHP and 230.1 torque
Running w/stock midcat, IC, fuel components and so on ...
BTW those are very impressing engine bay pics,,, nice...
Last edited by TwinTurbo93; 01-13-05 at 11:12 AM.
01-13-05, 11:10 AM
#15
Hi....
Join Date: Mar 2004
Location: bay area
Posts: 845
Likes: 0
Received 0 Likes
on
0 Posts
You can raise the boost a little, get bigger secondaries, get some ignition mods and run a higher octane or poor octane booster in your tank before you do your dyno run. That will boost you up a bit. And yes mustang dynamometers read low... so you do have to add a percentage, not sure how much... but you MAY be in the 300 range already.
Jeremy
Jeremy
01-13-05, 11:12 AM
#16
Fanno
Thread Starter
Join Date: Jul 2004
Location: Pittsburgh
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
greddy SMIC $1100 Greddy Elbow $150-250
HKS Downpipe $300-400
Bonez Hi-Flow Cat $450
Greddy Evo Exhaust $500
AirBox $300-375
HKS BOV $250
Apexi Power FC $800
Around $3500 Id Say
HKS Downpipe $300-400
Bonez Hi-Flow Cat $450
Greddy Evo Exhaust $500
AirBox $300-375
HKS BOV $250
Apexi Power FC $800
Around $3500 Id Say
01-13-05, 11:34 AM
#17
Rotary Enthusiast
Greddy smic is much more restrictive than M2 or PFS. Tubes are loaded with internal fins, and lower cast elbo is pinched down bigtime. At 9 psi boost, pressure drop was only .1 psi better than stock, which is a real choker. I removed 2 fluid oz of alum, porting bottom inlet ... helped some.
Pressure drop ... Check boost with normal gage, t'eed in before the check valve to the pressure tank. See how much higher than 12 psi at top end. Best to compare with stock IC installed, as this was very accurately checked by scc tests and had 2.5 psi drop at 12 psi.
Pressure drop ... Check boost with normal gage, t'eed in before the check valve to the pressure tank. See how much higher than 12 psi at top end. Best to compare with stock IC installed, as this was very accurately checked by scc tests and had 2.5 psi drop at 12 psi.
01-13-05, 11:40 AM
#18
Fanno
Thread Starter
Join Date: Jul 2004
Location: Pittsburgh
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
really? my power fc, and boost gauge are reading 12psi,,,the car runs awsome. Im wondering if the dyno is reading low, or if I just need some more mods to get to 300rwhp
01-13-05, 11:53 AM
#19

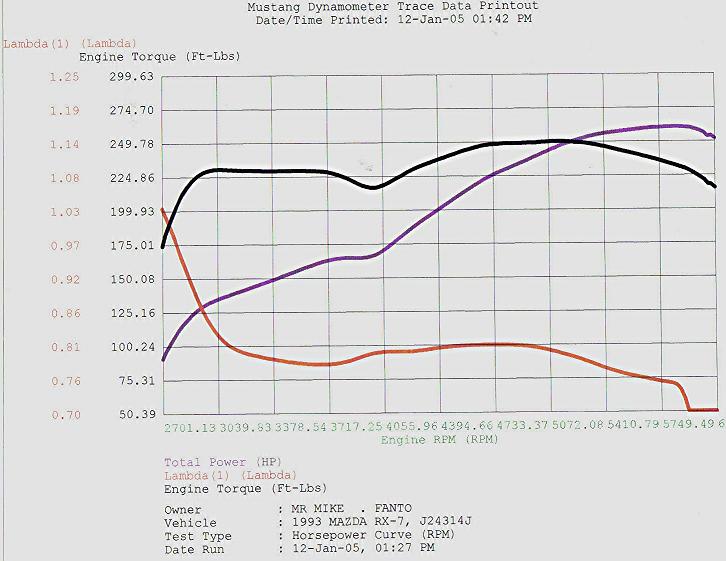

I may be missing something, but the dyno sheet only goes up to about 6,000 RPM. Unless I'm wrong, max RWHP would be at about 7,000 - 7,500 RPM. Was there any reason the dyno pull didn't go up to 7,500 RPM?
On my two rotor dyno, I made about 310 RWHP but I also had a ported engine. Pettit thought I should have made more though, and like your dyno, my max horsepowere was at 6,000 RPM, not 7,000 - 7,500. I had that motor removed for a 3 rotor conversion and it turns out I had a blown exhaust gasket that kept my power curve from increasing above 6,000 RPM. Normally your curve should continue up until at least 7,000 RPM.
On my two rotor dyno, I made about 310 RWHP but I also had a ported engine. Pettit thought I should have made more though, and like your dyno, my max horsepowere was at 6,000 RPM, not 7,000 - 7,500. I had that motor removed for a 3 rotor conversion and it turns out I had a blown exhaust gasket that kept my power curve from increasing above 6,000 RPM. Normally your curve should continue up until at least 7,000 RPM.
01-13-05, 11:58 AM
#21
Fanno
Thread Starter
Join Date: Jul 2004
Location: Pittsburgh
Posts: 618
Likes: 0
Received 0 Likes
on
0 Posts
I think you have to pull the whole engine out to change the exhaust gasket if im not mistaken.. Does anyone know for sure if mustang dyno's read low on our cars?
01-13-05, 11:59 AM
#22
I agree with David Hayes, I was hitting peak horse between 6,3xx and 7,000 rpms on stock ports.
You are AFRs are really dropping off past 5,7xx rpms…. off the graph and probably below 10. So you need to lean out those AFRs past 5,7xx. Are you using the base mod or base timing maps?
You are AFRs are really dropping off past 5,7xx rpms…. off the graph and probably below 10. So you need to lean out those AFRs past 5,7xx. Are you using the base mod or base timing maps?
