Does the A/C compressor have a connector on the wire harness?

Thread Tools

Search this Thread

Old 11-26-07, 05:41 PM
  #1
AponOUT!?

Thread Starter
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Likes: 0
Received 13 Likes on 9 Posts
Does the A/C compressor have a connector on the wire harness?
I've been trying to figure out which connector (if any) connects to the A/C compressor.

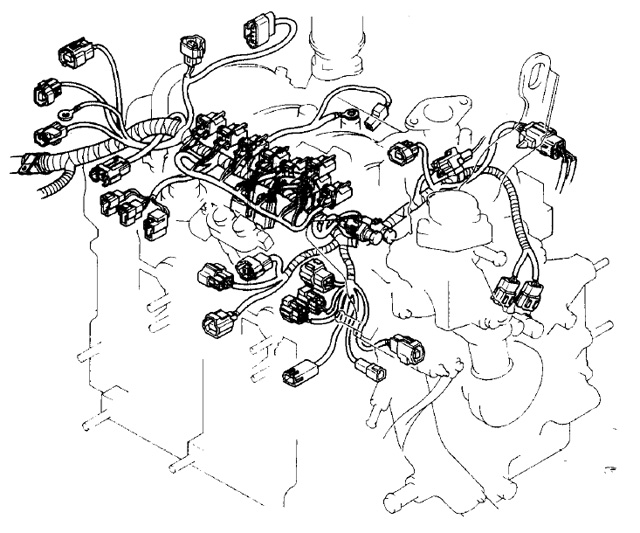

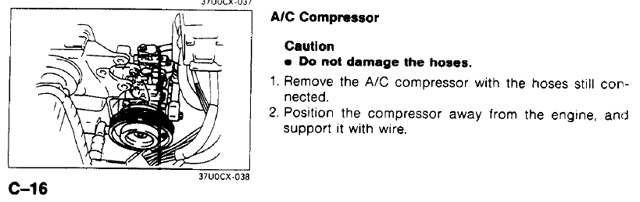

I was looking at the attached wiring harness photo but I don't see one that says A/C. Also, when I checked the service manual it never mentions anything about a connector for the A/C compressor - it just says to bolt it up and put the belt on.

When I push my A/C button the fans come on but the compressor clutch doesn't engage. I thought maybe one of the connectors didn't get hooked up. Is there one?





Attached Thumbnails Does the A/C compressor have a connector on the wire harness?-wire-harness_unlabeled.jpg   Does the A/C compressor have a connector on the wire harness?-ac_diagram.jpg   Does the A/C compressor have a connector on the wire harness?-wireharness.jpg
theorie is offline
Reply Like
Old 11-26-07, 07:25 PM
  #2
AponOUT!?

Thread Starter
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Likes: 0
Received 13 Likes on 9 Posts
nobody knows?
theorie is offline
Reply Like
Old 11-26-07, 07:36 PM
  #3
Constant threat


bajaman's Avatar

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,952
Received 35 Likes on 31 Posts
It does NOT connect to the main harness. It is connected to the secondary harness, the one that runs under the fuse box on the driver's side shock tower.
bajaman is offline
Reply Like
Old 11-26-07, 09:05 PM
  #4
Will work for horsepower


Busted7's Avatar

Join Date: Mar 2006
Location: Springfield, MO
Posts: 1,865
Likes: 0
Received 1 Like on 1 Post
Its just one wire.
