Does '99+ FD "not" have EGR hump on intake manifold?
03-13-06, 11:58 PM
#1
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Does '99+ FD "not" have EGR hump on intake manifold?
I have retained the ACV for smog. I know i'll prolly have to tip to pass anyhow but I want to finsih what I started, since I never do. I thought about the GZ manifold but then no ACV. I have the EGR blocked off now and it's not hidden like it was with the twins. I can get the '95 sticker for the hood and even a '95 manifold but if the latest version doesn't have the hump, the hump, the hump (lovely lady lumps) then i'll try to get one of those instead.
03-14-06, 12:22 AM
#3
Old School
Join Date: Mar 2001
Location: Baldwin City, KS
Posts: 473
Likes: 0
Received 0 Likes
on
0 Posts
As far as I know, none of the JDM lower intake manifolds had the EGR. I bought one a while back like this and I've seen them for sale fairly recently in the for sale forum.
03-14-06, 01:07 PM
#4
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
The EGR won't fit with my GT500R. I have the wire connector for it and the PFC ignores it, so it wouldn't have been a problem to have it plugged in for visual but the turbo is too big.
I know '95 does not have EGR but does it still have that "hump" that sticks out wherre the EGR would normally be mounted?
I know '95 does not have EGR but does it still have that "hump" that sticks out wherre the EGR would normally be mounted?
03-14-06, 02:40 PM
#5
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
I'll try to take a look later but I'm confused....you are bolting on a huge single turbo and you are worried about failing visual because of a missing EGR?
03-14-06, 02:42 PM
#6
Rotary Freak
Join Date: Sep 2004
Location: Bay Area, CA
Posts: 2,444
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rynberg
I'll try to take a look later but I'm confused....you are bolting on a huge single turbo and you are worried about failing visual because of a missing EGR?
03-14-06, 02:54 PM
#7
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Well it won't fit with the EGR installed, so I have to use a block off plate. I know the '95 does not have EGR, so therefore no bop for smog tech to see. If the '99+ manifolds don't have the hump then there is more clearance for the turbo and better flow because I get rid of that small turbulance.
Trending Topics
03-14-06, 03:56 PM
#8
RX-7 Bad Ass
iTrader: (55)
None of the JDM cars had EGR at all - that was just an addition by Mazda for US-bound cars, same as the 3000 RPM AWS startup - the JDM manifolds don't have AWS at all, it's not in the casting of the manifold.
Shouldn't be that hard to find a good used JDM lower intake manifold. I got a hella deal a while back - JDM upper and lower manifolds, fuel rails with injectors, for $110 off Ebay
.
Dale
Shouldn't be that hard to find a good used JDM lower intake manifold. I got a hella deal a while back - JDM upper and lower manifolds, fuel rails with injectors, for $110 off Ebay
.Dale
03-14-06, 04:07 PM
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
the usa lower intake and the jdm lower intake are the same part
03-14-06, 09:33 PM
#10
Originally Posted by BlueRex
Sounds to me like he's saying his turbo won't fit because of the hump in the LIM where the EGR attaches to the LIM.
03-14-06, 09:37 PM
#11
RX-7 Bad Ass
iTrader: (55)
Originally Posted by j9fd3s
the usa lower intake and the jdm lower intake are the same part
I've got it in my garage right now
.Performance-wise, they should be identical. The JDM part is just cleaner, and gives more room for a big turbo.
Dale
03-14-06, 09:49 PM
#12
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Ok, besides the valve flange hole studs mounting location for the EGR the is a hump, mound, bulge that sticks out for the recircualtion of the air. So, the question is does the newer JDM only ('99-'02) version still have the "buldge" even if there is no hole, flange, mounting point for the EGR? I'm sure the flow won't be as good as GZ's but the main concern is clearence for the hotside of the single turbo. Not having the bop is a bonus.
Sorry, wish I could do a picture with an arrow and a circle. uhg
Sorry, wish I could do a picture with an arrow and a circle. uhg
03-14-06, 10:43 PM
#15
RX-7 Bad Ass
iTrader: (55)
*jogs out to garage with digital camera*

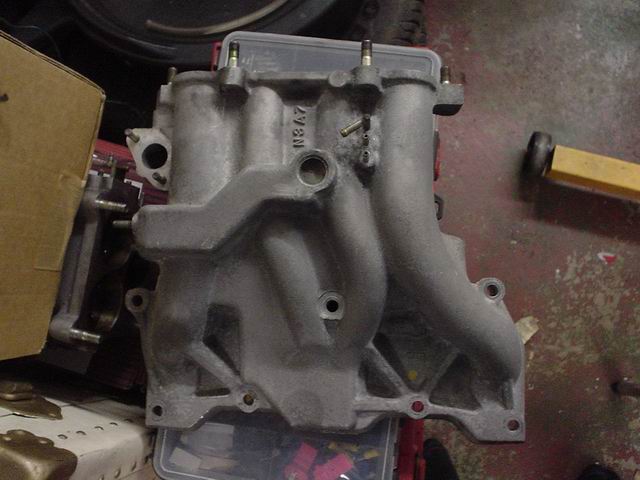

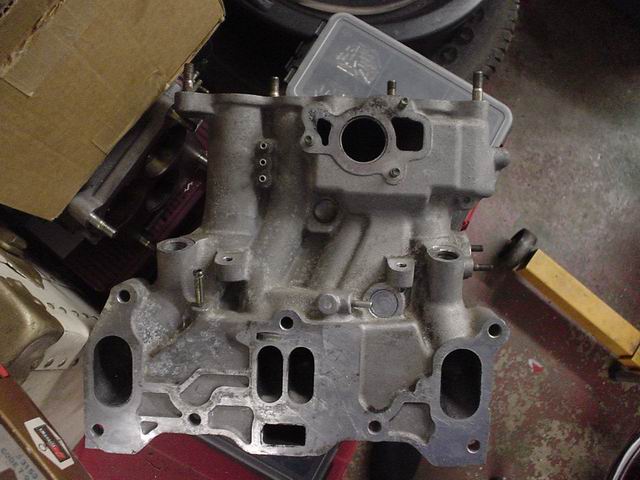

Pics of the front and back of the JDM LIM. This is, from my knowledge, what ALL the JDM LIM's are like - '93-02. Remember, there was NEVER any EGR valves on Japanese FD's, PERIOD. That was solely for the US market.
Dale
Pics of the front and back of the JDM LIM. This is, from my knowledge, what ALL the JDM LIM's are like - '93-02. Remember, there was NEVER any EGR valves on Japanese FD's, PERIOD. That was solely for the US market.
Dale
03-15-06, 12:04 AM
#16
Speed Mach Go Go Go
Thread Starter
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
^ Cool beans with cheese! ok, so it has a lil hump but curves upward and gives me the clearance I want. Strange how it still has one. Thanks Dale
