DaleClark's 20 minute fuel filter change

Hey guys -

Been saying for quite some time that it really isn't that bad to change an FD fuel filter. Well, today I had a chance to put my money where my mouth was, I took pics and got some hints that might make it easier for you guys.

I timed it - start to finish was right around 20 minutes. Went nice and easy.

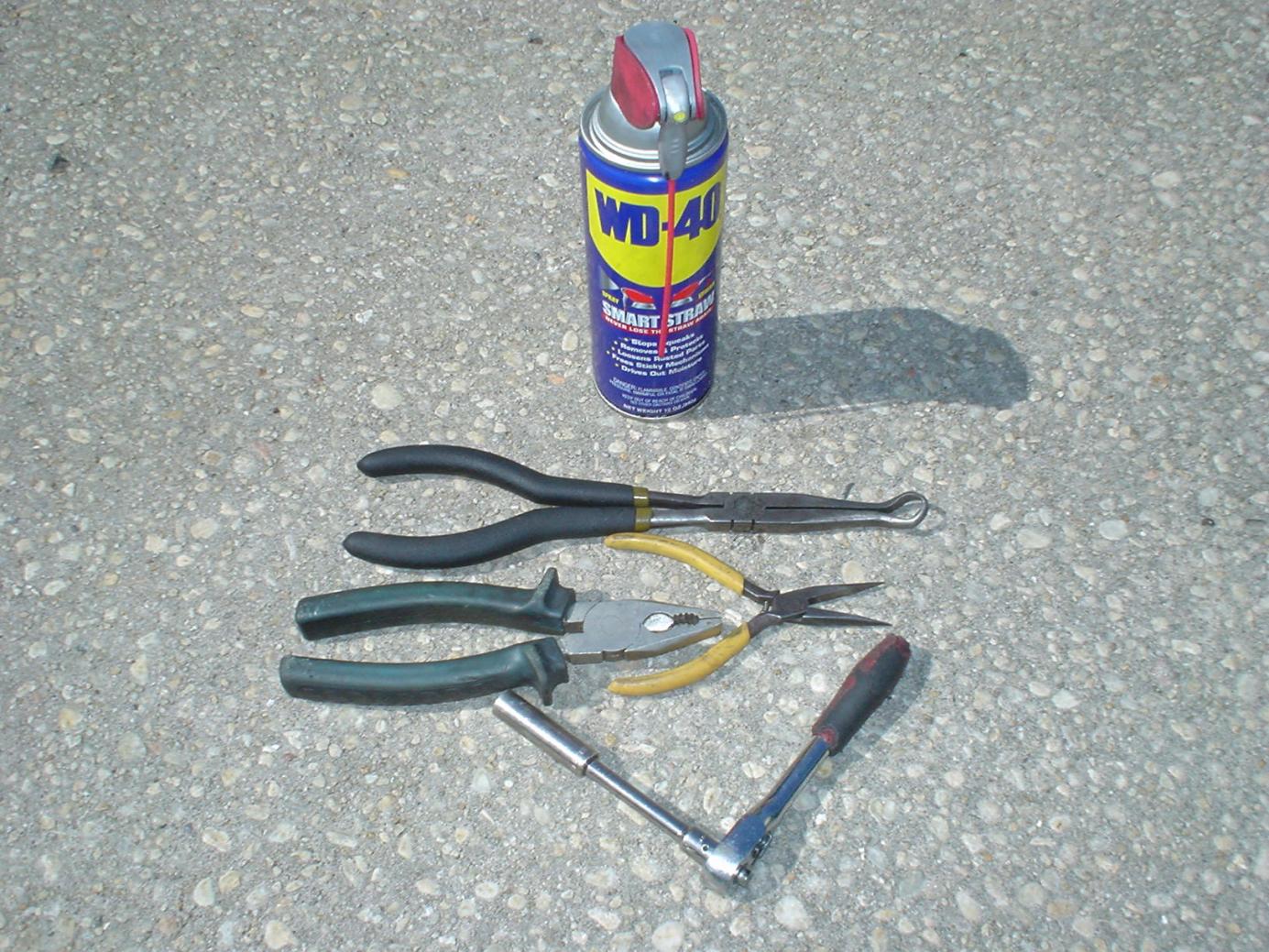

First, what you're gonna need.

- Safety glasses. Fuel dripping in your eye is no fun, and you'll also be likely to get some dirt and junk dripping down on you as well. Safety first, kids!

- WD-40. This is the key here. You have to use it to lubricate the rubber fuel lines to easily remove them. If you try to remove it dry, you'll be there a long time.

- Small pair of needlenose pliers.

- Regular size pair of regular flat nose pliers.

- Hose pliers suitable for the FD fuel filter lines. These things are the greatest thing since sliced bread. Harbor Freight sells these as well, get a pair if you don't have them.

- 10mm socket and extension. I usually use 1/4" drive for most 10mm stuff. The 1/4" drive gives you more maneuvering room. If you don't have a 1/4" setup, go get it.

Step 1

Jack up the rear of the car and support it on jackstands. If the car has been sitting for overnight, the fuel pressure in the system should be low. If it's not, start the car and pull the fuel pump fuse or circuit opening relay to kill the fuel pump. The car will stall out and the fuel lines will be depressurized. Also, remove the gas cap, pressure in the tank can push gas out.

Step 2

Remove the metal aero shield that's at the back of the car on the passenger side. You can also remove the plastic one on the driver's side, but it wasn't in the way for me at all.

Step 3

Find the fuel filter. It's above the diff, in front of the rear subframe. Once you find it, get your WD-40 can up in there and squirt some on the 2 fuel lines. You want to wet the end of the fuel line.

Step 4

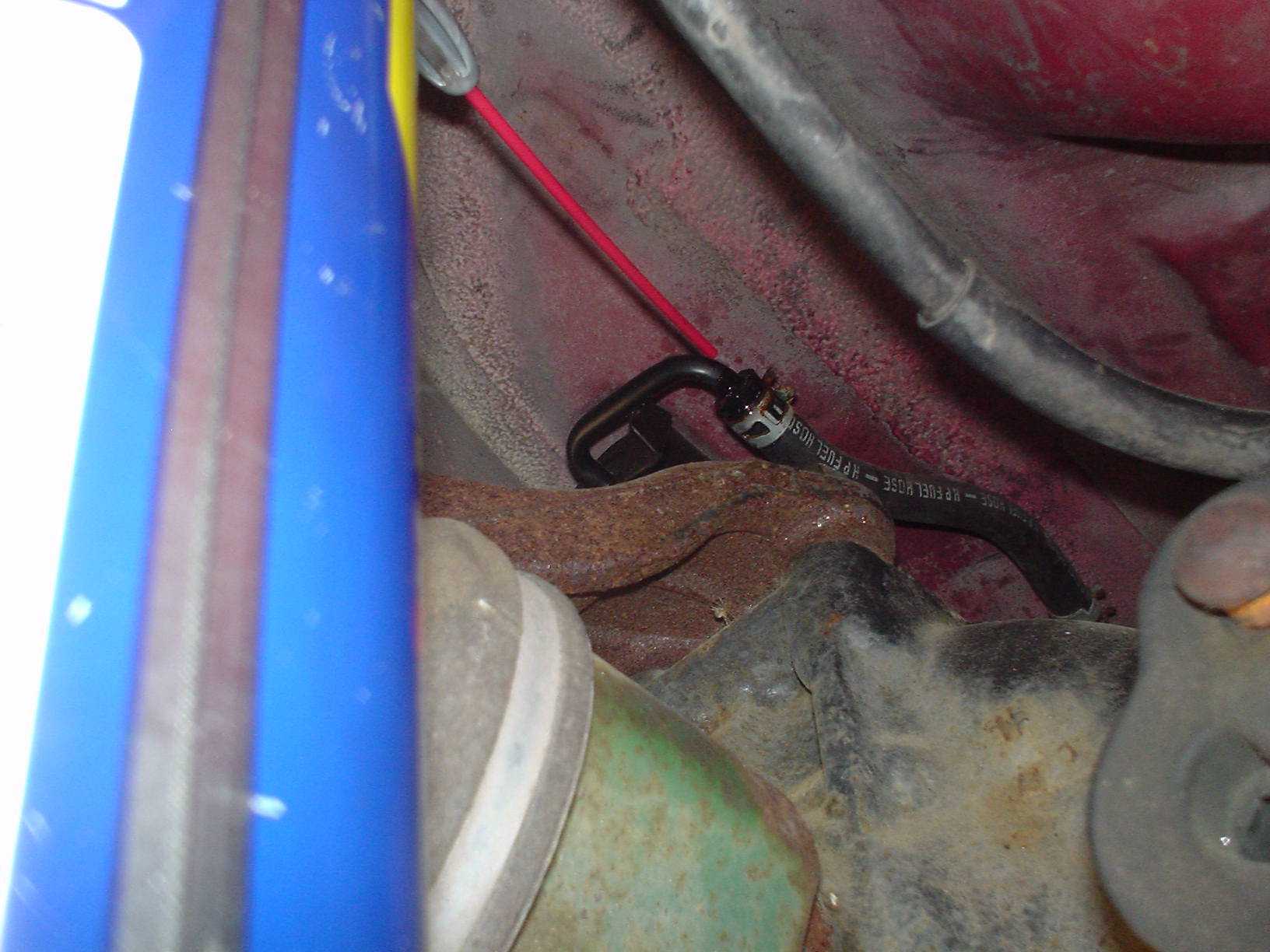

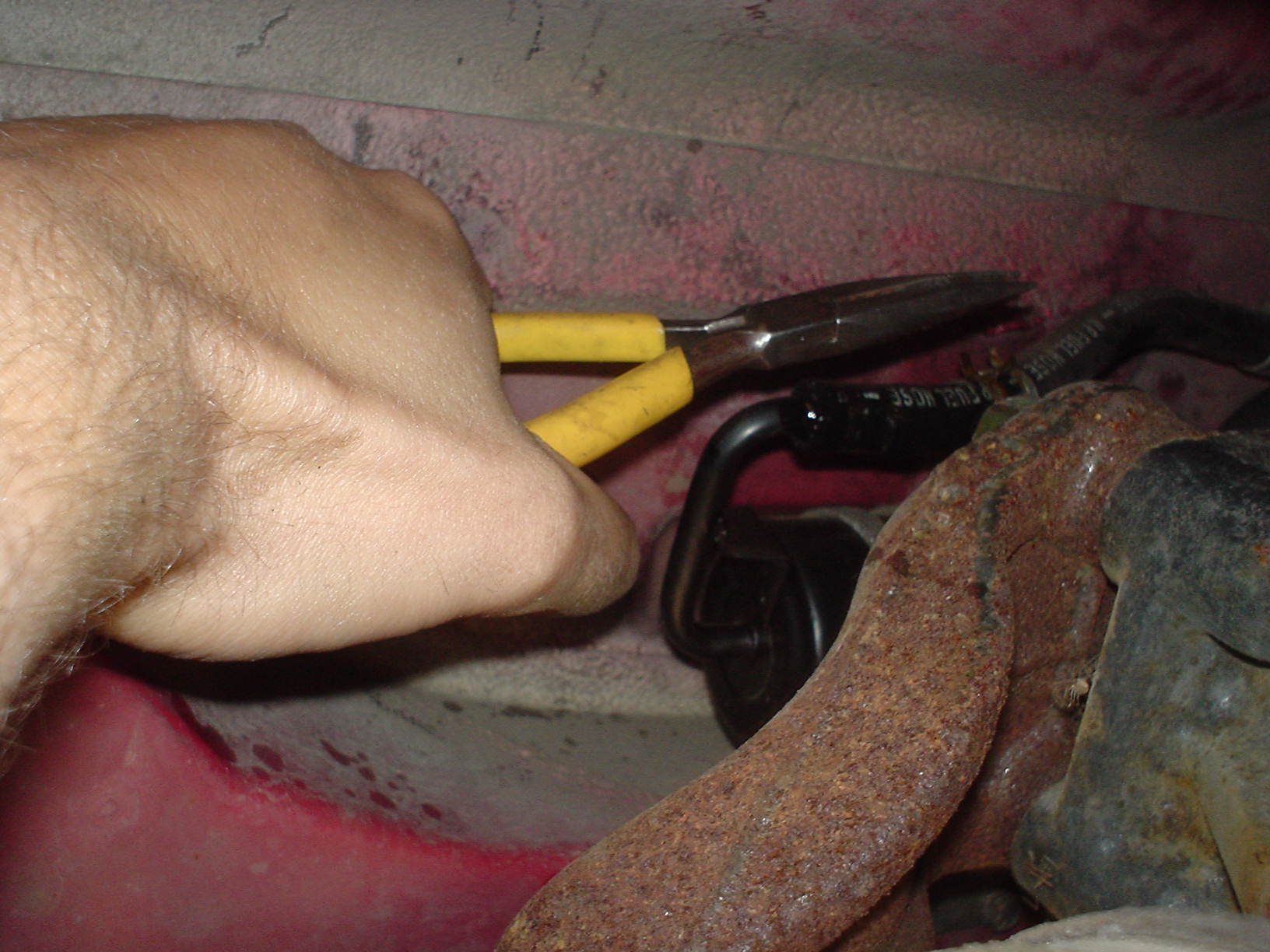

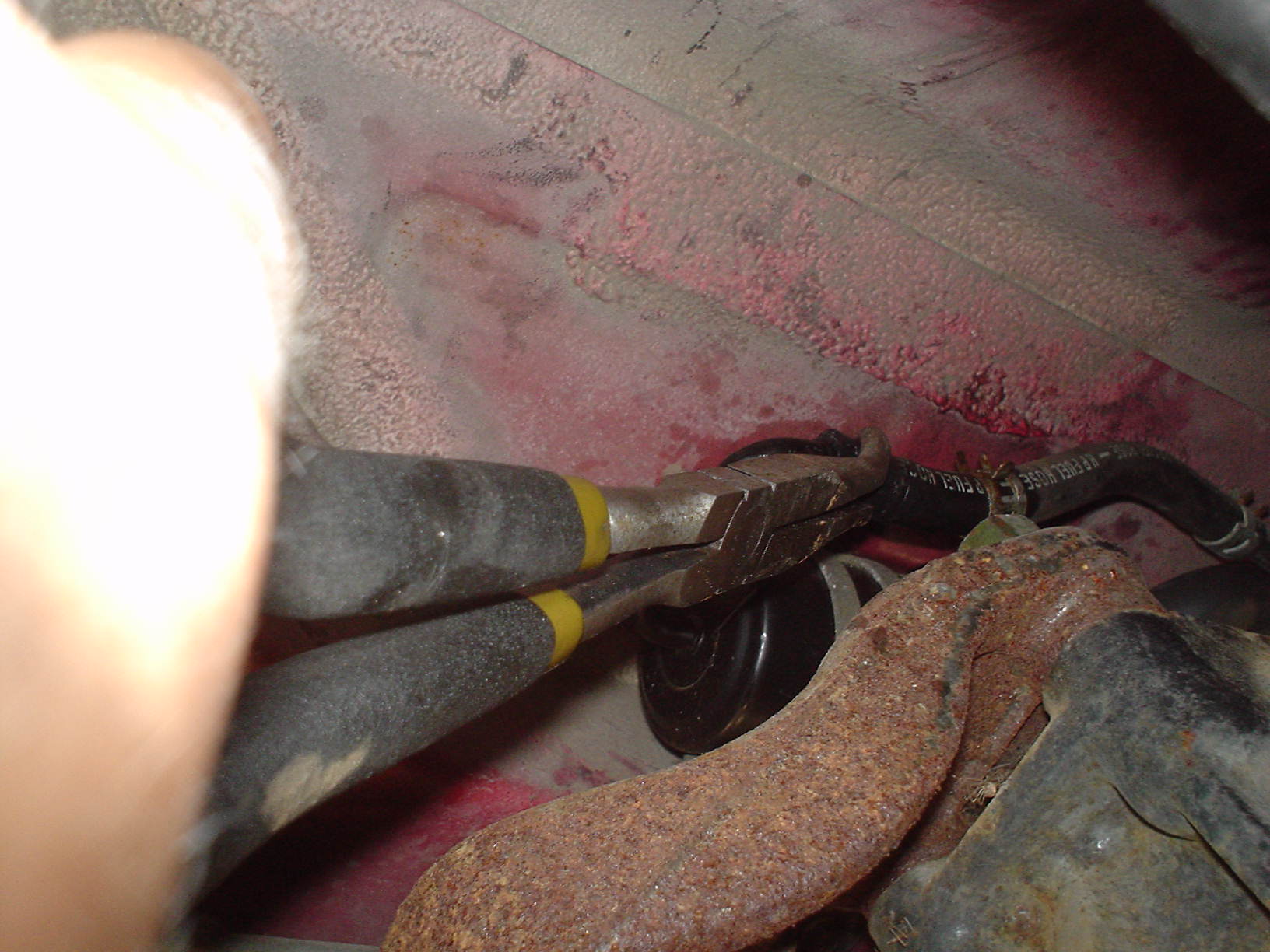

Use the small needlenose pliers and slide back the hose clamp on the passenger side first (the one that goes to the metal line on the fuel filter that comes around the side of the fuel filter). With it slid back, get the hose pliers up there and twist the fuel line. It will be hard to twist at first and you'll hear a "squeaking" noise, but as you twist and as the WD-40 works in it will twist smoothly. Slide the hose down to where it's almost off but not all the way off.

Step 5

Get your 10mm ratchet and go up between the subframe and the gas tank. There are 2 10mm bolts that hold the fuel filter in place. You'll need to have the right size extension and socket combo to comfortably reach there. Break both loose then remove the 2 bolts.

Step 6

With the filter loose, you can pull it towards the passenger side of the car, allowing you to see the other hose clamp. Use the needlenose or the flat nose pliers to move the fuel clamp out of the way down the hose. Coming up from the passenger side of the diff, get the hose pliers on the hose, break it loose, then push it off. You can clamp onto the hose and pry it off by pressing against the fuel filter's body as a pivot point. Be prepared, once it comes off gas WILL be coming out. When it does, get out of the way and let it drip for a minute or so, then get back in there and take the fuel filter out of the car.

Yay! It's out!

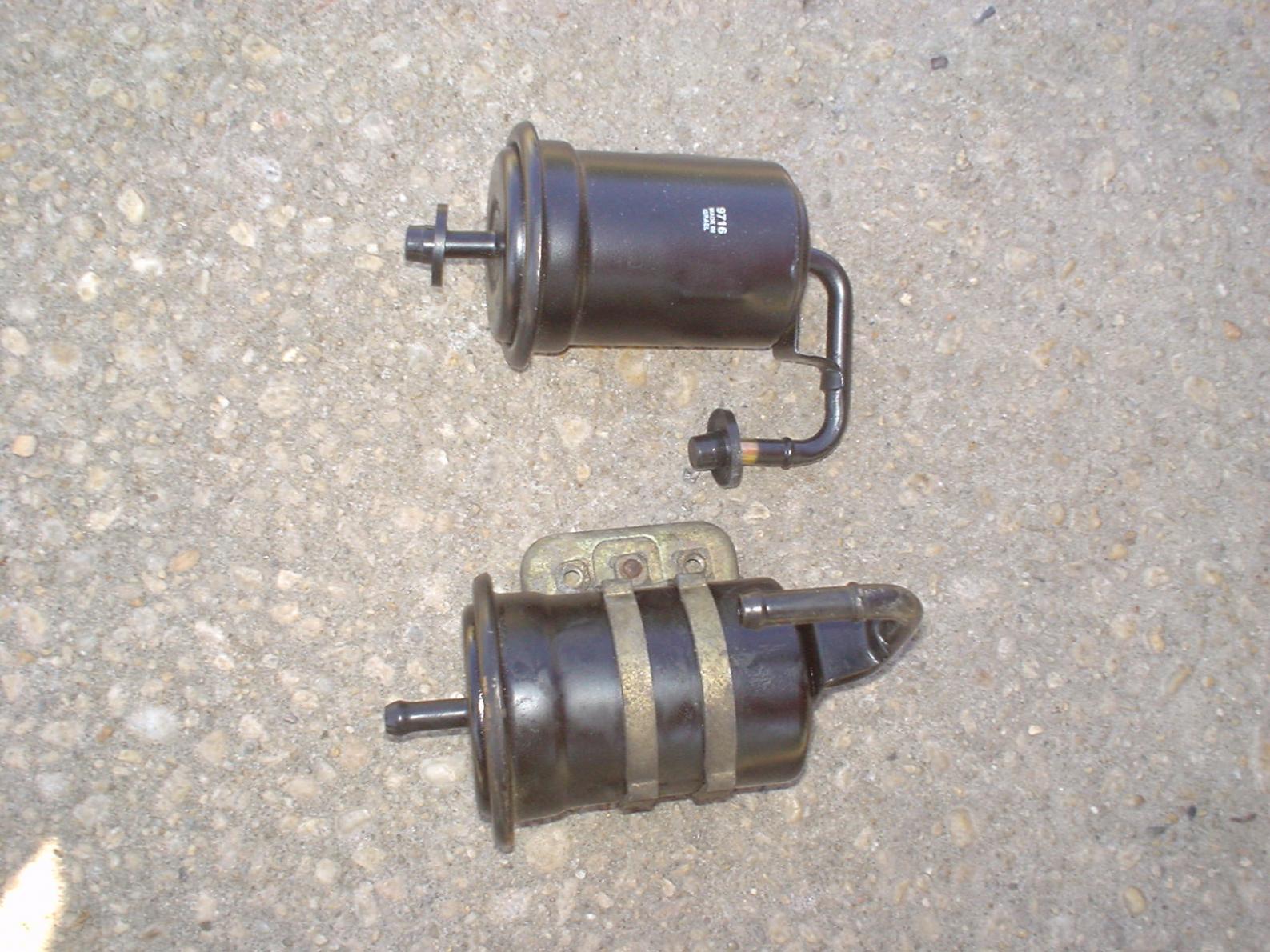

Transfer the new filter filter to the bracket and reinstall. Just work your way backwards - put the driver's side hose on the filter first, then seat the hose clamp. Bolt the fuel filter in - get one bolt started, then get the other bolt started, then tighten both down. Install the passenger side line and clamp, put the rear belly pan back on, done.

Again, the trick is the WD-40 and the hose pliers. That's the hardest part of the job is getting the old hose off the fuel filter.

Let me know if you need clarification on anything.

Dale
