Crank/Cam Sensors: Which i which?!

I'm hooking up a Rywire harness, and the two plugs are the same. One labelled "crank", and one labelled "cam". Which is which?

Thanks!

Apr 4, 2015 | 07:40 PM

zUMIEz

Full Member

iTrader: (2)

Joined: Mar 2004

Posts: 94

Likes: 0

From: Edmonton, Canada

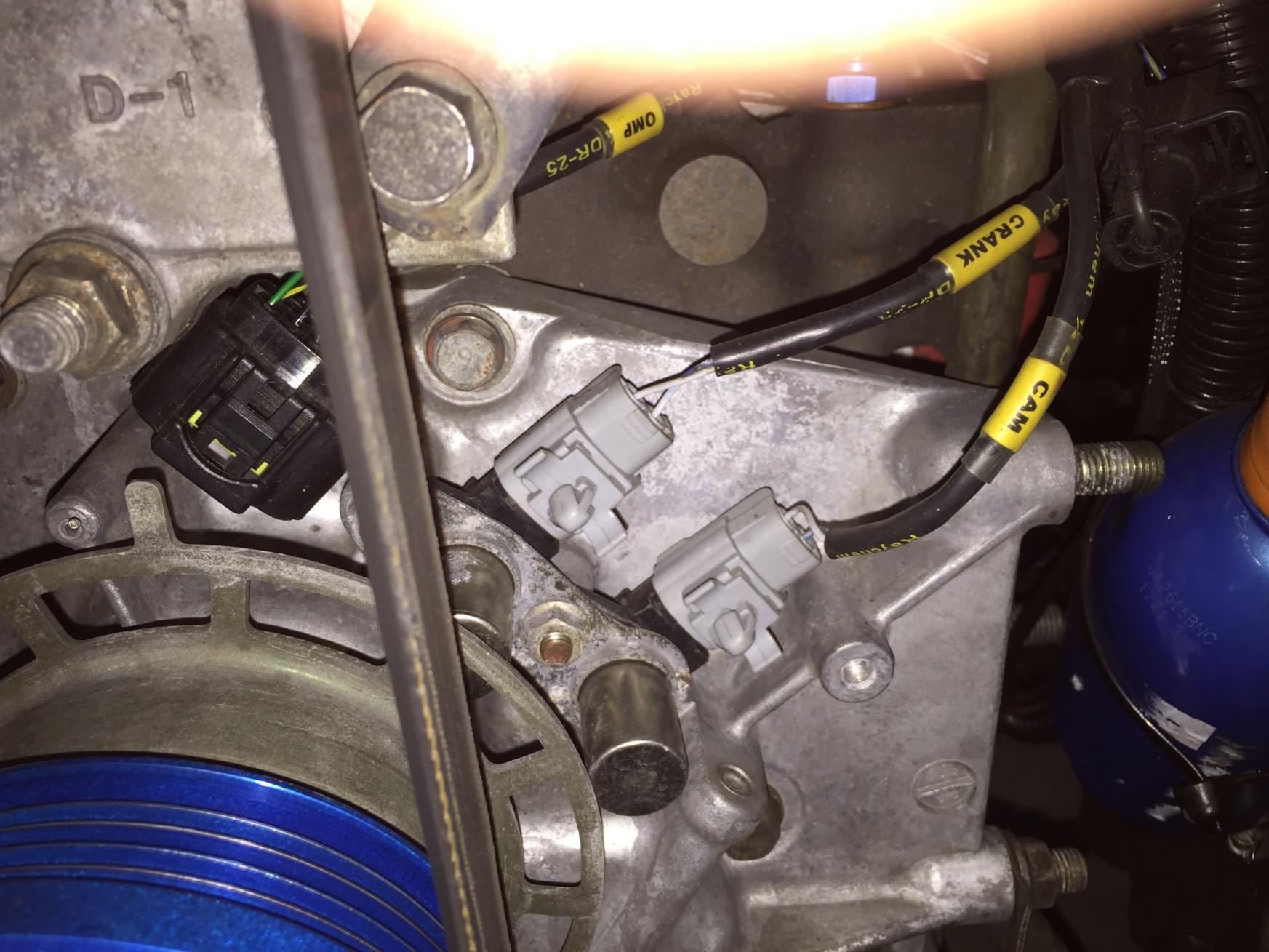

Hopefully this helps

Attached Thumbnails

Crank/Cam Sensors: Which i which?!-2015-04-04-18.26.53.jpg

Apr 4, 2015 | 08:42 PM

ptrhahn

Thread Starter

Lives on the Forum

iTrader: (11)

Joined: Feb 2002

Posts: 9,282

Likes: 703

From: Arlington, VA

Perfect, thank you!

Apr 6, 2015 | 04:43 PM

j9fd3s

Moderator

iTrader: (3)

Joined: Mar 2001

Posts: 31,835

Likes: 3,233

From: https://www2.mazda.com/en/100th/

heres a top tip. if you need to remove something, engine, harness, whatever, don't unplug the CAS's, just unbolt the sensors and leave them plugged in. connector will stay in 1 piece that way

Apr 6, 2015 | 05:26 PM

ptrhahn

Thread Starter

Lives on the Forum

iTrader: (11)

Joined: Feb 2002

Posts: 9,282

Likes: 703

From: Arlington, VA

Great idea... But I changed harnesses from OE to aftermarket, hence the confusion. It's easy with the stock harness because the plugs are different color and the wires are somewhat molded in position.
