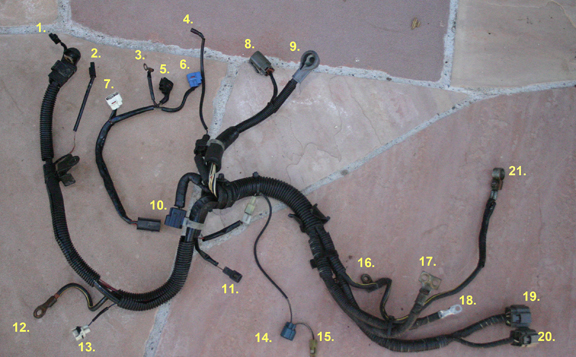

I have attached a picture of an engine harness and was hoping I could get some help identifying the connectors. My car didn't have a complete harness and I am going to install this one but would like some help so I know what's what. Here's what I think (please correct any of my mistakes):
1. starter (solenoid?)
2. starter (main power)
3. ground at coil harness (where does it ground to?)
4.
5. coil (black goes to?)
6. coil (blue goes to?)
7. coil (white goes to?)
8. alternator
9. alternator
10.coil harness to engine harness connector
11.
12.
13.
14.
15.
16.
17.power to main fuse block
18.
19.X-12 connector to front harness
20.X-11 connector to front harness
21.negative battery terminal
I appreciate any help you can gice me.
Jeff
1. starter (solenoid?)
2. starter (main power)
3. ground at coil harness (where does it ground to?)
4.
5. coil (black goes to?)
6. coil (blue goes to?)
7. coil (white goes to?)
8. alternator
9. alternator
10.coil harness to engine harness connector
11.
12.
13.
14.
15.
16.
17.power to main fuse block
18.
19.X-12 connector to front harness
20.X-11 connector to front harness
21.negative battery terminal
I appreciate any help you can gice me.
Jeff
I have attached a picture of an engine harness and was hoping I could get some help identifying the connectors. My car didn't have a complete harness and I am going to install this one but would like some help so I know what's what. Here's what I think (please correct any of my mistakes):
1. starter
2. Oil pressure sender
3. ground at coil harness (Leading coil mounting stud)
4. P/S pump
5. Leading coil
6. coil Trailing rear
7. coil Trailing Front
8. alternator
9. alternator
10.coil harness to engine harness connector
11. Main engine harness
12. Ground (harness bracket that attaches to A/C bracket)
13. Oil level sender
14. A/C
15. A/C
16. Ground (below fuse block on inner fender)
17.power to main fuse block
18. Ground (below fuse block on inner fender)
19.X-12 connector to front harness
20.X-11 connector to front harness
21.negative battery terminal
1. starter
2. Oil pressure sender
3. ground at coil harness (Leading coil mounting stud)
4. P/S pump
5. Leading coil
6. coil Trailing rear
7. coil Trailing Front
8. alternator
9. alternator
10.coil harness to engine harness connector
11. Main engine harness
12. Ground (harness bracket that attaches to A/C bracket)
13. Oil level sender
14. A/C
15. A/C
16. Ground (below fuse block on inner fender)
17.power to main fuse block
18. Ground (below fuse block on inner fender)
19.X-12 connector to front harness
20.X-11 connector to front harness
21.negative battery terminal
Dan
Last edited by Chadwick; Feb 1, 2009 at 05:10 PM.
Thanks to both of you for the replies. I have inserted the descriptions into the photo in case anyone needs it.
By the way, what does the connector to the main harness do?
By the way, what does the connector to the main harness do?
That single spade connector is for the "DEMON" coolant level switch that sounds your buzzer. It is the one that nobody can figure out or find.
Later
Trending Topics
That's a frightening thought! Hope I never have to mess with any of those.
I realize the Mazda Wiring Diagram Manual has all of this information, but it seems to be organized by system. Or am I missing something? Is it possible to derive the configuration of the emissions and engine harness, for example, by using those diagrams? What is the trick to tell, from their diagrams, what is on whichever harness?
Jeff
I realize the Mazda Wiring Diagram Manual has all of this information, but it seems to be organized by system. Or am I missing something? Is it possible to derive the configuration of the emissions and engine harness, for example, by using those diagrams? What is the trick to tell, from their diagrams, what is on whichever harness?
Jeff
it is on the main engine wiring harness, it is a black connector that looks alike. It should be close to the spark plugs, you should have a white one that is exactly the same which is for the A/C.
Search in that area.
if you have just reinstalled an engine, you might have not passed it at the right place though. It should have followed the connector for the OMP and the knock sensor. Try to find the other black end that is not used somewhere in your engine.
Search in that area.
if you have just reinstalled an engine, you might have not passed it at the right place though. It should have followed the connector for the OMP and the knock sensor. Try to find the other black end that is not used somewhere in your engine.
Full Member
Joined: Jan 2006
Posts: 113
Likes: 0
From: Galashiels, Scotland
I think I've found it... it's sitting to the left of the power steering pump. And the connector for it to connect to on the starter motor side of the wiring has snapped off.
Going to connect it up and hope the annoying noise is sorted!!
Going to connect it up and hope the annoying noise is sorted!!
