Convert stock twins to ball bearings????
#26
2/4 wheel cornering fiend
Originally Posted by KevinK2
Turbonetics spin. I would accept 50% less bearing drag torque, which is trivial vs exh driven torque required to quickly accelerate the turbo's inertia, and the torque required to start supplying compressed air at high flow rates, which is part of spool up as I see it.
Trivial compared to properly sizing the turbo for your needs so that efficiency is maximized, yes.
Last edited by Kento; 09-02-04 at 05:46 PM.
#27
Senior Member
Join Date: Jun 2003
Location: Minden, NV
Posts: 494
Likes: 0
Received 0 Likes
on
0 Posts

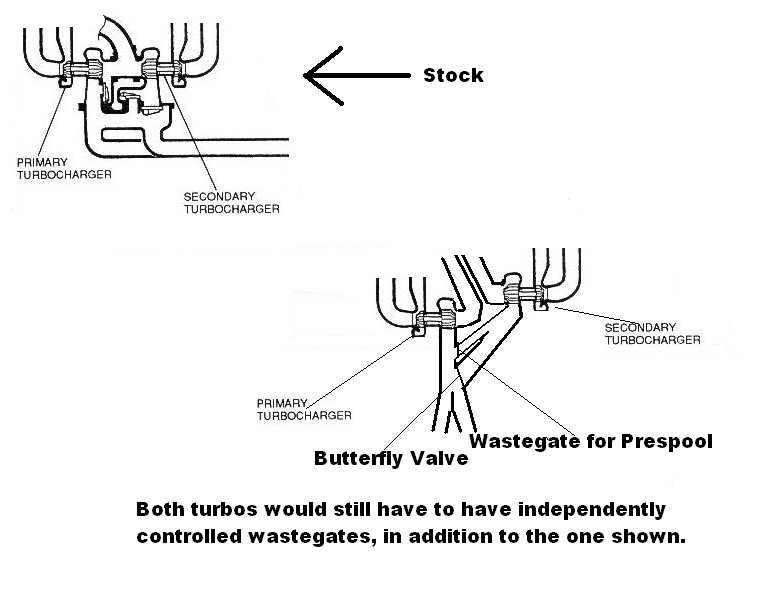

Check it out, I'm working on a 3d model that should make more sense, but Bryce 5 is the only program I have and it's a PITA. But the idea is if you got a couple of quick spooling turbos, you could mount them on this eliminate the rats nest, and still run sequential, using minimal controls.
Here:
https://www.rx7club.com/rotary-car-performance-77/improved-sequential-turbos-344247/
Here:
https://www.rx7club.com/rotary-car-performance-77/improved-sequential-turbos-344247/
#29
It's never fast enough...
Join Date: Feb 2001
Location: Miami - Given 1st place as the POOREST city in the US as per the federal government
Posts: 3,760
Likes: 0
Received 3 Likes
on
3 Posts
Originally Posted by speeddemon7
all this talk about the cast iron manifold beingbad gives me an idea.Why not just get a stainless steel manifold made to work with the existing twins? Does the manifold have the wastegate built into it?
1) The turbos (obviously )
2) WG
3) Secondary Turbo control flap
4) Secondary Turbo control flap actuator
4) Turbo Prespool flap
5) Turbo Prespool flap actuator
If anyone has ever taken apart the stock exhaust manifold, you know it is a huge restriction............and heavy as hell.
A SS manifold designed to accept the entire stock setup would not only be difficult but time consuming. If you think about it, it's actually pretty easy to come up with a design for it. The measuring and making of it would be the worst part.
As a guy who autocrosses (although not lately due to school, finances, etc) I would LOVE to have a SS manifold. Coated, it will produce a LOT less heat under the hood since the exhaust won't be going through a maze in the manifold, and it will allow the engine and turbos to breathe a lot better. Paired with BB turbos........................
I have to practice a bit more with Autocad. Once I master the 3d aspect of it, it won't be too difficult to put in a rough sketch of it.
#30
Super Snuggles
Mounting the turbos would be the easiest part, and while you were at it, you might as well eliminate the internal wastegate and actuator and use an external wastegate. However, the main problem would be integrating the pre-control gate and actuator into the system. If you were willing to give up sequential operation, it would be much simpler. However, we considered doing something like this back in '97 and gave it up as a waste of time, because what's the point in creating a more efficient turbo/exhaust manifold for a pair of fairly inefficient turbos?
If you were going to the trouble of creating a stainless turbo manifold, you might as well reduce cost and complexity by going single, or get rid of the sequential system and use two somewhat larger turbos in "non-sequential" configuration. Look at what the Japanese tuners have been doing for years... not one of them has tried to reinvent the wheel by making a new manifold for the stock twins.
One idea that has some merit is adapting a set of MKIV Supra twins for use on the FD. They're set up to be mounted front and back like the stock twins, have a simpler configuration, and can flow into the 21-22 psi range on a MKIV before they're horribly out of their efficiency range. 17-18 psi would be a breeze, and they spool very quickly. Something to think about.
If you were going to the trouble of creating a stainless turbo manifold, you might as well reduce cost and complexity by going single, or get rid of the sequential system and use two somewhat larger turbos in "non-sequential" configuration. Look at what the Japanese tuners have been doing for years... not one of them has tried to reinvent the wheel by making a new manifold for the stock twins.
One idea that has some merit is adapting a set of MKIV Supra twins for use on the FD. They're set up to be mounted front and back like the stock twins, have a simpler configuration, and can flow into the 21-22 psi range on a MKIV before they're horribly out of their efficiency range. 17-18 psi would be a breeze, and they spool very quickly. Something to think about.
#31
It's never fast enough...
Join Date: Feb 2001
Location: Miami - Given 1st place as the POOREST city in the US as per the federal government
Posts: 3,760
Likes: 0
Received 3 Likes
on
3 Posts
I don't think anyone in their right mind would use the stock turbos with a SS manifold. Slightly larger than stock turbos, sure, but the idea would be to be able to keep the stock sequential system.
An external WG would certainly simplify such a setup. It's all a mess anyways. You would still have the precharge control to have to worry about and the charge relief.
An external WG would certainly simplify such a setup. It's all a mess anyways. You would still have the precharge control to have to worry about and the charge relief.
#33
Missin' my FD
Join Date: Aug 2002
Location: Seminole, FL (Tampa Bay Area)
Posts: 1,755
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jimlab
One idea that has some merit is adapting a set of MKIV Supra twins for use on the FD. They're set up to be mounted front and back like the stock twins, have a simpler configuration, and can flow into the 21-22 psi range on a MKIV before they're horribly out of their efficiency range. 17-18 psi would be a breeze, and they spool very quickly. Something to think about.
2. Has this ever been done to anyone's knowledge?
3. What all would be involved? I would think at least:
- Some kind of adapter plate for the exhaust manifold
- Oil Lines
- Custom Y-Pipe
#34
Super Snuggles
Originally Posted by pianoprodigy
1. Are Supra twins sequential?
2. Has this ever been done to anyone's knowledge?
3. What all would be involved? I would think at least:
- Some kind of adapter plate for the exhaust manifold
- Oil Lines
- Custom Y-Pipe
#35
addicted to lounge
"i'll bet there aren't any remaining oem cast iron manifolds existing that don't have large heat cracks. "
I actually own one of these and it was on the car for 75k miles....I guess mine is very special. It doesn't even have a small crack in it.
I actually own one of these and it was on the car for 75k miles....I guess mine is very special. It doesn't even have a small crack in it.
