I got my FD swapped from a auto to a manual trans and now want to wire in the clutch switches. If possible and reasonably priced, I would like to use the Mazda connectors to add an overlay. Which wiring harness are the clutch switch connectors a part of? I bought a used dash harness thinking that was it, but I couldn't find the connectors on it? A part number for the harness would be appreciated or if someone has those connectors laying around for sale that would even be better.

Thanks.

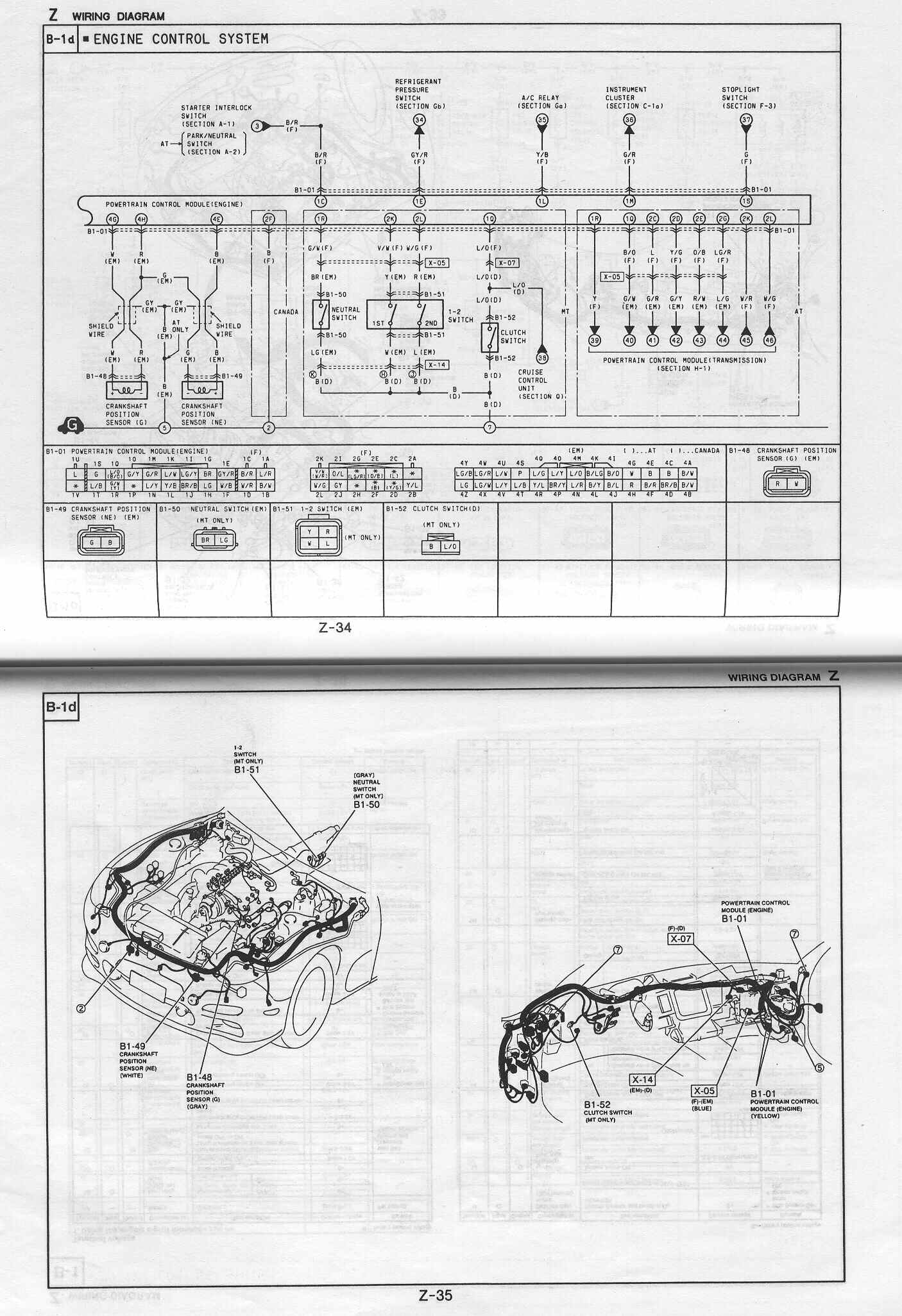

Maybe this wiring diagram will help (from 1994 FWM).

Also, attached is a page from the 1994 parts catalog showing the dash harness and part numbers. As you can see, there is one number for a Manual Transmission with/without a steel sunroof (FD15-67-040B), and a different number for MT with a glass sunroof (FD18-67-040B).



Thanks. Figured it out. The dash harness has the clutch switch and the front harness had the clutch safety switch. Wired it all in over the weekend and car is now working nice...no more random stalls on clutch applies with A/C on.
