Check out my reinforced PPF

Reply




Old 04-07-06, 05:29 AM
  #1
Rotor Head Extreme
Thread Starter
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 5 Times in 4 Posts
Thumbs up Check out my reinforced PPF

In my ever going attempt to solidify my drive train and eliminate wheel hop, Iíve just reinforced my PPF. But first a little back ground on some of the little things Iíve already done.

I have the Jim Lab nylon diff bushings. These stiffened things up nicely without any vibrations. Then late last year I installed new pillow ball bushings. Guys/gals if you have high mileage, it is an absolute must that you check and replace the pillow *****. Iím serious the car felt like it was brand new again and made the biggest and most noticeable difference. Also this combination has eliminated most of my wheel hop (but not all of it on the street). I then figured I would install some nylon bushings for the longitudinal arms to further help with the wheel hop. They did help some but not as well as I expected. However, the car did feel more solid. The only problem I had now was the tranny movement under hard acceleration. With everything else solid, I thought that my PPF may be cracked. So I removed it and to my surprise, it wasnít. I thought why does it move so much then? With assistance from my dad, I grabbed two pry bars and we both began to twist the PPF from both ends. I was trying to simulate the torque twist of the engine (which we did). The PPF had a surprising amount of give. More that I thought was necessary! It would appear that Mazda really did design the suspension to load up. While the frame was out, I thought what the hell, lets reinforce it and see what happens.

I searched over the forum and couldnít find any pics of anyone who had done a previous reinforcement.
This first pic just shows the frame in itís raw state with some paint ground off in the sections that were to be welded.



The next few series of pics just shows my approach and layout of the plates I was going to weld in place. There is a reason I did it this way and didnít use a long solid piece.






Now you canít tell by the pics but the PPF isnít perfectly flat. Thatís why I had to cut smaller pieces to fit in certain locations. Staggering the plates creating more weld points should make it even stronger than just one solid piece. Well at least thatís my theory. I welded each plate at a time as to prevent the frame from warping from all the heat.

Here is a pic of probably the best weld I did over the whole project. Donít laugh to hard, I havenít welded in over 10yrs and I was never an expert at it. However I finally did figure it out later but the project was almost done. Oh well! I did get plenty of penetration (which is what matters the most).



Hereís a couple spots on the back side I did. For some reason the factory only welded certain sections on the back and not all the seams?

Here we have the welded frame.



Lastly the end result. I love how the paint hides the ugliness. LOL




Now the final test. With my dads assistance again, we grabbed the pry bars and began to twist again. The damn frame wouldnít budge an inch. We were both struggling to make it twist this time. NO NADA! .

Now thatís itís back on the car, all I can say is HELL YEA! This is how the car should have come from the factory. There are no unnecessary vibrations or anything. The car still drives smooth and not harsh. Now I need to check my engine mounts.
t-von is offline
Reply With Quote
Old 04-07-06, 06:03 AM
  #2
rotor rotor pow.
iTrader: (1)

sevensix's Avatar

Join Date: Mar 2005
Location: Southern CA
Posts: 3,170
Thanked 0 Times in 0 Posts
nice work

just shows theres plenty more to improve in a 15 yr old design

wonder how this compares to the mazdaspeed ppf
sevensix is offline
Reply With Quote
Old 04-07-06, 09:49 AM
  #3
Senior Member
iTrader: (1)

Join Date: Mar 2003
Location: Greece
Posts: 660
Thanks: 0
Thanked 1 Time in 1 Post
very very interesting
Riccardo is offline
Reply With Quote
Old 04-07-06, 09:52 AM
  #4
semper Fi
10 Year Member

recon fd's Avatar

Join Date: Jul 2005
Location: New Orleans
Posts: 1,477
Thanks: 0
Thanked 0 Times in 0 Posts
Damn good work!!!!

congrats,
-josh
recon fd is offline
Reply With Quote
Old 04-07-06, 10:12 AM
  #5
Custom or Nothing
10 Year Member
iTrader: (2)

oorx7's Avatar

Join Date: Jul 2003
Location: Lombard, IL
Posts: 1,779
Thanks: 0
Thanked 0 Times in 0 Posts
Any idea How much weight was added?
oorx7 is offline
Reply With Quote
Old 04-07-06, 10:17 AM
  #6
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Thanks: 0
Thanked 0 Times in 0 Posts
Every PPF I've ever seen break fails at the ears where it bolts to the diff; they break off. If that area isn't the one heavily reinforced you're not going to see much improvement.
DamonB is offline
Reply With Quote
Old 04-07-06, 10:23 AM
  #7
Viable fossil
iTrader: (14)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 9,952
Thanked 122 Times in 105 Posts
^Was just thinking the same thing.
It is nice work, but now that you've removed any possible flex in the PPF, won't that just put more strain on points of attachment?
Sgtblue is offline
Reply With Quote
Old 04-07-06, 10:28 AM
  #8
Indifferent
15 Year Member
iTrader: (3)

Join Date: Mar 2001
Location: Long Island,NY
Posts: 978
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by DamonB
Every PPF I've ever seen break fails at the ears where it bolts to the diff; they break off. If that area isn't the one heavily reinforced you're not going to see much improvement.
Very true- however if there is less flex in the ppf then the ears won't snap nearly as easily. I was concerned about weight so I just welded 90 degree angle iron on the inside corners of the ppf- It also worked very well and only added about 3 pounds.
John
Jodeny is offline
Reply With Quote
Old 04-07-06, 10:28 AM
  #9
Banned. I got OWNED!!!

LUPE's Avatar

Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,509
Thanks: 0
Thanked 0 Times in 0 Posts
nice boat anchor
LUPE is offline
Reply With Quote
Old 04-07-06, 10:40 AM
  #10
Senior Member
10 Year Member

SomeGuy_sg's Avatar

Join Date: Dec 2002
Location: singapore
Posts: 535
Thanks: 0
Thanked 0 Times in 0 Posts
That is some big *** grill :P Weird how no one else have thought of doing this to reinforce the PPF. Nice work
SomeGuy_sg is offline
Reply With Quote
Old 04-07-06, 10:41 AM
  #11
development
10 Year Member

dubulup's Avatar

Join Date: Aug 2002
Location: Lafayette, LA
Posts: 5,714
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by Sgtblue
won't that just put more strain on points of attachment?
that's what I originally thought too
dubulup is offline
Reply With Quote
Old 04-07-06, 10:49 AM
  #12
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Jodeny
Very true- however if there is less flex in the ppf then the ears won't snap nearly as easily.
I think not. If the PPF typically twists along its length slightly (which it does) absorbing some of the shock then by making the length of the frame stronger you concentrate the stresses even more at the mounting ears since they are the only parts that are flexing much now. I'm absolutely certain this modified PPF is stiffer than stock, but my guess is its fatigue life will be drastically shorter. It will feel great until it breaks in the same place they all do and it will most likely break sooner if its put to the test.

Next time you're at dinner pick up a fork by its ends and twist it. It doesn't matter how much you strengthen the stem of the fork, the weakest point (also the greatest concentration of stress) is still where the prongs meet the stem. That is where you're failure will occur even if you use a phone pole as a stem.
DamonB is offline
Reply With Quote
Old 04-07-06, 11:01 AM
  #13
Custom or Nothing
10 Year Member
iTrader: (2)

oorx7's Avatar

Join Date: Jul 2003
Location: Lombard, IL
Posts: 1,779
Thanks: 0
Thanked 0 Times in 0 Posts

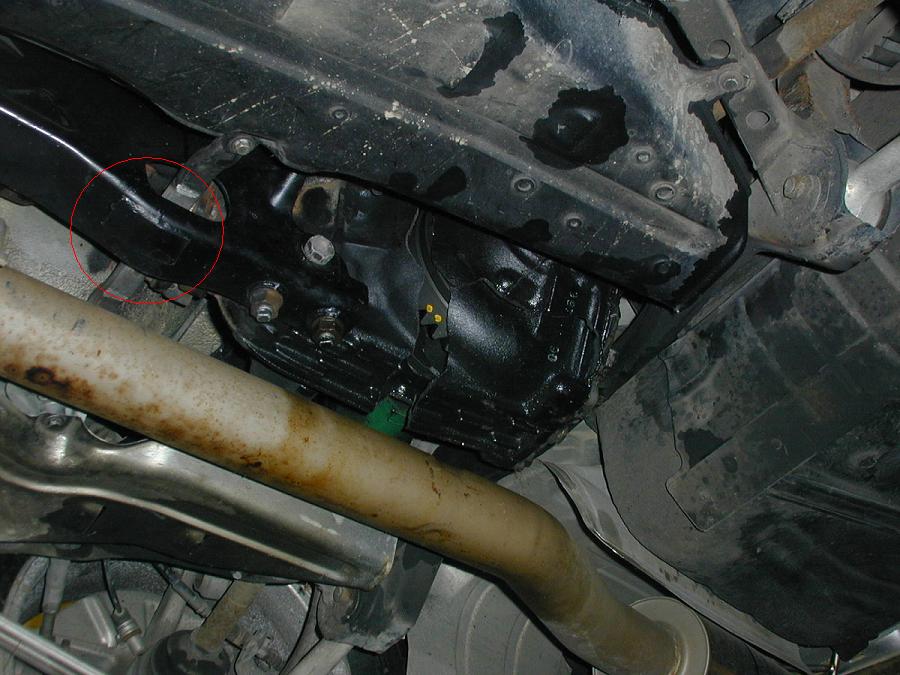

Here is one of the places that I welded on my PPF (Red circle). As DamonB stated The places that they tend to crack is on the fingers. I think I put 7-8 plates of similar sizes on mine. The brace that goes through the PPf even has marks on it from twisting so much from a busted drivers side motor mount.



Notice anything else wrong with this pic?
Attached Thumbnails Check out my reinforced PPF-1.jpg

Last edited by oorx7; 04-07-06 at 11:06 AM.
oorx7 is offline
Reply With Quote
Old 04-07-06, 11:11 AM
  #14
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by oorx7
Notice anything else wrong with this pic?
You have a ventilated diff? Ouch.
DamonB is offline
Reply With Quote
Old 04-07-06, 11:19 AM
  #15
Custom or Nothing
10 Year Member
iTrader: (2)

oorx7's Avatar

Join Date: Jul 2003
Location: Lombard, IL
Posts: 1,779
Thanks: 0
Thanked 0 Times in 0 Posts
Ding Ding, you are correct sir.

I think that from having a broken motor mount caused the PPF to start to crack, wich must of started some hair line cracking in the diff case. After making a solid motor mount, welding up the PPF, Drag slicks and sticky surface of a drag strip, sent the diff to meet his maker. Keep in mind I was only making around 340hp to the wheels at this time.
oorx7 is offline
Reply With Quote
Old 04-07-06, 11:31 AM
  #16
Indifferent
15 Year Member
iTrader: (3)

Join Date: Mar 2001
Location: Long Island,NY
Posts: 978
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by DamonB
I think not. If the PPF typically twists along its length slightly (which it does) absorbing some of the shock then by making the length of the frame stronger you concentrate the stresses even more at the mounting ears since they are the only parts that are flexing much now. I'm absolutely certain this modified PPF is stiffer than stock, but my guess is its fatigue life will be drastically shorter. It will feel great until it breaks in the same place they all do and it will most likely break sooner if its put to the test.
Thats why I used angle iron to stregnthen the ears as well. Still holding up after 5 years of HARD abuse.


[/QUOTE]Next time you're at dinner pick up a fork by its ends and twist it. It doesn't matter how much you strengthen the stem of the fork, the weakest point (also the greatest concentration of stress) is still where the prongs meet the stem. That is where you're failure will occur even if you use a phone pole as a stem.[/QUOTE]

I eat with my hands.. <grin>
John
Jodeny is offline
Reply With Quote
Old 04-07-06, 11:31 AM
  #17
Rotary Enthusiast
10 Year Member

Swolbynos's Avatar

Join Date: Jun 2003
Location: mustang/yukon Oklahoma
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
mine completely broke all the way across where you have it circled.

i reinforced mine, but broke the diff a few days later, so no news on how it works
Swolbynos is offline
Reply With Quote
Old 04-07-06, 11:34 AM
  #18
Custom or Nothing
10 Year Member
iTrader: (2)

oorx7's Avatar

Join Date: Jul 2003
Location: Lombard, IL
Posts: 1,779
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Swolbynos
i reinforced mine, but broke the diff a few days later, so no news on how it works
Did it brake in the same place as mine, Because all of my internals seem to be fine?
oorx7 is offline
Reply With Quote
Old 04-07-06, 11:38 AM
  #19
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by oorx7
I think that from having a broken motor mount caused the PPF to start to crack, wich must of started some hair line cracking in the diff case.
If the engine or diff mounts are worn much at all then the PPF is under tremendously more stress and of course the hop is much worse.

At last week's autox I had so much grip on the fresh race rubber that even with a 7000 rpm launch I could not break the tires loose; the car just went. I have a stockish clutch and as I tried more and more rpm it would slip a little as I stepped off of it but the car launched with no hop or vibration whatsover. Completely stock mounts and drivetrain with 240 to the ground.
DamonB is offline
Reply With Quote
Old 04-07-06, 11:54 AM
  #20
Indifferent
15 Year Member
iTrader: (3)

Join Date: Mar 2001
Location: Long Island,NY
Posts: 978
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by DamonB
If the engine or diff mounts are worn much at all then the PPF is under tremendously more stress and of course the hop is much worse.

At last week's autox I had so much grip on the fresh race rubber that even with a 7000 rpm launch I could not break the tires loose; the car just went. I have a stockish clutch and as I tried more and more rpm it would slip a little as I stepped off of it but the car launched with no hop or vibration whatsover. Completely stock mounts and drivetrain with 240 to the ground.
Damon- that's correct you certainly know your sh*t. Your experiential knowledge is appreciated. All these little factors add up in these cars to one thing=wheel hop.
I got rid of mine by reinforcing the ppf, replacing the rear pillowballs and adding tein ha's
John
Jodeny is offline
Reply With Quote
Old 04-07-06, 01:04 PM
  #21
Lives on the Forum
15 Year Member

DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Jodeny
Thats why I used angle iron to stregnthen the ears as well. Still holding up after 5 years of HARD abuse.
Good to hear. I would think the best way to reinforce it would be to weld generous angle or flat steel flanges perpendicularly onto the side of the ears along their entire length which is probably what you did.

If I were doing it I'd take some 1/8" steel plate (the blue and pink) and cut it into strips about an inch or so wide. The side of the strips that weld to the PPF would need to be cut to shape so as to mate with it properly and then I'd weld them to the PPF (green) as well as eachother where they meet at the rear. They wouldn't interfere with the bolts or the hole the chassis brace passes through and would make the weak area much, much stronger for little weight or work.

I know the pic sucks but just imagine welded on flanges sticking straight out from the side of the PPF.
Attached Thumbnails Check out my reinforced PPF-ppf.jpg
DamonB is offline
Reply With Quote
Old 04-07-06, 01:19 PM
  #22
SINFUL7
10 Year Member
iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,573
Thanks: 0
Thanked 0 Times in 0 Posts
sweet, looks good and must work great..
KaiFD3S is offline
Reply With Quote
Old 04-07-06, 01:42 PM
  #23
Rotary Enthusiast
10 Year Member

Swolbynos's Avatar

Join Date: Jun 2003
Location: mustang/yukon Oklahoma
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by oorx7
Did it brake in the same place as mine, Because all of my internals seem to be fine?

my actual differential is what broke. the housing is fine. all the teeth on the diff were flat
Swolbynos is offline
Reply With Quote
Old 04-07-06, 01:48 PM
  #24
Banned
10 Year Member

95R2-89TII Ground Zero's Avatar

Join Date: Jul 2001
Location: Rochester, MI
Posts: 2,519
Thanks: 0
Thanked 0 Times in 0 Posts
I would think that one piece would be stronger than welding smaller pieces in place. however, yours will still be stronger than the stock version. But I can't really back up my claim in strength, I'm not a welder by trade Either way, good job, looks killer
95R2-89TII Ground Zero is offline
Reply With Quote
Old 04-07-06, 03:10 PM
  #25
Rotor Head Extreme
Thread Starter
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,694
Thanks: 0
Thanked 5 Times in 4 Posts
Originally Posted by sevensix
nice work

just shows theres plenty more to improve in a 15 yr old design

wonder how this compares to the mazdaspeed ppf


Thx! I don't know the comparison but the steel cost me $22.00. So I saved a bit doing it myself. I have a lot of steel let to do other stuff with.

Oh yea I forgot to add, I used 1/8" steel. I should have weighed the frame before hand. It's a bit heavier now. I would say is weighs 15-20 lbs more.
t-von is offline
