wstrohm

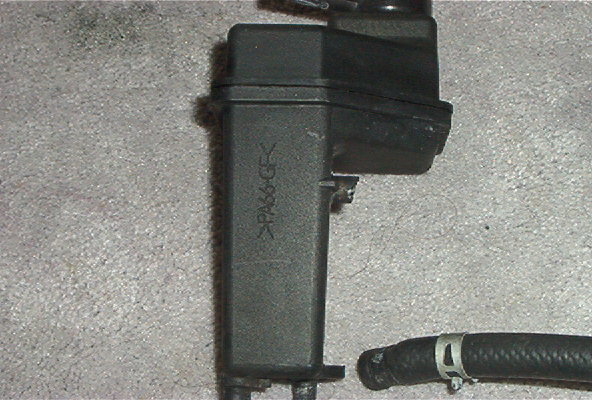

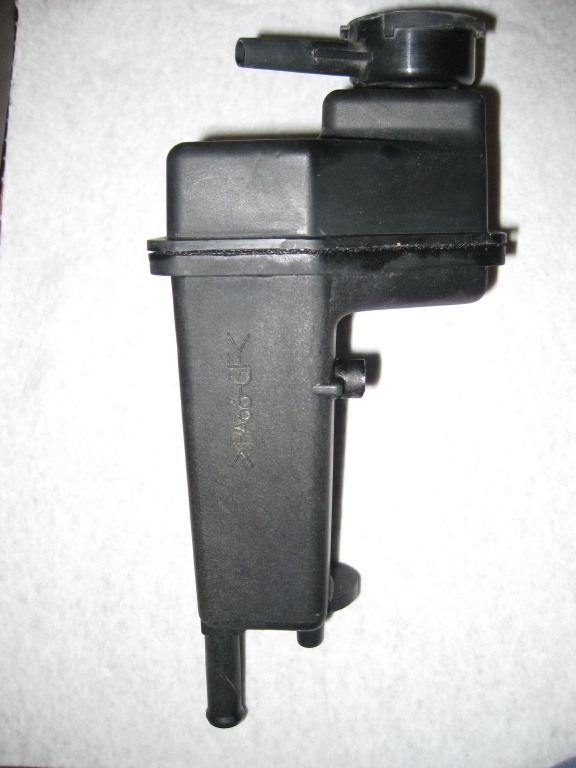

The OEM AST on our '94 broke off a hose nipple (left pic below) yesterday. The failure was identical to one whose picture I had downloaded from this forum about a year ago (right pic below). Ours went 98K miles, so I ordered another OEM part rather than an all-aluminum one from the aftermarket. Price was $124, or $133+ with tax. If the new one goes even half that mileage, I'll be satisfied with my choice. The original part no. was N3A1-15-35XA; the new one will be a -35XB. Either it's an upgrade or a different vendor... the part will be in Saturday. Fortunately the "Low Coolant Level" buzzer and light came on, alerting my wife, who stopped immediately and had the car flat-bedded to our house. I had originally guessed at a radiator hose or the radiator itself, considering the mileage on the car, but I guess we will get off easily this time.

gracer7-rx7

iTrader: (16)

FYI Ray at Malloy Mazda sells a factory coolant hose kit w/ all hoses for ~165 or so. If your hoses are original, you may want to consider this a warning to start giving your coolant system the attention it deserves. Also get the factory clamps as they have the correct torque and install much easier in those hard to reach places.

Its cheaper than the flatbed.

wstrohm

Thanks, gracer,

The hoses are original, but outside of that I drain and flush coolant regularly, and the hoses are in good shape. When one goes I will replace all, but that hasn't happened yet.

The flatbed was only $27... we are AAA members, and that was the "more than 7 miles" fee.

IMZman

iTrader: (1)

I just bought the 14 piece cooling hose kit from Mallory Mazda (Ray Crowe, PM) and the current price was $176.91 plus shipping. Delivered in 2 days to FL. Great service.

Supernaut

iTrader: (83)

Wow at that price, I really dont understand why you don't go aftermarket.

DaveW

IMO, you are asking for trouble doing that. In particular, the turbo-coolant hoses tend to get brittle and fail, causing at least a gradual loss of coolant. And condensed (the water will evaporate) ethylene-glycol is flammable, so the puddles of it that gather near the turbos with a gradual leak can ignite and cause a fire. That has been documented, and was one of the reasons for the pressure cap being downgraded to 13 psi (cooling-system recall).

I took the time in 2005 to replace all of my coolant hoses at only 55K miles, because, IMO, it was not smart to ignore potential trouble (your hoses are now 15 years old) when it has occurred many times and can be prevented.

moconnor

iTrader: (14)

People still run the plastic AST on these cars?

Rx72Heaven

iTrader: (2)

wtf? The stock plastic AST. wow. You really need a Aftermarket one, if you care about your cars health, and reliability that is.

seven lust

iTrader: (5)

Yeah bud, I would send that back and go after market. You would be more satisfied to know that you will probably not have to think about it again. for anouther $20 you could pick up a new aluminum one from pettitracing or the likes.

tphan

aftermarket alum ast isn't always the answer...

3 yrs ago I got this mysterious loss of coolant that took 4 wks to resolved.

The problem was a tiny cracked Pettit alum ast (at the neck)

Zero problem with stock 54K miles ast...in Texas summer heat.

Free AST for any1 that willing to pay shipping. Paid 85 bucks for it LOL!

moconnor

iTrader: (14)

So - one cracked aluminium AST (perhaps the first I have heard of in five years on this board) vs., oh, hundreds of reports of plastic AST ruptures? Including the one on my car before I bought it.

You sleep through statistics class?

tphan

Well my FD average 750 miles a year...it's always well maintain so the ast may last 100K miles...46K away LOL! or approx 46 years...LMAO!

To me crack stock ast are due to lack of regular maintenance and inspection.

moconnor

iTrader: (14)

Plastic ASTs fail because a large number of heat cycles causes them to crack. Maintenance has nothing to do with it. 3 and 5 series BMWs have the same problems with plastic end tanks and overflow tanks - they die at 50k or so miles no matter how well the car is maintained.

Inspections do not always reveal cracks because they often occur along seams.

tphan

I have to disagree...

Plastic ast break because of extreme heat cycle...that is true. Heat kill stock ast.

But what are the main cause of extreme heat? Low coolant, wrong coolant/water ratio, clog radiator, malfunction fan, crack hoses, etc...are these not part of regular maintenance and inspection?

FD3S2005

iTrader: (11)

not only that, these cars run hotter than pistons dont they?

Ernesto13B

iTrader: (4)

On my car when I bought it, I found in the paperwork that the factory ast was replaced at about 60,000 miles cause it ruptured. My car now has 90,000 miles and the new ast already had cracking on it and it was falling apart!!!

Thats why I replaced it with the Fighters Aluminum AST, it has a billet filler neck and tig welds all around. When I had my coolant leak from the turbo coolant hoses, it leaked VERY slowly and intermitently for about 2 months, but I didnt know anything was wrong, because it didnt leak all the time, till one day when I actually smelled coolant in the interior vents, then I knew something was wrong. By now I replaced all my coolant hoses in the entire car and it was a pain but its worth it especially if you drive it a lot

JM1FD

iTrader: (1)

Well OF COURSE you've heard of hundreds of plastic ASTs rupturing. Mazda installed tens of thousands of them.

What's that saying about black kettles and pots?

catch-22

iTrader: (2)

still got my original one, 116,000 miles and no cracks yet.

GARCO MOTORWORKS

I have several used ones . Do people buy used ones in good shape ?

GoodfellaFD3S

iTrader: (213)

Mazda sold approx 13,000 FDs here in the U.S., not tens of thousands.

In the near future I can see you pulled over on the side of the highway with tons of white smoke coming from under your hood and a cooked motor. Not trying to be harsh, but why haven't you gotten rid of it?

I wouldnt sell them unless they're really low mileage David. Sometimes you have to save people from their own stupidity.

Guys, I've seen numerous stock plastic ASTs rupture and ruin perfectly good motors. If it's a cost issue, then just delete it altogether with an FC filler neck, which you can get from Ray for about 35 bucks.

moconnor

iTrader: (14)

A turbocharger and a rotary engine.

catch-22

iTrader: (2)

Well in order for that to happen car would have to drive. But u are correct that thing has got to go. im just trying to finish my project up and a running mobile is top on the list.

2RotorsNaDream

iTrader: (7)

Correction: 2 turbochargers and a rotary engine.

Rx72Heaven

iTrader: (2)

Not sure that's safe. It hasn't cracked yet. Well when it does (And it will) are you willing to possibly loose your motor? if so then Thats awesome! Go stock plastic AST!

Monkman33

iTrader: (28)

#1 Its normal for the plastic ast's to break.


#2 For less than $200, its worth just replacing all of the hoses. Call Ray Crowe.

Hose failures can cost you your engine. If your temp gauge moves AT all, your engine is already dun-fer
