Big brembo evo8-10 brakes on a FD

Old 01-14-17, 09:44 AM
  #1
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts

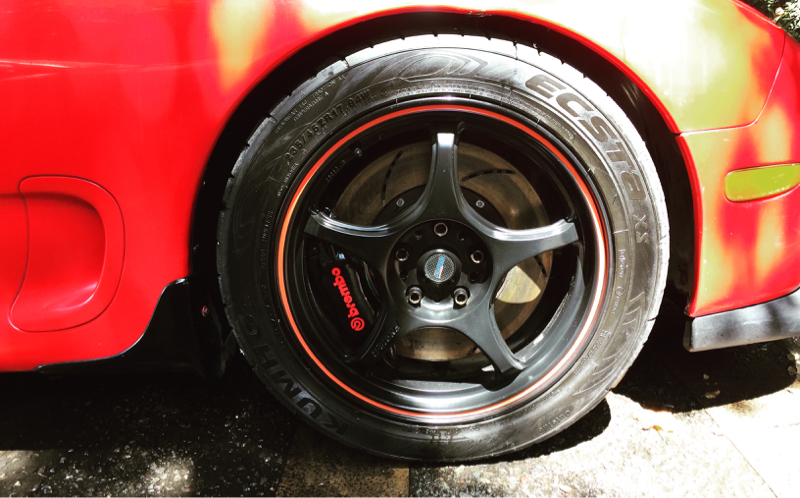

Well after a test at the track finally i finish my brembro big brake kit for my fd 17"wheels 350mm Racing Brakes Evo X rotors The are raceproof , no fading at all 100% happy with them

Plus to compensate them i install the 929 master brake cilinder and the Mustang gt500 rear brakes
Attached Thumbnails Big brembo evo8-10 brakes on a FD-image-463477185.jpg

Last edited by rexset; 01-14-17 at 09:56 AM.
rexset is offline
Old 01-14-17, 09:53 AM
  #2
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,693
Thanks: 0
Thanked 14 Times in 14 Posts
looks cool.

More info on the gt500 please.

Last edited by silverTRD; 01-14-17 at 10:17 AM.
silverTRD is offline
Old 01-14-17, 10:06 AM
  #3
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
I calculate the force of the brembo pistons and the difference in the torque so i change the rear one with a bigger piston diameter , i do the math and the gt500 rear brake rotor diameter and piston diameter match everything, i was pure luck that i found it , and even better that e-brake works with a minor mod
Lots of hour on Internet getting different oem diameter pistons and rotors , cause i want to keep the e-brake
I was amaze how easy was to fabricate the braket for the rear ones thou

Last edited by rexset; 01-14-17 at 10:09 AM.
rexset is offline
Old 01-14-17, 10:12 AM
  #4
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Thats the rear
Attached Thumbnails Big brembo evo8-10 brakes on a FD-image-1095906391.jpg
rexset is offline
Old 01-14-17, 08:16 PM
  #5
Time or Money, Pick one
iTrader: (31)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 2,693
Thanks: 0
Thanked 14 Times in 14 Posts
.
silverTRD is offline
Old 01-15-17, 10:31 AM
  #6
ArmitageFD3S
iTrader: (13)

ArmitageGVR4's Avatar

Join Date: Oct 2002
Location: Herndon, Virginia
Posts: 2,203
Thanked 8 Times in 6 Posts
Always great to see a DIY project that works. How does the weight of the new setup compare to OEM? Swept area? Approximate cost of the project? Thanks!
ArmitageGVR4 is offline
Old 01-15-17, 11:19 AM
  #7
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Nice work to properly set it up and do it right.
LargeOrangeFont is offline
Old 01-15-17, 04:35 PM
  #8
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Originally Posted by ArmitageGVR4 View Post
Always great to see a DIY project that works. How does the weight of the new setup compare to OEM? Swept area? Approximate cost of the project? Thanks!
Well i soend about $2000 cause the rotors are about $1000 And brake lines and calipers on the front
And about $300 on the rear
I found a used gt500 rear brakes with calipers and rotors for $140 (really cheap) and the ware use it about 2000miles
I think that the 929 master cilinder was about $150
I dont know the difereence in weight but the rotors ware a bit more , the front ones , and the calipers way more (front ones also)
The rear ware about the same
rexset is offline
Old 01-16-17, 11:27 AM
  #9
endless build
iTrader: (11)

7krayziboi's Avatar

Join Date: Nov 2013
Location: Canada , Alberta
Posts: 1,050
Thanked 14 Times in 14 Posts
Nice
7krayziboi is offline
Old 01-16-17, 12:26 PM
  #10
Full Member
iTrader: (1)

duck91's Avatar

Join Date: Jun 2007
Location: Vancouver BC Canada
Posts: 118
Thanked 1 Time in 1 Post
Good job,
I was browsing ebay thinking about doing something like this. I thought the 17s would max out at 340mm for the rotor though.
duck91 is offline
Old 01-16-17, 05:08 PM
  #11
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,067
Thanked 144 Times in 127 Posts
I thought the 17s would max out at 340mm for the rotor though.

My 356mm Wilwood 6 pot kit fits under my 17" Volk TE37 with room.
BLUE TII is offline
Old 01-16-17, 05:10 PM
  #12
Lives on the Forum
iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 7,067
Thanked 144 Times in 127 Posts
Nice work rexset!
BLUE TII is offline
Old 01-16-17, 06:24 PM
  #13
Fistful of steel
iTrader: (7)

LargeOrangeFont's Avatar

Join Date: Nov 2008
Location: OC, So Cal
Posts: 2,127
Thanked 6 Times in 6 Posts
Originally Posted by BLUE TII View Post
I thought the 17s would max out at 340mm for the rotor though.

My 356mm Wilwood 6 pot kit fits under my 17" Volk TE37 with room.
Yep.. 14 inch brakes will fit under many 17s. Watch where you stick the weights to balance your wheels though.


LargeOrangeFont is offline
Old 01-17-17, 08:13 AM
  #14
Long time on-looker
iTrader: (33)

Join Date: Oct 2005
Location: Columbus, OH
Posts: 834
Thanked 16 Times in 16 Posts
would be interested in hearing/seeing more about the GT500 rear brakes. What was the piston size? what was needed to mount it? You using stock size rotors or the GT500 rear rotors?
Smokey The Talon is offline
Old 01-17-17, 06:07 PM
  #15
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Originally Posted by Smokey The Talon View Post
would be interested in hearing/seeing more about the GT500 rear brakes. What was the piston size? what was needed to mount it? You using stock size rotors or the GT500 rear rotors?
Im using the oem gt500 rear rotors
I only make the center rotor hole bigger, and i made a adaptor braket for the calipers
I think that there ware 42mm the gt500 rear caliper piston diameter but in not 100% sure
The awesome part is that the e-brake was very easy to install and i think that i made a really easy mod only to ware the e-brake cable is attached to the chassis and thats it
I did this long time ago , but cause i was living at Finland i did not have the opportunity to test the car on the track , till one week ago
By the way Im a Chilean
E-brake works better than the oem mazda one now
rexset is offline
Old 01-19-17, 05:33 PM
  #16
Full Member
iTrader: (1)

duck91's Avatar

Join Date: Jun 2007
Location: Vancouver BC Canada
Posts: 118
Thanked 1 Time in 1 Post
Cool, those 14" rotors are a tight squeeze! I was looking at a few brake manufactures sites that had a smaller wheel spec'ed for a 17 wheel.
duck91 is offline
Old 01-20-17, 01:54 AM
  #17
Full Member
iTrader: (4)

Join Date: Jan 2016
Location: Santa Clara, CA
Posts: 83
Thanks: 0
Thanked 0 Times in 0 Posts
Great work. What modifications were required to mount the front calipers and rotors?
nitewing117 is offline
Old 01-20-17, 09:33 AM
  #18
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Originally Posted by nitewing117 View Post
Great work. What modifications were required to mount the front calipers and rotors?
Well lots First you need evo x rotors And evo 5-9 calipers You cant use evo X calipers cause the holder to the hub is too large so it dosent fit Then you have to mill down the calipers a bit , so the evo X rotors fit them (the evo X calipers are exactly the same but milled down) The pad need to fit into the rotor entirely (i left 1mm of clearence so the rotor goes 1mm upper the pad) and the rotor must not scratch the caliper
And then make the adaptor to the rx7 hub Plus you need to open the center hole of the rotor a bit to fit in You need to turn the calipers a bit down to fit them , and the adaptor is very tricky but it can be done I recomend to take the hub out and do it outside the car Not easy not cheap but the resoult is amazing I also change the brake lines for the goodrige ones , but i dont remember the reason , as i remember the hose tread was the same

Last edited by rexset; 01-20-17 at 09:54 AM.
rexset is offline
Old 01-22-17, 02:44 AM
  #19
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: los angeles
Posts: 710
Thanked 3 Times in 3 Posts
nice
MILOS7 is offline
Old 01-22-17, 07:00 PM
  #20
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Well , i completely forgot that i started a post at that time about my brakes

https://www.rx7club.com/suspension-w...wheels-960821/

Here is more info about it , info that i dint remember that well either
rexset is offline
Old 01-03-19, 04:03 PM
  #21
Daily Used and Abused
iTrader: (1)

swkiller's Avatar

Join Date: Dec 2008
Location: South Florida
Posts: 286
Thanks: 0
Thanked 0 Times in 0 Posts
Here's my question and I know this is an old thread but I just discovered that the brake rotor offset of the 2015 mustang eco boost Performance package is 64mm only 1mm off from the original fd and FC brake rotor and it's a 350mm rotor as well. That would push back the caliper around 3/4in toward the inside compared to the evo x rotor possibly making the caliper be able to bolt up like the stock caliper.... any thoughts? I might experiment with this when I have money to play with.
swkiller is offline
Old 01-03-19, 07:54 PM
  #22
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Could be , i need to check it out , I haved a nice EVO X rotors and EVO 8 calipers (or 5 ,they are the same) so that why i fit them.
As i remember it could hit something if you change the rotor off set.

But i have the car without the tires right now so I can check it out
rexset is offline
Old 01-03-19, 08:09 PM
  #23
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts
Originally Posted by swkiller
Here's my question and I know this is an old thread but I just discovered that the brake rotor offset of the 2015 mustang eco boost Performance package is 64mm only 1mm off from the original fd and FC brake rotor and it's a 350mm rotor as well. That would push back the caliper around 3/4in toward the inside compared to the evo x rotor possibly making the caliper be able to bolt up like the stock caliper.... any thoughts? I might experiment with this when I have money to play with.
It should fit but i recomend use a radial monting caliper like the Dodge Viper brakes

I think that you should not have problems with the rotor but will be hard to fit the evo 8 caliper
Cause matching the caliper mounting point with the Mazda hub caliper fitment with the braket was tricky
But as i tould you better use the viper caliper , they use the same front and rears and you can find the rear ones quite cheap at ebay
rexset is offline
Old 01-03-19, 08:32 PM
  #24
Senior Member
Thread Starter

rexset's Avatar

Join Date: Oct 2002
Location: Santiago, Chile, South America
Posts: 534
Thanked 0 Times in 0 Posts






Some photos so you can see better , the bracket was really tricky to made i guess that with other rotor offset will be quite hard to do it , but if you buy the Viper Calibers should be not problem , i attached a photo of the viper that have the rear brake callipers that are the same of the front , if you but the rear ones used , they are cheap and they are the same that use the EVO front ones but easier to make the bracket.
rexset is offline
