battery relocation with pics
#27
Registered User
iTrader: (6)
Join Date: Mar 2003
Location: LongIsland, NY
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
#28
Rotary Enthusiast
iTrader: (3)

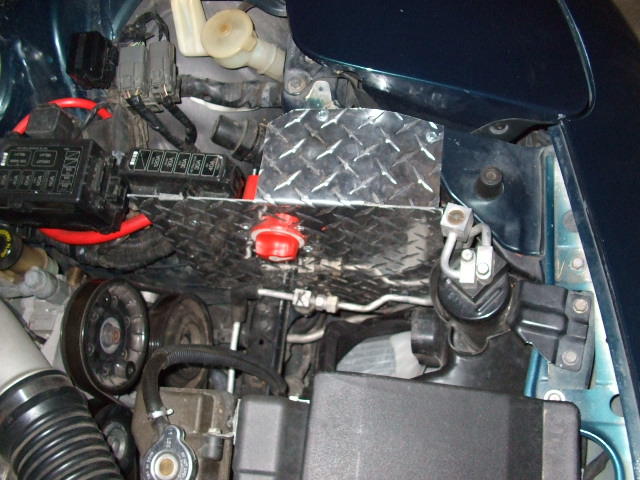

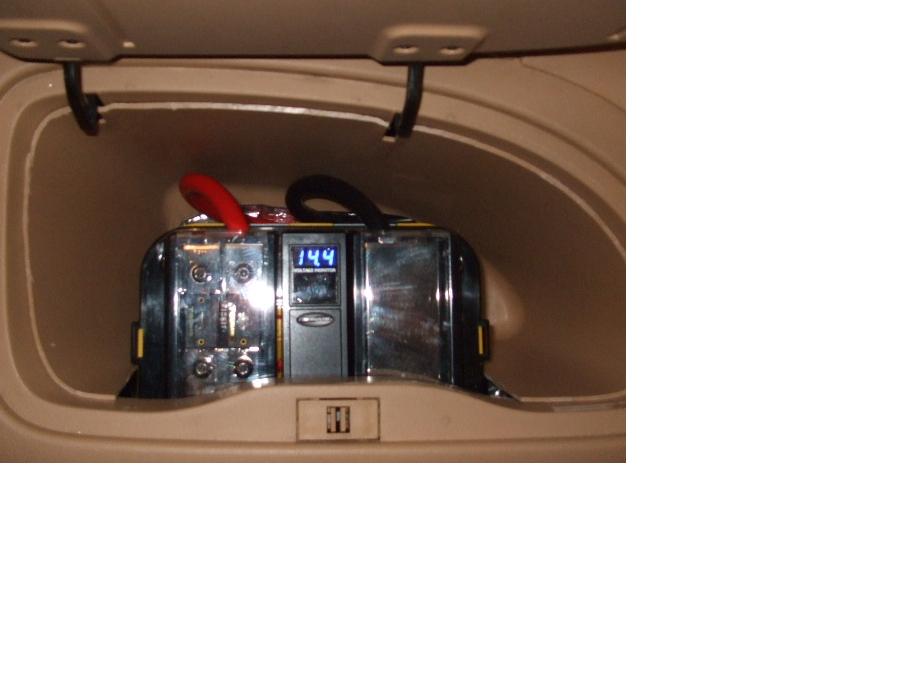

Here's a couple photos of mine. I used an Optima yellow and came across this Tsunami battery topper online. It has 2 fused 12v outputs, 2 non-fused 12v outputs and 4 ground connections. I ran 1/0 gauge cable to a streetwires fuse under the hood, then to a 400A battery cutout switch.
#29
Eats, Sleeps, Dreams Rotary
iTrader: (14)
Moconnor i used your writeup as well when i did my relocation. It helped wonderfully. Here is some old pictures of my crazy battery. I know mine doesnt compare to yours, but i would like to do some more work on it and clean up alot of things about it. I just havnt gotten there yet. Time or proper tools really.
Why didn't you extend the panel the entire length of the bin?
#30
Registered User
iTrader: (6)
Join Date: Mar 2003
Location: LongIsland, NY
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
To show off the battery and have easier access in there if i needed it. I have thought about making a panel to just cover the whole thing, but just havnt gotten there. In the future i might do this when i dont need to have easy access to the bin. It does not help that my key does not work with the lock All in due time it will be done to a much higher standard.
#31
Sua Sponte
iTrader: (31)
Here is a picture of mine before I finished it up. Don't mind the dust, this was taken when I was painting the car/ redoing everything. The plexi glass is a perfect fit(I had it tilted in the picture). It's bolted down now and in a tray. I think I might paint the back side of the plexi glass to clean up the install even more. I also used the Westco Miata battery and a high quality 4 gauge wire.
#32
I've always been interested in relocating my battery in one of the bins but have always been a little paranoid by some things I've read. Here is one specifically...
Other places I've read similar things say the mixture is only produced when the battery is being overcharged, however it's always put me off starting the project.
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
A highly explosive oxyhydrogen gas mixture occurs when charging lead-acid batteries. Therefore, sparks, naked flames, and smoking are prohibited. Avoid causing sparks when dealing with cables and electrical equipment, and beware of electrostatic discharges. Avoid short-circuits.
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
#33
Registered User
iTrader: (6)
Join Date: Mar 2003
Location: LongIsland, NY
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
I've always been interested in relocating my battery in one of the bins but have always been a little paranoid by some things I've read. Here is one specifically...
Other places I've read similar things say the mixture is only produced when the battery is being overcharged, however it's always put me off starting the project.
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
Other places I've read similar things say the mixture is only produced when the battery is being overcharged, however it's always put me off starting the project.
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
#34
VV That's mine VV
Join Date: Jan 2007
Location: Chapel Hill, NC
Posts: 583
Likes: 0
Received 0 Likes
on
0 Posts
Thank goodness mine isn't a street car then.
#35
Other places I've read similar things say the mixture is only produced when the battery is being overcharged, however it's always put me off starting the project.
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
I think I'd like to clear this up once and for all. Are any gases produced under normal operation?
#36
Also Crispy some batteries need to be vented. This is why certain closed batteries are chosen. The optima red/yellow is a common choice, Westco Sealed battery odyssey, or my giant lithium ion battery (not cheap) .... If your car is in good healthy running order electrically, then overcharging or discharged too low to damage the battery, then there should not be any issues.
Could well be a winter project.
Thanks.
#38
Registered User
iTrader: (6)
Join Date: Mar 2003
Location: LongIsland, NY
Posts: 432
Likes: 0
Received 0 Likes
on
0 Posts
I do appreciate that write up again Moconnor
#41
... i found my current battery from Volt Phreaks (link). That is a link to a comparable battery to when i bought mine. Very nice, light and strong. But as i stated before expensive ...
#43
sexy no jutsu
Join Date: Jun 2002
Location: planet arium
Posts: 1,578
Likes: 0
Received 0 Likes
on
0 Posts
I've had a look at the WestCo website and the only car battery listed is for the MX-5 (Miata). Is that the one you're talking about? Here's the link.
#47
Archdandy
iTrader: (1)
Join Date: Mar 2006
Location: Predominantly educated metropolitan area
Posts: 550
Likes: 0
Received 3 Likes
on
2 Posts
Another good battery to put in the storage bin is an optima yellow top for a honda. They are smaller than the conventional yellow top and arent that expensive. Costco sells them out here. I'm not a big fan of those little racing batteries that barely crank a car for 30 secconds.
#48
Eats, Sleeps, Dreams Rotary
iTrader: (14)
Another good battery to put in the storage bin is an optima yellow top for a honda. They are smaller than the conventional yellow top and arent that expensive. Costco sells them out here. I'm not a big fan of those little racing batteries that barely crank a car for 30 secconds.
#49
Racing Rotary Since 1983
iTrader: (6)
here's a pic of my pass side bin circa 2007. at the time i was running the Alkycontrol AI system. since certain parts of the control system were on top of the steering wheel bezel and the alcohol pump is situated near the rear driver's side half shaft i located the relay near the battery so as to have a short primary pump drive wire. i removed my ABS and chose to use the 40 Amp relay from the ABS which you will see at 9 o'clock in pic 1.
other items:
at 7 o'clock is the Alkycontrol pump controller module. at 12 o'clock is the Kenne Bell Boost A Pump (BAP). at 2 o'clock is the BAP voltage control selector... easily reached from the driver's seat.
my driver's side compartment is purposely devoid of anything but my ignition amps to discourage any elec interference. each amp runs one leading spark plug. they are purposely located as far from each other as possible and all signal wires are shielded.
here;s another pic from 07. note the master elec cutoff switch again easily accessable from the driver's seat. i often use it when parking my car in a spot where i want it to be there upon return if you get my drift. also i think it is essential to be able to disable the battery in a flash whether you are working on the car's electrics or have a short. the black module at 9 o'clock is another part of the Alkycontrol AI system.
here's my compartment for 08. i now run a FJO alcohol system and have been able to clean up the compartment a bit. BTW, love my Odyssey battery. i have run it since 1999.
hc
other items:
at 7 o'clock is the Alkycontrol pump controller module. at 12 o'clock is the Kenne Bell Boost A Pump (BAP). at 2 o'clock is the BAP voltage control selector... easily reached from the driver's seat.
my driver's side compartment is purposely devoid of anything but my ignition amps to discourage any elec interference. each amp runs one leading spark plug. they are purposely located as far from each other as possible and all signal wires are shielded.
here;s another pic from 07. note the master elec cutoff switch again easily accessable from the driver's seat. i often use it when parking my car in a spot where i want it to be there upon return if you get my drift. also i think it is essential to be able to disable the battery in a flash whether you are working on the car's electrics or have a short. the black module at 9 o'clock is another part of the Alkycontrol AI system.
here's my compartment for 08. i now run a FJO alcohol system and have been able to clean up the compartment a bit. BTW, love my Odyssey battery. i have run it since 1999.
hc
#50
Goodfalla Engine Complete
iTrader: (28)
sorry I took so long to reply, I have the tray bolted through the carpet and to the chassis. (thank you all very much for all the comments.) (sarcasm) I didnt put it in the bins because I use the bins to hold my premix,extra oil, and a gallon of water after all it is an rx-7. and dont mind losing the trunk space as I dont use it to do groceries.
If you want to come on here and get sarcastic about knowledgeable responses as to the downfalls of your setup, then WHY even post at all? (This is a rhetorical question, As I don't care about your uneducated response.)
Your placement has these traits:
1. Worse CG (Center of Gravity) Location
2. Aesthetics (Looks terrible)
Get over yourself.
And to be completely fair: I do like the actual mounting plate you used. That is a nice looking piece, but it doesn't need to be showed off. It is, after all, just a battery tie-down. The rest of the install looks amateur.
