anyone know where to get manifold flanges?
#1
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
anyone know where to get manifold flanges?
i just got the welder and i wanted to play around with building a few manifolds just to see how they effect the powerband.
anyone know where to get them for the rew...or even the fc's?
anyone know where to get them for the rew...or even the fc's?
#7
Try Sam @ http://www.bmcrace.com
He owns/operates a CNC machine. I've bought some stuff from him before...super nice and very cheap, too! I doubt he has the flange for a rotary on hand, but if you send him a gasket, he'll make what you need. I needed a special T25 flange awhile back and he made it for me and delivered it in about a week.
I've paid for (piston) head flanges to be laser cut. The quality is good, but CNC is so much nicer.
Sonny
He owns/operates a CNC machine. I've bought some stuff from him before...super nice and very cheap, too! I doubt he has the flange for a rotary on hand, but if you send him a gasket, he'll make what you need. I needed a special T25 flange awhile back and he made it for me and delivered it in about a week.
I've paid for (piston) head flanges to be laser cut. The quality is good, but CNC is so much nicer.
Sonny
Trending Topics
#9
Rotary Freak
iTrader: (14)
this will not work: Racing Beat - Mazda Rotary 1986-92; 13B flange; http://www.racingbeat.com/FRmazda2.htm then click on Exhaust Flanges
also try http://www.mazdatrix.com/e7.htm
also try http://www.mazdatrix.com/e7.htm
Last edited by Julian; 09-23-05 at 06:05 PM.
#11
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
I have an intake manifold flange in stock! Machined on a CNC mill at my shop from1/2" aluminum.
-Alex
Edit: Actually, the one I have needs to have a little cut off on the left side. However, I can have one made up over the weekend. I typically machine the ports on the flange to the angle of the stock ports on the motor. However, I can machine the ports on the flange straight, or at w/e angle you'd like. If your interested, just PM me and we can go over all that.
-Alex
Edit: Actually, the one I have needs to have a little cut off on the left side. However, I can have one made up over the weekend. I typically machine the ports on the flange to the angle of the stock ports on the motor. However, I can machine the ports on the flange straight, or at w/e angle you'd like. If your interested, just PM me and we can go over all that.
Last edited by TT_Rex_7; 09-23-05 at 07:16 PM.
#12
Hey not sure if this would work but it is used on older 13b's. You might get lucky and have the bolt pattern be the same.
Go to exhaust flanges...
http://www.racingbeat.com/FRmazda1.htm
Go to exhaust flanges...
http://www.racingbeat.com/FRmazda1.htm
#13
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i've only got a mig, so i'd like to do it out of steel. i could "technically" do aluminum if i buy straight argon, but i've never done it before, so it'll probably turn out crappy.
what i'm looking to do is build a 1" and a 2" spacer from the lim to the uim and see what that does to turbo spoolup and low end. i'm not looking to get incredibly hardcore into the other stuff right now....but i'll definately do it in the future.
what i'm looking to do is build a 1" and a 2" spacer from the lim to the uim and see what that does to turbo spoolup and low end. i'm not looking to get incredibly hardcore into the other stuff right now....but i'll definately do it in the future.
#14
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
i've only got a mig, so i'd like to do it out of steel. i could "technically" do aluminum if i buy straight argon, but i've never done it before, so it'll probably turn out crappy.
what i'm looking to do is build a 1" and a 2" spacer from the lim to the uim and see what that does to turbo spoolup and low end. i'm not looking to get incredibly hardcore into the other stuff right now....but i'll definately do it in the future.
what i'm looking to do is build a 1" and a 2" spacer from the lim to the uim and see what that does to turbo spoolup and low end. i'm not looking to get incredibly hardcore into the other stuff right now....but i'll definately do it in the future.
-Alex
#15
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i'm not worried about hood clearance. my engine sits a little lower than stock, and i'm raising the back of the hood up anyway.
and to top all that off, it's just gonna be for the dyno....if it works, i'll find out how to make it fit
i'm just in the tinkering mood
shoot me a price for 2 of them in cheap steel if you could. thanks bro!!
and to top all that off, it's just gonna be for the dyno....if it works, i'll find out how to make it fit
i'm just in the tinkering mood
shoot me a price for 2 of them in cheap steel if you could. thanks bro!!
#16
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
i'm not worried about hood clearance. my engine sits a little lower than stock, and i'm raising the back of the hood up anyway.
and to top all that off, it's just gonna be for the dyno....if it works, i'll find out how to make it fit
i'm just in the tinkering mood
shoot me a price for 2 of them in cheap steel if you could. thanks bro!!
and to top all that off, it's just gonna be for the dyno....if it works, i'll find out how to make it fit
i'm just in the tinkering mood
shoot me a price for 2 of them in cheap steel if you could. thanks bro!!
As for a price, i'll send you a PM later tonight.
-Alex
#18
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
with the exhaust manifold i'm using, i think space is gonna be a little too limited for the LIM.
-Alex
#19
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i am gonna make another exhaust manifold, but i gotta wait to build the new engine first.

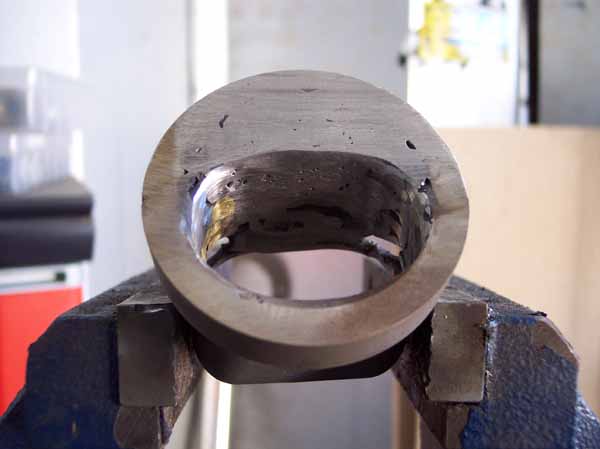

i'm copying rotarygod's constant area sleeves...here's the rough draft. don't worry, they'll be nice by the time i'm done with them.
i'm copying rotarygod's constant area sleeves...here's the rough draft. don't worry, they'll be nice by the time i'm done with them.
#20
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
i am gonna make another exhaust manifold, but i gotta wait to build the new engine first.
i'm copying rotarygod's constant area sleeves...here's the rough draft. don't worry, they'll be nice by the time i'm done with them.
i'm copying rotarygod's constant area sleeves...here's the rough draft. don't worry, they'll be nice by the time i'm done with them.
3/4" 304 stainless, with a 1/16" 45 degree chamfer around the whole outside, with a 1/16" radius around the exhaust ports for the welds, all cut on a CNC mill. The Rx7 was cut out with a wire EDM 3/8" deep, with a 3/8" deep pocket cut out on the back side to take as much weight off it as possible. I'm probably the only one that's crazy enough to make a flange like this though, and nobody would pay the amount of $$$ it costs to have a flange like this made for them. The ones I make for everyone else are usually 1/2" 304 stainless, with just a lightening hole cut out in the center. I just wanted something really nice on my car!
#22
Rotary Enthusiast
Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
that's NICE. can you make one with smaller holes so i can use oval tubing?
But yea, I can machine them oval or whatever. It might intrest you to machine one side oval to match the motor, and machine the other side round, with a smooth transition between the two. That way you can still use round tubing.
-Alex
Last edited by TT_Rex_7; 09-23-05 at 10:02 PM.
#23
multipersonality disorder
Thread Starter
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i was thinking about maybe using round tubing, but pinching the one end oval. then i'd bolt it to the motor and port it from the inside so it's seamless. also, it would be a smooth oval-to-round transition.
but that's off in the future...plenty of time to think about that.
but that's off in the future...plenty of time to think about that.
#24
Rotor Head Extreme
iTrader: (8)
Originally Posted by GUITARJUNKIE28
i'm copying rotarygod's constant area sleeves...here's the rough draft. don't worry, they'll be nice by the time i'm done with them.
I want to do the same. I was thinking of just running the oval exhaust runner into the sleeve itself (dual sided manifold) and not worry about making a custom sleeve. RG said we knew of someone that did it that way and it worked the same.
In your pics are you just adding metal and reshaping?
Last edited by t-von; 09-24-05 at 03:01 AM.
