Alterantor clip , pic's attatched.
#1
Alterantor clip , pic's attatched.

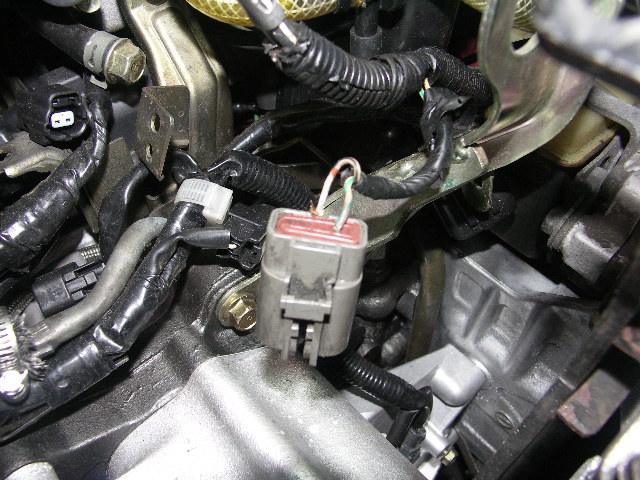

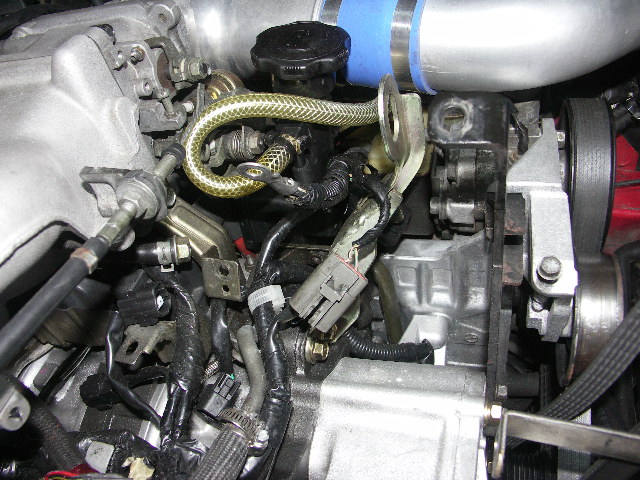

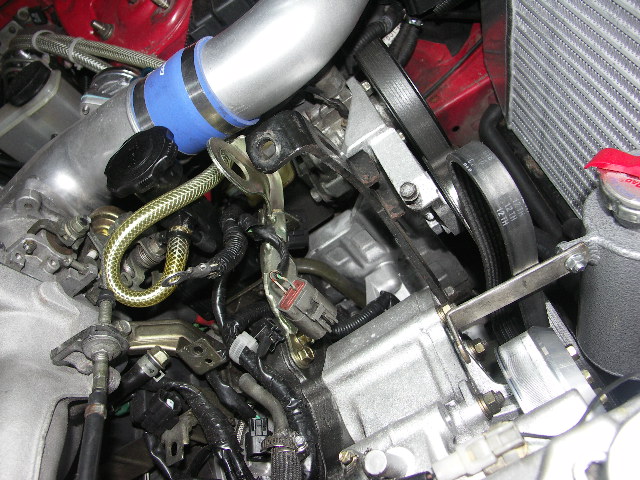

My friend was working on my alternator the other day cause I'm pretty sure it was bad. BTW I can not cause im still over seas. He was trying to get the clip out from the male end of it and one of the wires came out from the female side. How can he put that wire back in w/o it coming back out again. Do I need to buy a new clip for this now?
Thanks for the help guys.
Thanks for the help guys.
#3
Senior Member
iTrader: (38)
Join Date: Jul 2008
Location: Brick, NJ
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
I just repaired mine. You need to pop out the red piece on the back of the clip. Then use a small screwdriver to pop the metal terminal out. You will see the plastic part that is holding it in place. Use the small screwdriver to push it up. Then soldier the connector back on the wire and re-install by pushing back in the connector.
