Airbag light comes on 3 times, off, on 3 times, off... so on, so on..
#1
Airbag light comes on 3 times, off, on 3 times, off... so on, so on..
I'm sick of FD's..
This isn't my car.. and I'm done looking thru the manuals because I'm lazy.. I'm going to post it like all the newbies out there..
So, help me save some time.. because I don't even know where my manual is and all the cd's that I used to sell, I don't know where that is either.. and the "iluvmyrx7" manuals, I just don't want to mess with downloading those PDF files and such.. I'm completely lazy and worn out by all this RX7 stuff.
This isn't my car.. and I'm done looking thru the manuals because I'm lazy.. I'm going to post it like all the newbies out there..
So, help me save some time.. because I don't even know where my manual is and all the cd's that I used to sell, I don't know where that is either.. and the "iluvmyrx7" manuals, I just don't want to mess with downloading those PDF files and such.. I'm completely lazy and worn out by all this RX7 stuff.
#2
I can haz rotary?
iTrader: (1)
Sounds like the sensor is unplugged. Did you check the plug under the dash?
Originally Posted by herblenny
I'm sick of FD's..
This isn't my car.. and I'm done looking thru the manuals because I'm lazy.. I'm going to post it like all the newbies out there..
So, help me save some time.. because I don't even know where my manual is and all the cd's that I used to sell, I don't know where that is either.. and the "iluvmyrx7" manuals, I just don't want to mess with downloading those PDF files and such.. I'm completely lazy and worn out by all this RX7 stuff.
This isn't my car.. and I'm done looking thru the manuals because I'm lazy.. I'm going to post it like all the newbies out there..
So, help me save some time.. because I don't even know where my manual is and all the cd's that I used to sell, I don't know where that is either.. and the "iluvmyrx7" manuals, I just don't want to mess with downloading those PDF files and such.. I'm completely lazy and worn out by all this RX7 stuff.
#3
RX-7 Bad Ass
iTrader: (55)
Feeling sarcastic today?
Dale
Dale
#5
in slow, out fast!
Join Date: Apr 2002
Location: Florida
Posts: 1,388
Likes: 0
Received 0 Likes
on
0 Posts
my airbag light does that. and its because i dont have an airbag plugged into the airbag harness in the steering column nor do i have the resistor to make it stop blinking. not sure how many times its blinking though.
#6
Rotary Freak
iTrader: (9)
I know this is not in herblennys case but if you have an aftermarket wheel, you have to take the bulb out (unless you dont mind a piece of tape stuck there to cover the blinking). Once you take out the bulb the car will now sound a warning beep. To stop this you have to unplug the Airbag comp wich is under the drivers footwell, on the right side. Its a yellow box, once unplugged your good to go.
I know it was said but have you checked the airbag plugs? was the other owner fooling around in those areas?
I know it was said but have you checked the airbag plugs? was the other owner fooling around in those areas?
#7
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Mazdabation
I know this is not in herblennys case but if you have an aftermarket wheel, you have to take the bulb out (unless you dont mind a piece of tape stuck there to cover the blinking). Once you take out the bulb the car will now sound a warning beep. To stop this you have to unplug the Airbag comp wich is under the drivers footwell, on the right side. Its a yellow box, once unplugged your good to go.
I know it was said but have you checked the airbag plugs? was the other owner fooling around in those areas?
I know it was said but have you checked the airbag plugs? was the other owner fooling around in those areas?
I have an aftermarket wheel and i did not take out the light - don't remember what I did because it was 3 or 4 years ago. I followed the instructions on Steve C. site.
Chris
Trending Topics
#9
Senior Member
iTrader: (1)
Join Date: May 2004
Location: socal
Posts: 538
Likes: 0
Received 0 Likes
on
0 Posts
Mine blinks too the same repetition. The previous owner took it to a Mazda dealer, they gave him an invoice of the problem which I still have. It was a bad airbag sensor. He never got it replaced since you can imagine what they charge for it.
#11
Originally Posted by Mazdabation
I know this is not in herblennys case but if you have an aftermarket wheel, you have to take the bulb out (unless you dont mind a piece of tape stuck there to cover the blinking). Once you take out the bulb the car will now sound a warning beep. To stop this you have to unplug the Airbag comp wich is under the drivers footwell, on the right side. Its a yellow box, once unplugged your good to go.
Originally Posted by manatecu
I have an aftermarket wheel and i did not take out the light - don't remember what I did because it was 3 or 4 years ago. I followed the instructions on Steve C. site.
#12
Ee / Cpe
Join Date: Jan 2003
Location: Gaithersburg, MD / WVU
Posts: 2,843
Likes: 0
Received 2 Likes
on
2 Posts
https://www.rx7club.com/showthread.p...=air+bag+light
Priority | Flash Code | Cause/Diagnosis
1 | Remains on | Faulty Diagnostic Module or Poor Connection at Diagnostic Module
2 | Flashes 3 times | Open Circuit Or Poor Connection Of Power Source Circuit
3 | Flashes 5 times | Faulty Front Impact Sensor
4 | Flashes 10 times | Faulty Diagnostic Module Due To Open System-Down Fuse
5 | Flashes 4 times | Faulty Rear Safing Sensor
6 | Flashes 6 times | Faulty Air Bag Module Or Poor Connection At Clockspring
7 | Flashes 9 times | Open Circuit Between Diagnostic Module And Front Impact Sensor
N/A | Remains Off | Damaged Warning Light Circuit
Priority | Flash Code | Cause/Diagnosis
1 | Remains on | Faulty Diagnostic Module or Poor Connection at Diagnostic Module
2 | Flashes 3 times | Open Circuit Or Poor Connection Of Power Source Circuit
3 | Flashes 5 times | Faulty Front Impact Sensor
4 | Flashes 10 times | Faulty Diagnostic Module Due To Open System-Down Fuse
5 | Flashes 4 times | Faulty Rear Safing Sensor
6 | Flashes 6 times | Faulty Air Bag Module Or Poor Connection At Clockspring
7 | Flashes 9 times | Open Circuit Between Diagnostic Module And Front Impact Sensor
N/A | Remains Off | Damaged Warning Light Circuit
#13
Rotary Freak
iTrader: (9)
Originally Posted by FDNewbie
He's right. But just a warning...I did the above, and didn't realize that taking out the airbag computer doesn't just get rid of the warning - it disables the airbags completely - BOTH. My point is, while I don't care for the airbag, if you have a 94 or 95, keep in mind that your passenger is now w/o an airbag as well. For that reason (passenger is a big liability/responsibility IMO), I would have rather dealt w/ hearing the 5 beeps upon startup than lose the passenger airbag and the beeps. So just keep that in mind. (Oh and getting the computer out was a COMPLETE pain, which is why it's staying out lol
#15
Originally Posted by XSTransAm
Priority | Flash Code | Cause/Diagnosis
| Flashes 3 times | Open Circuit Or Poor Connection Of Power Source Circuit
| Flashes 3 times | Open Circuit Or Poor Connection Of Power Source Circuit
seems like the car wants to die when it warms up.
#16
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
[/QUOTE] Chris, is it an aftermarket wheel w/ an airbag? If not, what hub are you using? Because the Mazdaspeed hub had an airbag sensor wire thingy so the light and beeping wouldn't occur. Also, I followed the directions on Steve C.'s site too less than a year ago, and it definitely tells you to remove the bulb and disconnect the computer. If you are sure you never removed the bulb, then your bulb is blown [/QUOTE]
Momo wheel - Race
Actually, I used a Momo hub and the original spinning piece (behind the air bag black/yellow) to jumper the horn and install a 10ohm resistor to ensure the light does not keep blinking.
I don't remember the wiring configuration, sorry. I remember testing each wire and soldering some wires together but it has been about 5 years now. I am not smart enough to do it on my own, so I know there was a write up about it somewhere.
Momo wheel - Race
Actually, I used a Momo hub and the original spinning piece (behind the air bag black/yellow) to jumper the horn and install a 10ohm resistor to ensure the light does not keep blinking.
I don't remember the wiring configuration, sorry. I remember testing each wire and soldering some wires together but it has been about 5 years now. I am not smart enough to do it on my own, so I know there was a write up about it somewhere.
#19
94 Single Turbo FD
Join Date: May 2006
Location: Calgary, Alberta, Canada
Posts: 1,418
Likes: 0
Received 0 Likes
on
0 Posts
all u need to do is splice a 1 ohm resistor into the clip for the airbag sensor. u can pick these resistors up at radio shack. it really is an easy fix.
#21
Rotary Freak
iTrader: (8)
Where do I look for the "open-circuit" or "poor connection of power source" ?
TIA,
:-) neil
Priority | Flash Code | Cause/Diagnosis
1 | Remains on | Faulty Diagnostic Module or Poor Connection at Diagnostic Module
2 | Flashes 3 times | Open Circuit Or Poor Connection Of Power Source Circuit
3 | Flashes 5 times | Faulty Front Impact Sensor
4 | Flashes 10 times | Faulty Diagnostic Module Due To Open System-Down Fuse
5 | Flashes 4 times | Faulty Rear Safing Sensor
6 | Flashes 6 times | Faulty Air Bag Module Or Poor Connection At Clockspring
7 | Flashes 9 times | Open Circuit Between Diagnostic Module And Front Impact Sensor
N/A | Remains Off | Damaged Warning Light Circuit
#23
Rotary Freak
iTrader: (8)

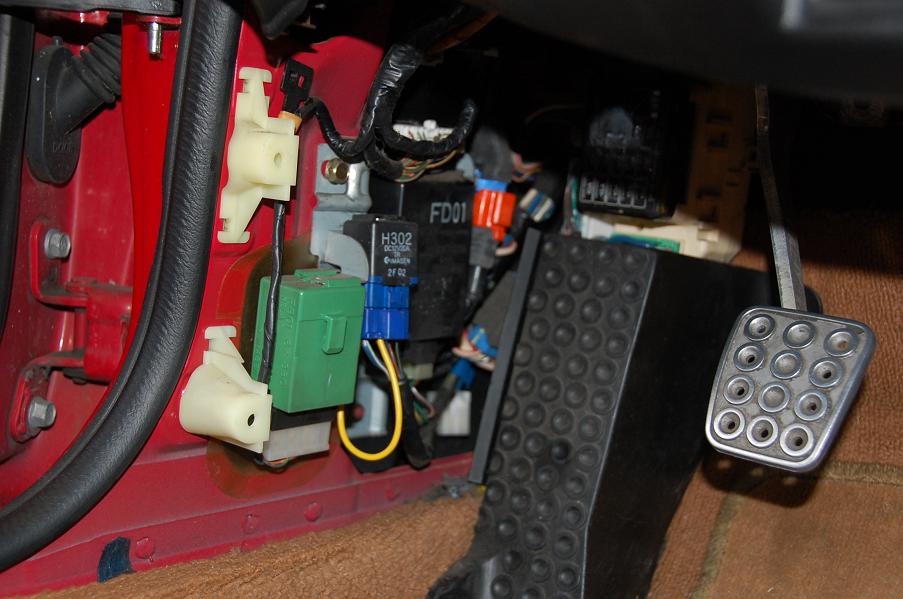

Part of the diagnosis flow-chart for 3-blinks, is too remove the airbag diagnostic controller in the driver's side footwell.
Which one is it ?
Thanks,
:-) neil
PS: Also found this "yellow" wire shorting out (just stuck in) a the "blue" connector connected to black relay labelled, "H302" ? What's the function of relay H302 it is shorting ?
#25
Rotary Freak
iTrader: (8)
Part of the diagnosis flow-chart for 3-blinks, is too remove the airbag diagnostic controller in the driver's side footwell.
Which one is it ?
Thanks,
:-) neil
PS: Also found this "yellow" wire shorting out (just stuck in) a the "blue" connector connected to black relay labelled, "H302" ? What's the function of relay H302 it is shorting ?
Which one is it ?
Thanks,
:-) neil
PS: Also found this "yellow" wire shorting out (just stuck in) a the "blue" connector connected to black relay labelled, "H302" ? What's the function of relay H302 it is shorting ?
The airbag diagnostic module is located between the dash and the tranny tunnel.
Per the thread below, what typically goes bad is a resistor fuse and a couple of capacitors. The fuse usually blows if the resistance on any of the crash sensors is not to spec.
Check it out here:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/93-diagnostic-module-rebuild-807185/
1) One 1/4w 10 ohm resistor (fuse)
2) Six 1800uF 25v; DigiKey #493-1836-ND (Nichicon #UPW1E182MHD6) .78 cents each.
3) One 1000uF 25v: DigiKey #493-1305-ND (Nichicon #UVZ1E102MPD) .52 cents each.
4) Three 47uF 16v: DigiKey # 493-1775-ND (Nichicon #UPW1C470MDD) .26 cents each.
BE SURE TO READ THE FULL PROCEDURE INCLUDING PRE-CAUTIONS.
I'm pulling it later this week.
:-) neil
