air sensor plug...which one>?

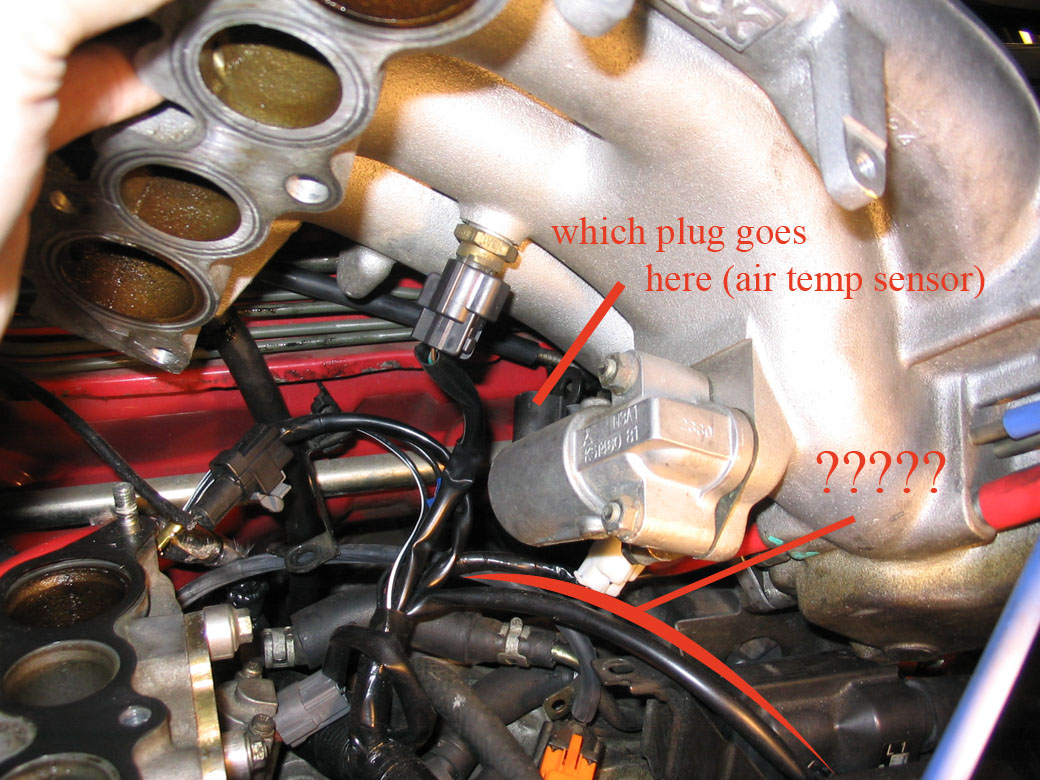

in the pic, correct me if i'm wrong but that mitsubishi (sp?) piece is the air temp sensor correct?
which plug goes to it...the one i have the line to with the ????'s...cause that is unplugged and may be causing me problems right now
which plug goes to it...the one i have the line to with the ????'s...cause that is unplugged and may be causing me problems right now
Last edited by RX7_Fanatic; 03-15-06 at 09:03 PM.
03-15-06, 09:04 PM
#2
RX-7 Bad Ass
iTrader: (55)
In that pic, the air temp sensor is plugged in. It's the small sensor in the middle of the pic.
The one you're highlighting is the accelerated warmup valve - it does the 3000 RPM warmup when cold. The connector for it should be on the same wiring "string" as the TPS and ISC.
Dale
The one you're highlighting is the accelerated warmup valve - it does the 3000 RPM warmup when cold. The connector for it should be on the same wiring "string" as the TPS and ISC.
Dale
