Hey guys,

I couldn't find many pictures of the mounts people used to attach their FPR to the front of the UIM, so I made one up. I figured I'd post some pics so people could see what I did and comment .

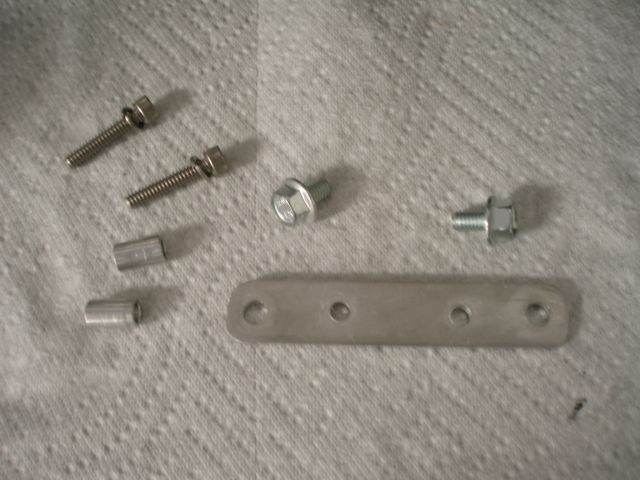

The first pic shows all the pieces. The screws and aluminum spacers came from Home Depot. The bracket I just cut myself from sheet aluminum and drilled the holes with my drill press.

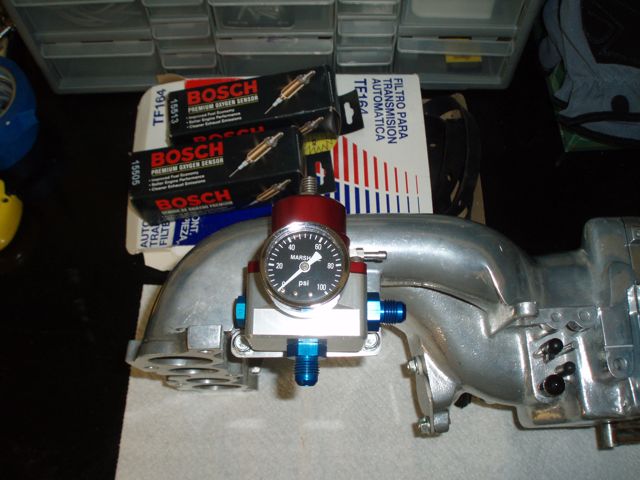

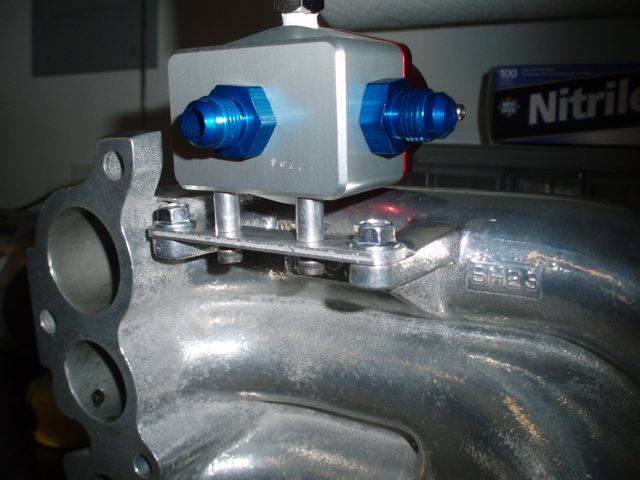

Second and third pics show the FPR mounted.

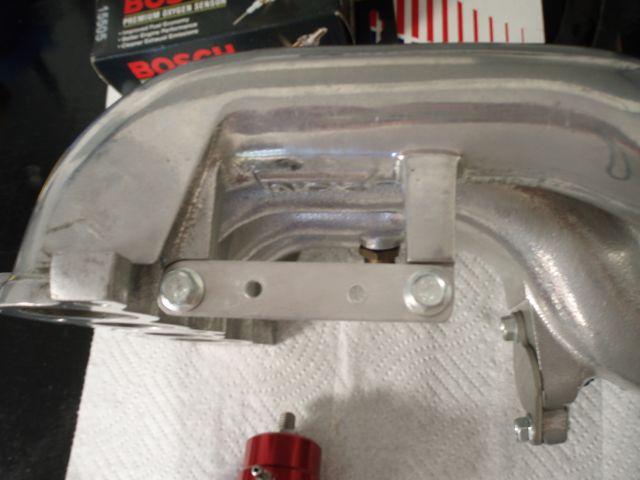

Fourth pic shows the bracket on the UIM.

Anyway, it's a pretty small thing, but I figured it might help someone.

- andy

prrex4ever

iTrader: (3)

Good deal, thanks.

theorie

iTrader: (31)

i did the exact same thing. i think that is a really common spot.





cheers.

IWINULUZ

iTrader: (10)

Very clean!

SIDE NOTE:
I find it funny, haven't noticed anyone on here using Synapse Engineering FPR. Just mentioning it since when i used to have my own shop we sold so many of them.

Scaytale

iTrader: (3)

It is very nicely done. And I would love to mount mine there, however I run the twins and this space is taken. Thanks for posting, it is a nice install.

kclements

iTrader: (2)

Thanks for the post! Just getting ready to do this myself.

jkstill

iTrader: (11)

The only problem with mounting the FP to the UIM - you have to remove it to remove the UIM.

Recently I made a mount for the FPR that attaches the mount for the drivers side of the UIM.

Removing the UIM is just that much easier now.

FD3S2005

iTrader: (11)

whats 1 more step that takes less than 5 mins to remove?

jkstill

iTrader: (11)

It's a couple more bolts to drop in places they are hard to retrieve from.

Also putting it back together is more trouble - every little bit helps.

The UIM in my FD used to have the FPR and a boost control solenoid mounted to it. Moving them to other locations and/or creating a separate mount saves quite a bit of trouble.

CrispyRX7

iTrader: (139)

Same old same old....just like everyone else.
Crispy

BLACK MAMBA

iTrader: (58)

i have this bracket that mounts to the the igniter mounting point with spacers.

FD3S2005

iTrader: (11)

^ some ppl like their cruise control tho. but that is one place i would put it if i gave it up

jkstill

iTrader: (11)

And some people have the coils there.

BLACK MAMBA

iTrader: (58)

LOL, and some people have their FRP there.
