3rd Gear Highway Comparo: new BNR3s vs plain-bearing GT35R
#1
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
3rd Gear Highway Comparo: new BNR3s vs plain-bearing GT35R
Thought this was interesting.....ccarlisi and I just got back from playing around on the highway.
3rd gear pull at 3 honks, ~5k rpms to redline. I'll let Chris post the results, but will go over my setup:
Motor built and ported by myself, using Genghis' housings as a rough template
new BNR3s set up full non-seq running 13 psi for these pulls
M2/ASP large SMIC
All accessories deleted and running one stock main pulley
K&N filters (hardpipe kit deleted)
downpipe/res midpipe (magnaflow muffler)/PFS Catback
850cc/1300cc/Supra Pump
Jacobs FC1000 amp on FC leading coil/9 heat range spark plugs
TB coolant deleted, DT deleted, UIM opened up
My Techedge was showing full rich (AFRs in the 9s) at WOT so more tuning is definitely needed.
3rd gear pull at 3 honks, ~5k rpms to redline. I'll let Chris post the results, but will go over my setup:
Motor built and ported by myself, using Genghis' housings as a rough template
new BNR3s set up full non-seq running 13 psi for these pulls
M2/ASP large SMIC
All accessories deleted and running one stock main pulley
K&N filters (hardpipe kit deleted)
downpipe/res midpipe (magnaflow muffler)/PFS Catback
850cc/1300cc/Supra Pump
Jacobs FC1000 amp on FC leading coil/9 heat range spark plugs
TB coolant deleted, DT deleted, UIM opened up
My Techedge was showing full rich (AFRs in the 9s) at WOT so more tuning is definitely needed.
#3
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
Bottom line: Rich won. My reaction time was worthy of a retirement home resident, but even after I got into it I couldn't match his pace. Near the top of 3rd I was even with his speed at best. It wasn't a run away, but there was little doubt in my mind that his car was faster.
Here are the relevant facts:
-I was running 14psi to his 13
-I have a substrate cat and he has a midpipe
-I don't have an ignition amp and the car was breaking up a bit at 5800+
-afr 10.7
-I still have power steering and ac pulleys.
-I have less timing split, and the same leading.
Whenever AEM sends me a working ignition amp I will install it and see if it helps. I remember when I dynoed the car with stock twins and no amp it only made 1-2hp more at 14 than 13 due to breakup, so that could explain at least some of the gap. I'm sure the cat wasn't helping either.
In any event I was very impressed by the BNRs.
Here are the relevant facts:
-I was running 14psi to his 13
-I have a substrate cat and he has a midpipe
-I don't have an ignition amp and the car was breaking up a bit at 5800+
-afr 10.7
-I still have power steering and ac pulleys.
-I have less timing split, and the same leading.
Whenever AEM sends me a working ignition amp I will install it and see if it helps. I remember when I dynoed the car with stock twins and no amp it only made 1-2hp more at 14 than 13 due to breakup, so that could explain at least some of the gap. I'm sure the cat wasn't helping either.
In any event I was very impressed by the BNRs.
#4
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Thanks for being objective Chris. I'm sure we'll be able to work out the bugs in both of our FDs over the summer .
One thing I forgot to mention: I am currently running stock rims (vs the 17inch Fikses and S03s, which are definitely heavier than the stock setup).
Rich
One thing I forgot to mention: I am currently running stock rims (vs the 17inch Fikses and S03s, which are definitely heavier than the stock setup).
Rich
#5
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Hurry up, Bryan, finish building my Stage 3s.....
I wonder how much the metallic cat is holding Carlisi back vs a midpipe. May I suggest a repeat run once he fixes his ignition.....
I wonder how much the metallic cat is holding Carlisi back vs a midpipe. May I suggest a repeat run once he fixes his ignition.....
#7
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Of course.... the weather here in NJ is typical humid, hot and poor air density.... so that also plays a big part.... would be curious to see this little exercise repeated on a cool to cold night.... Would be interesting
Trending Topics
#8
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Rich, get that car tuned damnit...it sounds like you've worked out pretty much all of the issues with that car...
Hopefully 3 weeks from now, I will be fully up and running again with the Stage 3s setup sequentially. We'll see how see runs. I look forward to running a single turbo FD and seeing how it goes....
Hopefully 3 weeks from now, I will be fully up and running again with the Stage 3s setup sequentially. We'll see how see runs. I look forward to running a single turbo FD and seeing how it goes....
#11
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts

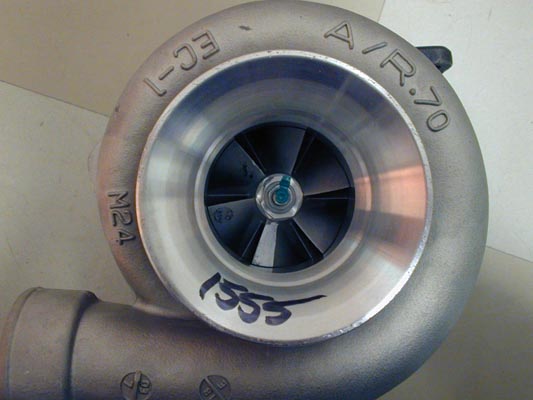

It's a 35R compressor (.70 A/R). As for the cat, it's hard to say. I installed it when the car was not tuned (so I wasn't beating on it too much) and it didn't seem to make a difference. My friend installed it on his single and it got rid of his boost creep issue at 11psi, but he didn't feel a difference in power from the seat of his pants.
#14
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by CCarlisi
Yeah, but by the time I get that project done Rich's ego will be the size of a Supra
On a serious note, this thread has nothing to do with driver skill or lack thereof. It just shows that the BNRs (a somewhat unknown quantity) can measure up to a known quantity. Case closed.
#16
I won't let go
Originally Posted by GoodfellaFD3S
On a serious note, this thread has nothing to do with driver skill or lack thereof. It just shows that the BNRs (a somewhat unknown quantity) can measure up to a known quantity. Case closed.
Oh yeah, and I wouldn't wait for AEM to come up with something.
#18
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by artowar

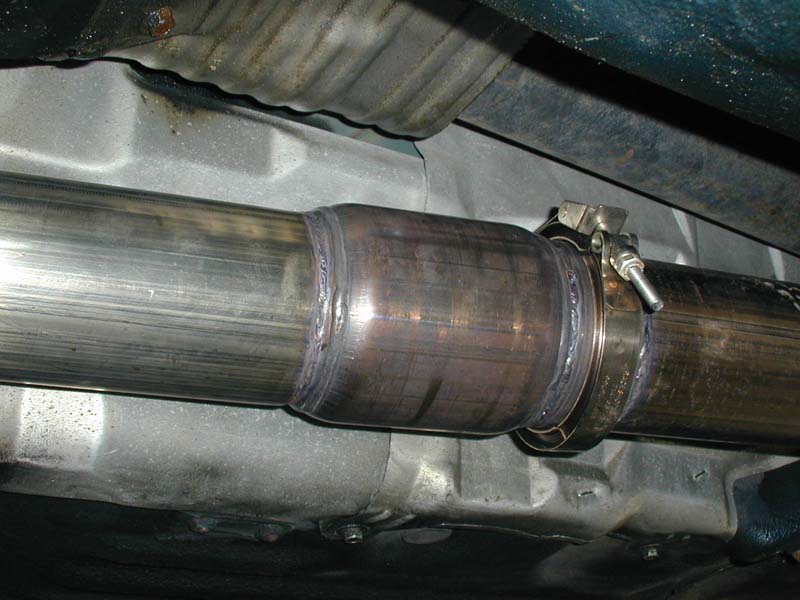

Judging by the picture, I take it that you mean you have a metallic substrate cat, correct?
#19
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by Railgun69
Yes and no. I'm with him in the fact that AEM has screwed us. The ignition breakup he's getting I'm sure is slightly better than mine (I'm at 15 psi) and holy hell if you don't loose a lot of power from that. I think that had the setups been more level, he would have had the advantage. But I don't deny that those BNRs aren't a potent package.
Oh yeah, and I wouldn't wait for AEM to come up with something.
Oh yeah, and I wouldn't wait for AEM to come up with something.
His breakup made the car undriveable and then he installed some of the b10egv's, made all the difference in the world. I was driving when he was tuning at 15 psi and the car pulled hard, and all the way to redline, so his FD definitely moves down the road.
#20
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by dubulup
the 35R isn't even awake at 14psi.
#22
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes
on
66 Posts
With a .70A/R hot side, you should have stated off at 2000rpm. That is going to hurt your top end.
I have a GT35R 1.06 and is spools much faster that stock non-seq. I say it spools almost as good as stock seq.
I have a GT35R 1.06 and is spools much faster that stock non-seq. I say it spools almost as good as stock seq.
Originally Posted by CCarlisi
It's a 35R compressor (.70 A/R). As for the cat, it's hard to say. I installed it when the car was not tuned (so I wasn't beating on it too much) and it didn't seem to make a difference. My friend installed it on his single and it got rid of his boost creep issue at 11psi, but he didn't feel a difference in power from the seat of his pants.
#23
Indifferent
iTrader: (3)
Join Date: Mar 2001
Location: Long Island,NY
Posts: 979
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dubulup
the 35R isn't even awake at 14psi.
Rich- if you wanted a real comparison we could have played around when you were on the island. If would have been perfect- BNR's vs stock. You should shoot down one Saturday night and hang...
John
#24
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GoodfellaFD3S
In my opinion AEM is a horrible company.
I was driving when he was tuning at 15 psi and the car pulled hard, and all the way to redline, so his FD definitely moves down the road.
I was driving when he was tuning at 15 psi and the car pulled hard, and all the way to redline, so his FD definitely moves down the road.
Of course, his car was also affected by the temp change, but I think it had a bigger impact on mine because I am not running an amp.
#25
Polishing Fiend
iTrader: (139)
Are both cars using the same engine porting? Another potential delta in the comparison
Definitely an interesting if not a bit skewed comparison.
No arguing whose car is faster on the day but using this as comparison of one component vs another component when it is the entire *system* that id being compared it's hard to draw any conclusions.
I've always liked the idea of two smaller turbos for quick boost response but with enough puff for high rpms.
I'd like to see you guys do this again when issues have been worked out and operating parameters are more equitable. As noted the GT35R (not really a "true" R from what I've read though) really doesn't become efficient until the 17psi range though. So what do you want to compare? BNRs at 14psi where they are more efficient or GT35 at 17psi where it is more efficient?
Regards,
Crispy
Definitely an interesting if not a bit skewed comparison.
No arguing whose car is faster on the day but using this as comparison of one component vs another component when it is the entire *system* that id being compared it's hard to draw any conclusions.
I've always liked the idea of two smaller turbos for quick boost response but with enough puff for high rpms.
I'd like to see you guys do this again when issues have been worked out and operating parameters are more equitable. As noted the GT35R (not really a "true" R from what I've read though) really doesn't become efficient until the 17psi range though. So what do you want to compare? BNRs at 14psi where they are more efficient or GT35 at 17psi where it is more efficient?
Regards,
Crispy
