13B-REW Rebuild Inspections
Looking to start budgeting out my engine rebuild, but I have a few questions regarding my current engine components (questions below each picture). Working on a complete car/engine rebuild, just finished the trans and now onto the engine: 1993 RX-7 R1 Build I have no history of the engine, the car had 85K on the odometer. It didn't have any hot/cold starting issues and did not smoke. Engine will be rebuilt with a mild/full street port, OEM seals, and single turbo conversion. Looking to have a "brand new" car once I'm complete, the car is not and will never be a DD. Thanks in advance.

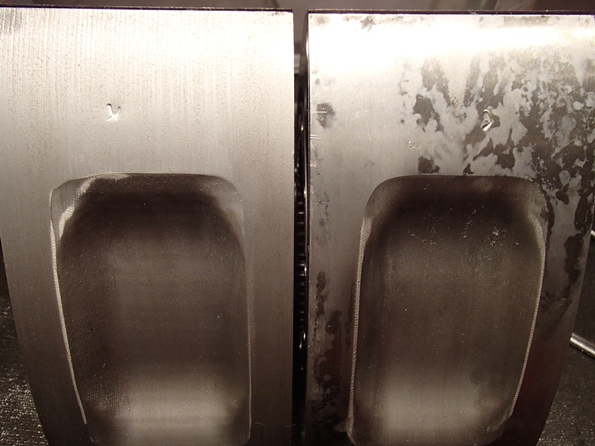

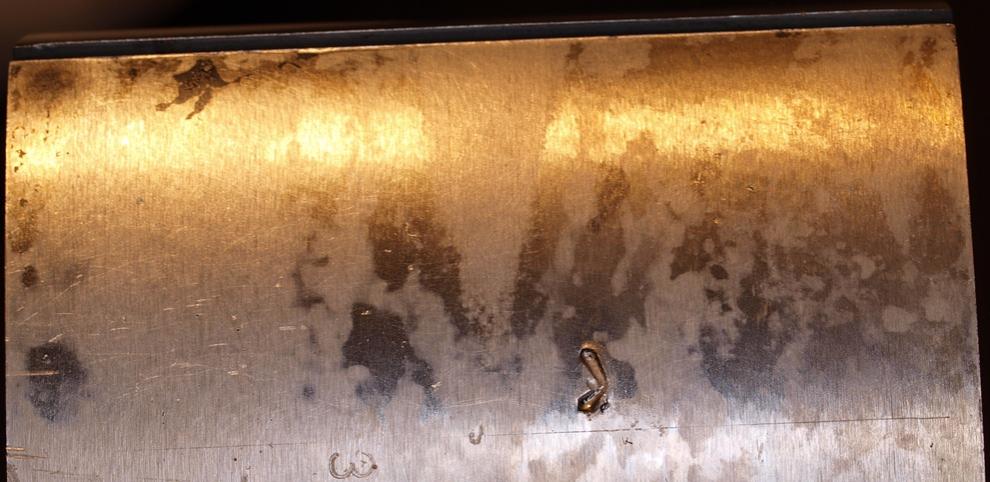

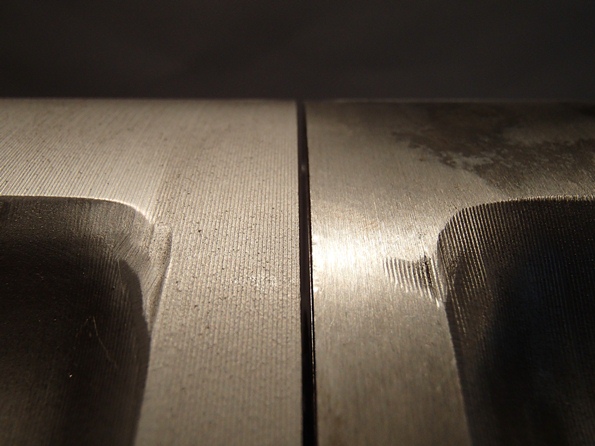

Rotor Face Machined/Tool Mark Finish:
Is it common to have a rotor with smooth faces but machined/tool mark pockets? All REW and MSP rotors I have seen are textured?
==============

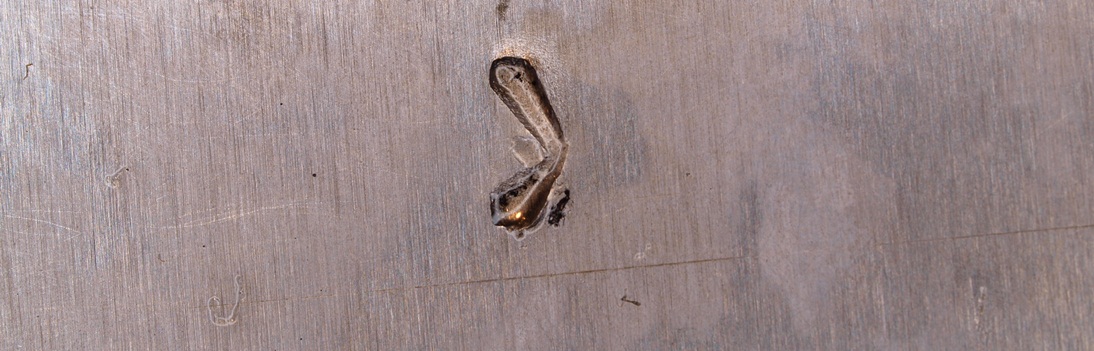

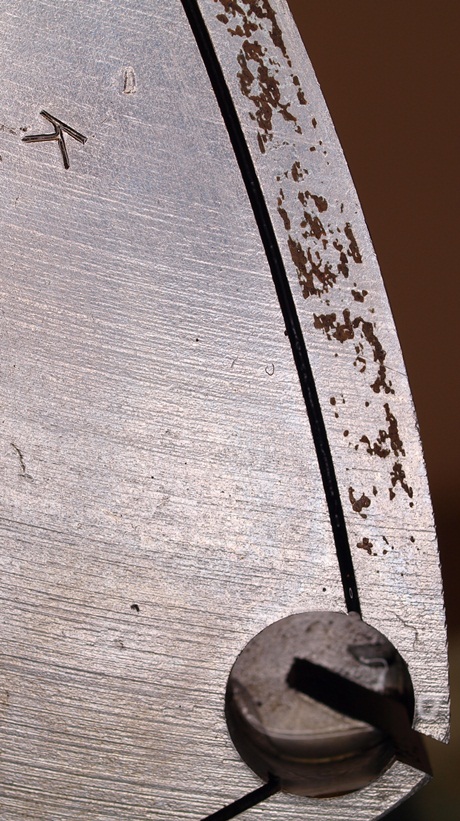

Rotor Face Marks (Japanese Characters?):
Are these marks identification Japanese characters? Assuming not impact/dents since rotor housing are undamaged? Also, another view of tool marks vs smooth rotor faces.
==============

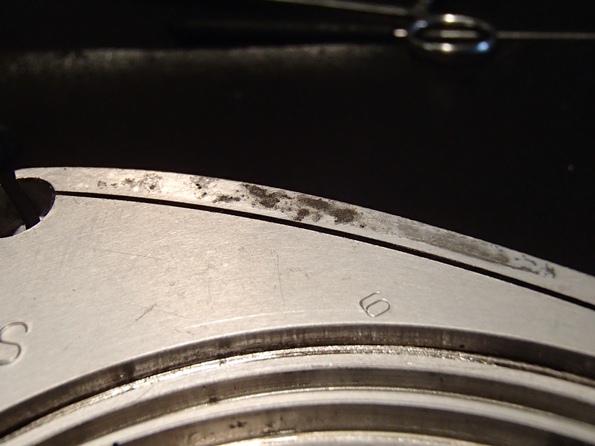

Rotor Side Pitting:
Pitting only occurred outside the side seal, exposed to moisture while car sat idle. Would this pose any reliability issues, that picture is the worst case?
==============

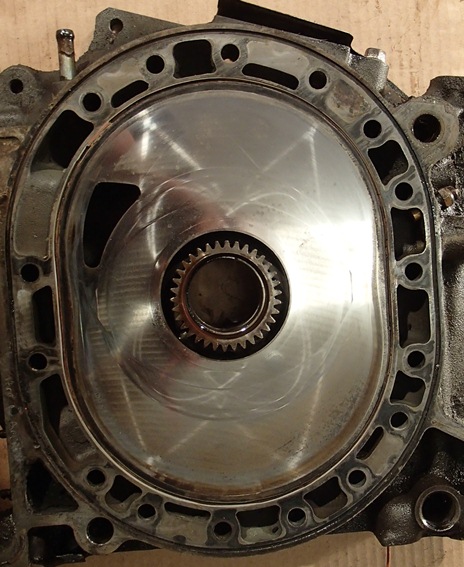

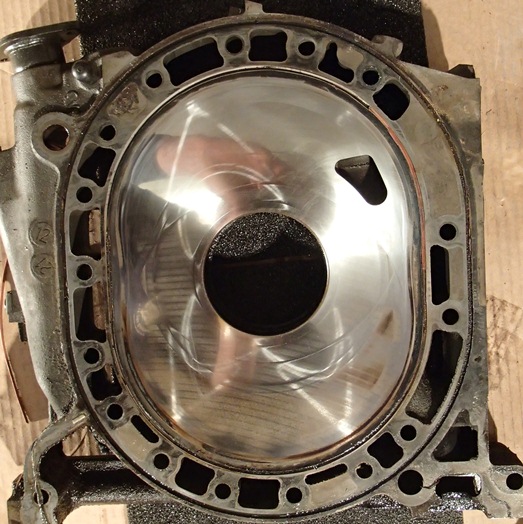

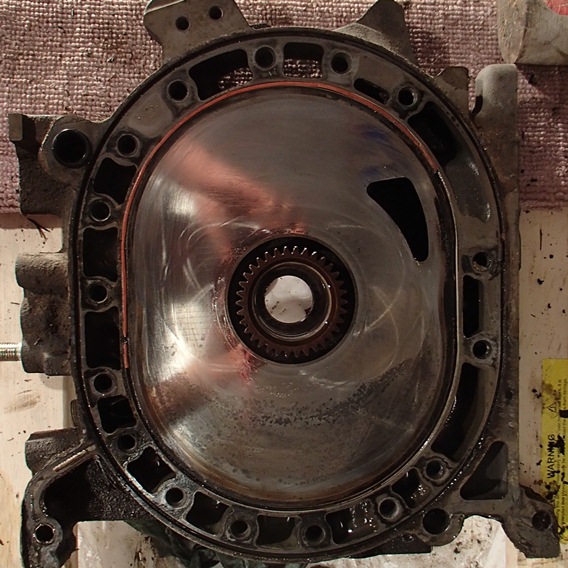

Side Housings (Front, Inter, Rear):
I have yet to measure the housings for seal wear depth. The "pitted" looking texture over the combustion phase is just as smooth as the intake phase. Other than wear from the seals the entire face is smooth to the touch.
==============

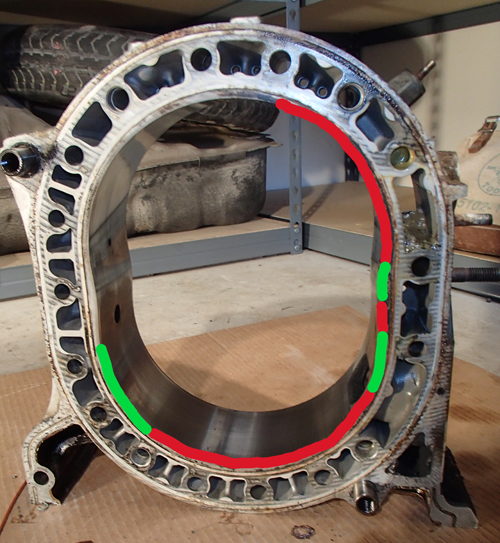

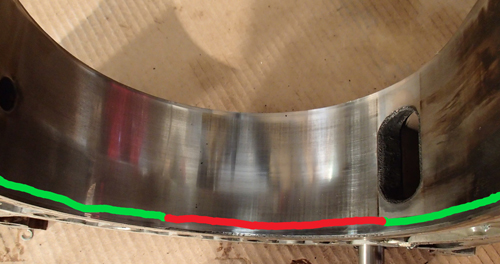

Rotor Housings (Green - Starting Flake / Red - Flaked Off):
Most of the wear/missing chrome is at 2mm, with some areas less. No spark plug cracking, & apex lift above exhaust port. I am not reusing these, but wondering if there is any value in selling them? Would these be any value to a drag car?
Rotor Face Machined/Tool Mark Finish:
Is it common to have a rotor with smooth faces but machined/tool mark pockets? All REW and MSP rotors I have seen are textured?
==============
Rotor Face Marks (Japanese Characters?):
Are these marks identification Japanese characters? Assuming not impact/dents since rotor housing are undamaged? Also, another view of tool marks vs smooth rotor faces.
==============
Rotor Side Pitting:
Pitting only occurred outside the side seal, exposed to moisture while car sat idle. Would this pose any reliability issues, that picture is the worst case?
==============
Side Housings (Front, Inter, Rear):
I have yet to measure the housings for seal wear depth. The "pitted" looking texture over the combustion phase is just as smooth as the intake phase. Other than wear from the seals the entire face is smooth to the touch.
==============
Rotor Housings (Green - Starting Flake / Red - Flaked Off):
Most of the wear/missing chrome is at 2mm, with some areas less. No spark plug cracking, & apex lift above exhaust port. I am not reusing these, but wondering if there is any value in selling them? Would these be any value to a drag car?
#3
FD & FE - Rotary Nut
Thread Starter
iTrader: (2)
Join Date: Dec 2007
Location: PA/MD
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the reply.
Yeah, the rotor housings will probably go up for sale at some point. I'll look around and see what I can get for them.
My question was more in regards to the rotor faces themselves. The smooth rotor (pic #2 - right) also has some type of permanent 'stain', but smooth to the touch. I was trying to figure out why one has machine/tooling marks 'lines' and the other is completely smooth?
Yeah, the rotor housings will probably go up for sale at some point. I'll look around and see what I can get for them.
My question was more in regards to the rotor faces themselves. The smooth rotor (pic #2 - right) also has some type of permanent 'stain', but smooth to the touch. I was trying to figure out why one has machine/tooling marks 'lines' and the other is completely smooth?
#5
FD & FE - Rotary Nut
Thread Starter
iTrader: (2)
Join Date: Dec 2007
Location: PA/MD
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
I will just attach the photos so they retain a larger resolution. These are the only three photos I have of the cleaned rotor.
One thing that had me confused is that the rotor face isn't a constant radius arc, so using a grinder with the rotor off centered shouldn't work. Unless Mazda did produce 'smooth' faced rotors.
Out of curiosity, what is it that you are looking for on the corners?
One thing that had me confused is that the rotor face isn't a constant radius arc, so using a grinder with the rotor off centered shouldn't work. Unless Mazda did produce 'smooth' faced rotors.
Out of curiosity, what is it that you are looking for on the corners?
#7
Bridge Port Freak
iTrader: (12)
Someone posted a while back that the ridges on the rotor faces occur as the cutting bit starts to wear. I have seen them both ways.
The discoloration in the combustion area of the iron is just the nitrided surface reacting to lots of heat, normal for high mileage stock motors.
The pitting outside the side seal area is just the soft metal that is sprayed on at the factory, normal.
If we can get a picture of the water jackets near the leading plugs... If there are small recesses machined there then they are REWs.
The discoloration in the combustion area of the iron is just the nitrided surface reacting to lots of heat, normal for high mileage stock motors.
The pitting outside the side seal area is just the soft metal that is sprayed on at the factory, normal.
If we can get a picture of the water jackets near the leading plugs... If there are small recesses machined there then they are REWs.
Last edited by ArmyOfOne; 07-10-13 at 12:23 AM. Reason: Spelling
Trending Topics
#8
FD & FE - Rotary Nut
Thread Starter
iTrader: (2)
Join Date: Dec 2007
Location: PA/MD
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Thanks everyone, the texture difference just struck me as odd when I pulled them carbon free out of the Zep bath. I'll take the time and inspect the rotor to ensure they are from the same 13b engine version and what version that is. All the bearings were completely worn out, large areas of copper showing through.
Might be a week or so but when I get time I'll inspect all the parts to determine what version (if other than REW) the components came from.
One last question, am I correct in assuming the indents on the rotor faces are Japanese characters and not damage?
Might be a week or so but when I get time I'll inspect all the parts to determine what version (if other than REW) the components came from.
One last question, am I correct in assuming the indents on the rotor faces are Japanese characters and not damage?
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,816
Received 2,586 Likes
on
1,837 Posts
conclusion? they needed to change the bit
