needspartsnow

iTrader: (10)

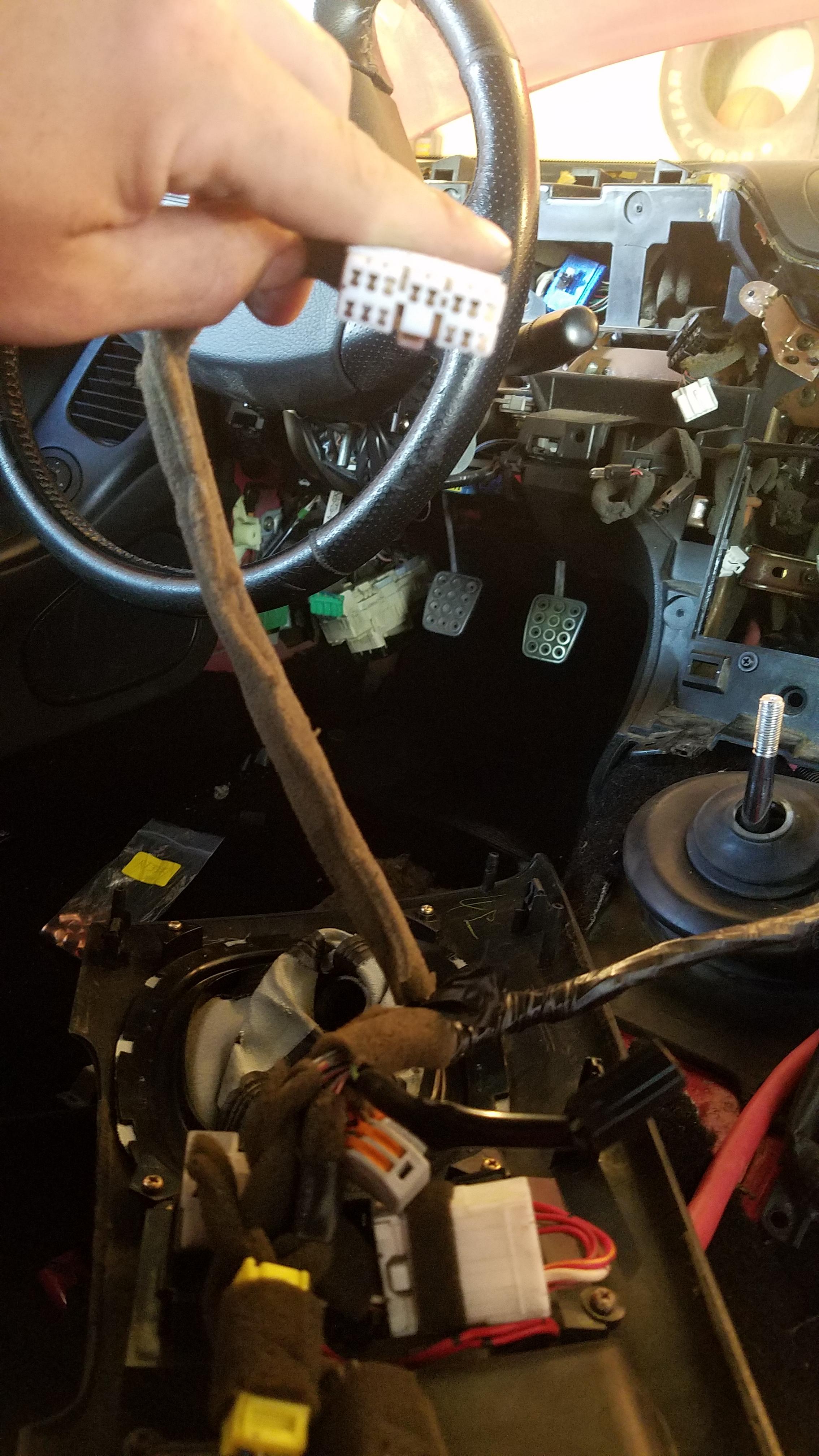

I'm trying to put the interior back together and can't figure out where this one goes. It's the harness under the center console, the longest reaching connector, it almost reaches the bins but I'm guessing it goes up towards the radio?

bajaman

Pretty sure it's the fog light switch.


Are 4 wires in the harness, a:
white
r/y
r/b
r/g
should be on one side of the plug.

needspartsnow

iTrader: (10)

Fog light switch is plugged in along with the other shorter connectors that go to the console switch panel. This one is longer with 9 wires going to it. Sorry for low quality pic.

needspartsnow

iTrader: (10)

Figured it out. Connector goes to this little amplifier.

bajaman

Ah! Part of the original Clarion system?

DaleClark

iTrader: (55)

Yep, that's for the center speaker amplifier. The non-Bose cars had it at the back of the center console tunnel.

Dale
