My FD3S Restoration - Questions & Advice Needed
#1
Back in the 7 life again
Thread Starter
My FD3S Restoration - Questions & Advice Needed
Well,
After almost a decade I am back into a FD. I purchased a 1993 BB from someone in Florida and am going to be getting the car up to snuff both inside and out.
To be clear, this is not build thread but going to be for questions that I have regarding the interior of the car.
The car came with 94 black plastics and Dave's (FD3Boost) alcantara interior which is a very good start. The only bad part is that it has that horrid caramel tan carpet in it. I already ordered new black carpet from Stock Interiors. I know its not the greatest but its mostly going to be covered by seats and mats so that isnt a big deal.
As I am getting the car apart, I am noticing that there a lot of small missing things that are not there due to the previous owner rushing to get the car back together before being shipped to me.
#1 - It is missing the rear speaker brackets. Already trying to source these and have new Rockford 6x8s on their way
#2 - The trunks is bare aside from the plastics. What pieces am I going to need to get the trunk area back to stock looking condition? Already have a carpet ordered
#3 - Aside from the bolts on the rear bins, the quarter panel plastics are all missing their screws. What screws should I be using for these?
More questions to come as I get through this build.
Thanks!
After almost a decade I am back into a FD. I purchased a 1993 BB from someone in Florida and am going to be getting the car up to snuff both inside and out.
To be clear, this is not build thread but going to be for questions that I have regarding the interior of the car.
The car came with 94 black plastics and Dave's (FD3Boost) alcantara interior which is a very good start. The only bad part is that it has that horrid caramel tan carpet in it. I already ordered new black carpet from Stock Interiors. I know its not the greatest but its mostly going to be covered by seats and mats so that isnt a big deal.
As I am getting the car apart, I am noticing that there a lot of small missing things that are not there due to the previous owner rushing to get the car back together before being shipped to me.
#1 - It is missing the rear speaker brackets. Already trying to source these and have new Rockford 6x8s on their way
#2 - The trunks is bare aside from the plastics. What pieces am I going to need to get the trunk area back to stock looking condition? Already have a carpet ordered
#3 - Aside from the bolts on the rear bins, the quarter panel plastics are all missing their screws. What screws should I be using for these?
More questions to come as I get through this build.
Thanks!
#5
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,847
Received 2,606 Likes
on
1,849 Posts
you should go google for the parts catalog. there is a learning curve to getting to know it, but once you do, it does tell you exactly what needs to be where.
i am in the early stages of making a Mazda to part number to bolt size (and plating), list, but suffice to say the interior screws are mostly the same type. Mazda does sell all the hardware, but its expensive, for interior screws your best bet is any Mazda in the junkyard, as they basically use the same hardware on every Japanese built car
i am in the early stages of making a Mazda to part number to bolt size (and plating), list, but suffice to say the interior screws are mostly the same type. Mazda does sell all the hardware, but its expensive, for interior screws your best bet is any Mazda in the junkyard, as they basically use the same hardware on every Japanese built car
#6
Back in the 7 life again
Thread Starter
Ive tried to search for various area part diagrams but its been tough to find. I was able to track down the rear speaker brackets and they should be on their way. Got new 6x8 on order as well.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,847
Received 2,606 Likes
on
1,849 Posts
Ive tried to search for various area part diagrams but its been tough to find. I was able to track down the rear speaker brackets and they should be on their way. Got new 6x8 on order as well.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
all the books we know about are up there
Trending Topics
#8
SEMI-PRO
iTrader: (2)
Ive tried to search for various area part diagrams but its been tough to find. I was able to track down the rear speaker brackets and they should be on their way. Got new 6x8 on order as well.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
As far as a junk yard, Id almost rather get new as the time/effort to get out there, pull the screws/bolts etc it would end up costing the same relatively.
I have changed out a carpet and it means completely removing the interior including the dash. Be careful not to break tabs on the plastics. There is a learning curve to this. I recommend taking your time, having plenty of room to work so you aren't stepping on parts you have already taken off.
When you pull the dash you will need to support the steering column. You can use an upside down bucket or something. I think I tied mine with rope up through the sunroof and inside the drivers window.
The heater core is tricky. You can probably rip the old carpet out or cut around the heater core as you won't see it when the dash is back in. The new carpet is difficult to get under the heater core anyway so trim it as needed.
I've done what you are doing. I rate it as moderate to difficult.
When putting everything back you may want to pick up new clips and fasteners that you break, lose, are missing. This way the interior won't rattle and drive you crazy.
Cheaper getting here than at Mazda.
Mazda Clips And Fasteners
#9
Back in the 7 life again
Thread Starter
Interior is actually back together now with new speakers and new wires. Im now trying to find the horn wire as apparently someone had put in an aftermarket wheel at some point and the entire green/red wire is missing from under the steering column.
#11
Back in the 7 life again
Thread Starter
Havent gotten everything hooked up with the stereo yet. The engine build is coming back soon so Ive moved on to getting prepped for that. The plan is to work the small stuff out like stereo while waiting on bigger stuff to come in.
#13
Back in the 7 life again
Thread Starter
Its not bad considering its mostly covered up. It is not a direct drop in as you will need to trim it to get it to fit perfect. I didnt mind this considering the car is down for restoration anyway. What i did is pulled the old carpet and did a rough trim to get it roughly in the same shape as the origional carpet and then did find trimming when it was in the car. So far I am happy with it and will see how it further settles in as it spends more time contouring to the interior.
#15
Back in the 7 life again
Thread Starter
Its a dark garage with an all black interior. Im not trying to win any photography classes right now.
If anyone wants to follow the whole build, I created a page on Facebook rather than update 5 different forums - https://www.facebook.com/BlackbirdRX7/
If anyone wants to follow the whole build, I created a page on Facebook rather than update 5 different forums - https://www.facebook.com/BlackbirdRX7/
#17
Back in the 7 life again
Thread Starter
#18
Senior Member

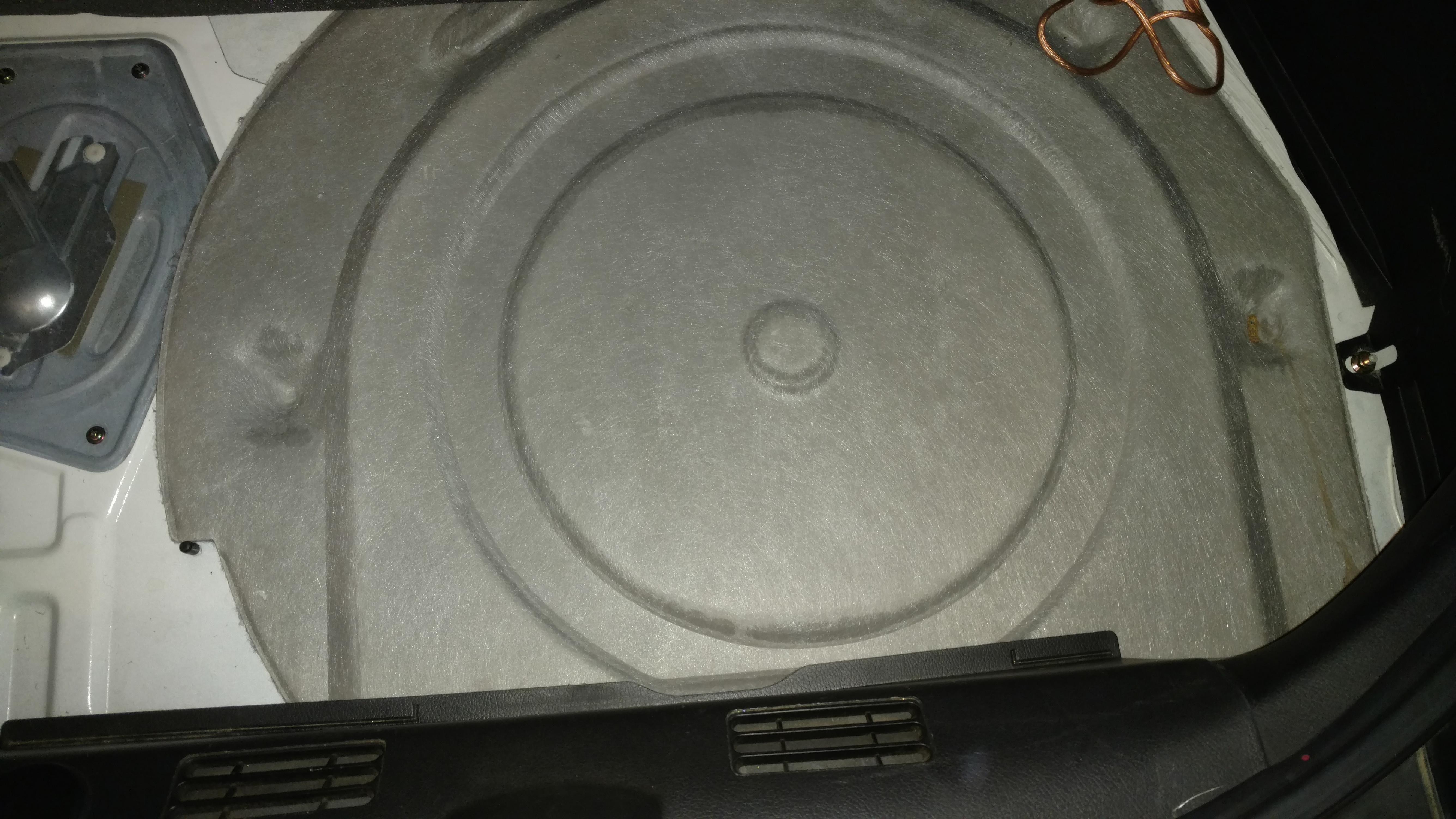

It's a pretty dorky piece--it just sits there without being mounted to anything. :P
For the screws, if you call a dealership they should be able to help you out--I was missing a screw for the headlight surround and they found the proper part number for me. $1.30 for a screw. Nice.
For the screws, if you call a dealership they should be able to help you out--I was missing a screw for the headlight surround and they found the proper part number for me. $1.30 for a screw. Nice.
#19
Junior Member
iTrader: (1)
Its not bad considering its mostly covered up. It is not a direct drop in as you will need to trim it to get it to fit perfect. I didnt mind this considering the car is down for restoration anyway. What i did is pulled the old carpet and did a rough trim to get it roughly in the same shape as the origional carpet and then did find trimming when it was in the car. So far I am happy with it and will see how it further settles in as it spends more time contouring to the interior.
