feed rear fender install? rivnuts...

what rivnut or nutsert size and bolt size are you using to mount the rear feed fender?

thanks !

Reply Like

08-23-16, 07:34 PM

MILOS7

Rotary Enthusiast

Thread Starter

iTrader: (3)

Join Date: Oct 2008

Location: los angeles

Posts: 761

Likes: 20

Received 22 Likes on 10 Posts

bump

Reply Like

09-26-16, 02:25 PM

cr-rex

half ass 2 or whole ass 1

iTrader: (114)

Join Date: Nov 2011

Location: okinawa to tampa

Posts: 3,425

Likes: 89

Received 480 Likes on 350 Posts

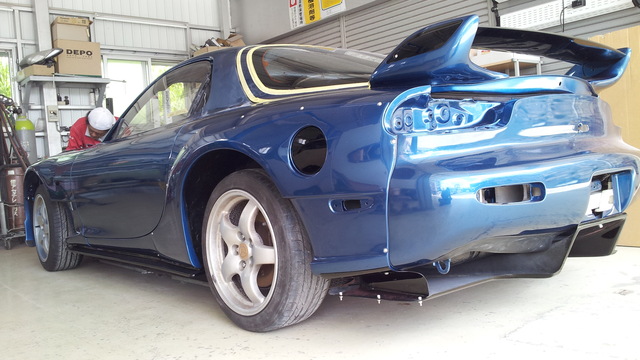

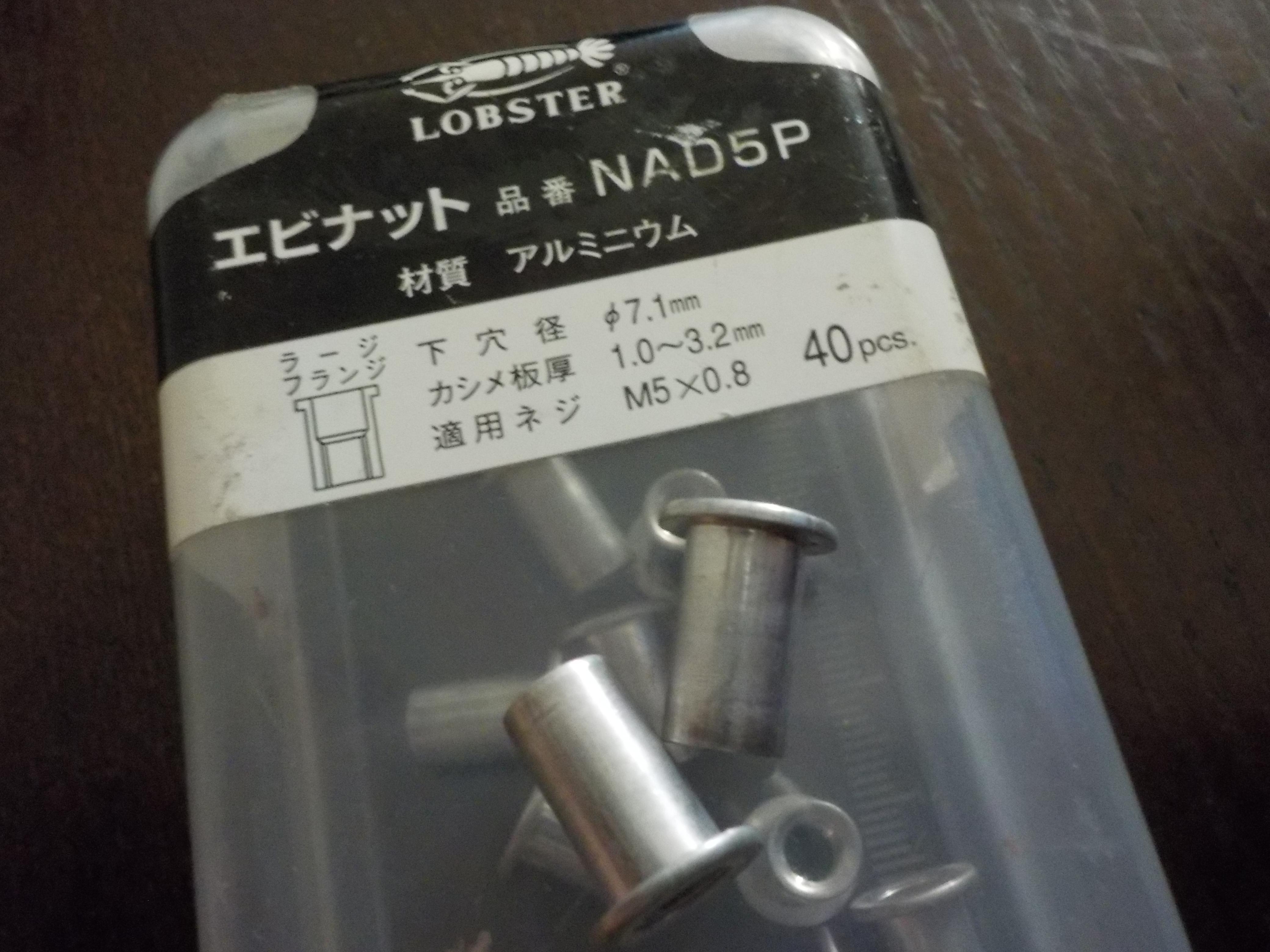

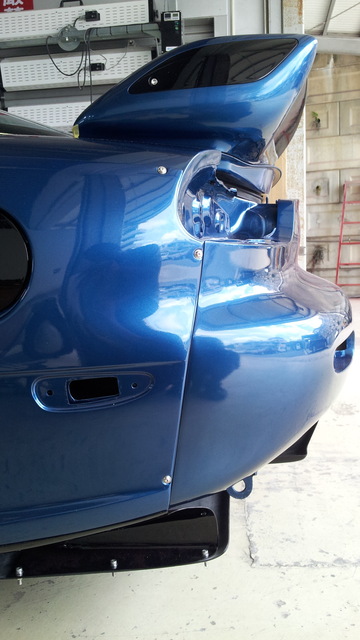

definitely late with this but this is what i used. its a perfect fit. i also used washers under the heads of the allen bolts

Name: 20150701_134125_zpsdqkrqxwf.jpg
Views: 874
Size: 108.9 KB

Name: 20150701_134206_zpsewnhtgrv.jpg
Views: 1336
Size: 125.1 KB

Name: 20150629_110857_zpszgn0wdz7.jpg
Views: 985
Size: 117.5 KB

Attached Thumbnails

feed rear fender install? rivnuts...-dscn2998.jpg

Last edited by cr-rex; 09-26-16 at 02:28 PM.

Reply Like

12-30-18, 02:30 AM

MILOS7

Rotary Enthusiast

Thread Starter

iTrader: (3)

Join Date: Oct 2008

Location: los angeles

Posts: 761

Likes: 20

Received 22 Likes on 10 Posts

2 years later ... thanks!

Reply Like

12-30-18, 02:37 AM

cr-rex

half ass 2 or whole ass 1

iTrader: (114)

Join Date: Nov 2011

Location: okinawa to tampa

Posts: 3,425

Likes: 89

Received 480 Likes on 350 Posts

Ayyyyyyyyy

Reply Like

12-31-18, 01:25 AM

Narfle

Rx7 Wagon

iTrader: (16)

Join Date: Nov 2002

Location: California

Posts: 6,988

Likes: 725

Received 875 Likes on 548 Posts

Some recommend to use wellnuts, not rivnuts. They use rubber or similar, and seal better. It prevents water from entering the unibody, and rattling.

Reply Like

12-31-18, 12:00 PM

cr-rex

half ass 2 or whole ass 1

iTrader: (114)

Join Date: Nov 2011

Location: okinawa to tampa

Posts: 3,425

Likes: 89

Received 480 Likes on 350 Posts

I'm 3 years in with mine with no water intrusion and none have loosened

Reply Like

Trending Topics

Fuel out of the bowl vent

15

191
WTB RHD hvac control for FD

12

155
Free Farm Find

12

313
RX-7 FD Registry Is Live and Launched!

35

3.4k
Best First Mods for a Stock FD

7

176

12-31-18, 12:51 PM

Mrmatt3465

Lousy Crew Chief

iTrader: (10)

Join Date: Feb 2010

Location: Sacramento, Ca

Posts: 1,090

Likes: 1

Received 99 Likes on 56 Posts

Narfle has probably seen that YouTube build with the rocket bunny kit and is referencing that. That was kind of disastrous and the next owner ended up drilling out all the rivnuts and using well nuts.

Matt

Reply Like

12-31-18, 01:50 PM

cr-rex

half ass 2 or whole ass 1

iTrader: (114)

Join Date: Nov 2011

Location: okinawa to tampa

Posts: 3,425

Likes: 89

Received 480 Likes on 350 Posts

B is for botched.......... goodness.

Reply Like

06-24-19, 10:25 AM

#10

fzkhan7

Senior Member

iTrader: (5)

Join Date: Apr 2015

Location: Karachi, Pakistan

Posts: 363

Likes: 4

Received 64 Likes on 42 Posts

bump! anything in black I can use?

I got self-tapping screws with the FEED kit. :'(

Reply Like

06-24-19, 11:08 AM

#11

AE_Racer

Rotary Freak

iTrader: (1)

Join Date: Jul 2001

Location: JAX, FL

Posts: 1,972

Likes: 78

Received 147 Likes on 118 Posts

On my S2000, I used M5 rivnuts. You wont see the rivnuts with the over fender installed, so just get some black bolts.

Reply Like
